2007 Tail light removal instructions

[msoengineer]

Long story short the top layer lens cracked on my left tail light. You can't replace just the lens it's all one complete assembly as others have mentioned in other posts.

I decided to take a few pictures to help out others.

Tools you will need-
1-10mm 2" long socket and wrench plus 3" extension
2- Smaller width flat blade screw driver.
3- Strong fingers
4-Gentle Touch

Steps to reach tail light assembly (mine was the driver side tail light).
1-Fold Down the rear seats
2-Remove the privacy trunk blind bar

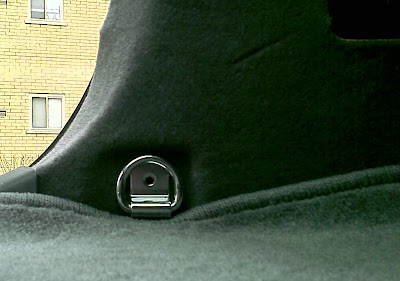

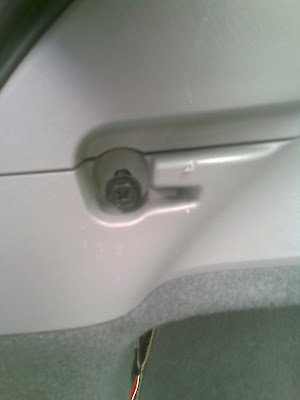

3-Remove three seperate 10mm bolts as shown in pictures:

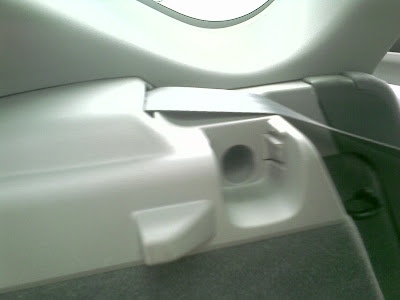

Pull the silver toggle out once you pull the bolt

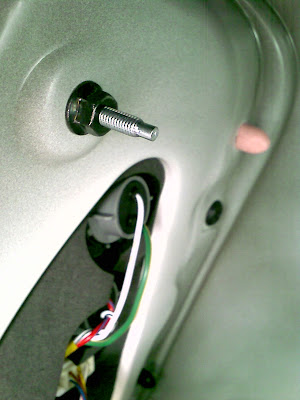

Inside that hole is a super long bolt-Use the wrench extension here

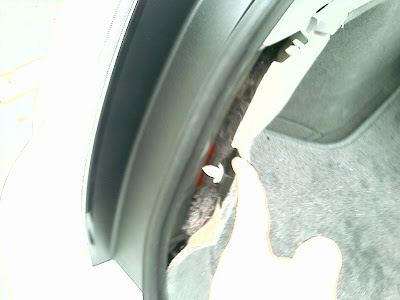

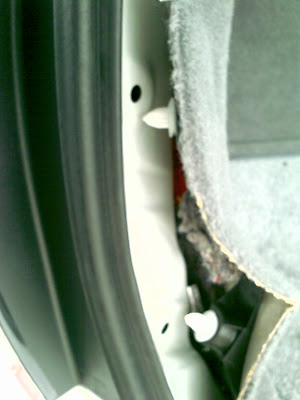

4-Pull the trim away from the car to expose the hidden retention clips and pull out the clips:

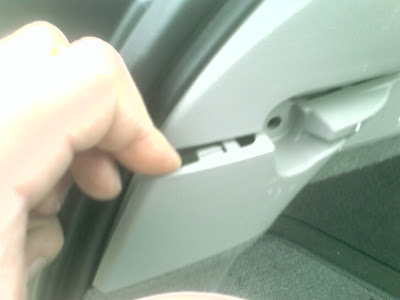

5- Pull the plastic trim apart:
5a- Start in the back

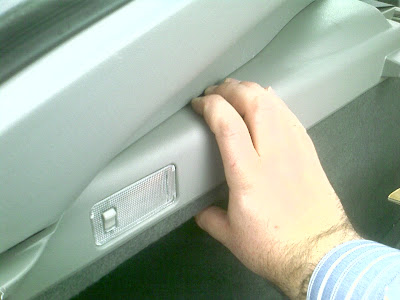

5b- Pull down and out in the middle:



5c- Pull back, down and out at this area. I grabbed where the shade slides into- this will require extra force:

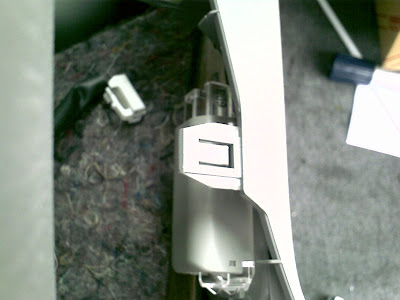

6-Remove the trunk light wiring clip:

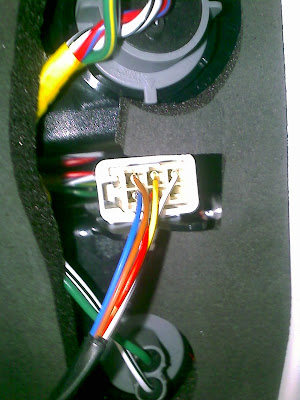

7-Un-clip the tail light harness using a small width flat head:


8- now that everything has been separated from the wall you can pull/push the carpeting away from the tail light assembly and remove the two bolts for the tail light using the 2" long 10mm socket:

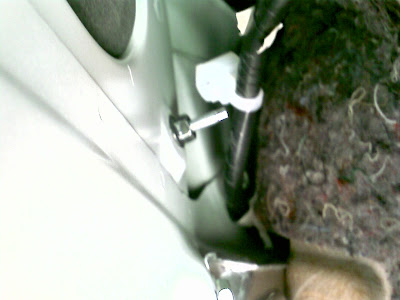

Bottom Bolt


Top Bolt


Tada- now just push the assembly out from the inside and put the the new one in place.

Follow the steps in reverse to put it all back together.

Remember to be gentle yet firm when you pull all this stuff apart. I've pulled off trim in the past and it takes some finesse and skill to not break stuff.

This should be a 15 minute job to do .
It cost me $165.00 to get a replacement assembly from my buddies auto body shop.

I used my cell phone to take these pictures so I apologize if they may be poor quality

Feel free to PM me with any questions/issues.

Tom
