Add usb charging ports

Discussion in 'Gen 3 Prius Accessories and Modifications' started by Huan, Jul 6, 2013.

  1. Huan

    Huan New Member

    Joined:
    May 29, 2013
    10
    5
    0
    Vehicle:
    2013 Prius
    Model:
    Two

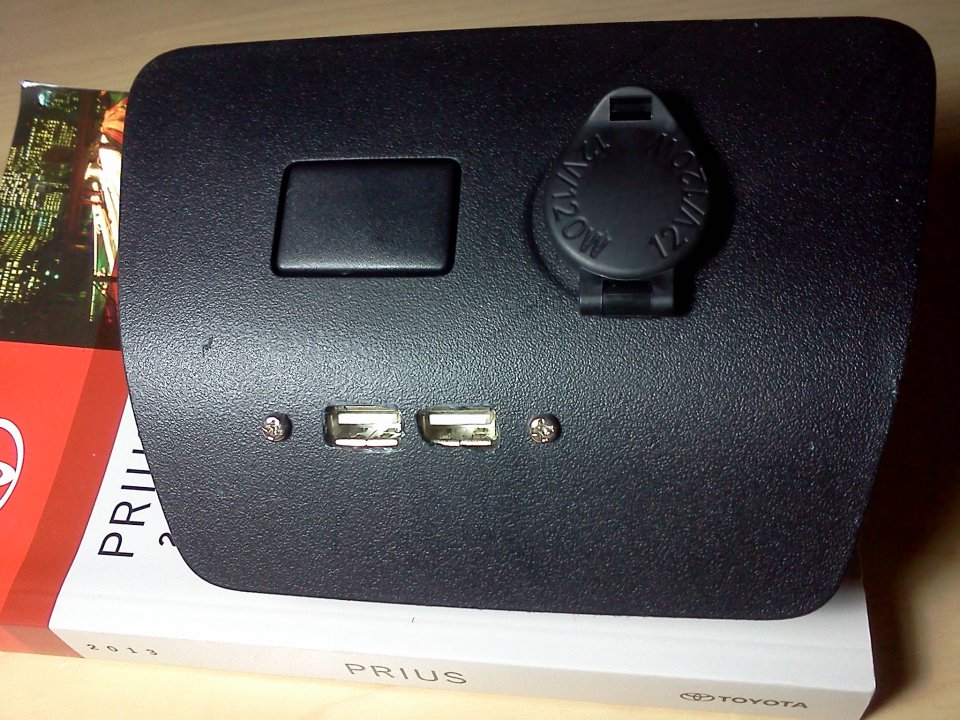

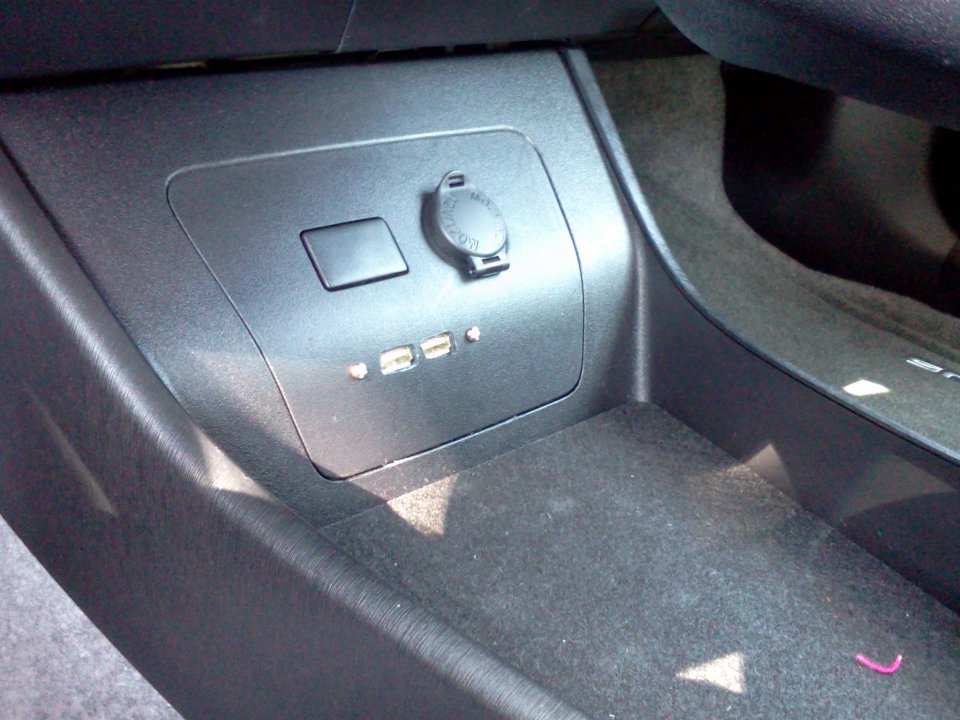

    I have recently added two usb ports on my new Prius 2013. Here are some pictures.

    first, take out the plate. the trick is to insert a plastic card into the bottom seam and pry.

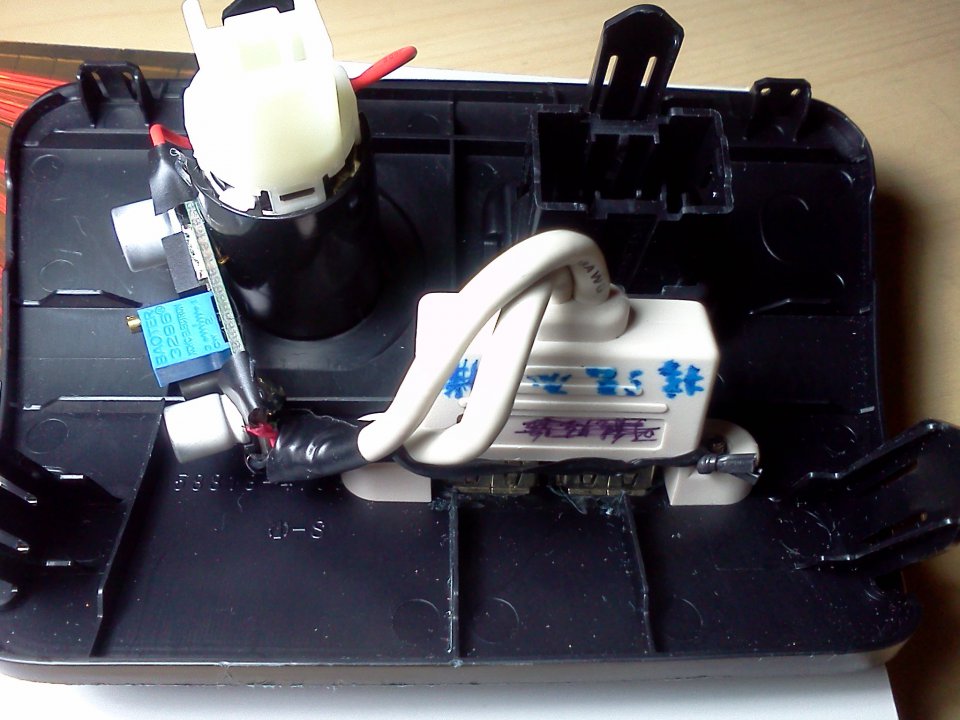

    then I found a old USB bracket for computer. there were two mounting screws. drill holes using the metal USB bracket as template.

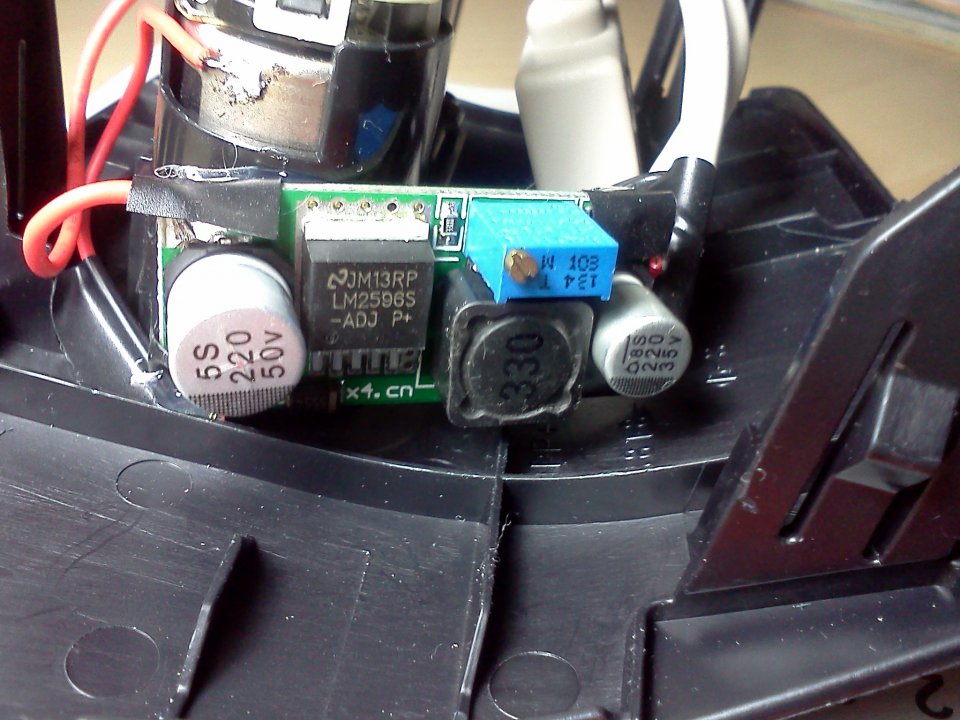

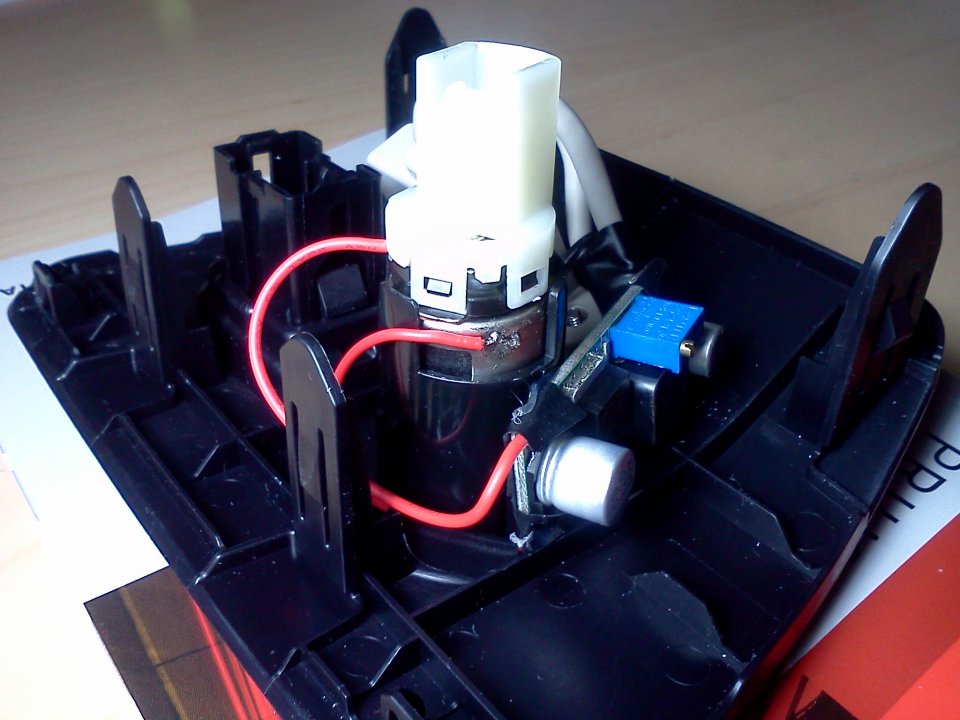

    I got a DC-DC LM2596 converter from eBay, ~$2. solder the usb wire (red to positive, black to negative/ground) to the output pads of the converter. then solder two wires to connect to the 12V adapter. I use solder the negative/ground to the outside shell of the adapter. Then adjust the voltage to 5.1V.

    It works fine. the things need improving are my Dremel skills, it should look better. The wire on USB bracket has very small gauge, maybe less than #22. If you can find one with larger gauge, it will supply better current for charging. LM-2596 supports up to 2A without heat sink.


    Attached Files:

    szgabor, genetiix and WE0H like this.
  2. came_to_party

    came_to_party Junior Member

    Joined:
    Jun 3, 2013
    48
    10
    0
    Vehicle:
    2013 Prius
    Model:
    Four
  3. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,842
    3,099
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Why not just get an adapter that plugs into the power port? Some even have a usb port on them.

  4. attyjeff

    attyjeff Member

    Joined:
    Dec 28, 2012
    153
    40
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    Good job. You have me thinking now

  5. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,842
    3,099
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
  6. U2NVME64

    U2NVME64 Junior Member

    Joined:
    May 12, 2013
    77
    25
    0
    Vehicle:
    2013 Prius
    Model:
    Two
    Impressive work! Change to black screws and you can do mine ;)

  7. RRxing

    RRxing Senior Member

    Joined:
    Jul 7, 2009
    2,516
    1,789
    0
    Location:
    NEPA
    Vehicle:
    Other Hybrid
    Model:
    Limited

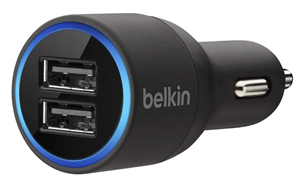

    I just plugged one of these in...


  8. frodoz737

    frodoz737 Top Wrench

    Joined:
    Aug 26, 2010
    4,297
    2,347
    33
    Location:
    Texas
    Vehicle:
    2015 Prius
    Model:
    Four

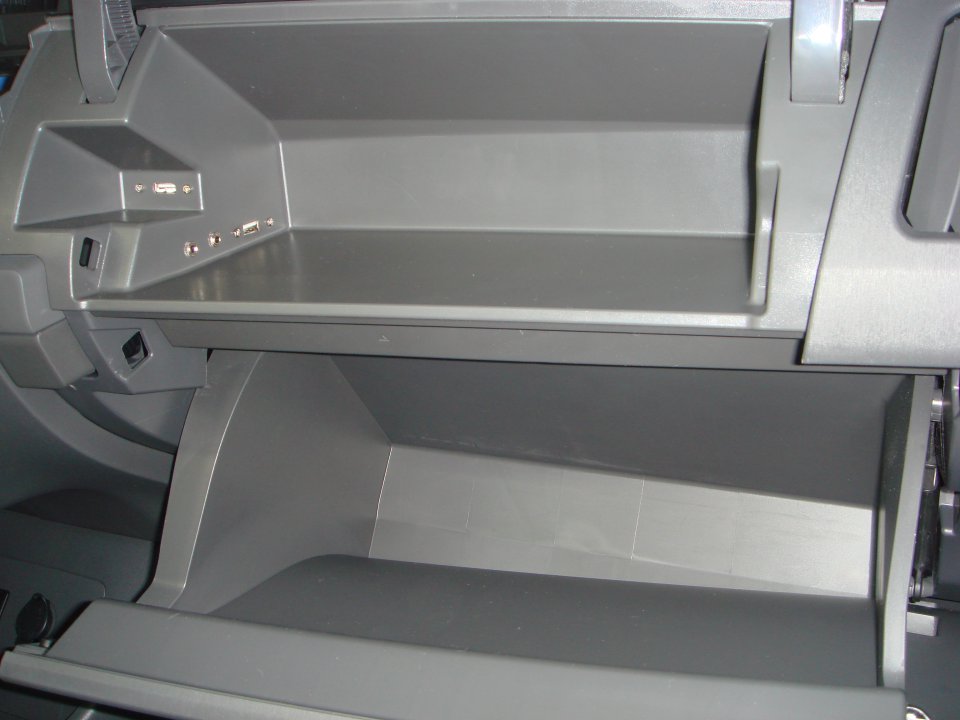

    Same idea, just different location and purpose. For charging I use a lighter plug adapter like above.


    Attached Files:

  9. WE0H

    WE0H Senior Member

    Joined:
    Mar 25, 2010
    3,247
    527
    0
    Location:
    Minnesota
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    I like the option of having a high current USB port to charge a smart phone and leave the accessory jack for the GPS or fridge or inverter for the wife's laptop :)

    Mike

    Huan likes this.
  10. ucsmfu

    ucsmfu Senior Member

    Joined:
    Sep 21, 2011
    1,498
    420
    0
    Location:
    canada
    Vehicle:
    2010 Prius
    Model:
    V
  11. Huan

    Huan New Member

    Joined:
    May 29, 2013
    10
    5
    0
    Vehicle:
    2013 Prius
    Model:
    Two
    Why not just use a 12V adapter?
    The reason is just to save the 12V port to GPS or another phone...
    Most cheap adapter cannot support the current they claim they can do, like 1A. They generate a lot of heat under load as their efficiency is low. LM-2596 is a switch-type DC-DC converter, >85% efficiency, with over-current, over-heat, short-circuit protection.
    Another reason is my HP touchpad need 5.1V to be charged.

    WE0H and xliderider like this.
  12. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    222
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV
    I installed a USB port in the same place and using the same Buck Converter as Huan. But I had to built it to Apple specs.

    I hate Apple, but I love my son, and he likes Apple.

    So I got tired of all the power requirements for phones, gps, etc. So I gave my son his own 2A USB port built to Apple specifications. It was actually fairly easy.

    Since Apple has to be different it has a power checking circuit built in to its devices. The circuit uses the D+ and D- pins in the USB connector. It detects 2.8v on D- and 2v on D+ to get 1A charge. Or 2.8v on D+ and 2v on D- to get 2A charge. Anything different will only give the device 500mA charge. So I wired it with a voltage divider to get 2A charge.

    I hate Apple. The whole thing, DC-DC Buck Converter and resistors cost less than $6, usb female panel connector $6, and three Apple 5 clone USB power cables cost $9, totaling $21 worth of parts off ebay, delivered.

    Apple sucks!

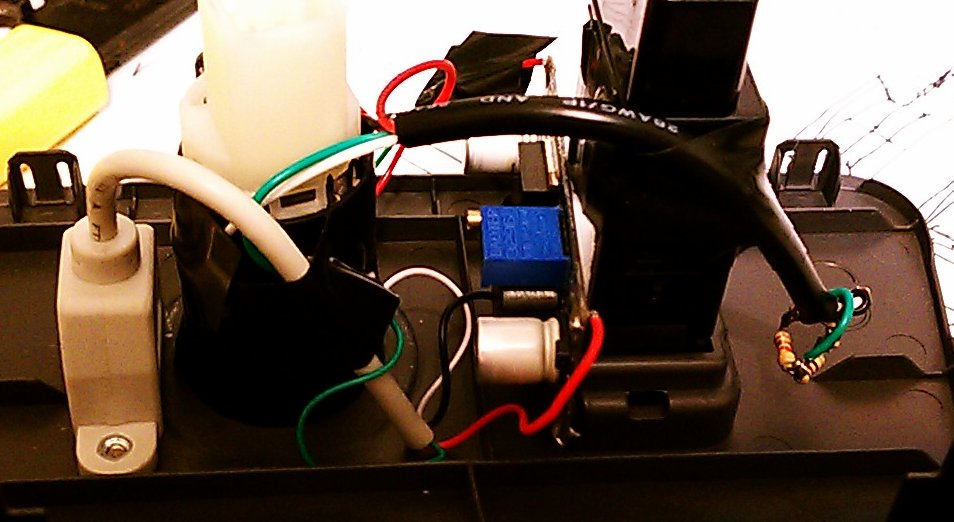

    DC-DC Buck Converter is the circuit board in the center with the blue voltage trimmer. The voltage divider made of four resistors is on the far right at the end of the black cable. USB port on left, 12v power supply next to it, and the black rectangular connector on the right are my seat warmer switches.


    WE0H likes this.
  13. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,842
    3,099
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Nice work Gliderman. (y)

    Yes, Apple sucks. I hate them too. :D

    How about posting a schematic of the circuit and a parts list? ;)

    SCH-I535

    WE0H likes this.
  14. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    699
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    can you post the divider network diagram and values, please?

  15. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    222
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV

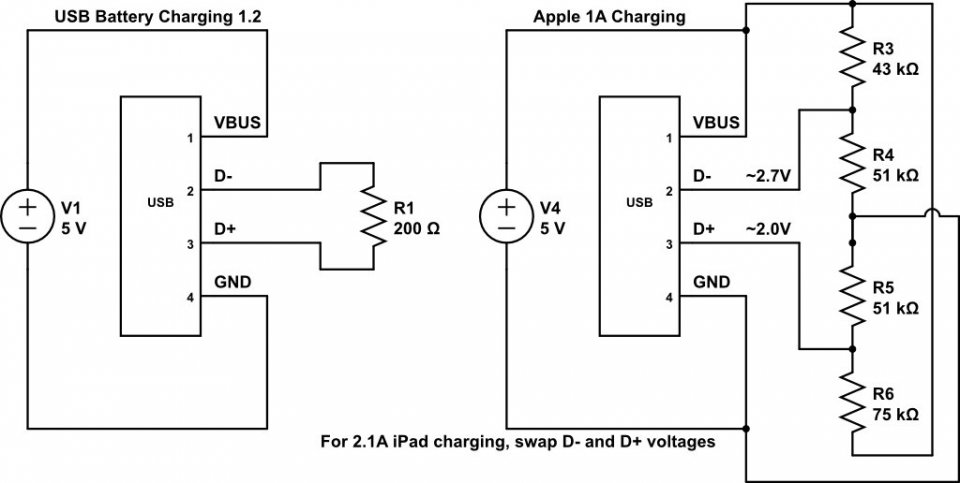

    Here is a diagram of the USB charger and parts list:

    Female USB Panel connector
    51k Resistor x2
    75k Resistor
    43k Resistor
    DC-DC Buck Converter trimmed to 5.2V

    Standard USB Charger is on left. APPLE spec USB Charger is on right.

    usb pinout for iphone.jpg

    Conundrum4000, xliderider and WE0H like this.
  16. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    699
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    Thank U!!!

  17. BreitrthnU

    BreitrthnU Can you smell the premix?

    Joined:
    Mar 24, 2012
    255
    50
    0
    Location:
    Tampa, FL
    Vehicle:
    2012 Prius
    Model:
    Three
    Heres two more cleaner options.


    Not necessarily the cheapest options though.

    mrbigh likes this.
  18. gliderman

    gliderman Active Member

    Joined:
    Aug 2, 2011
    751
    222
    0
    Location:
    Texas
    Vehicle:
    2010 Prius
    Model:
    IV

    Thanks for the link.

    Those are audio ports. I just wanted a charging port.

    They must be coming from Japan with those shipping prices. Otherwise shipping is a big ripoff.

    WE0H likes this.
