amp to use high input from back speakers, where is the wire?

Discussion in 'Gen 2 Prius Audio and Electronics' started by Zack DeMoss, Mar 9, 2014.

  1. Zack DeMoss

    Zack DeMoss New Member

    Joined:
    Mar 9, 2014
    2
    0
    0
    Vehicle:
    2004 Prius
    Model:
    N/A
    Hey all,

    After alot of reading I bit the bullet and bought a small powered amp for under the seat of my 2004 prius, the question is this:
    I want to splice into the back speakers into the high level input on the amp, but I cannot find where a good place to get to those wires would be, I do no have jbl or nav. I really dont want to take the door appart or the dash, as I always break clips. Most all threads I have read have been specific to jbl installs. Am I better to use the high lvl input on the Amp or use a speaker to rca conversation?

    Thoughts and help much appreciated.

  2. Zack DeMoss

    Zack DeMoss New Member

    Joined:
    Mar 9, 2014
    2
    0
    0
    Vehicle:
    2004 Prius
    Model:
    N/A
    Found this, does anyone know the paths these take to get to the rear speakers? That would be most helpful.

    Thx

    2004 Toyota Prius Stereo Wiring InformationRadio Battery Constant 12v+ Wire: Blue/YellowRadio Accessory Switched 12v+ Wire: GrayRadio Ground Wire: BrownRadio Illumination Wire: GreenLeft Front Speaker Positive Wire (+): PinkLeft Front Speaker Negative Wire (-): VioletRight Front Speaker Positive Wire (+): Light Green/WhiteRight Front Speaker Negative Wire (-): BlueLeft Rear Speaker Positive Wire (+): BlackLeft Rear Speaker Negative Wire (-): YellowRight Rear Speaker Positive Wire (+): RedRight Rear Speaker Negative Wire (-): White

  3. Britprius

    Britprius Senior Member

    Joined:
    Jun 14, 2010
    5,194
    1,910
    0
    Location:
    Herefordshire England
    Vehicle:
    2008 Prius

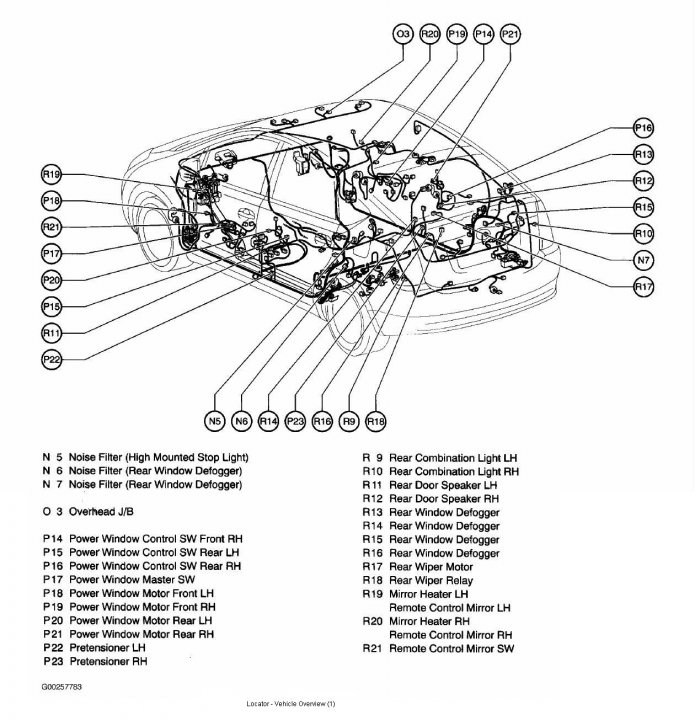

    The wires run along the inner sills under the plastic covers. See below.
    Locator - Vehicle Overview (1).JPG


    John (Britprius)
