Comparison: Plugin hybrid tailpipe and evaporative emission

Discussion in 'Prius, Hybrid, EV and Alt-Fuel News' started by usbseawolf2000, Feb 14, 2012.

  1. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    A comparison of three available plugin hybrids, namely Prius PHV, Volt and Fisker Karma.

    Exhaust Emission

    [​IMG]

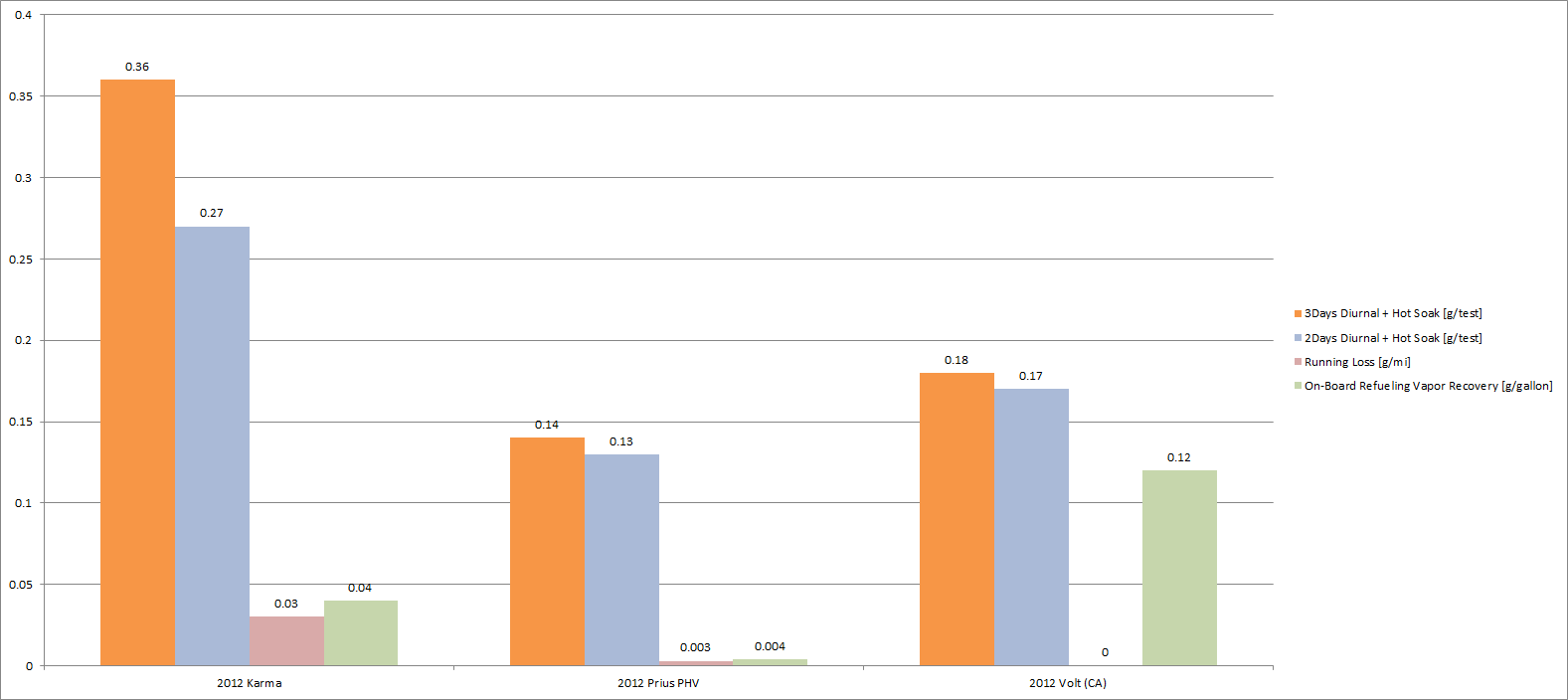

    Evaporative Emission

    [​IMG]

    Here is the comparison of 2012 Volt that would only be sold in California (for HOV lane access) versus the standard model that would be sold outside California.

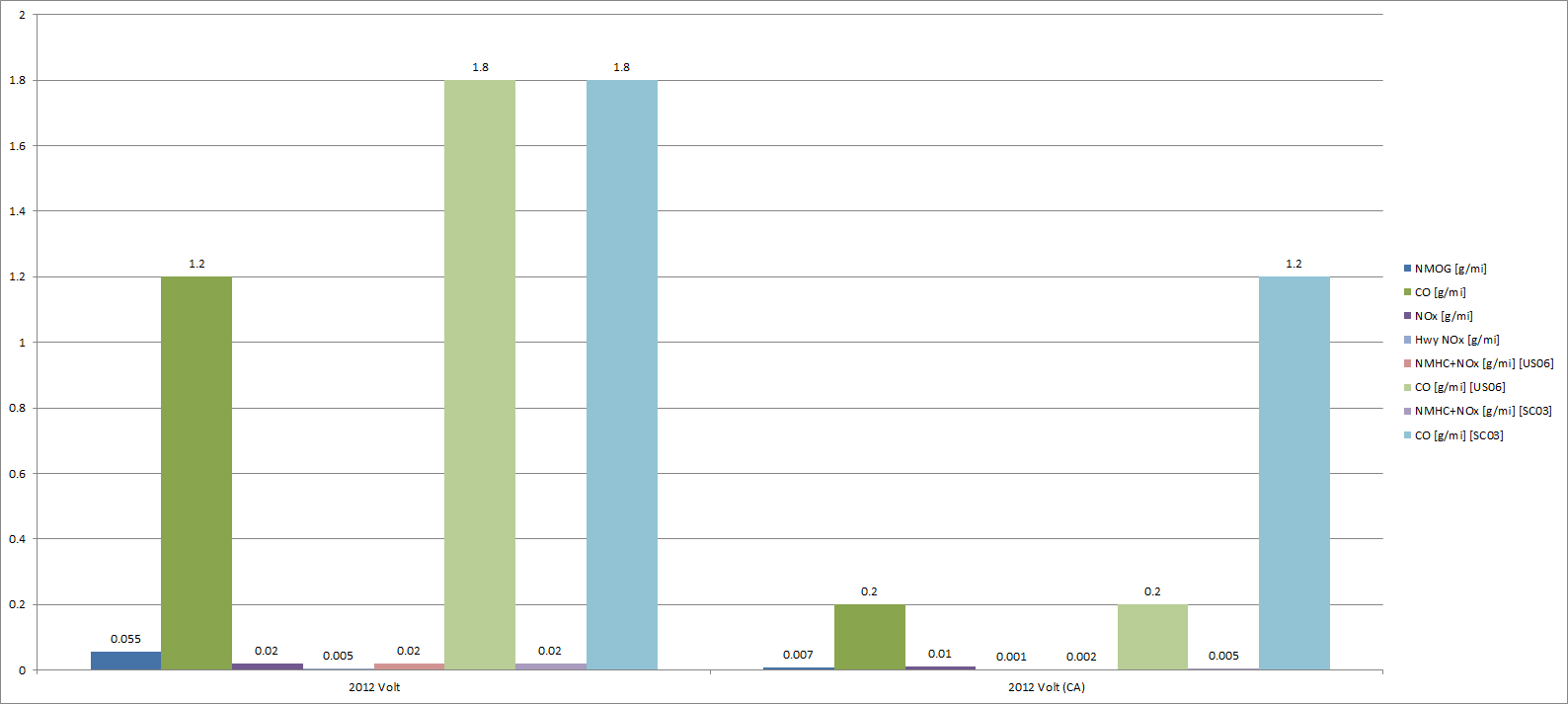

    2012 Volt ULEV vs. SULEV (Exhaust Emission)

    [​IMG]

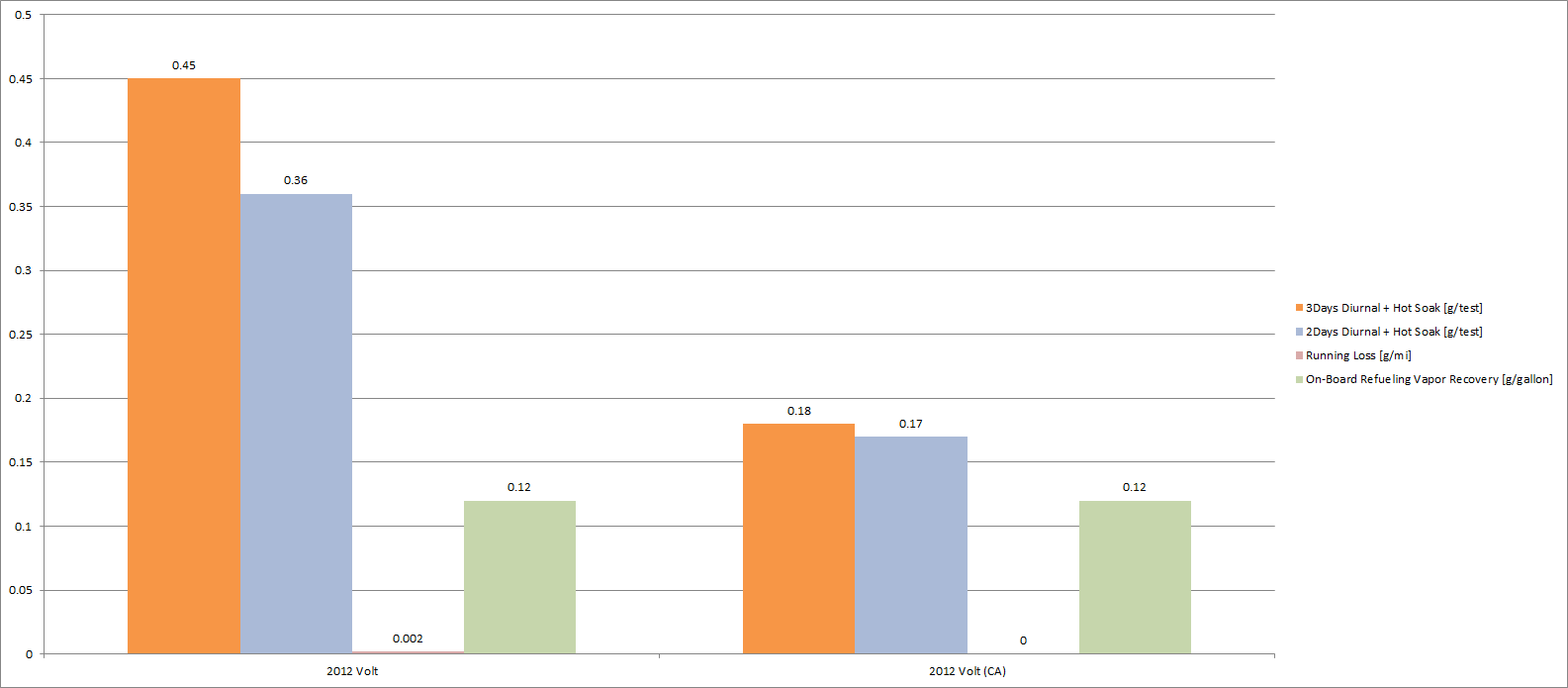

    2012 Volt ULEV vs. SULEV (Evaporative Emission)

    [​IMG]


    Attached Files:

    1 person likes this.
  2. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    I feel like you are hiding how bad the 49 state Volt really is by never comparing it to the Prius and the Karma. But maybe you were avoiding kicking them while they were down.

  3. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    The last two charts show the two Volt emission difference. Yea, it'll be nice to see all in one. Any other cars you want me to throw in? Perhaps, no-plug hybrids?

  4. austingreen

    austingreen Senior Member

    Joined:
    Nov 3, 2009
    13,525
    4,057
    0
    Location:
    Austin, TX, USA
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    how about a normal small car like fiat 500.

  5. fotomoto

    fotomoto Senior Member

    Joined:
    Apr 22, 2009
    5,596
    3,770
    0
    Location:
    So. Texas
    Vehicle:
    Other Hybrid
    How about the best selling car (camry?) and truck.

  6. Jeff N

    Jeff N The answer is 0042

    Joined:
    Oct 23, 2010
    2,382
    1,304
    0
    Location:
    California, USA
    Vehicle:
    2011 Chevy Volt
    How about the CA SULEV Prius versus the ULEV Prius sold in other parts of the U.S.?

  7. Jeff N

    Jeff N The answer is 0042

    Joined:
    Oct 23, 2010
    2,382
    1,304
    0
    Location:
    California, USA
    Vehicle:
    2011 Chevy Volt
    Interesting charts. Thanks for making them!

    Can you post links to the underlying emission tests results?

    One thing to keep in mind about the evaporative emissions is that the present diurnal tests include a "hot soak" meaning that the gas engine is run until hot and then a good chunk of the resulting emissions are due to the engine heat and emissions which escape from the exhaust system after the engine stops running.

    Now that we have PHEVs like the PiP and Volt they really need a separate set of diurnal tests which do not include a hot soak in order to measure diurnal evaporative emissions on days when the car is run entirely on battery.

  8. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    There is no such ULEV Prius. I guess that means Toyota sell the same CA SULEV Prius in all 50 states. That is true for Prius c, v, plugin and Lexus hybrids. I have never seen ULEV cert for Toyota/Lexus hybrids.

    PDFs are attached in the first post. You want the URLs, is it?

  9. austingreen

    austingreen Senior Member

    Joined:
    Nov 3, 2009
    13,525
    4,057
    0
    Location:
    Austin, TX, USA
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    They are epa bin 3 in other states. We don't have warranty as part of our emissions levels test like CARB.:)

  10. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    telmo744 and giora like this.
  11. SlowTurd

    SlowTurd I LIKE PRIUS'S

    Joined:
    Aug 22, 2009
    1,156
    333
    0
    Location:
    nj
    Vehicle:
    2010 Prius
    Model:
    III
    can you throw in a 300lb woman farting on a bicycle?

  12. austingreen

    austingreen Senior Member

    Joined:
    Nov 3, 2009
    13,525
    4,057
    0
    Location:
    Austin, TX, USA
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    I've done the VO2Max test on the bike, but... they don't hook anything up to ummm.... the human tailpipe - just the mouth and nose. Can you find a fat woman to try it on?

  13. Jeff N

    Jeff N The answer is 0042

    Joined:
    Oct 23, 2010
    2,382
    1,304
    0
    Location:
    California, USA
    Vehicle:
    2011 Chevy Volt
    Okay, I see them now. I guess I overlooked them earlier. Thanks!

    So why does fueleconomy.gov list the Prius as having an emissions level of score 9 in California (PZEV) and 7 (bin 3) in Minnesota if the Prius has the same emissions in all 50 states?

    http://www.epa.gov/greenvehicles/summarychart.pdf

  14. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Use your imaginaion. It wouldn't pass the smell test ;)

  15. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    PZEV is a California standard, it does not apply to non-CARB states. It is less clear why Toyota did not go for a Bin 2 classification, perhaps they had no Bin 8 vehicles to offset?
