Crutchfield Powered Sub Install

Discussion in 'Prius c Audio and Electronics' started by otbiker, Mar 7, 2014.

  1. otbiker

    otbiker New Member

    Joined:
    Dec 28, 2013
    25
    14
    0
    Vehicle:
    2013 Prius c
    Model:
    Three

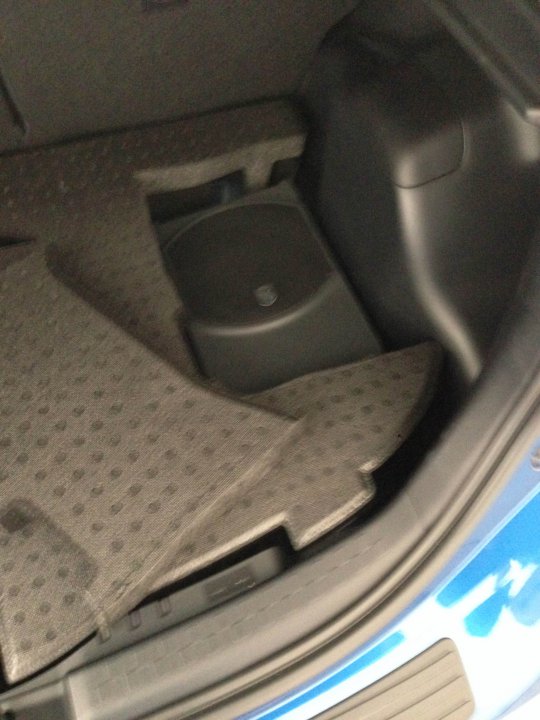

    I've had a couple of these lying around that I've used in cars with crappy sound systems. Unfortunately, the Prius C applies to this rule.

    I used a fused pigtail from the battery for main power. An "add a fuse" pigtail on the ACC fuse under the left hand dash for remote power, and right rear speaker lead for line level input. Note that there are two red & white pairs in the wiring loom at the passenger door. The speaker leads are the straight wires, not the twisted pair red & whites. I later discovered the twisted red & white was the smart key receiver for the hatch door. If you have a C1 or C2, you shouldn't encounter the second red & white pair.

    These powered subs do a great job of filling that low bass without blowing the stock door speakers.

    [​IMG]

    #1 otbiker, Mar 7, 2014
    rcortespr and koipond like this.
  2. otbiker

    otbiker New Member

    Joined:
    Dec 28, 2013
    25
    14
    0
    Vehicle:
    2013 Prius c
    Model:
    Three

    #2 otbiker, Mar 7, 2014
    Slolane and rcortespr like this.
  3. kingnba6

    kingnba6 Active Member

    Joined:
    Mar 17, 2013
    1,018
    242
    0
    Location:
    NY
    Vehicle:
    2013 Prius c
    Model:
    One
    nice and simple install.

    #3 kingnba6, Mar 7, 2014
  4. Jazzpiano

    Jazzpiano Junior Member

    Joined:
    Jan 1, 2014
    7
    0
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    Nice place for the sub. Is that the sound ordinance? Did you fasten the sub down in any way?

    #4 Jazzpiano, Mar 15, 2014
  5. otbiker

    otbiker New Member

    Joined:
    Dec 28, 2013
    25
    14
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    Yes, it is the SO. Not fastened down, just sitting on some rubber matting so it doesn't rattle. I cut the styrofoam about 1" larger, so it won't squeak, but won't move around. As a side note, you will need to stuff some foam rubber at the rear shock towers, as the plastic buzzed with the additional bass. Sounds great and can't be seen...

    #5 otbiker, Mar 15, 2014
  6. sph101

    sph101 Prius 4

    Joined:
    Apr 22, 2012
    156
    92
    32
    Location:
    Brevard, NC
    Vehicle:
    2018 Prius
    Model:
    Four


    What did you use to cut the styrofoam

    #6 sph101, Mar 15, 2014
  7. otbiker

    otbiker New Member

    Joined:
    Dec 28, 2013
    25
    14
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    Electric carving knife

    #7 otbiker, Mar 16, 2014
  8. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    That's a pretty good location. I have the same looking one under the passenger seat. Fits just right. Real tight.

    #8 B2FiNiTY, Mar 18, 2014
  9. Jazzpiano

    Jazzpiano Junior Member

    Joined:
    Jan 1, 2014
    7
    0
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    How does it sound, under the seat?

    #9 Jazzpiano, Mar 18, 2014
  10. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    Sounds good. Doesn't bother the passenger since it hardly vibrates much. It's a small sub/amp so it isn't going to rattle your windshield type of deal.

    #10 B2FiNiTY, Mar 19, 2014
  11. Jazzpiano

    Jazzpiano Junior Member

    Joined:
    Jan 1, 2014
    7
    0
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    The sound ordnance sub fits under the passenger seat?

    #11 Jazzpiano, Mar 19, 2014
  12. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    Yeah, I have the B-8PTD,

    Might be up for sale soon too.

    #12 B2FiNiTY, Mar 19, 2014
  13. Jazzpiano

    Jazzpiano Junior Member

    Joined:
    Jan 1, 2014
    7
    0
    0
    Vehicle:
    2013 Prius c
    Model:
    Three
    Is the sub not adequate ?

    #13 Jazzpiano, Mar 19, 2014
  14. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    It's perfect for my needs but I am selling my prius c along with all my other parts. *see signature* (shameless plug)

    #14 B2FiNiTY, Mar 19, 2014
  15. MikeInOrlando

    MikeInOrlando Junior Member

    Joined:
    Aug 24, 2014
    32
    4
    0
    Location:
    Orlando, FL
    Vehicle:
    2014 Prius
    Model:
    Three
    How would you describe the sound? If a car already has upgraded speakers and amp, would this make a noticeable difference? Is the bass boomy? Basically is this designed to put punch into a factory system or does it have clean tight sound? Thanks for your input and help.

    #15 MikeInOrlando, Sep 11, 2014
  16. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    The sound ordinance amp/sub I had definitely does not compare to a stand alone box with a 8/10/12 subwoofer. However, it does deliver a good enough punch that it is noticeable over the speakers.

    Basically it isn't going to rattle your rear view mirror but it will give you that extra umph if you want it.

    #16 B2FiNiTY, Sep 16, 2014
  17. Ronan

    Ronan Junior Member

    Joined:
    Nov 4, 2014
    28
    4
    0
    Location:
    Denver Co
    Vehicle:
    2014 Prius c
    Model:
    Four
    Nice, I just got a 2013 C4, but lacking low end pretty badly, was thinking a powered sub would be the way to go, something small, IF it can be hooked up without messing up what I perceive as "delicate" electronics that control the rest of the car.

    #17 Ronan, Nov 5, 2014
  18. SmoothRidr

    SmoothRidr New Member

    Joined:
    Dec 24, 2014
    6
    2
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2012 Prius c
    Model:
    Two
    Looks like a great little boost to the bottom end! I like it!

    #18 SmoothRidr, Dec 29, 2014
