    I have a custom Enginer system that I bought from Jack over a year ago. After three bad 3kW converters, I think the system is now finally stable. At one point I was SO FRUSTRATED :confused: with the poor component quality that I placed it up F/S on PC, luckily no one purchase it.

    My current PHEV spec consist of the following at the moment.
    - Enginer Enclosure, breaker, dash switch and mounting
    - Enginer 5kW 48V-240 DC-DC Inverters
    - 90Ah Thundersky LYP90AHA batteries (16x)
    - Modified ePowerCity 1000 Watt LiFePO4 charger (modified cutoff at 56.5V cutoff)
    - Cellog 8M (4x) configured for <2.8V & >3.8V alarm
    - Absolutely NO BMS
    :boom:

    Standard Prius Eco-Range Accessories
    - Scanguage
    - Coastal EV Switch
    - Grill block (100% upper / 50% lower)


    [IMG]
    My typical daily commute is ~ 16 miles each way in Silicon Valley. 40% City & 60% Highway.
    Fuel economy can change as much as 10% based on the time of day due to traffic and driving style.

    === W/o Kit performance ===
    Summer 50-55 mpg with 87 octane
    Winter 43-49 mpg with 87 octane w/o grill block

    === 5kW Kit ON 1st tank performance ===
    Winter 52 mpg with 87 octane w/o grill block

    I received two "upgrade" 5kW converter from Jack that were pickup thru 3Prong (Berkley, CA). The first unit was not able to charge my TB pass 56% SOC :mad2:, while the second was only able to charge up to 60% SOC. I believed this was done on purpose to minimize the failure rate of the component as the original 3kW unit was able to charge pass 70% SOC. Unfortunately this also dampen the purpose of PHEV :doh:. With so little headroom the Enginer kit only improved my mpg by a measly 3 mpg. I was PISSED!

    After bugging Jack for the pot functionality for a week, I finally got the instruction. I adjusted my voltage cutoff to 243V and was able to charge up to 70-75 SOC.

    Finally I was able to achieved part of the promissed of PHEV :amen:

    [IMG]

    === 5kW Kit ON performance ===
    Winter 82 mpg with 87 octane with grill block
    Best 100 miles performance is 120 mpg


    Average speed:
    Scanguage 22 mph
    City speed target 33mph and 41mph.
    Non traffic highway speed is target of 65 mph
    Light traffic highway speed target of 33mph and 41mph
    Heavy traffic highway speed is < 32mph

    By changing when I go to work by 1 hour, my fuel economy changes shot up to 99.9+ mpg. My driving style have also been adjusted to maximize my mpg. This is what I did.

    0. Charge up the traction battery to 70-73% before any trip. Since the area is pretty flat I won't don't have the risk of the Triangle of Death.
    1. Maximize EV mode AMAP with speed <34 mph. I try to maintain 33 mph with < 15A draw.
    2. If traffic speed is too quick, then I would step it up a not and maintain 41 mph with pulse and glide.
    3. Light traffic highway speed I would try to maintain Warp Stealth at 50-52 mph

    Using my Coastal EV and Scanguage with constant monitoring, I'm always force EV immmediately when speed drop < 34mph & upcoming traffic congestion ahead.



    I'm happy with the current setup. It's fun trying to fillup once every 3 week. Especially with my work subsidizing for daily 4kWh charge (~ $0.80/day)

    With that said, I can not recommend this to ... say my wife for daily commute. There are just too many factors to monitor to make things goes smoothly, assuming no component failure.

    In term of financial investment by making it PHEV and 100% of the electricity is being subsized by my employer, I'm saving $8/week. My kit costs me $3700 (w/o tax credit) so it will take about 9 years to recoupe the cost at $3.25/gal Is it worth it? Financially probably not, but being able to drive 100 mpg and smirk at SUV, now that's $PRICELESS$ Don't feel too sorry for my mpg as my weekend drive only gets 15 mpg on it's 2900 lbs chasis.
  2. Offline

    JonnyD New Member

    Member Since:
    Jan 19, 2010
    Posts:
    20
    Likes Received:
    6
    Location:
    NorCAL
    Your Vehicle Year:
    2008 Prius
    Model:
    III
    Many of us would love to have Toyota's 2012 PHEV Prius, PIC, or Hymotion PHEV system.
    Unfortunately they are cost prohibitive so that's why we bought the Enginer System.


    I will use this post to document my system modification, modification logic, and instructional guide of how to make the best of what we have without spending the big $$$ that we're saving for a Tesla Roadster.

    The Enginer's system is a very simple yet brilliant idea concocted by Jack Chen. This basically uses an external battery pack and a DC/DC charger to maintain the stock battery pack at "optimum" state of charge. With such a simple system, it amazed me that "no one in the 10 yrs history of Prius have done it before". Like all things the devil is in the details, I guess!


    === Section #1 - DC/DC Converter ===
    This is the heart and soul of the entire system. A DC/DC converter basically changes the 48VDC voltage to 240VDC to charge your traction battery. Ideally this should have feedback from the CAN bus to monitor the SOC of the battery, and should be stage charger. However that would add significant cost to this cost effective system.

    Couple things you need to know:
    1. This unit is not that much different from your household switching power supply. It stores power in the magnetic field. Adjustment to the duty cycle basically regulate the amout of power output.
    2. The MOSFET switch like other semicondutor device are sensitive to HEAT and ultimately the amount of POWER delivered. To maintain long term reliability these need to be thermally controlled thru temperature switch & fans.
    3. (My Theory) Because these are switching power supply, they are suseptible to noise and inrush current/voltage spike from the Prius MG or your second Enginer DC/DC converter. If not well protected they can go *PooF*.

    [IMG]
    As you can see I choose NOT to install my DC/DC in the Enginer enclosure, due to the fear of confined space and heat buildup. The DC/DC converter is mounted on two aluminum bar which are bolt onto the sheetmetal. I was too lazy to make a nice base like base like what adric did. I also removed the two drained plug when it's not raining to bring in some cool air during driving. It's easy to reinstall them from the bottom side when it's wet out.

    [IMG]
    Here's the layout of all the components inside. Pretty standard stuff.

    [IMG]
    This is my procedure for adjusting the voltage and current with the system installed.
    You need Scanguage II to monitor the BTA, BTV, and SOC to accurately perform this adjustment.

    Keep in mind that the max voltage and current varies from system to system and car to car.
    These potentiometer are standard 50 turn pots, however we don't don't know exactly where they are from the factory, so take your time adjusting no more than 1/2 turn per iteration.

    You can adjust the Current and Operation Voltage w/o openning your converter as long as the drilled access hole line up. Use a flashlight to survey this before opening your converter.

    a) Start off with 60% SOC.
    - If your SOC is too high drive around to drop it.
    - If it's too low use your Enginer kit to charge it up to that level.

    b) Current Adjustment first.
    - Park your car monitor the BTA consumed. It should be somewhere between 0.9A - 2.6A (mine is 1.4A) depending on what you have on. Wait couple minutes until it stable and record that.
    - Turn on your Enginer kit and see the updated BTA. It should now be a negative (-) value.
    - Adjust the "MAX Current Adj" pot so that the delta is ~13-14A.

    Many of you want to get the MAXIMUM current possible (+16A) to maximize your EV. However, I caution against this. Remember heat KILLS! I would target for 13-14A delivered max.

    c) Voltage Adjustment
    The problem of our Enginer system lies mainly in this portion. The Prius have a Ah counter that monitor the total amount of electrons flowing into and out of the battery to determine the battery State of Charge (SOC). However, our DC/DC converter doesn't know anything about SOC, all it knows is the 240V output and how much current it need to push to achieve that voltage. Unfortunately sometime the SOC and 240V doesn't line up properly and the DC/DC stop charging at a less than optimum SOC. My case it was only 56%. So we need to increase the DC/DC voltage so that it continues to charge up to the 70% SOC.

    - Turn on the Enginer kit let it charge your traction battery. Until the BTA is between -2.0A to 1.4A (your baseline consumption in current adjustment).
    - If the SOC < 70%, make 1/2 turn CW to the "Operating Voltage Adj" and see if BTA current increase (in negative direction). If it doesn't adjust the "Max Voltage Adj".
    - Repeat above step until you achieve 70% SOC with 0A BTA. At the end take a look at the BTV value, it should be somewhere between 240-245V. Mine was at 241V, which is PERFECT!

    You can be aggressively adjust the voltage to a high value to increase SOC > 70% but that increase your chances of getting the Triangle of Death AND increase heat load to your component and their long term reliability. I believe the original 3kW converter died mostly because of this problem.


    [IMG]
    As you know by now, I'm SUPER paranoid about heat in the system. The DC/DC converter have alot of cooling vaines on the outside and everything perfectly smooth in the inside. The fan is located inside with plenty of air flow. So to further improve cooling I installed couple of chipset cooler to chill the MOSFET bank.


    === Section #2 - Batteries ===

    === Section #3 - BMS (or lack off) ===

    === Section #4 - Charger ===

    === Section #5 - Misc Components ===
  3. Offline

    bisco cookie crumbler

    Member Since:
    May 11, 2005
    Posts:
    17,486
    Likes Received:
    2,758
    Location:
    boston
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    great details, thank you. i have considered an enginer, and the results, when working properly seem worthwhile. i just don't have the savvy to fiddle around with it like you and so many others have. all the best!:)
  4. Online

    mrbigh Prius Absolutum Dominium

    Member Since:
    Sep 6, 2005
    Posts:
    2,305
    Likes Received:
    342
    Location:
    N.Babylon, Long Island, NY
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I love the 100 AH TS set-up.
  5. Offline

    JeffreyDV New Member

    Member Since:
    Oct 27, 2009
    Posts:
    81
    Likes Received:
    9
    Location:
    New Milford, NJ
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    I have a similar problem with my 5k converter not charging past 65% SOC. I sent the converter back to Enginer and they bumped up the output amps but not the voltage. My output amps are now 16. I asked about the converter not charging past 65% and was told "driveway" charging performance is not a reliable measure of system performance. I think my output voltage needs to be raised so I can fully charge the HV pack before beginning my commute to get the maximum MPG from the Enginer system.
  6. Online

    mrbigh Prius Absolutum Dominium

    Member Since:
    Sep 6, 2005
    Posts:
    2,305
    Likes Received:
    342
    Location:
    N.Babylon, Long Island, NY
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    That really is a miss concept. Increasing the DC-DC converter voltage will only do a further damage to the stock NiMH batteries. In short, decreasing the life span of them.
    The danger zone would be 2 bars.
    ......""driveway" charging performance".. This is a BS statement from Automation Tech
    Amen
  7. Offline

    JeffreyDV New Member

    Member Since:
    Oct 27, 2009
    Posts:
    81
    Likes Received:
    9
    Location:
    New Milford, NJ
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    I totally agree.
  8. Offline

    ericbecky Hybrid Battery Hero

    Member Since:
    Mar 12, 2004
    Posts:
    1,018
    Likes Received:
    288
    Location:
    Madison, Wisconsin
    Your Vehicle Year:
    2002 Prius
    Model:
    N/A
    Horatio,
    Can you explain this more... I'm not sure what you mean. 2 bars of what?
  9. Offline

    JonnyD New Member

    Member Since:
    Jan 19, 2010
    Posts:
    20
    Likes Received:
    6
    Location:
    NorCAL
    Your Vehicle Year:
    2008 Prius
    Model:
    III
    Gen2 Prius basically have 168 NiMh cells. Toyota plays it ultra conservative and limit the charge to < 80% SOC, for long term durability. I read somewhere that base on maintaining 40-80% the extrapolated data for battery reliability is something like 12 yrs. I don't blame them for being so conservative.

    That means ideally the peak charge voltage / cell should be somewhere between 1.40V to 1.55V, when you charge beyond this there increase risk that if you have imbalance a bad cell or two can cause over charge of other cells and cascade the failure rate.

    Similarly if you discharge your cells pass the 40% SOC you risk reverse bias the cell so that's why the ICE kicks in.

    Now for PHEV, I try to maintain between 50-70% to allow enough buffer for the "what iff"
  10. Offline

    Flaninacupboard Senior Member

    Member Since:
    Apr 25, 2010
    Posts:
    1,295
    Likes Received:
    201
    Location:
    Midlands - UK
    Your Vehicle Year:
    2010 Prius
    Model:
    N/A
    Are you sure that's accurate? If i get up to 75% and 8 bars the battery is within the deisgn limit. When i start to drive the power is then going straight from the Enginer converter onto the DC bus, probably with some draw coming from the battery as well. By the time i stop SOC is probably back down in the 60's with 6 bars.

    I can sort of see what you're saying, keeping the HV battery at a higher voltage could affect it's life. however, it is within design limit, and using the kit you'd reduce the amount of cycling on the battery, particularly in stop and go city driving where i have seen my battery drop to 2 bars, then charge up to 6, then drop to 2 etc. over and over again. surely stopping this cycling but keeping a slightly higher voltage must be a net gain in terms of battery life?
  11. Offline

    ericbecky Hybrid Battery Hero

    Member Since:
    Mar 12, 2004
    Posts:
    1,018
    Likes Received:
    288
    Location:
    Madison, Wisconsin
    Your Vehicle Year:
    2002 Prius
    Model:
    N/A
    Flan,
    I was thinking the same as you. If the PHEV system (enginer or any other flavor) keeps the stock battery within the original design limits, why would there be an issue?

    mrbigh, is there something Flan and I are missing in thinking about this? Is it the voltage (for example 243V) that is the issue? What tolerances do you use for your PHEV system? (Or to save some extra typing, feel free to direct me to a post that show the tolerances.) Thanks.
  12. Offline

    JeffreyDV New Member

    Member Since:
    Oct 27, 2009
    Posts:
    81
    Likes Received:
    9
    Location:
    New Milford, NJ
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    I was under the impression the BMS+ system changed the SOC parameters.
  13. Offline

    pbui Member

    Member Since:
    Dec 9, 2009
    Posts:
    159
    Likes Received:
    8
    Location:
    Los Gatos, northern CA
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    Installing the converter in the wheel well is a good idea, to keep the heat source away of the batteries.

    How do you vent the converter exhaust ? else the heat just slow raises and warm the battery box. It is fine now in the winter, but come the heat of summer. You could direct the exhaust out at one of the drain plug and get it out of the car.

    I don't think you can "over" charge the Prius stock pack, as the computer would power the MGs to burn off excess charge above the 8 bars.

    Thanks for the photos
  14. Online

    mrbigh Prius Absolutum Dominium

    Member Since:
    Sep 6, 2005
    Posts:
    2,305
    Likes Received:
    342
    Location:
    N.Babylon, Long Island, NY
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Well, lets start with the basic parameters;
    Toyota Hybrid system battery pack is built with 28 modules, surface charge rating is 7.2V x28=201.6V; charge rating is 8.34Vx28=233.5v.
    Battery pack operation range limits is 201 to 232v, this is while driving or under load.
    Under this range limit we can said 80% to 20% SOC percent with batt pack @ 70 Fahrenheit.
    Going beyond these limits is no good. Taking the trip above will cause the cells to overheat, gas up and cause mechanical cell swelling leading to pack destruction. The MFD will show only 8 bars, and that's the pictorial limit; it could easily by 12 to 16 bars if it were possible to see.
    Taking the trip to the under voltage side; with a highly probability to cell polarity reversal and consequently pack destruction by uncontrolled fire.
    As you can see, the Enginer DC to DC converter is already above the safe limits that the Hybrid battery assembly was designed to operate.
    You effective EV range, being in blended mode or pure EV mode is based by the Batteries capacity of the system in use being matched by the safe operating voltage.
    If you would like to increment to ev range, multiply the quantity of batteries on it, add another 2KWH.
    If you would like to squeeze more juice from the system you actually have, advance the current out put of the Converter to the possibly MAX output, 16. something Amps; but your batteries will deplete their charge faster, meaning shorter range.
    Increasing the DC output; I really don't think you will gain anything, I may be wrong. But certainly you will contribute to a shorter life span of the Hybrid system batteries and probably causing a BIGGER and EXPENSIVE problem.
    In my PHEV conversion I have a "huge" single battery pack, consisting at first with 6, but now with only 5 original Toyota/Panasonic NiMH battery Packs, with a total of over 6.5 KWH of power storage with FULL regen from the Synergy drive system.
    I recharge the entire battery pack at 238V @ 9Amp, Constant Current; then at Constant Voltage to a taper of 400 mAmps.
    As you can see, my learned charge voltage through the time is above of such safe limit but not dangerous when you are dealing with a perfectly balanced very large battery assembly.
    Fallowing pictures demonstrate 2 very sad cases:(
    First picture, module with a cell reversal while discharging at bottom limit. You can see the explosion point.
    Second picture; overcharged (over voltage limit) battery pack, temperature runaway "while" exercising EV.
    Eric, are this pictures convincing enough? I do not mind some guidance to others but the general consensus about this type of batteries handling is null.
    Amen

    __________________

    Attached Files:

    2 people like this.
  15. Offline

    JonnyD New Member

    Member Since:
    Jan 19, 2010
    Posts:
    20
    Likes Received:
    6
    Location:
    NorCAL
    Your Vehicle Year:
    2008 Prius
    Model:
    III
    mrbigh, thank you for the very thorough explanation and guidance. With high cell count the balancing act become extremely tough. I guess that's why Toyota doesn't bother to do so and just run 40-70% SOC and call it good. You are absolutely correct that if we try to operate at the knee, it's dangerous ground.

    Without financial limitation the best way to extend Prius EV is to put more packs in parallel like you have done. Unfortunately that will not suite my need.
    1. $$$
    2. Space multi pack takes up
    3. Low power usage due to ultra conservative Toyota theory. 30% / 1.3kWh each pack
    - even with 6 packs you still only get to use 2.34 kW. You can do the rest of the math regarding miles, payoff, etc.

    Again I completely agree with your assessment of the danger that's why I only charge my traction battery up to 70-73% SOC (that 7bar for those w/o scanguage) and try to sustain the SOC throughout the drive between 60-70 SOC if I can help it.

    With my own Thundersky LiFePO4 batteries, I operate them between 30-80%. I have alarm for < 2.8V (under 1C load) and high voltage cutoff at 3.8V. That should be plenty safe to get me my 3000 cycle life (8-11 years).
    1 people like this.
  16. Offline

    JonnyD New Member

    Member Since:
    Jan 19, 2010
    Posts:
    20
    Likes Received:
    6
    Location:
    NorCAL
    Your Vehicle Year:
    2008 Prius
    Model:
    III
    pbui, I'm relying on the two drain holes to provide circulation and cooling. I'll probably design a plenum that can provide a more efficient Venturi effect on cooling.

    If you guys noticed that when the large 48V fan of the Engineer kit kicks in the current rate drop down to a trickle during idle. You can monitor this with Scanguage BTV, BTA, SOC configured. Once my fan kicks in and my BTV is > 233 (~65% SOC) my charge current drops from 13A to 3A almost immediately.

    Note the charging is not affected under load. The BTV drops to < 210V when my MG is running and thus with a low enough voltage delta the Enginer DC/DC converter is capable of providing 13A charge. It's quite annoying because at you want to maximize your charge at red light because during traffic the 13A charge is shy of the 15-20A normal commute need.
    1 people like this.
  17. Offline

    adric22 Ev and Hybrid Enthusiast

    Member Since:
    Apr 6, 2009
    Posts:
    636
    Likes Received:
    130
    Location:
    Fort Worth, TX
    Your Vehicle Year:
    Other Hybrid
    Model:
    N/A

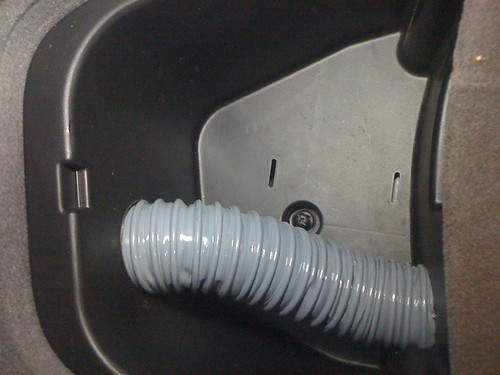

    Here's how I keep mine ventilated:

    [IMG]

    The newer kit actually comes with a little round area that you can attach a hose to. I actually used a hole-saw in my little plastic bucket on the left and put the hose through so that the DC-DC converter blows directly out the little A/C vent right on the left side of the little plastic bucket.
  18. Offline

    pbui Member

    Member Since:
    Dec 9, 2009
    Posts:
    159
    Likes Received:
    8
    Location:
    Los Gatos, northern CA
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    what is the different between Max_Voltage & Operating_Voltage settings ?

    I am interpreting MaxVolt as the maximum output voltage of the DC/DC converter, and thus setting the max SOC setting (max # of bars). I am confused about the Operating_Voltage adjust

    Thankx,

  19. Offline

    pbui Member

    Member Since:
    Dec 9, 2009
    Posts:
    159
    Likes Received:
    8
    Location:
    Los Gatos, northern CA
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    The newer 5kw has a much nicer and more effective ventilation exhaust, with the flex hose plumbed directly to the converter. I have the older 3kw and I need to make a similar duct work. It's on the to-do list.
  20. Offline

    evmecanicx New Member

    Member Since:
    Feb 10, 2011
    Posts:
    2
    Likes Received:
    0
    Location:
    Massachusetts
    Your Vehicle Year:
    2008 Prius
    Model:
    Two
    The problem with the enginer kit is that when the generator is charging the traction battery the DC/DC converter in the enginer kit is not effective. Imagine the battery is being fed with a fire hose from the generator and a garden hose from the enginer kit what do you do? Turn up the pressure of the garden hose. In turning the voltage up we are just helping the electrons from the dc/dc converter get to the traction pack. I do not think the DC/DC converter in the enginer pack has a high enough amperage to create enough heat to damage the traction pack...considering the O.E. MG puts out 5 time the current flow...and during all of this we are as stated operating within the allowable SOC of the O.E. battery.

Share This Page
