DIY JDM style side mirrors combo lights (Signal+Parking+Courtesy lights)

Discussion in 'Gen III 2010+ Prius Accessories and Modifications' started by CivicSky, Feb 23, 2011.

Social Buttons

  1. CivicSky

    CivicSky Member

    Joined:
    Jun 4, 2010
    Messages:
    136
    Likes Received:
    58
    Location:
    San Deigo
    Your Vehicle Year:
    2010 Prius
    Model:
    II
    I'm finally done installing the JDM style side mirrors combo lights on my Prius II. The lights have exact dimension as the OEM with amber LED signal, white parking light, and courtesy light. :mod:
    1. The set comes with 2 light housings, wires, harnesses, and 2 painted (cost extra) mirror covers.
    [​IMG]
    [​IMG]
    Next, you have to take your original mirrors off from the doors. First, you have to remove the door panel on each front door. Use a flathead screw driver to pry off & disconnect the courtesy light (always from the right on both doors). There are only 2 screws holding the panel. 1) Use a flathead screw driver wrapped with a cloth to gently pry up the plastic cover edge at the interior door latch to reveal the screw. 2) simply use a Scotch tape or your finger to remove the plastic cover on the bottom of the door-grip handle and the screw is on the bottom. Now, there are just clips holding your panel.
    [​IMG]
    Start pulling the panel out from the lower corner closest to the door hinges and work your way around. When all the clips are off the door, lift the panel upward and remember to disconnect all harnesses before you pull further!
    [​IMG]
    You should be seeing this (I put the door handle back on because I didn't want it to dingle around while driving).
    [​IMG]
    Disconnect the mirror cable. Use fingers to carefully pry up the black cover opposite to the base of the side mirror. Loosen the screws by a 10 mm ratchet wrench. Also remove the big black plastic cover on the door to free the mirror's wires.
    [​IMG]
    [​IMG]

    Disassemble the USDM mirror housings for the signal lights. You don't need a new mirror housing, our USDM mirror housings already have screw holes and space to accommodate the additional lights.

    First, to remove the mirror from the housing, you have to move the mirror angle upward. You will see 2 notches underneath the bottom of the black plastic mirror frame. Insert a small flathead screwdriver to the white plastic part and turn 90°. The mirror should come loose (as shown in the pic below)
    [​IMG]
    Slowly detach the heated mirror connectors. Press FIRMLY on the metal leads against the mirror while pulling out the harnesses coz they look very fragile to me!
    [​IMG]

    Unscrew the motor module. Then, it's time to get your loose change ready to good use (especially dimes!). Use a flathead to pry and quickly insert a dime to hold each tag open. Once you get all 50 cents to keep those tags "opened", you should be able to separate the painted mirror cover from the housing.
    [​IMG]

    Left: Aftermarket mirror cover. Right: OEM mirror cover.
    [​IMG]

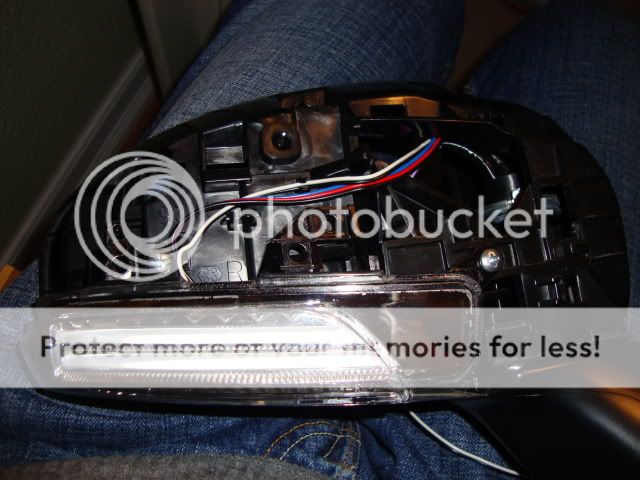

    Put the light housing in the front while organize all the wires neatly. Use three #8 x 1/2" sheet metal screws for each light housing (2 in front and 1 on the back) Yes, don't forget the one on the mirror side!!!
    [​IMG]
    [​IMG]
    [​IMG]

    Now, put everything back on the car with the new mirror cover. Next thing is to feed the wires through the rubber loom. Use a 10mm ratchet wrench to take off the loom holder on the inner side of each door. Cut off the black electrical tape and carefully feed all 5 wires through the loom into the interior under the dash. (Note that I am also using automotive loom to protect the new wires and prevent short circuit. ~25 feet loom used in total)
    [​IMG]

    It's time to take off the foot panel. Follow the instructions from fog lamp installation manual... credit to whom created that instruction.
    [​IMG]

    Wire color codes on light housings:
    -- blue (+): parking light
    -- red (+): amber signal
    the blue & the red wires share the common black wire as (-)
    -- white (+) & the other black: puddle lights.

    [​IMG]
    [​IMG]
    Parking lights:
    Left - take off the panel where your mirror angle adjust switch is, look for the brown wire (+) on the upper right 36-pin harness next to the steering wheel.
    [​IMG]

    Right - take off your glove box & connect the green-with-black-strip wire (+) on the compartment LED light OR if you don't feel like cutting or splicing wires, you can run the wire to the driver's side with the left light. In this case, I just want to minimize wire.
    [​IMG]
    To connect the courtesy light with the dome light.
    I kinda give up looking for the dome light wires under the dash. Following is what I did to tap power from the rear dome light:
    Use a flathead screwdriver to remove the cover
    [​IMG]

    Use the screwdriver to push the plastic tags all the way toward the center and pull down the frame.
    [​IMG]

    You will see something like this except the golden color wires with the black loom. I was kinda modifying my earlier design to "door only" application. Use a small flathead screwdriver to separate the light housing from the frame and then the wires cover. IMPORTANT: You also need one constant (+), in this case, just tap the (+) using a ring terminal directly from the dome light.
    [​IMG]

    Tap into the bottom (-) wire for mirror LEDs as shown in picture below
    [​IMG]

    Feed the wires down the roof through the B pillar to the foot panel.
    [​IMG]
    Connect the rest of the wires and enjoy!
    [​IMG]
  2. HI MPG

    HI MPG Active Member

    Joined:
    Aug 25, 2009
    Messages:
    811
    Likes Received:
    128
    Location:
    Orange County, CA
    Your Vehicle Year:
    2010 Prius
    Model:
    IV
    Thanks for the great write up. Waiting patiently for my set to come in so I could attempt this...
    FYI: you probably do need to go through that initial process to remove the mirror cover, but one day as I was backing my car out of the garage, my mirror caught on one of the boxes along the wall. The cover popped right off... without any tabs breaking! I was shocked how easily it came off.
  3. jordanr

    jordanr Member

    Joined:
    Jul 25, 2010
    Messages:
    176
    Likes Received:
    4
    Location:
    NorCal
    Your Vehicle Year:
    2010 Prius
    Model:
    III
    Nice write up! They look great! I'll eventually get this done too...and if I don't I'll do the led turn signal mod instead.


    Sent from my iPhone using Tapatalk
  4. DAFTEK

    DAFTEK Junior Member

    Joined:
    Feb 3, 2011
    Messages:
    90
    Likes Received:
    8
    Location:
    Midwest
    Your Vehicle Year:
    2010 Prius
    Model:
    Five
    How much was this kit, link?
  5. shawnb2

    shawnb2 Active Member

    Joined:
    Mar 21, 2009
    Messages:
    502
    Likes Received:
    99
    Location:
    Thousand Oaks, CA
    Your Vehicle Year:
    2010 Prius
    Model:
    Five
    I was looking at converting my JDM signals to your 3rd party ones with the courtesy lights, but noticed in the video that the signal portion turned white at one point. At what point does the white light come on and for what purpose? I love the courtesy light that comes on when your interior lights comes on. Sigma sells the kit correct? I think I saw you could get it with or without the 3rd party lights now.
  6. CivicSky

    CivicSky Member

    Joined:
    Jun 4, 2010
    Messages:
    136
    Likes Received:
    58
    Location:
    San Deigo
    Your Vehicle Year:
    2010 Prius
    Model:
    II
    @ DAFTEK: I bought them overseas and the cost is around US$185 (painted)
    @ Shawnb2: There are 3 different lights in the signal housing. The white light you saw toward the front is what they call "pilot" light. It turns on along with the parking light constantly and turns off automatically whenever you are signaling. The courtesy light is located underneath and connected to the dome light.
  7. Gwest

    Gwest Member

    Joined:
    Jan 3, 2010
    Messages:
    97
    Likes Received:
    41
    Location:
    Redwood City
    Your Vehicle Year:
    2010 Prius
    Model:
    V
    You got them over sea's any link where one could pick a set up?
  8. CivicSky

    CivicSky Member

    Joined:
    Jun 4, 2010
    Messages:
    136
    Likes Received:
    58
    Location:
    San Deigo
    Your Vehicle Year:
    2010 Prius
    Model:
    II
    I'd be happy to provide a link if the person has one. The seller is in Hong Kong but he doesn't ship international. With the help from my lovely mother in HK, I was able to get one set for myself. Lately, I bought another 2 sets for two of the members here. If the guy is willing to ship international, that would be easier for my mom. Wonder if the Prius store would buy a whole bunch of these at a time and sell in a slightly higher prices to members here?
    1 person likes this.
  9. Cloud

    Cloud New Member

    Joined:
    Oct 28, 2010
    Messages:
    102
    Likes Received:
    14
    Location:
    New York
    Your Vehicle Year:
    2010 Prius
    Model:
    I
    I am very interested in these signal mirrors. I really fancy the pilot light. Would look very nice at night + Warn other drivers that I'm in their blind spot and lets them gauge just how wide apart my car is when they need to pass etc. I think the Pilot lights are a really great safety feature.

    I'm interested in giving you somewhat more than what you paid for these mirrors. If you're interested in buying another set for me we can negotiate a price.
  10. 2011V

    2011V Junior Member

    Joined:
    Feb 2, 2011
    Messages:
    71
    Likes Received:
    7
    Location:
    Palos Verdes, Ca.
    Your Vehicle Year:
    2011 Prius
    Model:
    V
    Classic write up Thx! I love the parking and courtesy light functions but would not like the "pilot light". Anyway to get this unit in this configuration. Also how about auto folding? Any plans for this?
    1 person likes this.
  11. CivicSky

    CivicSky Member

    Joined:
    Jun 4, 2010
    Messages:
    136
    Likes Received:
    58
    Location:
    San Deigo
    Your Vehicle Year:
    2010 Prius
    Model:
    II


    The pilot light can be disable very easily by removing the blue wire from the source. But I kinda like it because it actually lights up the side of the vehicle at night (so that I can see!).
    I found another auction for those light. He is selling double for what I paid for even without professional painted. Note: our Priuses (Prii?) share the side mirrors with Toyota Wish. Sorry! This auction page is in Chinese but FYI they are willing to send overseas.
    http://hk.f1.page.auctions.yahoo.com/hk/auction/1125646248
  12. 2011V

    2011V Junior Member

    Joined:
    Feb 2, 2011
    Messages:
    71
    Likes Received:
    7
    Location:
    Palos Verdes, Ca.
    Your Vehicle Year:
    2011 Prius
    Model:
    V
    Sounds great! Im in on a set if your dear mom finds the time to ship a few more sets. PM me and let me know. TIA
  13. HAWAIIANBUILT

    HAWAIIANBUILT Active Member

    Joined:
    Sep 17, 2010
    Messages:
    702
    Likes Received:
    386
    Location:
    SO CAL
    Your Vehicle Year:
    2010 Prius
    Model:
    III
    THANKS CIVICSKY !!!

    I can't wait to receive my set !!!

    I'll use your great instructions for installation and post pix when complete !!!

    :):):):)

    Rodney
  14. CivicSky

    CivicSky Member

    Joined:
    Jun 4, 2010
    Messages:
    136
    Likes Received:
    58
    Location:
    San Deigo
    Your Vehicle Year:
    2010 Prius
    Model:
    II
    You're welcome, Rodney!
    I hope I can get more to the States for everyone. So far there are already 5 members asking me for one. I can email the seller in Hong Kong to see if he can do any special arrangement for a big order (at least my mom doesn't have to go to the post office herself while taking care of 2 grand kids.)
  15. shawnb2

    shawnb2 Active Member

    Joined:
    Mar 21, 2009
    Messages:
    502
    Likes Received:
    99
    Location:
    Thousand Oaks, CA
    Your Vehicle Year:
    2010 Prius
    Model:
    Five
    I already have the factory JDM signal mirrors. Are you able to get just the signal lenses b y themselves? I'd love to switch them out because I really like the courtesy lights. Let me know please.
  16. Nuckz23

    Nuckz23 Member

    Joined:
    Jan 22, 2010
    Messages:
    126
    Likes Received:
    4
    Location:
    Santa Clara, California
    Your Vehicle Year:
    2010 Prius
    Model:
    IV
    I would be interested in a set as well.
  17. DAFTEK

    DAFTEK Junior Member

    Joined:
    Feb 3, 2011
    Messages:
    90
    Likes Received:
    8
    Location:
    Midwest
    Your Vehicle Year:
    2010 Prius
    Model:
    Five


    Same here, I want one also! Barcelona Red please. :D
  18. HI MPG

    HI MPG Active Member

    Joined:
    Aug 25, 2009
    Messages:
    811
    Likes Received:
    128
    Location:
    Orange County, CA
    Your Vehicle Year:
    2010 Prius
    Model:
    IV
    ^^ Sounds like it's time to gauge a group buy..
  19. peterjmc

    peterjmc Ping pong in Ding Dang...

    Joined:
    Dec 5, 2010
    Messages:
    808
    Likes Received:
    148
    Location:
    Baltimore, MD
    Your Vehicle Year:
    2013 Prius
    Model:
    Five
    +1... Maybe someone with some buying power can communicate to the contact in HK and arrange for a group buy and distribute as needed once it arrives?
  20. jordanr

    jordanr Member

    Joined:
    Jul 25, 2010
    Messages:
    176
    Likes Received:
    4
    Location:
    NorCal
    Your Vehicle Year:
    2010 Prius
    Model:
    III
    Group buy sounds like great idea :)


    Sent from my iPhone using Tapatalk
