Energy Monitor Screen

Discussion in 'Toyota Prius Plug-in' started by 9G-man, Nov 21, 2011.

Social Buttons

  1. 9G-man

    9G-man Active Member

    Joined:
    Jul 2, 2005
    Messages:
    1,239
    Likes Received:
    152
    Location:
    Atlanta, GA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Since more of you have viewed with production PiPrius, can anyone say if the Std. model Display Audio Screen has an Energy Monitor Display that shows power flow arrows and Plug-in usage data?
  2. knckdwntxt

    knckdwntxt Junior Member

    Joined:
    Nov 5, 2011
    Messages:
    26
    Likes Received:
    11
    Location:
    California
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    I dont recall it being displayed on the audio screen, but rather on the top display. It was to the right of the speedometer.
  3. 9G-man

    9G-man Active Member

    Joined:
    Jul 2, 2005
    Messages:
    1,239
    Likes Received:
    152
    Location:
    Atlanta, GA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    The Adv. model appears to have it. I would think the Std would too.?!?

    [​IMG]

    And Consumption...

    [​IMG]
  4. efusco

    efusco Troll Slayer Staff Member

    Joined:
    Nov 26, 2003
    Messages:
    19,844
    Likes Received:
    1,077
    Location:
    Nixa, MO
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
  5. 9G-man

    9G-man Active Member

    Joined:
    Jul 2, 2005
    Messages:
    1,239
    Likes Received:
    152
    Location:
    Atlanta, GA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base

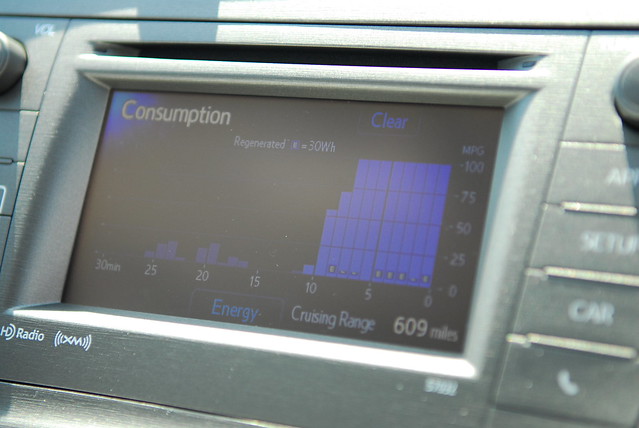

    No, on the Display Audio MFD. that the Std PiPrius has. It seems like the Prius V owners could answer this if they push the "CAR" button

    You were getting close here....Post #69 in your photostream. I knew I'd seen it somewhere...!
    It must have it cause theres the touch button

    [​IMG]

    By the way, what the difference between green v. yellow consumption bars in the graph
  6. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,990
    Likes Received:
    2,349
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    This one seems to be from the Standard trim since I don't see the GreenEdge JBL logo. The graphics are different than the one posted above for the Adv trim.

    9G-Man beat me to it.
  7. Brant

    Brant Plugged-In Member

    Joined:
    Sep 22, 2011
    Messages:
    34
    Likes Received:
    5
    Location:
    Salem, OR
    Your Vehicle Year:
    2012 Prius
    Model:
    N/A
    [ame="http://www.flickr.com/photos/efusco/6153983633/in/photostream"]PHV Prius Reveal 059 | Flickr - Photo Sharing![/ame]

    Eww! Really??? The graphics are all different??? I thought it was just a smaller screen with the CD slot.. not that the interface was different! UGH! I would have ordered the advanced had I known this :(
  8. 9G-man

    9G-man Active Member

    Joined:
    Jul 2, 2005
    Messages:
    1,239
    Likes Received:
    152
    Location:
    Atlanta, GA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    There is a sun glare on that pic. The screen resolution appears no worse that a Gen2 late model MFD> But nothing like the Premium HDD system.
  9. Tideland Prius

    Tideland Prius Moderator of the North Staff Member

    Joined:
    Oct 2, 2004
    Messages:
    28,395
    Likes Received:
    1,495
    Location:
    Canada
    Your Vehicle Year:
    2010 Prius
    Model:
    N/A


    Previous trip vs. current trip. (Previous trip was 17 mins long. Current one is 11 mins long). It's been that way since 2007 when it was introduced in the TCH.
  10. lensovet

    lensovet Not your typical youngin :)/BP Brigade 207

    Joined:
    May 23, 2009
    Messages:
    2,360
    Likes Received:
    369
    Location:
    Berkeley CA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    dunno, in my mind, the difference in graphics is more gaudy/flashy than anything else. in the map it matters, but how many people will actually be using the built-in navigation instead of their phone?
  11. pfile

    pfile Member

    Joined:
    Dec 28, 2005
    Messages:
    319
    Likes Received:
    34
    Location:
    bay area, ca
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    so i'm a little confused (as always). does the base trim PIP have a consumption display on the large LCD? or is it only on the VFD that's in the dash?
  12. 9G-man

    9G-man Active Member

    Joined:
    Jul 2, 2005
    Messages:
    1,239
    Likes Received:
    152
    Location:
    Atlanta, GA
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    It has a consumption and energy display on the large LCD (Display Audio). A pic of consumption on the base model PiP is just a few posts up. ^^ Post #5
    1 person likes this.
  13. pfile

    pfile Member

    Joined:
    Dec 28, 2005
    Messages:
    319
    Likes Received:
    34
    Location:
    bay area, ca
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    thanks. one thing i didn't like about the gen-3 prius was the lack of the big energy display. at least i thought it didn't have one (maybe higher packages do?) at any rate i'm glad to see it's back on the standard PIP.
  14. Tideland Prius

    Tideland Prius Moderator of the North Staff Member

    Joined:
    Oct 2, 2004
    Messages:
    28,395
    Likes Received:
    1,495
    Location:
    Canada
    Your Vehicle Year:
    2010 Prius
    Model:
    N/A


    You're correct, none of the 2010-2011 models have it. It's all on the smaller 5" MID. Nice to see it back on the big display too and with split-screen capability!
