How about 60 LED DRL and Turn Signal in one bulb!

Discussion in 'Gen II Prius Accessories & Modifications' started by KK6PD, Aug 22, 2010.

Social Buttons

  1. KK6PD

    KK6PD _ . _ . / _ _ . _

    Joined:
    Mar 24, 2008
    Messages:
    3,805
    Likes Received:
    744
    Location:
    Los Angeles
    Your Vehicle Year:
    2008 Prius
    Model:
    Five
    Hello again, well we here at RR Electronics, Hall of Science Division, constantly strive to come up with new and interesting mods for our beloved Prius....:D

    This months submission is combination White DRL and Amber Turn Signal in one bulb, well sorta like this ....see...:eek:

    [​IMG]

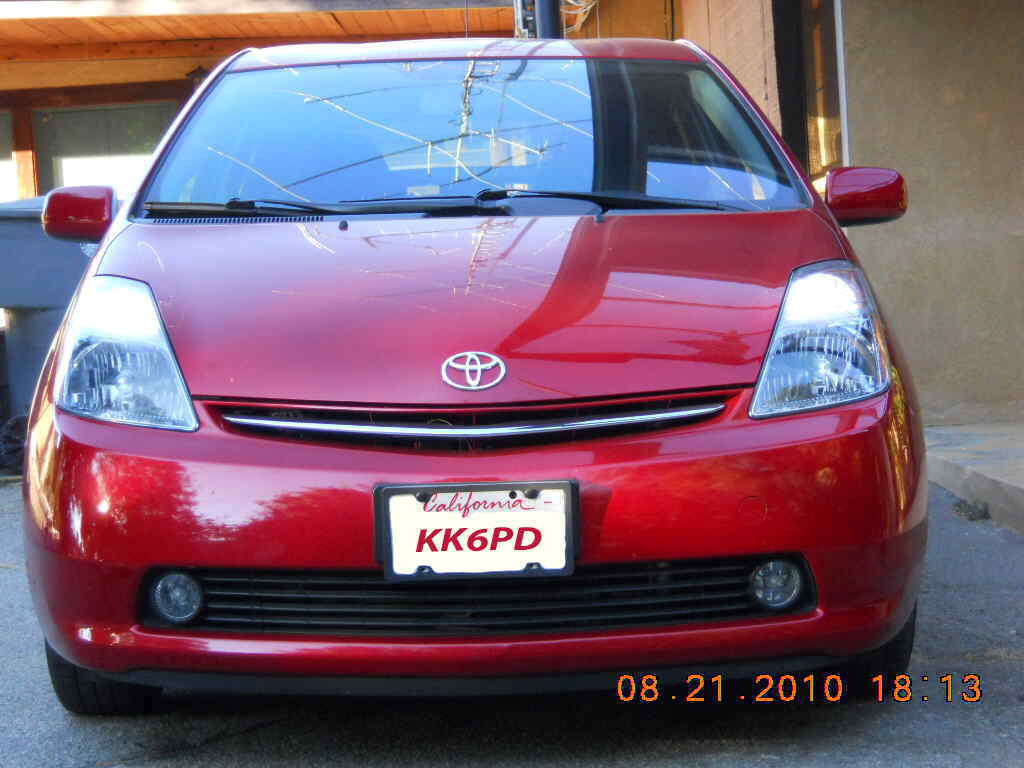

    Here you can see my turn signal sockets are bright white, Cool, a usable and visible DRL!! Now here they are with both bulbs Amber... I triggered the emergency flashers.:eek:
    [​IMG]

    Now this project does require some skills, but it is not that hard. If you have no clue what a wire stripper, Dremel, or soldering pencil are, you should ask for help, those of you who do know, lets dig in!!!:confused:

    The following pics are the bulbs that make the project viable.... All bulbs and the Brown 7443 socket used in this project were purchased from.

    www.autolumination.com Tail Light Brake Light Turn Signal LED Bulbs

    [​IMG]

    This is the switchback bulb. You will want 2 of these, I chose the 60 LED AW mode model. It will require a 7443 socket, but we will get to that later. Also..
    [​IMG]

    These are the rear Amber turn signal, and Superwhite back up lights. You will need 2 of the 7440 series of each color....

    I want to thank "sfv41901" for finding this relay, and here is the link and Pic.. ;)
    Toyota Lexus 8 Pin 12V Electronic LED Flasher Blinker Bulbs Relay Fix



    OK, the next set of items you will need are a pair of the existing lamp sockets that are already in your Prius. It's Toyota PN# 90075-60028 they were $10 each at my local dealer, well worth the price. You could use your existing set, but I wanted the ability to undo the MOD if ever necessary. So, this is the route I went. Besides the "O" ring that comes with the Toyota socket is better, smaller than the one on the next socket your going to buy. That other socket that you need is this one, a 7443 3 Wire Dual Circuit....
    [​IMG]

    You will want 2 of the Brown ones, the 7443 sockets. These are not exact replacements, but with the help of a Dremel Tool they can easily be modified. that's the next set of pics
    ....
    [​IMG]
    [​IMG]

    [​IMG]

    OK, let me explain the set of above pics. The tabs that hold the bulb in are close enough to the Prius socket to make this mod work. Follow the pictures, and use the Dremel to remove portions of the Brown plugs tabs so it will fit into the housing. DO NOT PROCEED until BOTH new sockets slip in and out of the Prius Turn Signal housing easily without the bulb in the socket, well why make the work harder than you have too!!!!

    Once the sockets are machined, we have to solder their wires to the new Toyota socket we bought to make this a "Plug and somewhat play" installation... This involves Positive and Negative stuff, so 3 more pics..

    First the "Positive Side"

    [​IMG]

    Now the Negative Side...

    [​IMG]

    Now we will have to solder the Red and Black wires from the Brown Plug to the Toyota Plug...


    Here is what the completed harness should look like.. you will note the White LED power leads, one is RED, and the other is BLACK, be careful, check the plugs wiring and follow the previous pics!!!

    [​IMG]

    OK, now just plug into front Turn signal housing and this portion is completed. The next step is to replace the Flasher module...

    [​IMG]

    and then swap modules.

    [​IMG]

    Now we move on to the rear of the car, we replace the white 7440 Back-up lamps with 60 LED Super white, and the turn signals with 60 LED Amber LEDS..this also has a typo, it's 140 ma, not 14, sorry!

    [​IMG]

    4 bulbs, 2 white, 2 amber, now carefully insert them to their respective holes, OK there, Done!!!

    Now, lets solder up the Super white portion of the Switchback bulb and wire to ACC power...

    [​IMG]

    Now we move on to finding Ready mode power in the fuse box...

    [​IMG]

    Be sure to fill hole with Black Silicon sealer... you do not need water getting in there!!

    This is what the bulb looks like in the front socket...it draws 140 ma, not 14, as wording in pic indicates, my BAD a typo!!

    [​IMG]

    I have wired them so they are on day or night. I might just add a relay so they will switch off when the HID's are on at night! They are quiet bright next to the HID's
    Here is the Current draw for BOTH lamps on together... 270ma, not bad!!

    [​IMG]

    Here is the Rear Turn signal LED...

    [​IMG]

    and that pretty much wraps the installation. So far they work great look great and the Turn Signal switches from Super white to Amber with no black in between!!!

    I now have NO incandescent bulbs in the car....
    Waddya ya'll think...?????
  2. fingas

    fingas Junior Member

    Joined:
    Jul 8, 2010
    Messages:
    63
    Likes Received:
    1
    Location:
    Orange County
    Your Vehicle Year:
    2007 Prius
    Model:
    N/A
    great write up w/ excellent photos!

    Definitely have to try this when I have some down time...

    I bought a bunch of those exact flasher relays in bulk if anyone is interested. $8 shipped each.
    1 person likes this.
  3. sfv41901

    sfv41901 Blizzard Brigade #164

    Joined:
    May 5, 2010
    Messages:
    2,737
    Likes Received:
    824
    Location:
    Palmdale, Ca
    Your Vehicle Year:
    2012 Prius
    Model:
    Four
    Gotta love LEDs :D

    How are they in direct sunlight?

    If nothing else.....you just helped people find a ACC line under the hood.

    FYI......the link in the other thread isnt working :confused:
    1 person likes this.
  4. KK6PD

    KK6PD _ . _ . / _ _ . _

    Joined:
    Mar 24, 2008
    Messages:
    3,805
    Likes Received:
    744
    Location:
    Los Angeles
    Your Vehicle Year:
    2008 Prius
    Model:
    Five


    Fixed the link, thanks for the heads up!!!
    1 person likes this.
  5. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    Messages:
    2,630
    Likes Received:
    429
    Location:
    USA
    Your Vehicle Year:
    2009 Prius
    Nice job well done! :)
  6. Ryanpl

    Ryanpl New Member

    Joined:
    Jun 24, 2010
    Messages:
    780
    Likes Received:
    151
    Location:
    Brooklyn, NY
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    As always very nice work. Now if only I had the tech know how to try this. Oh yeah also would need the wife being ok with me tinkering with Mina like you did
  7. krg03

    krg03 Not expert, just experienced

    Joined:
    Jul 27, 2010
    Messages:
    246
    Likes Received:
    28
    Location:
    so cal
    Your Vehicle Year:
    2007 Prius
    Model:
    II
    Nice Job and good info.
  8. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    Messages:
    1,734
    Likes Received:
    380
    Location:
    CA
    Your Vehicle Year:
    2010 Prius
    Model:
    V
    When the signal is flashing, are the amber LED and white LED on at the same time? If it is does the amber over power the white? If the amber LED is bright enough to over power the white LED is the white LED bright enough to serve as DRL?
  9. KK6PD

    KK6PD _ . _ . / _ _ . _

    Joined:
    Mar 24, 2008
    Messages:
    3,805
    Likes Received:
    744
    Location:
    Los Angeles
    Your Vehicle Year:
    2008 Prius
    Model:
    Five


    This bulb comes in 2 modes, AW, AO. AW flashes between White, Amber. Both colors are NOT on at the same time. The AO model turns white off completely until Amber flashing is finished, then white again!
    Yes the white by itself is bright enough for a DRL!
  10. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    Messages:
    1,734
    Likes Received:
    380
    Location:
    CA
    Your Vehicle Year:
    2010 Prius
    Model:
    V
    Are you using the Toyota LED flasher? If so can you confirm that the lock/unlock signal flash is still operational? According to TOYOTA ELECTRONIC 4 LED FLASHER BLINKER TURN SIGNAL FIX

  11. KK6PD

    KK6PD _ . _ . / _ _ . _

    Joined:
    Mar 24, 2008
    Messages:
    3,805
    Likes Received:
    744
    Location:
    Los Angeles
    Your Vehicle Year:
    2008 Prius
    Model:
    Five


    Your relay is EXACT same unit I used, different Vendor WAY MORE EXPENSIVE!
    So you can order from the source in my OP install instructions, I gave a URL to the souce of the relay.. Our Price: $7.99
    Your Vendor wants $17.99
    Save yourself $10.00, order from JDM

    Toyota Lexus 8 Pin 12V Electronic LED Flasher Blinker Bulbs Relay Fix

    There are two locking tabs you will have to remove, they are not needed, but it in NO WAY affects the electrical operation. It's a 1 for 1 plug in!!!
    It works PERFECT! AND...
    Yes, it will flash your LEDS when you arm the Alarm!
  12. krg03

    krg03 Not expert, just experienced

    Joined:
    Jul 27, 2010
    Messages:
    246
    Likes Received:
    28
    Location:
    so cal
    Your Vehicle Year:
    2007 Prius
    Model:
    II
    Mod completed. NICE. Perfect instructions KK6PD. Of course I had to have my wife follow me while I checked out the brightness and turn signal. Again Nice. Sunny bright day easily seen. Now off to see how much EV I save NOT running the HID's as driving lights.

    I see there is a 120led. Just more side led with the same front led. 60led is plenty. Amber is easily seen along with the white . It is just a turn signal amber not driving lights so no worries really about brightness however they work well and can be seen easily.
    1 person likes this.
  13. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    Messages:
    1,734
    Likes Received:
    380
    Location:
    CA
    Your Vehicle Year:
    2010 Prius
    Model:
    V
    Where did you see 120 LED switchbacks? The most I found was 92 LED switchbacks from V-LED and they dont even have it for the 7443. Also the cost is outrageous at $83.99
  14. krg03

    krg03 Not expert, just experienced

    Joined:
    Jul 27, 2010
    Messages:
    246
    Likes Received:
    28
    Location:
    so cal
    Your Vehicle Year:
    2007 Prius
    Model:
    II


    Correct me if I'm wrong. Same place at the top of the page.
    Tail Light Brake Light Turn Signal LED Bulbs
  15. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    Messages:
    1,734
    Likes Received:
    380
    Location:
    CA
    Your Vehicle Year:
    2010 Prius
    Model:
    V


    Those are just regular LEDs. They're not the switchback type that's used for this mod.
  16. 2007-Prius-hybrid

    2007-Prius-hybrid New Member

    Joined:
    Jun 27, 2010
    Messages:
    132
    Likes Received:
    2
    Location:
    NY
    Your Vehicle Year:
    2007 Prius
    Model:
    N/A
    You should sell these. I would buy a set!
  17. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    Messages:
    2,630
    Likes Received:
    429
    Location:
    USA
    Your Vehicle Year:
    2009 Prius
  18. krg03

    krg03 Not expert, just experienced

    Joined:
    Jul 27, 2010
    Messages:
    246
    Likes Received:
    28
    Location:
    so cal
    Your Vehicle Year:
    2007 Prius
    Model:
    II


    Oh yea, My excitement, my bad.
  19. amm0bob

    amm0bob Permanently Junior...

    Joined:
    May 29, 2008
    Messages:
    5,237
    Likes Received:
    2,090
    Location:
    The last place on earth to get cable, Sacramento
    Your Vehicle Year:
    2008 Prius
    Model:
    II




    I agree... I would buy a set too.
  20. krg03

    krg03 Not expert, just experienced

    Joined:
    Jul 27, 2010
    Messages:
    246
    Likes Received:
    28
    Location:
    so cal
    Your Vehicle Year:
    2007 Prius
    Model:
    II


    ok, I'll bite. How much would you pay. I did the mod. It's allot of work for the fabrication and the biggest issue EVERYONE comments about is warranty. Brightness is a matter of opinion also - which everyone freely expresses to death. From comments about coastaltech products, Sometimes if you make it easy, people think it should be close to free. The install takes a few hours AFTER you make the modifications to the holder. There is more than a small portion to take apart and you have to be aggressive.

    An aside, I noticed the first week I can stay in EV mode another mile without as much battery drain running with HID on as DRL.
    Sweet.

    Also you can use a 6 ohm resistor (don;t know the wattage) rather than the led relay turn signal. (one resistor for each led bulb). Probably not a cost savings.
