Ottonavi HU: How to customize (a bit) the UI

Discussion in 'Gen 3 Prius Audio and Electronics' started by Bulle, Feb 12, 2012.

Page 4 of 36
  1. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    I agree:( but I use the radio every day. I also thought if we could bring some order to the radio screen then the others may not be as bad.

    Here's a version assuming we have to leave the type in the same position and size it is currently. If we could change some font size and colors independantly :)D Hi Bulle) then we could really clean it up. I used Bulle's template and laid in the dynamic text from looking at a photo then matched the postion to the fields in the template. I think the sizing is pretty close on most text. The original OttoNavi screens have way too many colored buttons in my opinion so the screen gets confusing to look at. I tried to get rid of some overdone buttons, frames and rules. This version is HEAVILY influenced be the Pioneer App Radio interface.

    Bulle you'll have to tell me how the text color is controlled.

    [​IMG]

    #61 clayfree, Feb 27, 2012
  2. dehhh

    dehhh Junior Member

    Joined:
    Nov 21, 2011
    61
    16
    0
    Location:
    TC
    Vehicle:
    2011 Prius
    Model:
    Three
    that is beautiful...

    I wonder if a script is controlling the text color when pushed. Probably got to hack the unit to find it. :(

    #62 dehhh, Feb 27, 2012
  3. dehhh

    dehhh Junior Member

    Joined:
    Nov 21, 2011
    61
    16
    0
    Location:
    TC
    Vehicle:
    2011 Prius
    Model:
    Three
    here is the windows metro theme for the home screen. thanks to bulle for the programming.

    also attached is a good looking wallpaper for the metro theme. :)


    Attached Files:

    #63 dehhh, Feb 27, 2012
  4. Bulle

    Bulle Member

    Joined:
    Nov 5, 2011
    378
    49
    0
    Location:
    Canada
    Vehicle:
    2011 Prius
    You guys are so amazing; this is all beautiful!
    We are already so far away from the kiddie stuff.
    Nice work Clay! I love it.
    And Dehhh's WindowsMetro is really neat too.
    That's going to seriously fool a few people the first time they see it.
    Can't wait to see them all finished.

    SOME NEWS
    So I finally found a way out for testing a heavily changed rrui without breaking the unit.
    (there's no real danger but better be safe than sorry...)
    So I should start working on our mods to see how far we can change things.
    Give me a couple of days; I should know pretty soon.

    ABOUT FONTS
    We can not change the font neither the labeling. Not even sure it's possible.
    But we can probably change the size and colors.
    Each element (including text) has (apparently; not fully tested) 3 colors: normal state, selected state and touch state.
    But may be we can also get away by just adding our own elements with pictures and/or our labeling.
    And disable somehow the static elements we don't want (like the clock or labels).
    Just FYI, this is all data driven by the RRUI file, there is no scripts anywhere.

    WHAT'S NEXT
    So the radio, I agree, would be a very likely next candidate.
    Although, just my 2 cents, I would prefer to have a coherent set of icons first.
    (Just because it looks silly when you switch to the Apps screen...)
    You guys decide according to your motivation.
    But know that if you do the radio now, you will probably want to redo it after if we can change positions.

    ABOUT THE TOOL
    It's coming along.
    I can pretty much load a rrui, change the art in Photoshop in the background and then check real-time if all the screens look OK.
    I'm thinking of releasing it to you guys very soon.
    So if you feel like it, you would be able to change the whole art very quickly.
    Here's a screenshot...
    [​IMG]
    BTW do you guys have a Windows gig with .NETFramework 3.5 or higher?

    Next step would be to be able to create the RRUI on the fly by editing the screen directly...
    Now that one is going to take a while! But very feasible.

    So for creating RRUI file it's still hexadecimal editing and command line for a little while...

    #64 Bulle, Feb 28, 2012
  5. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    Wow! I posted my screen and went to be and wake up to find out we were all busy last night.

    Bulle that tool is exactly what I need. :rockon:

    As for the type color. As I recall it was orange in the original interface and once the graphics were changed to blue the type has now changed. Is it possible that it's using a graphic to determine type color?

    As for the icons I wanted to get a feel for the screen designs. That may have an influence on how the other icons are designed.

    #65 clayfree, Feb 28, 2012
  6. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    Can't wait to try this! Where's the shot of it in action :)

    #66 clayfree, Feb 28, 2012
  7. Bulle

    Bulle Member

    Joined:
    Nov 5, 2011
    378
    49
    0
    Location:
    Canada
    Vehicle:
    2011 Prius
    Just a little magic I did. The command line tool can also convert all the colors parameters for each element to the hue you want.
    There's like a little micro-Photoshop inside he he.
    I did a gray RRUI for Dehhh this way.

    @Dehhh: possible for you to show us how Gray and Metro look like???

    #67 Bulle, Feb 28, 2012
  8. dehhh

    dehhh Junior Member

    Joined:
    Nov 21, 2011
    61
    16
    0
    Location:
    TC
    Vehicle:
    2011 Prius
    Model:
    Three
    it does not look good :D


    Attached Files:

    • gray.jpg
      File size:
      172.6 KB
      Views:
      1,055
    #68 dehhh, Feb 28, 2012
  9. dehhh

    dehhh Junior Member

    Joined:
    Nov 21, 2011
    61
    16
    0
    Location:
    TC
    Vehicle:
    2011 Prius
    Model:
    Three
    :)

    [​IMG]

    #69 dehhh, Feb 28, 2012
  10. Bulle

    Bulle Member

    Joined:
    Nov 5, 2011
    378
    49
    0
    Location:
    Canada
    Vehicle:
    2011 Prius
    lol; the gray one looks like and old retro TV. Could be cool for rainy days...
    May be it would be better to use a light cyan to match the dash LCDs...

    But the Metro has some punch!

    #70 Bulle, Feb 28, 2012
  11. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    I agree with the light cyan, that's what I was going for in the radio screen. It has better contrast so it's more legible.

    Love the Metro! Dehhh did you make new digital clock numbers? It lookd so much better.

    #71 clayfree, Feb 28, 2012
  12. savegas52

    savegas52 Junior Member

    Joined:
    Dec 1, 2011
    65
    1
    0
    Location:
    ONTARIO CA
    Vehicle:
    2011 Prius
    Model:
    ----USA----
    can you guys post pictures up of your "new" home screen so I can see how it actually really came out. I am very interested in trying to do this for my radio. BUT I WILL NEED YOUR GUYS HELp haha

    #72 savegas52, Feb 28, 2012
  13. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two

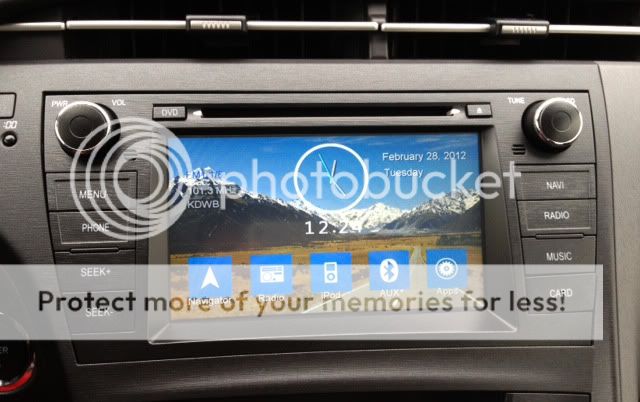

    Sure, here's a recap:

    Here are the two versions I have done with Bulle:

    [​IMG]

    [​IMG]


    You will want Bulle's theme Metal.rrui

    http://dl.dropbox.com/u/6709347/Metal.zip


    Then you will use one of these wallpapers:
    http://dl.dropbox.com/u/6709347/Clayfree_wallpapers.zip

    Install is easy. Put the files on a usb drive. Go to system settings under theme and browse to "Metal2.rrui" and the new theme will load. Then under wallpaper browse to either one(Black Grill or Wood) and select it. Enjoy!

    #73 clayfree, Feb 28, 2012
  14. savegas52

    savegas52 Junior Member

    Joined:
    Dec 1, 2011
    65
    1
    0
    Location:
    ONTARIO CA
    Vehicle:
    2011 Prius
    Model:
    ----USA----
    So basically...download from the link your gonna post the files onto an sd card and the file from the second link and upload it onto the unit?

    Will I need to have the usb drive connected the whole time or once i copy over format it will save?

    #74 savegas52, Feb 28, 2012
  15. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    Yes that's correct. I just updated the links so that should be all you need. It looks like the theme copies over but I'm not sure about the wallpaper. My USB is always connected so I've never tested that. Bulle can probably answer where files are stored.

    #75 clayfree, Feb 28, 2012
    1 person likes this.
  16. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    Hey Bulle, if we can just use the tool for previewing graphics then that's a big help for now. I will be delighted to send them back to you for the build :D. The good new is you should receive graphics that work the first time.

    Hopefully the next version you release will let us design new themes with a GUI on our touchscreens while we're driving :rockon:

    #76 clayfree, Feb 28, 2012
  17. Bulle

    Bulle Member

    Joined:
    Nov 5, 2011
    378
    49
    0
    Location:
    Canada
    Vehicle:
    2011 Prius
    Geez I never thought about that! Yes, it's true, we can make the tool available on the unit itself! Man you're dangerous! lol

    Tool: it's coming... bare with me.

    So yes, after loading a new skin, it get copied to the unit memory.
    So no need to leave it on your SD card or USB when it's in.

    #77 Bulle, Feb 28, 2012
    1 person likes this.
  18. Bulle

    Bulle Member

    Joined:
    Nov 5, 2011
    378
    49
    0
    Location:
    Canada
    Vehicle:
    2011 Prius
    Clayfree, Dehhh,

    do you guys have a Windows box with .Net framework 3.5?
    You will probably need that.

    #78 Bulle, Feb 28, 2012
  19. clayfree

    clayfree Junior Member

    Joined:
    May 12, 2008
    69
    15
    0
    Location:
    Frisco, Texas
    Vehicle:
    2011 Prius
    Model:
    Two
    Yes, good to go.

    #79 clayfree, Feb 29, 2012
  20. dehhh

    dehhh Junior Member

    Joined:
    Nov 21, 2011
    61
    16
    0
    Location:
    TC
    Vehicle:
    2011 Prius
    Model:
    Three
    I do have it.

    #80 dehhh, Feb 29, 2012
    1 person likes this.
