question about underbody splash guard

Discussion in 'Gen 2 Prius Main Forum' started by bmparent, Sep 19, 2014.

  1. bmparent

    bmparent Member

    Joined:
    Aug 15, 2014
    159
    65
    0
    Location:
    barre ma
    Vehicle:
    2007 Prius
    Model:
    N/A

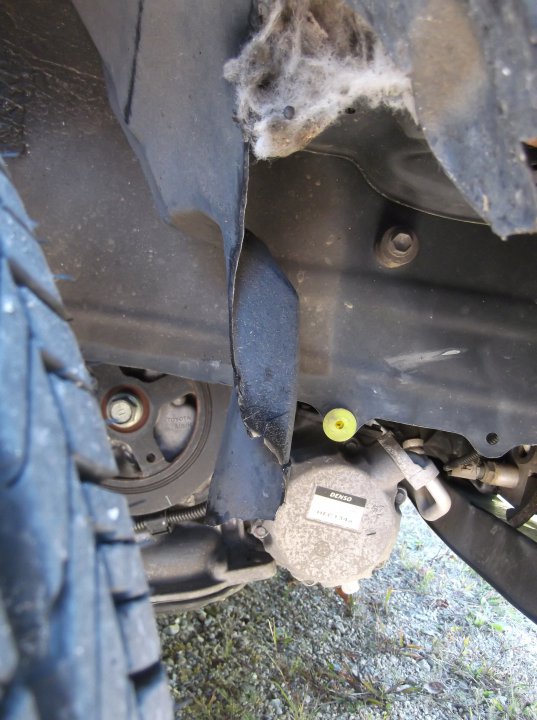

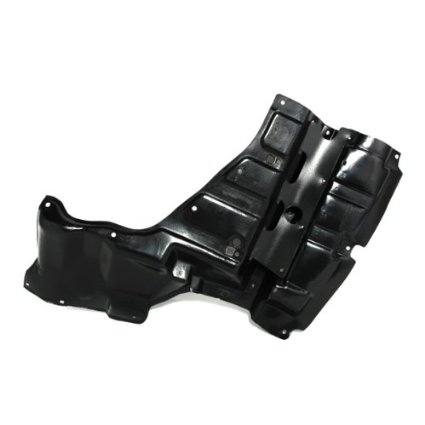

    I'm missing (another) piece. I've discovered a lot of missing underbody pieces since buying this used Prius. Here's photo from ebay of what I think it is, and photos of under the car, where I think it goes. Any advice re installation/identification would be appreciated! Look for the green tab/hole. I think that's one of the places where it would attach. It's a passenger side photo, bumper on right of photo.
    41AltcoycvL__SX425_.jpg 001.JPG

    #1 bmparent, Sep 19, 2014
  2. Mike500

    Mike500 Senior Member

    Joined:
    Mar 1, 2012
    2,593
    763
    0
    Vehicle:
    2012 Prius v wagon
    Model:
    Two
    #2 Mike500, Sep 19, 2014
  3. Mutual

    Mutual Junior Member

    Joined:
    Oct 18, 2012
    8
    3
    0
    Vehicle:
    2004 Prius
    Model:
    II
    You need a left and right splash shields. They are attached with bolts and clips. The shields attach to the bumper cover with bolts through a 'S' clips. I think the bolts used to attach are M6. The bolt that attaches to the green tab is a self tapping bolt not a machine bolt like the ones use in the S-clips.
    I think there are two or three (I doing this from memory and do not have the car as reference) additional plastic clips that attach the back of the shield to the metal frame.

    #3 Mutual, Sep 19, 2014
    Last edited: Sep 19, 2014
