Rear Brake Clean and Adjust

Discussion in 'Gen II Prius Care, Maintenance and Troubleshooting' started by galaxee, May 21, 2009.

Social Buttons

  1. galaxee

    galaxee mostly benevolent

    Joined:
    Mar 14, 2005
    Messages:
    9,810
    Likes Received:
    374
    Location:
    MD
    Your Vehicle Year:
    2005 Prius
    Model:
    N/A
    we hit 60k miles recently, so before we take our usual road trip, DH did the whole rear brake clean and adjust job on our prius. and i took pictures.

    this job is something that can be done by someone who is fairly DIY competent. that is, a novice or anyone who thinks they might mess things up is strongly discouraged from trying this. there are several things that can go wrong in this process that could lead to problems either immediately or down the road.

    that out of the way, here's what you do.

    1. lift the car. safety first- use proper supports. remove the wheel.

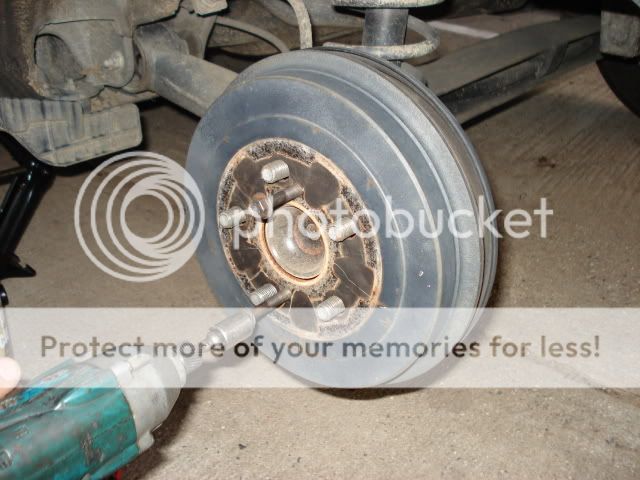

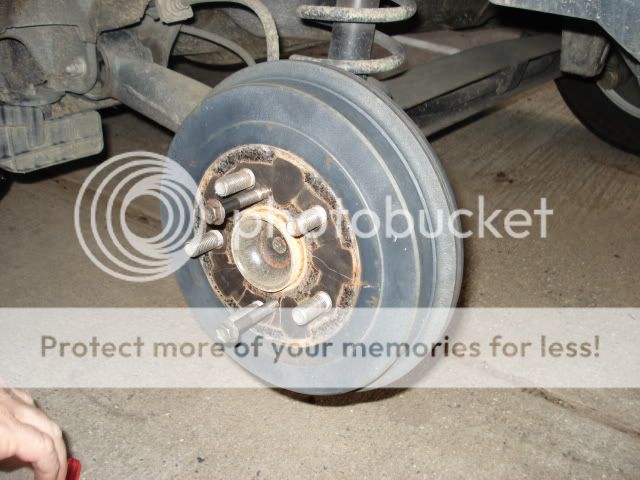

    2. remove the brake drum. chances are it will be tight. use two bolts to push it off as shown:

    [​IMG]

    [​IMG]

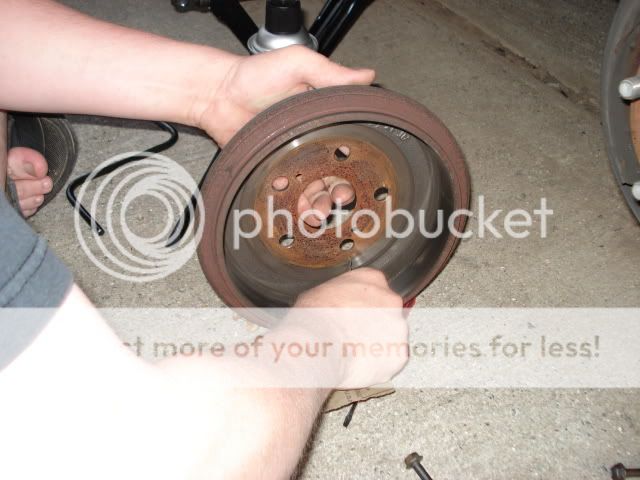

    3. sandpaper the friction surface of the drum with aluminum oxide sandpaper- 80 grit wet or dry is what DH is using here. see how shiny that surface is? that's glazing. the glazing will be removed as well as brake dust. NEVER sand in the direction parts are moving. do not sand around the long surface, sand perpendicular to it. if you sand parallel to the long surface, you can score the surface, which you really do not want to do.

    [​IMG]

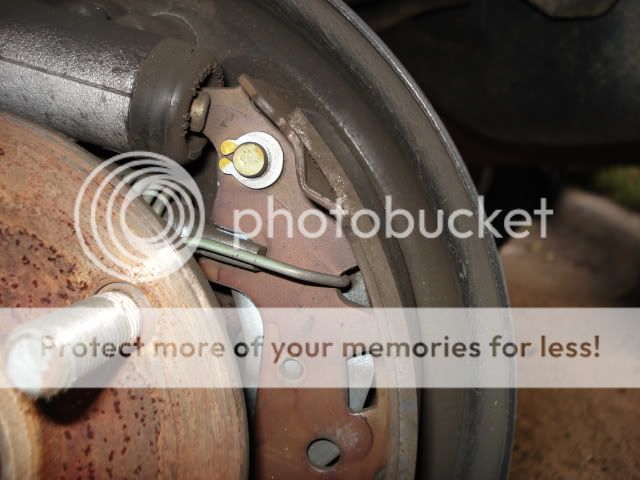

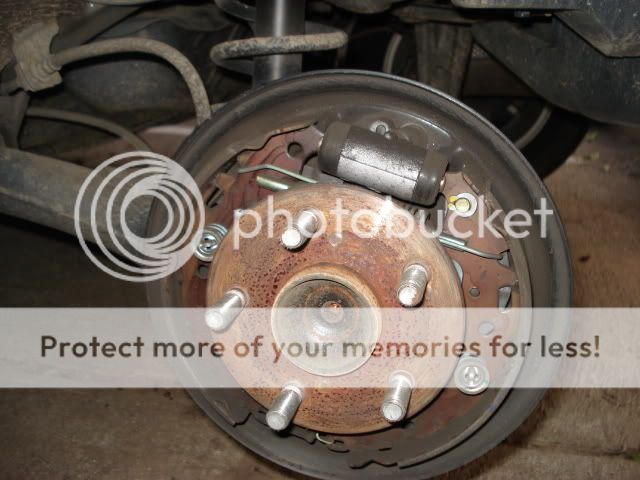

    4. next up is the rest of the brake assembly. it is filthy.

    [​IMG]

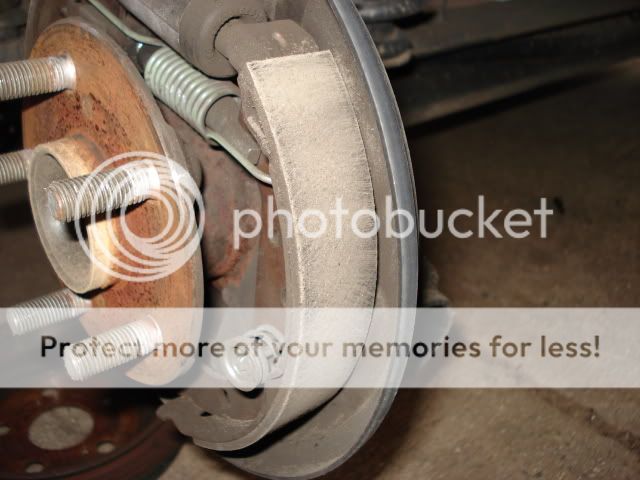

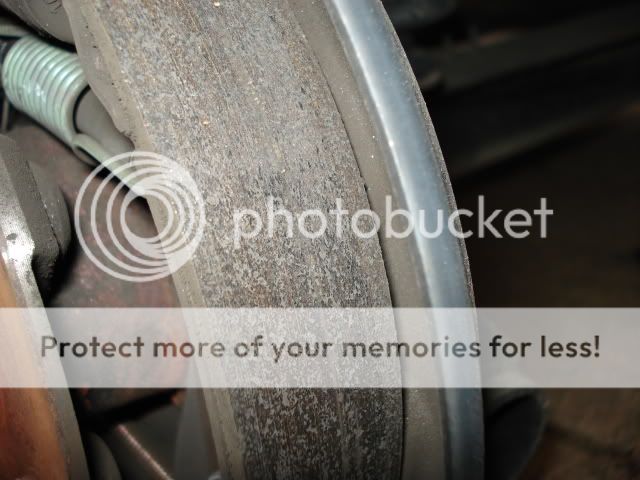

    rear shoes looking very good at 63k

    [​IMG]

    but they are glazed.

    [​IMG]

    7. shoes get sanded to remove glazing, too. again never sand in the direction of parts movement. always perpendicular to it. same reasons as for the drum.

    [​IMG]

    now cleaned of glaze, will brake more efficiently.

    [​IMG]

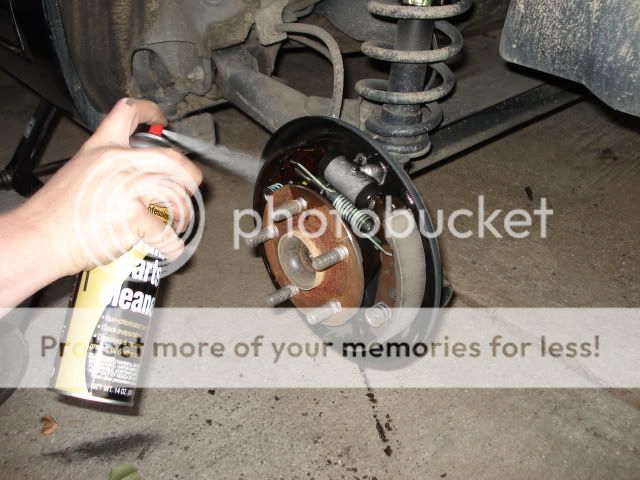

    8. and the rest of the cleaning part: brake parts cleaner removes brake dust built up all over the place

    [​IMG]

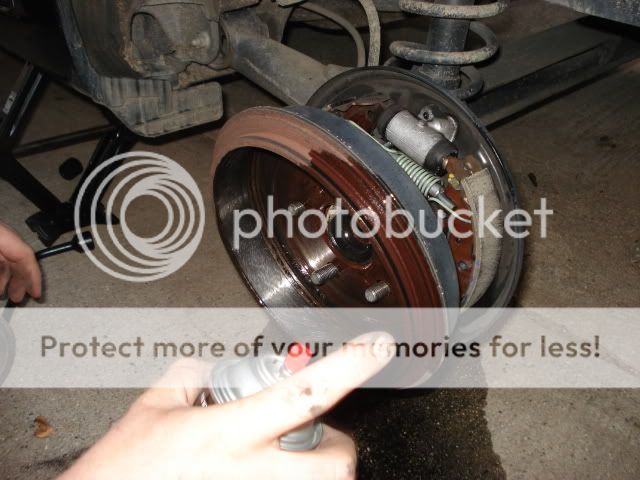

    don't forget the drum

    [​IMG]

    9. reassemble brake assembly. DH always makes sure to put the drum back on in exactly the same position as when he took it off. make sure it is all the way back on.
    spin assembly, pull gently on parking brake cable and flex it to stop spinning. if it stops, then all is well.

    [​IMG]

    10. adjust rear brakes.
    this is trickier than what's been done so far.

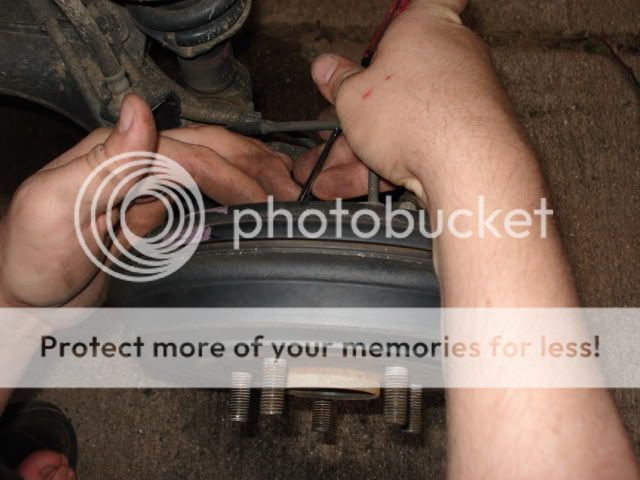

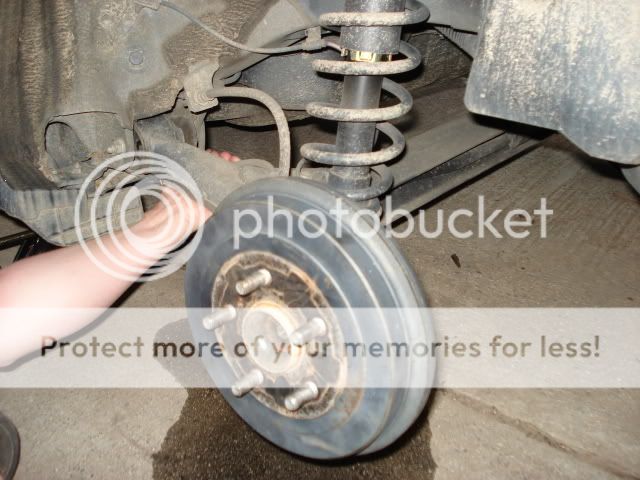

    where DH has the screwdriver in this picture, there is a rubber plug that reveals a hole through to the star adjuster screw.

    [​IMG]

    start by finding the adjuster screw with your screwdriver. now that you know where it is, spin the drum. listen for any light drag. adjust one click forward. listen again for light drag. continue doing this until you hear a very slight drag sound. then stop making your adjustments.

    some of you are probably wondering why you would want the brakes to drag slightly. remember this is an adjustment point, and the self-adjusters will readjust the shoes again when you step on the brake.

    it has been about 30k since the last time DH did a clean and adjust on our prius. the left side was in fine adjustment, but the right side took eighteen clicks to adjust. those self adjusters aren't always perfect. i was getting a slight wobble (only on hard braking) as a result of this adjustment problem. now things are back to normal.
    davisnc, Los, Hopopotamus and 9 others like this.
  2. hobbit

    hobbit Senior Member

    Joined:
    Mar 23, 2005
    Messages:
    4,084
    Likes Received:
    415
    Location:
    Bahstahn
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    If they weren't self-adjusting this whole time, perhaps the lead
    screw on the star adjuster was gunked up and not being turned
    by the adjuster arm?
    .
    It also helps to get a little grease onto the little nubs on
    the backing plate that the sides of the shoes ride on, which
    will not only make things quieter but also help them self-center.
    The slight dragging on reassembly may simply be from the pair
    of shoes shifted slightly front or back at the piston end. A
    couple of solid braking events should straighten 'em right
    up, though.
    .
    Thanks for more views on this! I've never actually used brake
    cleaner like it's supposed to be; something about lots of nasty
    solvents flying around didn't sit well with me and fortunately my
    brake innards were always fairly clean to begin with.
    .
    Gotta do my own all-corners spring checkout real soon myself, too...
    .
    _H*
  3. tochatihu

    tochatihu Senior Member

    Joined:
    Apr 10, 2004
    Messages:
    4,124
    Likes Received:
    626
    Location:
    Kunming Yunnan China
    Your Vehicle Year:
    2001 Prius
    Great stuff Galaxee, especially the brake drum push-off bolt trick. Details on "proper supports" can be found here:

    ABCD's Bridge Design Tips for Kids

    Hobbit, those brakes aren't rusty. Dave Bassage' brakes were rusty. I don't know what the put on the roads in winter in West Virginia but it's quite fond of iron alloys.
  4. Vincent

    Vincent Don't Wait Until Tomorrow

    Joined:
    Sep 5, 2005
    Messages:
    641
    Likes Received:
    28
    Location:
    South Florida
    Your Vehicle Year:
    2010 Prius
    Model:
    V
    Great recommended service at 60,000 miles, which is when I had the cleaning/adjustment done. This was a cheap investment ($60 at dealer) that I'm sure will increase the life of my brakes.
  5. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius
    What size bolts did you use to get the rear drums off. I can't get mine off. I need to get those bolts!
  6. tochatihu

    tochatihu Senior Member

    Joined:
    Apr 10, 2004
    Messages:
    4,124
    Likes Received:
    626
    Location:
    Kunming Yunnan China
    Your Vehicle Year:
    2001 Prius
    Metric bolts. Size forgotten, but they are the same as the thing holding down your donut spare tire.
  7. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius
    I found it. It's 8mm x 1.25
  8. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius
    This was EXTREMELY easy to do as long you have the proper tools. I would put this on par with an oil change. Saved $80 by not going to the dealer and doing it myself. Use two 8mm x 1.25 bolts of any length to get the stubborn brake drum loose if a hammer won't loosen it.

    For those who have done this:

    Is it just me or do the rear brakes seem to adjust themselves when I start spinning the tire while the car is still on the jack? I adjusted the Star Wheel to where the shoes were putting enough pressure against the drum to feel some tight resistance. When I continued to spin and applied the Emergency Brake to test it, everthing loosened up a bit to the point where you could barely tell the shoes were touching the drum.

    After watching How to Make Final Adjustments to Car Brakes: How to Adjust Brake Drums on Cars | eHow.com I learned that you should adjust for enough resistance that the tire should only be able to make one revolution when you spin it as hard as you can. This is the "pre-adjustment procedure" to fine-tune the adjustment. I'm not sure that this matters a whole lot because like I stated above, everything loosened up right away after a few spins to where there was little resistance.
  9. DaveinOlyWA

    DaveinOlyWA 3rd Time was Solariffic!!

    Joined:
    Apr 13, 2004
    Messages:
    15,120
    Likes Received:
    597
    Location:
    South Puget Sound, WA
    Your Vehicle Year:
    2013 Nissan LEAF
    Model:
    Persona
    post should be made part of knowledge base.
    wingman44 likes this.
  10. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius
    Do Prius rear drums self-adjust when applying the parking brake or braking in reverse?
  11. tochatihu

    tochatihu Senior Member

    Joined:
    Apr 10, 2004
    Messages:
    4,124
    Likes Received:
    626
    Location:
    Kunming Yunnan China
    Your Vehicle Year:
    2001 Prius
    I believe that Dr. Galaxee has previously posted that reversing can adjust the shoe clearance.
  12. hobbit

    hobbit Senior Member

    Joined:
    Mar 23, 2005
    Messages:
    4,084
    Likes Received:
    415
    Location:
    Bahstahn
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    No, they self-adjust under normal hydraulic braking.
    .
    _H*
  13. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius


    Hobbit,

    How much resistance did you experience when spinning the tire? How tight did you make your adjustment?

    BTW- Thanks for the tips on Saturday. It was nice seeing you again. I bought a cross style lug wrench like the one you have. MUCH easier to take the lug nuts off!
  14. DaveinOlyWA

    DaveinOlyWA 3rd Time was Solariffic!!

    Joined:
    Apr 13, 2004
    Messages:
    15,120
    Likes Received:
    597
    Location:
    South Puget Sound, WA
    Your Vehicle Year:
    2013 Nissan LEAF
    Model:
    Persona


    umm, not a lot. you should hear slight grinding/rubbing sound. a good spin might get you maybe a few turns or so.
  15. acacia987

    acacia987 Junior Member

    Joined:
    Jul 27, 2009
    Messages:
    44
    Likes Received:
    2
    Location:
    MD
    Your Vehicle Year:
    2008 Prius
    Model:
    N/A
    Dealer quoted me at 55 bucks to do a clean and adjust on the rear brakes. think that is a resonable price?I am fairly sure i can do the work myself but am unsure on how long it would take me.
  16. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    Messages:
    259
    Likes Received:
    12
    Location:
    Monroe, Ohio
    Your Vehicle Year:
    2008 Prius


    Very easy to do. Took about 30 minutes. Don't pay the dealer.
  17. ursle

    ursle Gas miser

    Joined:
    Jun 28, 2006
    Messages:
    978
    Likes Received:
    176
    Location:
    NH
    Your Vehicle Year:
    2011 Prius
    Model:
    Four


    That's the best money you'll ever spend
    My brakes at 60,000 were practically new, the dealer never adjusted the rear brakes, the self actuator never self actuated.
    Yes it's an extremely easy adjustment, but... it's your brakes,
    let a professional do it. As in how expensive is it? If you have to ask you can't afford it., Your car brakes are not the place to practice mechanical dexterity.
    jmho
    ps,,, if the rear brakes were engaging properly, the pads should be replaced at 60,000, seems the car would stop better if the rear brakes were engaging properly:rolleyes:
  18. acacia987

    acacia987 Junior Member

    Joined:
    Jul 27, 2009
    Messages:
    44
    Likes Received:
    2
    Location:
    MD
    Your Vehicle Year:
    2008 Prius
    Model:
    N/A


    your response confuses me. I don't really follow anything you just said. I have done brake work before(replaced disc pads, brake lines). This seems to be very straight forward and easy to do, i was just unsure on the time it would take compared to having the dealer do( and pray they dont mess something up)
  19. ursle

    ursle Gas miser

    Joined:
    Jun 28, 2006
    Messages:
    978
    Likes Received:
    176
    Location:
    NH
    Your Vehicle Year:
    2011 Prius
    Model:
    Four


    I was speaking to the forum in general, sorry to make it seem too personal, yes it's easy to do if you've ever done any work on your own car...
    Most people haven't :)
  20. davisnc

    davisnc Junior Member

    Joined:
    Jun 18, 2012
    Messages:
    5
    Likes Received:
    1
    Your Vehicle Year:
    2008 Prius
    Model:
    III
    Great write-up. In my 24 years of driving, my Prius is the first vehicle I've had with drum brakes. This made it very easy for me to do at home. My shoes have 136k miles and appear to have a bit left before needing replacement. One side took at least 20 clicks and the other about 15!
