Rear (dead) Axle replacement

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Luis, Jun 22, 2014.

  1. Luis

    Luis Junior Member

    Joined:
    Jul 19, 2012
    3
    0
    0
    Vehicle:
    2007 Prius
    Model:
    Two
    long time reader first time posting...

    I am looking at replacing my rear axle to my 2007 Prius and had a few questions that I'm hoping someone here can help me with. The reason for the replacement is that my rear axle is bent (most likely due to bottoming out on rough roads near where I live and is now causing severe cupping on the inside of my rear tires. As I know this is a very expensive part, I am looking into finding a decent used axle in a junkyard. There is one locally that I have found but it is for a Touring edition. Are the rear axles interchangeable between the touring and standard editions? Does anyone have any experience in replacing the rear axles and have any advice on the replacement? Lastly, and most important, is there any (simple) way to check a used axle to make sure it is relatively straight and won't cause the same problems? Appreciate any help and advice from users with experience....

    Thanks!

    #1 Luis, Jun 22, 2014
  2. nh7o

    nh7o Off grid since 1980

    Joined:
    Dec 10, 2011
    1,686
    338
    0
    Location:
    Hawaii
    Vehicle:
    2009 Prius
    Model:
    II
    I wonder if commercially available shims, used for alignment purposes, would have enough of an angle to bring things back to true again? Maybe getting an alignment shop to test would be a start. Easier to install shims than a whole axle.

    #2 nh7o, Jun 23, 2014
  3. Simtronic

    Simtronic Active Member

    Joined:
    Feb 9, 2009
    290
    116
    1
    Location:
    Surrey, UK
    Vehicle:
    2017 Prius PHV
    Model:
    Business Ed. Plus
    As far as I know the only difference is the brakes they are discs with parking brake in the centers on the touring

    #3 Simtronic, Jun 25, 2014
  4. Luis

    Luis Junior Member

    Joined:
    Jul 19, 2012
    3
    0
    0
    Vehicle:
    2007 Prius
    Model:
    Two

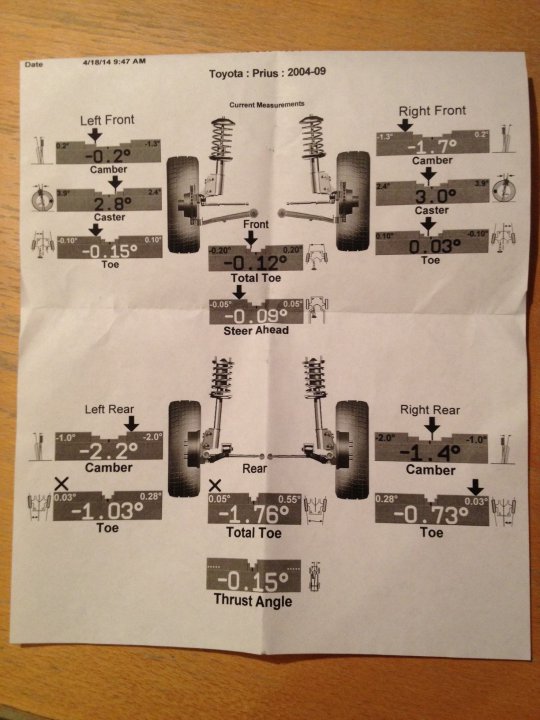

    Thanks for the info. I did get my alignment checked, which is when I was told about the rear axle issue. Attached is the spec sheet I was given. I do not know if my wheels are too far out of alignment for shims to be a possible solution. Can anyone with more experience take a look at the spec sheet and let me know how far out of alignment my wheels are?


    Attached Files:

    #4 Luis, Jun 26, 2014
  5. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,199
    6,464
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    You should find a specialty alignment shop, show them your report and ask if they can install shims to help the rear.

    Your front alignment is not very good either, the toe-in and camber on the front wheels can and should be adjusted. Toe-in should be 0 or very slightly positive while camber should be equal on both sides and at the middle of the range.

    #5 Patrick Wong, Jun 26, 2014
