2009 Prius AUX Video for free.

Discussion in 'Gen 2 Prius Audio and Electronics' started by svitale75, May 14, 2011.

  1. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    Are 29/30 for power and 27/28 for video signal? or the other way around? Thanks!

  2. ive

    ive Member

    Joined:
    Jun 8, 2013
    104
    42
    0
    Vehicle:
    2008 Prius
    Model:
    II
    29/30 is power for the cam, the other two are the video input
    Marko

    2009Prius likes this.
  3. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    Thank you for the quick reply! :)

  4. calibramaanen

    calibramaanen Junior Member

    Joined:
    Aug 17, 2013
    12
    1
    0
    Location:
    Sweden
    Vehicle:
    2008 Prius
    Model:
    Plug-in Base

    29 = + cam
    30 = - cam
    27 = + video cable
    28 = - video cable

    I didnt use 29 and 30, i used power from the reversing light

    2009Prius likes this.
  5. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    Thank you! :)

  6. edthefox5

    edthefox5 Senior Member

    Joined:
    Jul 25, 2007
    9,472
    4,437
    0
    Location:
    Clearwater, Florida
    Vehicle:
    2007 Prius
    Model:
    Two
    Wouldn't it be easier to put everything on a switch instead of steering diode.
    Double pole double throw. One pole is B+ (no steering diode need) the other pole is bu cam or iPod video

  7. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    calibramaanen likes this.
  8. Mr.Electric

    Mr.Electric Member

    Joined:
    Jan 18, 2011
    287
    100
    0
    Location:
    San Francisco
    Vehicle:
    2010 Prius
    Model:
    IV
    Has anyone succeeded or attempted this mod on gen 3 2010 prius?

  9. dreamus

    dreamus New Member

    Joined:
    Sep 21, 2013
    5
    0
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A

    I am ready to tackle this mod but I am confused on which wires to connect to the micro dpdt switch contacts.
    Not very good at reading wiring diagrams.

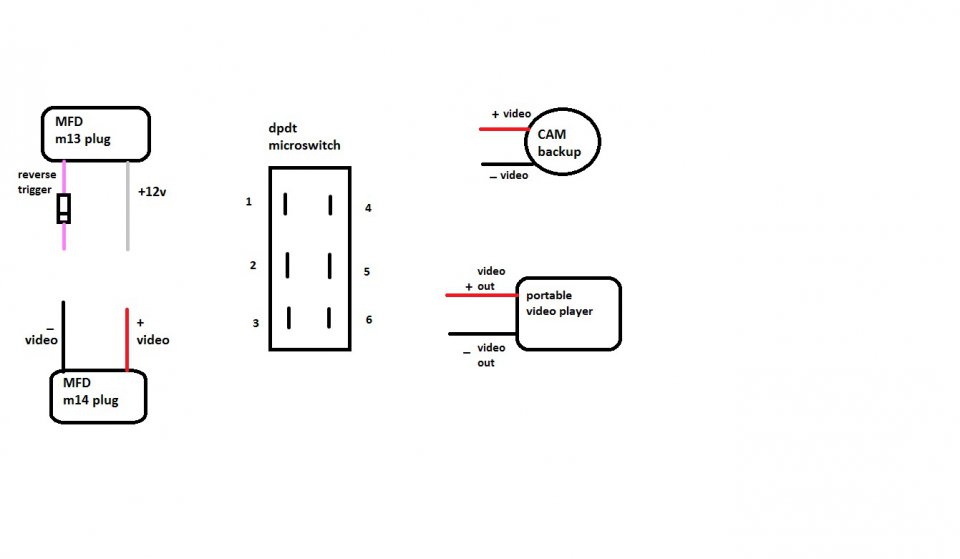

    Here is my little illustration on what I am trying to accomplish.

    prius aux vid.jpg
    Thank you.

  10. tomy

    tomy Junior Member

    Joined:
    Jan 7, 2016
    20
    1
    0
    Location:
    europe
    Vehicle:
    2006 Prius
    Model:
    N/A
    hello, I am conected 27-28 cable video, and power, but camedo dont work, my multimedia with gps and jbl, what need conect to 21rev?

  11. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    Sorry I don't have GPS or JBL. Let's wait for other people's reply. Thanks!

  12. Frank Tha

    Frank Tha New Member

    Joined:
    Jun 12, 2020
    5
    0
    0
    Location:
    Cambodia
    Vehicle:
    2006 Prius
    Model:
    II
    Which cable to be connected, so MFD will cut and display the connection from 29/30? Is there a switch needed?

  13. Frank Tha

    Frank Tha New Member

    Joined:
    Jun 12, 2020
    5
    0
    0
    Location:
    Cambodia
    Vehicle:
    2006 Prius
    Model:
    II
    Would you mind sharing me how to connect an RCA video cable to the MFD using 27/28?

  14. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,704
    487
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    It's been a long time so I don't remember exactly how I did it. I do know I used a mechanical switch to switch on the backup camera display which shows the PC screen on the MFD. Good luck!
