Cars-in-Bars Photo Throwdown: Show us your PiP’s Max-Regen!

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by Hi Burrito!, Feb 2, 2013.

  1. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Inspired by iplug’s Max Regen Downhill thread (Max Regen Downhill | PriusChat), I thought it would be fun to have a throwdown in which PiP owners post photos of their impressive regenerative braking feats. We’ve got a higher capacity battery than the other Prii. And hey – we paid big bucks for it. So let’s show it off!

    I’ll start the Cars-in-Bars Photo Throwdown with an easy one to beat. This is a short commute that started by climbing elevation along Hwy 280 in the SF Bay Area, followed by exiting the Hwy and 10 minutes of medium downgrade. Speed limit downhill was 45 MPH, so it was a blend of coasting and braking. 9 ½ bars, or 0.45 kW in 10 minutes! By my calculations, that’s faster charging than a Level 2 charger!

    Be safe. Don’t be taking pictures of your multi-information display while driving the car.

    Cars in Bars - Hi Burrito!.jpg

    Tracksyde likes this.
  2. retired4999

    retired4999 Prius driver since 2005

    Joined:
    Aug 11, 2011
    2,652
    625
    15
    Location:
    Eau Claire, Wi.
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Send me a mountain to go down! :D

  3. El Dobro

    El Dobro A Member

    Joined:
    Jul 12, 2011
    6,972
    3,209
    1
    Location:
    NJ
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Me too. About the steepest thing around here is my driveway.

  4. retired4999

    retired4999 Prius driver since 2005

    Joined:
    Aug 11, 2011
    2,652
    625
    15
    Location:
    Eau Claire, Wi.
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I am a little better, steepest I have is for about .5-.6 regeneration!

  5. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    12.5 regen cars x 50 Wh = 625 Wh

    You did regen more than a regular Prius NiMh battery can hold.

  6. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Looks like I'm the only PIP geek who's into the Cars-in-Bars Throwdown. No problem, I can play with myself.

    Here's a photo that answers a question I've had since owning the PIP: Can the MFD display cars above bars? Or is that not part of the software. Well, today I got the answer: Cars-Above-Bars! See attached photo.

    I continue to be impressed at the charge speed provided by the PiP's regenerative braking. 825 wh in 30 minutes blows away a Level 1 charger and nearly equals a Level 2 charger.


    usbseawolf2000 and Tracksyde like this.
  7. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    By the way, the above post sets the bar for most regen in a 30 minute window. :D

  8. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    17,039
    10,013
    90
    Location:
    Western Washington
    Vehicle:
    Other Hybrid
    Model:
    N/A
    How much will a PiP show after a descent from Colorado's Pikes Peak? Or Dantes View to Furnace Creek in Death Valley?

    I expect folks will be able to suggest more descents of 5000+ feet.

    Hi Burrito! likes this.
  9. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Bring it on.

  10. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    14,487
    2,994
    0
    Location:
    Fort Lee, NJ
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Despite those regens, you still got 64 MPG. That won't be possible with a regular Prius.

  11. lensovet

    lensovet former BP Brigade 207

    Joined:
    May 23, 2009
    2,614
    495
    0
    Location:
    Burlington, NJ
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    hit some stop-and-go highway traffic today on 880 south. got one bar with 5 cars and another with 5.5 cars. mind you, this is on essentially flat terrain. a regular prius wouldn’t be able to do this at all.

    Hi Burrito! likes this.
  12. rogerv

    rogerv Senior Member

    Joined:
    Dec 10, 2008
    1,639
    317
    14
    Location:
    Simi Valley, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Hmmm..... guess I have to start paying more attention to those graphs.:)

  13. Andyprius1

    Andyprius1 Senior Member

    Joined:
    Feb 4, 2013
    2,327
    859
    1
    Location:
    Cool CA
    Vehicle:
    2017 Prius Prime
    Model:
    Plug-in Base
    I am not sure it is relevant to anything. What really counts is additional miles regenerated that are usable in EV. A 7000 foot drop from Reno to Sacto only produces 5-6 miles regen, which is quickly depleted in the numerous small valleys on the way down. With stop and go city traffic, 50WH cars appear constantly, but you are also using the energy in stop and go. A 2 hour drive across city traffic in Chicago might produce a 100 50 watters, probably with the ICE constantly on.

  14. lensovet

    lensovet former BP Brigade 207

    Joined:
    May 23, 2009
    2,614
    495
    0
    Location:
    Burlington, NJ
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    The point here is that in a regular Prius you wouldn't be able to regen as much and therefore would get lower fuel economy overall. This is why the pip gets better mileage on the highway test compared to the liftback.
    Here's the photo btw

    Hi Burrito! and Tracksyde like this.
  15. moshi

    moshi New Member

    Joined:
    Oct 17, 2012
    24
    4
    0
    Location:
    SoCal
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Rebound and Hi Burrito! like this.
  16. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Brownie point for you! :) 15 Cars of Regen! You're in 2nd Place.

  17. retired4999

    retired4999 Prius driver since 2005

    Joined:
    Aug 11, 2011
    2,652
    625
    15
    Location:
    Eau Claire, Wi.
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
  18. Jumpjet

    Jumpjet Member

    Joined:
    Nov 21, 2012
    77
    25
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced

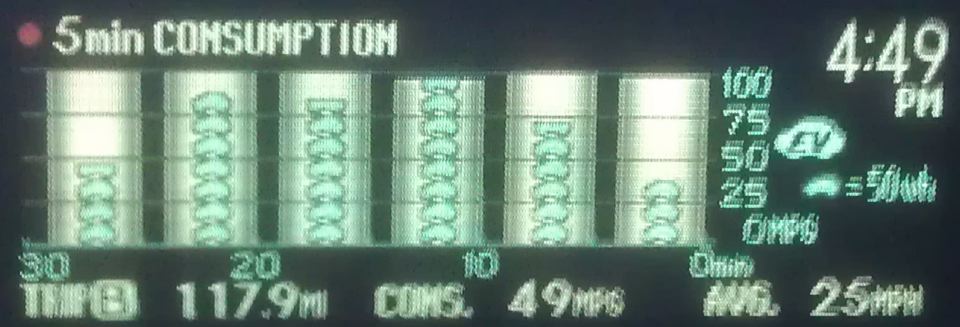

    Here is mine from awhile back that I fully charged my EV all the way back up.

    [​IMG]

    Rebound, lensovet and Hi Burrito! like this.
  19. Hi Burrito!

    Hi Burrito! Regenerative Farting

    Joined:
    Dec 9, 2012
    68
    42
    0
    Location:
    Fremont, California
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    Whoa! Jumpjet rules the throwdown with 37 cars in bars! Darn close to the theoretical max of 48 bars in 30 minutes. Nice photo.

    I continue to be surprised at how fast regen charging can be. Jumpjet's 1.85 kWh in 30 minutes is around double the charge rate of a level 2 charger.

    lensovet likes this.
  20. lensovet

    lensovet former BP Brigade 207

    Joined:
    May 23, 2009
    2,614
    495
    0
    Location:
    Burlington, NJ
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    Makes you wish they didn't cheap out on the on board charger, doesn't it? Just think about it, if you could charge at 220/40A, you'd have a full battery pack in less than 30 minutes.
