Discussion in 'Prius PHEV Plug-In Modifications' started by TheForce, Oct 13, 2009.

  1. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    This could be a potential problem with all PHEV owners!

    I rotate my tires every 10k miles ( I know I should do it at 5k but I'm lazy ) and I have not rotated my tires since I got my Hymotion battery installed. This is what I found today when rotating the tires.

    The outer edges of my tires are getting pretty much bald but the 3 center tread lines are still at least 3.2mm thick. Actually that are about 3.5mm, 5.2mm, 3.7mm

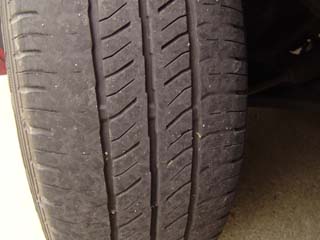

    This is a pic of the rear tire.
    [​IMG]

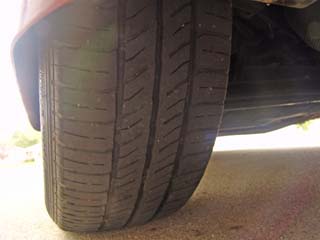

    This is a pic of the front tire to compare. The thickness on these are about 4.0mm, 4.2mm, 4.2mm
    [​IMG]


    I'm not to concerned about this right now because next year I'm going to get new tires anyway.

    In the mean time I have inflated my tires opposite of what is recommended. Normally you have 2lbs more in the front. Well I put 2lbs more in the rear to see if that will make a difference.

    I'm now running 48psi front and 50psi rear.

    Note: I took the pictures after I rotated the tires since I did not have my camera with my when I rotated them.

    1 person likes this.
  2. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    17,035
    10,010
    90
    Location:
    Western Washington
    Vehicle:
    Other Hybrid
    Model:
    N/A
    About how much weight does the Hymotion add to the rear?

    1 person likes this.
  3. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    The Hymotion battery is about 200lbs.

    1 person likes this.
  4. krousdb

    krousdb NX-74205

    Joined:
    Jul 16, 2005
    580
    498
    47
    Location:
    Raleigh, NC
    Vehicle:
    2016 Prius
    Model:
    Two
    My tires wore that way before installing the PHEV. This is normal wear.

    1 person likes this.
  5. DonDNH

    DonDNH Senior Member

    Joined:
    Feb 3, 2004
    1,711
    654
    0
    Location:
    Nashua, NH
    Vehicle:
    2016 Prius
    Model:
    Four Touring
    I wouldn't consider that normal tire wear; an alignment adjustment is likely due to compensate for the extra weight.

    1 person likes this.
  6. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    I did not notice that much wear the last times I rotated the tires.

    1 person likes this.
  7. mrbigh

    mrbigh Prius Absolutum Dominium

    Joined:
    Sep 6, 2005
    3,686
    699
    2
    Location:
    Long Island, NY
    Vehicle:
    Other Electric Vehicle
    I agree, had the same problem and was corrected with front end alignment

    1 person likes this.
  8. hobbit

    hobbit Senior Member

    Joined:
    Mar 23, 2005
    4,089
    468
    0
    Location:
    Bahstahn
    Vehicle:
    2004 Prius
    Model:
    N/A
    200 pounds is not really an inordinate amount of weight, but
    it *is* in the very back and possibly exerts a little more leverage
    at the rear axle. But you should definitely check for misalignment,
    especially if you feel any treadblock feathering *across* the tire
    as shown in my 100k rundown.
    .
    One should also note that if the weight *is* a cause of increased wear,
    the folks who put in beefier springs to accomodate a PHEV rig won't see
    any tire-wear benefit from that...
    .
    _H*

    1 person likes this.
  9. Fred_H

    Fred_H Misoversimplifier

    Joined:
    Apr 20, 2007
    546
    473
    26
    Location:
    Germany
    Vehicle:
    2007 Prius
    Model:
    Touring
    From your description, I am fairly certain that the rear axle has excessive toe-in, and too much or close to the limit negative camber. But to be absolutely certain, you would have to have it measured.

    The added weight does change the alignment somewhat, but not that much. The increased weight increases wear in general, thereby exaggerating a condition that was probably there already.

    The increased rear tire pressure should help, but I wouldn't recommend making it any higher than 2 or 3 psi above the front, for handling and safety reasons. More frequent tire rotating should also help. However, these measures will only reduce the symptoms, and not cure the problem.

    If indeed the rear toe-in is excessive, then unfortunately it is difficult to correct, because it is officially not adjustable. According to posts in other threads, the official repair is the replacement of the complete rear axle. Also according to posts in other threads, there is an unofficial adjustment method for do-it-yourselfers, which I consider to be risky unless performed with the proper material, the right tools, and the correct torque.


    My rear tires, especially my winter tires, have a similar wear pattern, but to a lesser extent and a bit more wear on the outer side. I rotate about every 8-9k miles. About a month ago I had the alignment checked at the local Toyota shop. I watched the mechanic check the front alignment, which measured near perfect, and then he picked up his equipment and started putting it away. I asked him if he could please also measure the rear alignment, and after thinking a moment, he said yes, that would be possible. Obviously rear alignment is normally not measured there, and would not have been measured if I had not made sure.

    The rear alignment turned out to have an excessive total toe-in of 2.75° and camber in spec, but towards the more negative side.

    The shop manager spent half an hour trying to find an official remedy from Toyota, but didn't find anything. He sent an email to Toyota, asking what to do, and hasn't heard from them since.

    I'm planning to do the do-it-yourself adjustment within the next few weeks, unless Toyota answers before then.

    1 person likes this.
  10. zcat3

    zcat3 New Member

    Joined:
    May 4, 2008
    117
    35
    0
    Location:
    SF Bay Area
    Vehicle:
    2008 Prius
    Although the Hymotion system weighs about 180 lbs I believe, you do lose maybe 20-30 pounds be removing the spare tire and related items. I had new tires installed right after the Hymotion system went in and have 12,000 miles on them now. I will take a look at them when I get a moment to see if I have similar wear. One thing I noticed right away with the Hymotion system is that the car's handling is much more neutral. I did the math and posted it somewhere on Prisuchat - IIRC I determined that although the car still has more weight in front, it is around 55/45 now. With that in mind I adjusted my tire pressure to make the rear almost the same as the front - feels right to me.

    1 person likes this.
  11. drees

    drees Senior Member

    Joined:
    Oct 31, 2007
    1,782
    247
    0
    Location:
    San Diego, CA
    Vehicle:
    2008 Prius
    As Fred says, if you're seeing excessive wear on the outside edge of the rear tires, you very likely have too much toe-in. You should see slightly more wear on the inside of the rears due to the slight amount of negative camber.

    On the fronts, the outside shoulders will tend to wear a bit faster due to cornering forces.

    Moral of the story - get the alignment checked, front and rear!

    1 person likes this.
  12. zcat3

    zcat3 New Member

    Joined:
    May 4, 2008
    117
    35
    0
    Location:
    SF Bay Area
    Vehicle:
    2008 Prius
    O.K. - here is a picture of my rear driver's tire. The tire was put on after the Hymotion install (could not stand the OE tires - these are Michelin Radial Xs) and has about 12,000 miles on it. As you can see, tread wear is very even.


    Attached Files:

    1 person likes this.
  13. hill

    hill High Fiber Member

    Joined:
    Jun 23, 2005
    19,604
    8,036
    54
    Location:
    Montana & Nashville, TN
    Vehicle:
    2004 Prius
    Model:
    IV
    I don't see anywhere you mentioning if the balding tires are stockers. Many here simply found that the Goodyear Integrity wore poorly ... rotated or not ... and of course if you DO take too much time to rotate, than that just amplifies the condition. Are they Integrities?

    1 person likes this.
