Check Hybrid System message after tire change

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by Fluxuated, Mar 30, 2013.

  1. Fluxuated

    Fluxuated Member

    Joined:
    Sep 22, 2011
    133
    53
    0
    Location:
    Guelph, ON
    Vehicle:
    2011 Prius
    Model:
    N/A
    I Opened my 2011 Prius trunk to get the tire wrench to take my snow tires off, and install my main tires and rims. When I went to start up the car after it was done, I have a "Check Hybrid System" Message on the MFD. I wondered if I'd hit one of the 2 orange items on the Electric drive battery, that was exposed in the trunk, and I can't get rid of the message. The car is not drivable, the system doesn't read "READY" and the engine doesn't start.

    I had my Scan Gauge II check for codes and none were found.

    What are the 2 ORANGE items in the following Image. I'm thinking one may possibly be the problem. Thanks!

    [​IMG]

    #1 Fluxuated, Mar 30, 2013
  2. css28

    css28 Senior Member

    Joined:
    Feb 27, 2012
    1,566
    442
    3
    Location:
    Suburban Detroit
    Vehicle:
    2011 Prius
    Model:
    Three
    I'm thinking it's more likely that you disturbed a cable connection to the 12V battery or if you left doors open for an hour during the change maybe pulled the 12V battery voltage low.

    The large one on the right is the service plug which allows the HV battery to be disabled. To disable the battery you'd pull the looped end out (rotating it 90° outward) then pull the plug out of the battery. This doesn't usually happen accidentally. Toyota wants you to wear insulated gloves if you work with this, by the way.

    [Edit: I misunderstood the plug handle operation. See the last couple of postings]

    #2 css28, Mar 30, 2013
  3. tumbleweed

    tumbleweed Senior Member

    Joined:
    Oct 3, 2005
    4,067
    687
    0
    Location:
    Eastern Oregon
    Vehicle:
    2010 Prius
    Model:
    V
    Unhooking the 12V battery shouldn't cause any warnings or codes to be generated, I have unhooked mine several times while working on things with no problems.

    If it happened to me I would go ahead and disconnect the hybrid battery with the orange plug and reconnect it, it may be a loose connection that was disturbed when you bumped it. If it won't go to Ready now it seems you have nothing to lose by trying, just be careful there is 200V in there somewhere.

    If you feel uncomfortable unhooking the HV battery it might be better to have it towed to a dealer and let them find the problem.

    #3 tumbleweed, Mar 31, 2013
  4. GrumpyCabbie

    GrumpyCabbie Senior Member

    Joined:
    Dec 14, 2009
    6,722
    2,121
    45
    Location:
    North Yorkshire, UK
    Vehicle:
    2010 Prius
    Model:
    III
    Does the car still drive? If so, I'd take it for a good run and attempt to charge the 12v. I wonder if you've run the 12v down when you had the doors and hatch open.

    #4 GrumpyCabbie, Mar 31, 2013
  5. jdcollins5

    jdcollins5 Senior Member

    Joined:
    Aug 30, 2009
    5,131
    1,338
    0
    Location:
    Wilmington, NC
    Vehicle:
    2010 Prius
    Model:
    III
    You need to push the big orange plug to the right to lock it in place. Evidently you pulled this plug to the left.

    The black circle (post) on top of the orange plug should be all the way to the left of the slot to be in locked position.

    #5 jdcollins5, Mar 31, 2013
    tumbleweed likes this.
  6. css28

    css28 Senior Member

    Joined:
    Feb 27, 2012
    1,566
    442
    3
    Location:
    Suburban Detroit
    Vehicle:
    2011 Prius
    Model:
    Three
    So you're saying that the handle needs to be pushed (not rotated) to the right until it clicks?

    #6 css28, Mar 31, 2013
  7. css28

    css28 Senior Member

    Joined:
    Feb 27, 2012
    1,566
    442
    3
    Location:
    Suburban Detroit
    Vehicle:
    2011 Prius
    Model:
    Three

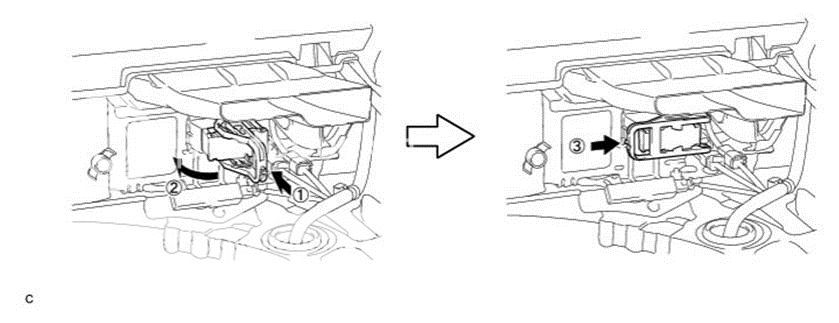

    Here's what the manual says for reinstalling the plug:
    [​IMG]
    (b) Rotate the handle of the service plug grip 90°toward the battery and slide it in the direction shown by the arrow until a click sound is heard.

    That would be what the arrow for step 3 is showing.

    #7 css28, Mar 31, 2013
  8. jdcollins5

    jdcollins5 Senior Member

    Joined:
    Aug 30, 2009
    5,131
    1,338
    0
    Location:
    Wilmington, NC
    Vehicle:
    2010 Prius
    Model:
    III
    Yes, just "slide" it to the right to lock it in place. Which would be Step 3 in the manual description.

    He must have hooked it and pulled it to the left while getting his tire tool.

    When you install the plug you rotate it to the left 90 degrees and then slide it to the right to lock.

    #8 jdcollins5, Mar 31, 2013
  9. Fluxuated

    Fluxuated Member

    Joined:
    Sep 22, 2011
    133
    53
    0
    Location:
    Guelph, ON
    Vehicle:
    2011 Prius
    Model:
    N/A
    That's EXACTLY what happened. I fixed it earlier this afternoon, had no idea it slid. Not only did I need to slide it, but it needed a good tap, the first time It still had the error, if you tap it to the side, it engaged and is working perfectly now.

    Thanks for the reply!

    #9 Fluxuated, Mar 31, 2013
    jdcollins5 likes this.
