DIY DRL AND TURN SIGNAL MOD

Discussion in 'Gen 3 Prius Accessories and Modifications' started by Priusmpg, Dec 24, 2013.

  1. Priusmpg

    Priusmpg Active Member

    Joined:
    Sep 9, 2013
    628
    108
    0
    Location:
    Fremont, California
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    Hey guy I did this to my Pip and GENETIX said it look good and advised that I do a diy write up so first of all I'll show you what this mod is

    so now that you know the what this is about and you like it here is how to do it.

    step one: remove the bumper,I wont go into any details how a simple search should tell you how to remove the bumper.

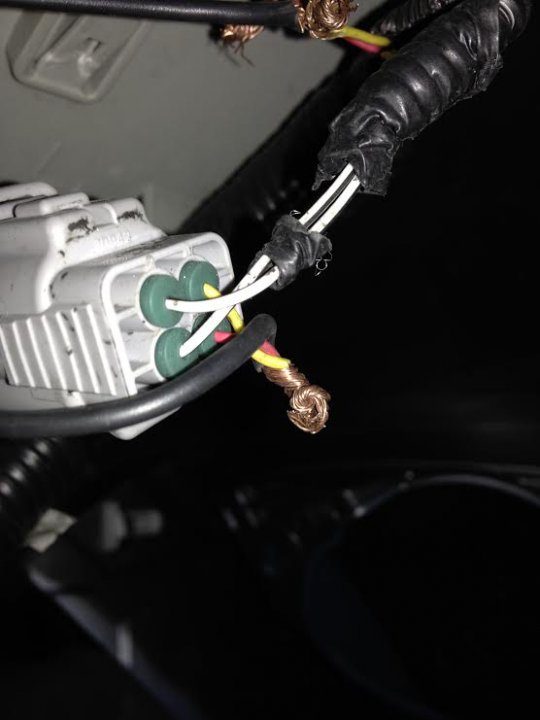

    step 2: find the connector that connects to the drl assembly 1.jpg

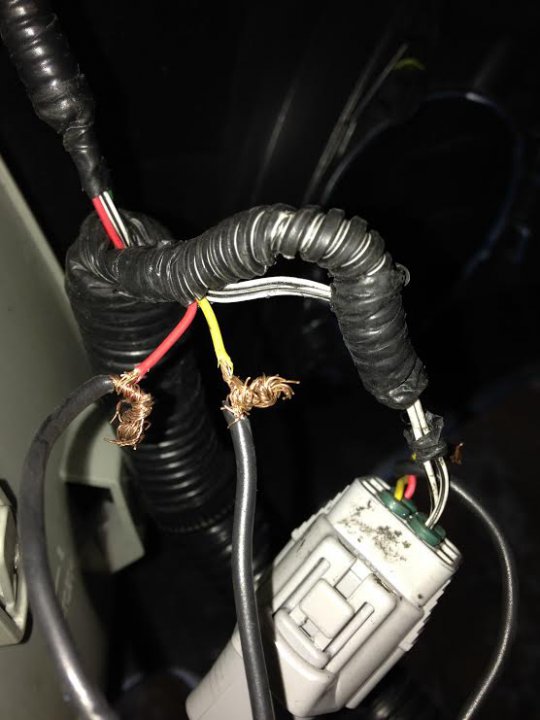

    3: strip the plumbing over the wire
    4: cut the red and yellow wires and join them and connect it to the relay pin 4 for the appropriate side
    5: connec the other end of the end of the yellow to relay pin 3
    6: connect the other end of the red wire to relay pin 1

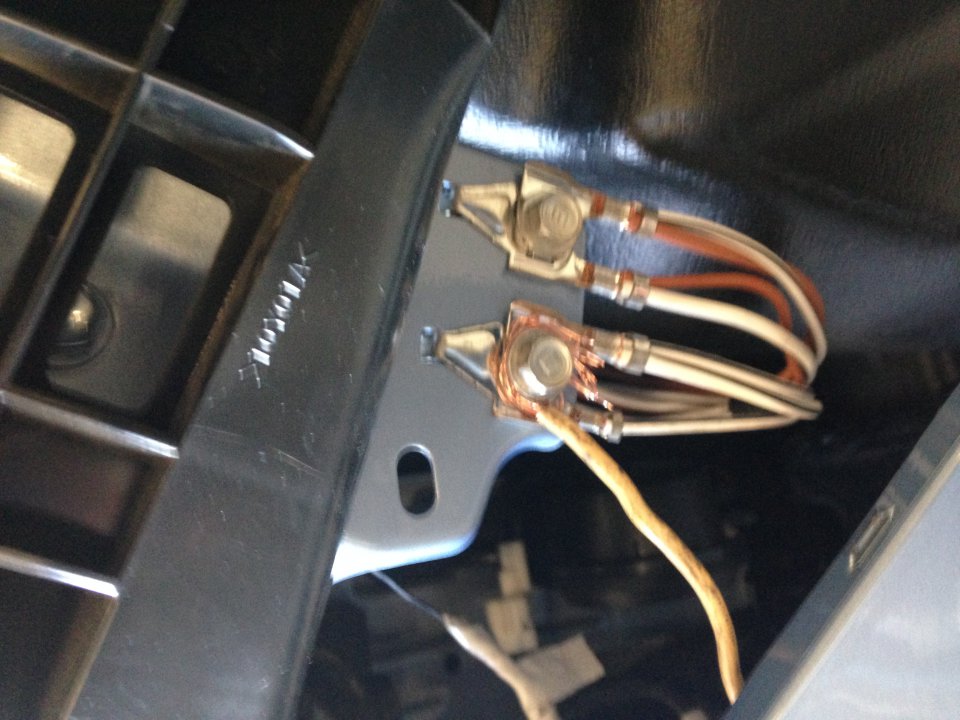

    7 : ground relay pin 2 ( my yellow wire)

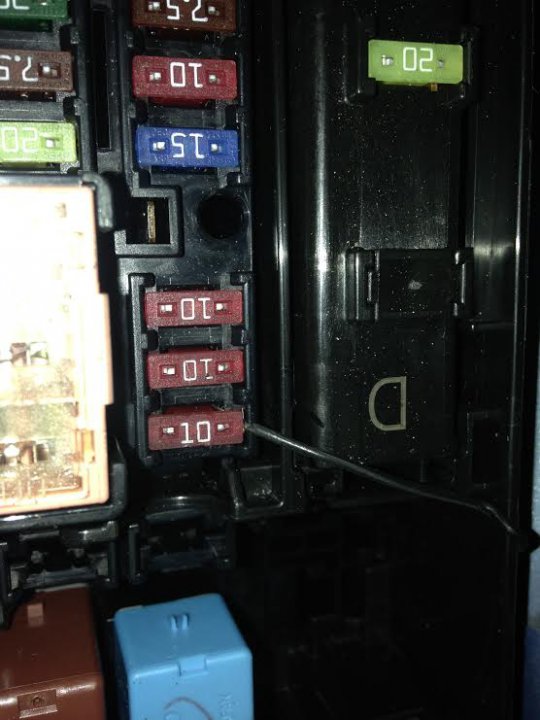

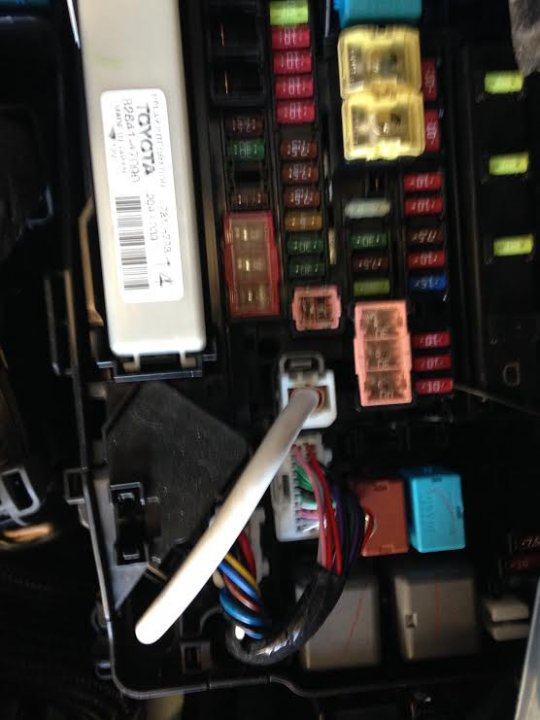

    8: tap into ignition fuse from the fuse box View attachment 60
    (sorry for the blurry picture)

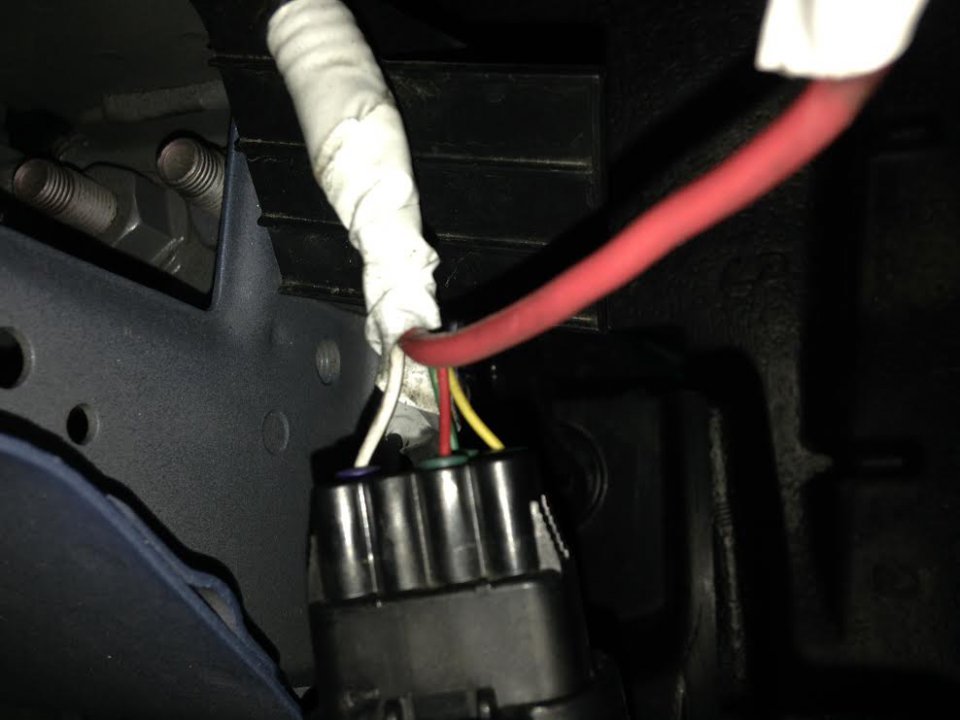

    9: tap the ignition 12v wire into the connector for the bummer connecter yellow wire (by cutting it leave the other end empty and insulate it)
    View attachment 60626 ^ that is the original wiring diagram

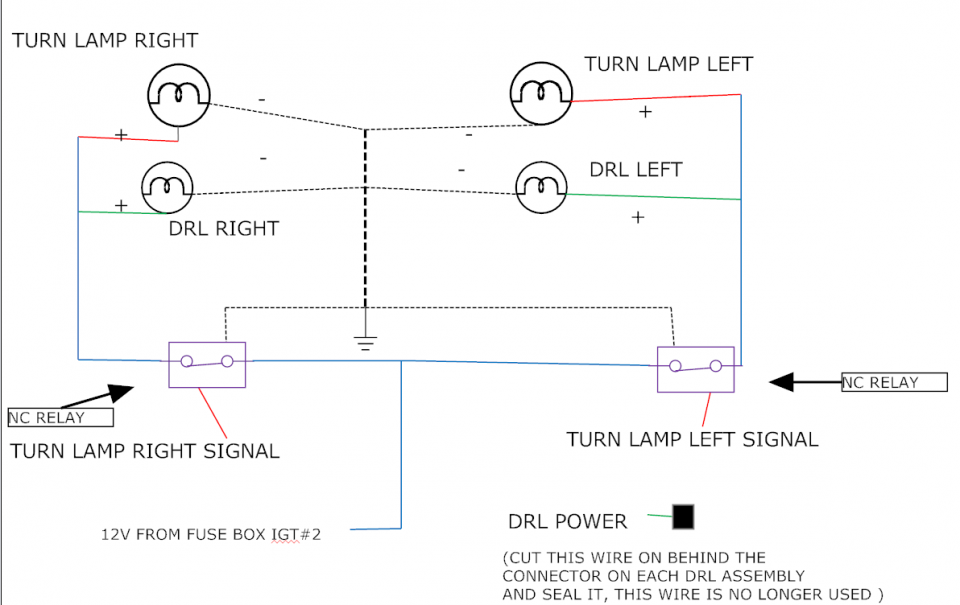

    View attachment 60627
    ^ new wiring diagram
    image (2).jpeg

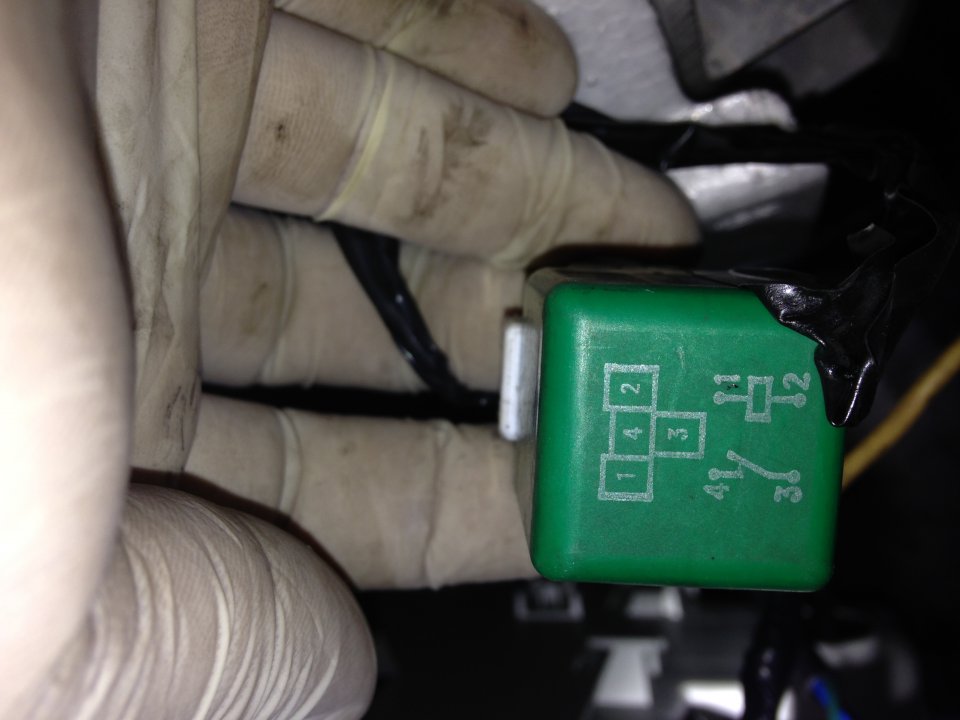

    you will need 2 Normally closed relays ( one for each side)

    This is my first write up, please tell me how i can improve it. I apologize for the bad photos and some unclear instructions

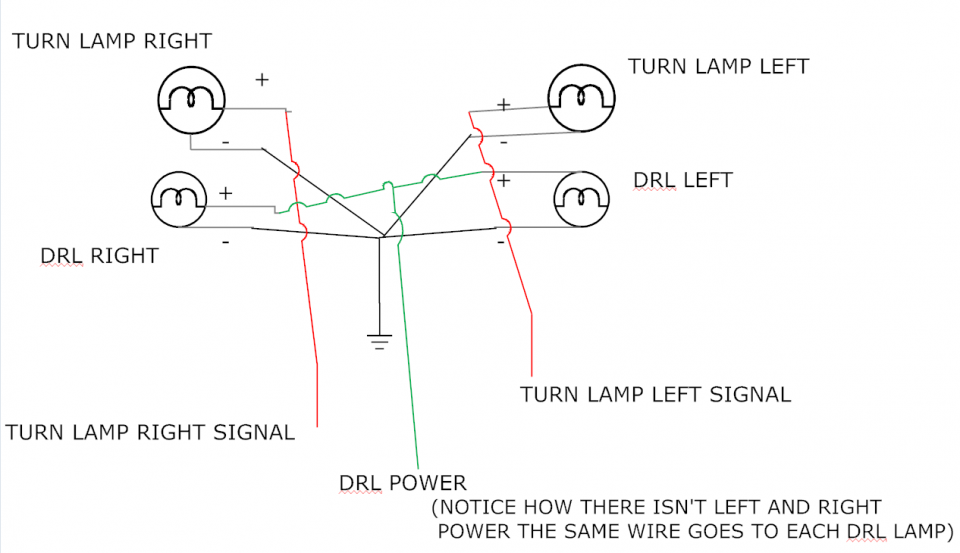

    here is the original wiring setup
    LIGHT SETUP ORIGINAL.png

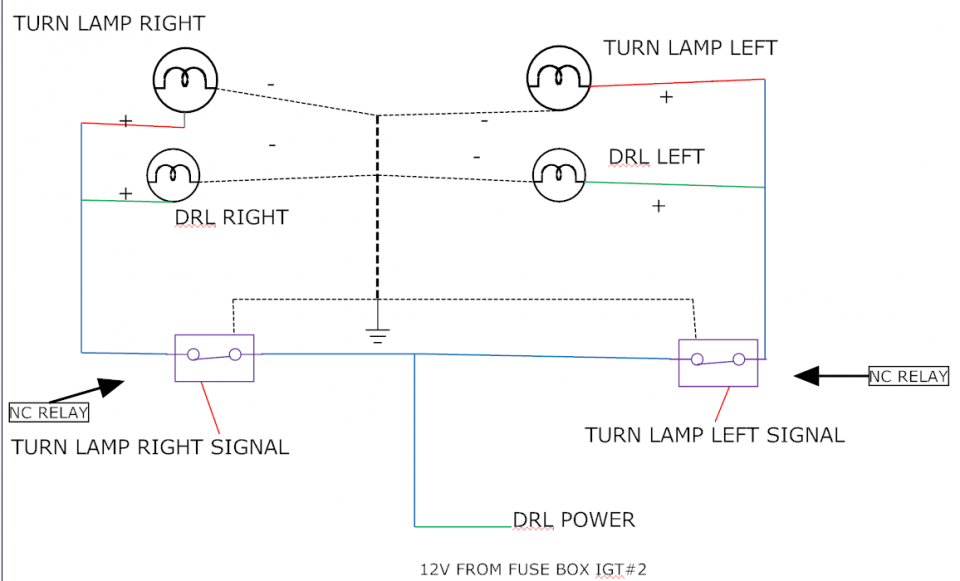

    here is the new wiring i made Untitled1.png


    Attached Files:

  2. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,869
    3,116
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Nice mod. (y)

    In step 9, what's a "bummer connector"?

    SCH-I535

  3. Priusmpg

    Priusmpg Active Member

    Joined:
    Sep 9, 2013
    628
    108
    0
    Location:
    Fremont, California
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    the bumper connector is the wire that connects all the wiring from the bumper to one single connector to the body it has all the wires. so so you dont have to strip all the wires from the bumper ill try to get a bigger picture

  4. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    7,869
    3,116
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    I hope you are using some crimp on connectors or at the least wire nuts with electrical tape to make your wire connections. :eek:

    The way the wires are twisted together and left bare/exposed in your pictures is unacceptable and is asking for a dead short.

    Also, put some large ring connectors on your ground wires that go under the bolt(s).

    SCH-I535

  5. Priusmpg

    Priusmpg Active Member

    Joined:
    Sep 9, 2013
    628
    108
    0
    Location:
    Fremont, California
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    of course I insulated the wires with electrical tape
    Ive been running this set up for the past 10,000 miles so i think im good :)

    AzusaPrius and xliderider like this.
  6. Priusmpg

    Priusmpg Active Member

    Joined:
    Sep 9, 2013
    628
    108
    0
    Location:
    Fremont, California
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    A bucket hit my car on the freeway, it tore off half the bumper and the electrical wiring under it. I'm thinking of programing a micro controller to this and have a cleaner setup
