Electrically Burned two water pumps

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by johnnychimpo, Aug 28, 2021.

  1. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    I have a gen 3 with a gen 4 engine swap. I have driven the car after the swap with no issue, I actually just came back from vegas and the car ran like a champ. I recently replaced a weak damper so I had to pull the engine out and put it back in, no issues. Ran it for almost two week back and forth to work no problem everything was great until one Moring I decided to monitor the car with my phone app and notice the car was getting hot and started to over heat. so no problem I could hear the pump making odd noises so I figured these things fail I believe the pump only had 60 k on it a bit early but whatever. I installed a my old gen 3 pump as I understand they are interchangeable. but it died with in 10 miles. I figured well it had 170k on it and had sat around for 4 months so I figured it was at end of life. So I ordered a new pump from the dealer a gen 3 pump I installed it and the car overheated I figured must be an air bubble I bled the hell out of the car and ran it again. This time the pump made noise like the previous pump that died. It actually had melted the impeller. I figured I messed up. and ordered another pump another gen 3 this time everything seem to work great for about 5 miles then overeat again.
    so now im thinking its the gen three pump that is not compatible with this gen 4 engine. so i pulled my old gen 4 pump and put a spare impeller I had ordered a while back and it seems to work great. while in maintenance mode I noticed the pump running and getting super hot so hot that I could actually touch the engine block and not get burned but touching the pump I had to immediately remove my hand as it was scorching hot. this is why I think it is an electrical issue and not an overheating issue. Yes overheating but it seems to be that the pumps are getting so hot they melt the impeller. Anyone ever heard of this? I ill be taking the car to a shop on monday to see what they find. Oh and the wires to the pump are not hot so not sure what is going on.

  2. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    591
    1,398
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Sounds like a problem we had in the past but we ended up fixing a coolant line that was installed incorrectly.

    Can you take a pic of the engine coolant reservoir tank line leading to the block?

    GrGramps likes this.
  3. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    You can follow in this thread how you can watch how the water pump motor is being controlled in Gen 3.

    It might be worthwhile to compare the signals in a Gen 4 (ideally a known-working Gen 4 with a known-working Gen 4 pump). That might add to what we know about any difference between the pump generations.

    Watching the signals in this Gen 3 where the pumps are failing might then turn up an explanation.

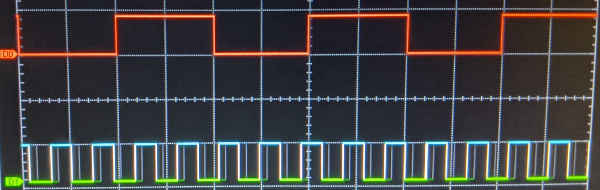

    It looks like this when the car is asking for 50% (which is what you get if you select 'ON' in the Techstream active test). The top trace is what the ECM sends to the pump; the bottom is the pump tachometer signal back to the ECM (around 3300 rpm in this pic).

    [​IMG]

    In this one, I'm not using the Techstream test, but the cabin heat is turned on. You can see the ECM is asking for about 40%, and the pump is doing about 2730 rpm.

    [​IMG]

    RightOnTime likes this.
  4. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    is this off tech stream? I have a bootleged verson not sure how to get this screen but to add to what is going on weather it is factual of just a fluke on my phone app I see it is says 63.5 % at stays at that all the time maybe is why my pumps are getting supper hot. but why would the computer say give me 63 percent and is that rpm of power or what. all i know is they get supper hot them make loud whinning noise then fail, now thnking about it I never got a coed just a engine shut down.

  5. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    591
    1,398
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    You got that picture yet?

  6. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    That's from an oscilloscope with backprobes on the WPI and WPO circuits. Details are in that thread I linked.

    In my experience, the ECM doesn't ask for that much unless the engine coolant temperature is getting pretty high. In the experiments I was doing with the fans unplugged and running the engine temp up extra high, I would see pump speed requests in that range.

    I am wondering more and more whether there is some circulation obstruction in your engine or hoses, and the engine is getting extra hot, the ECM is responding by calling for more and more pump, and the pump isn't getting much cooling because of the poor circulation.

    Sounds like kind of a suicide mission for a pump.

    #6 ChapmanF, Aug 28, 2021
    Last edited: Aug 28, 2021
    GrGramps likes this.
  7. PriusCamper

    PriusCamper Senior Member

    Joined:
    Mar 3, 2012
    6,390
    2,679
    0
    Location:
    Pacific Northwest, USA
    Vehicle:
    2007 Prius
    Model:
    Two
    With this many damaged pumps so quickly you need to measure the voltage going into the pump, as well as measure how much volume the pump is pumping per minute. Suspect one of these two is the source of the problem.

  8. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    taking it to a shop on monday. Im good with nuts and bolts, electrical I dont have the training or expertise.

  9. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    sorry picture of what again?

  10. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    11,189
    15,317
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    See post #2;).

  11. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    The first time I saw #2 this totally whizzed by me, but looking again I think it's a trick question. :)

    Full points for none-of-the-above, there are two reservoir lines, one goes to the near-side top of the radiator, the other goes to the little Y fitting and splits to the far-side top of the radiator and to the nipple on the top of the outlet pipe from the cylinder head.

    [​IMG]

    If it's the Gen 4 head, instead of the little nipple on that outlet pipe, there's a little one on the top of that outlet fitting, 16331.

    [​IMG]

    Or does that 16331 fitting attach to the block in Gen 4, rather than to the head? (Hard to see on the parts diagrams.) Edit: found it, cylinder head. Easier to see on the EGR diagram, 25-01.

    #11 ChapmanF, Aug 28, 2021
    Last edited: Aug 28, 2021
  12. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    Ok I will get the pic. Later tonight

    RightOnTime likes this.
  13. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
  14. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV

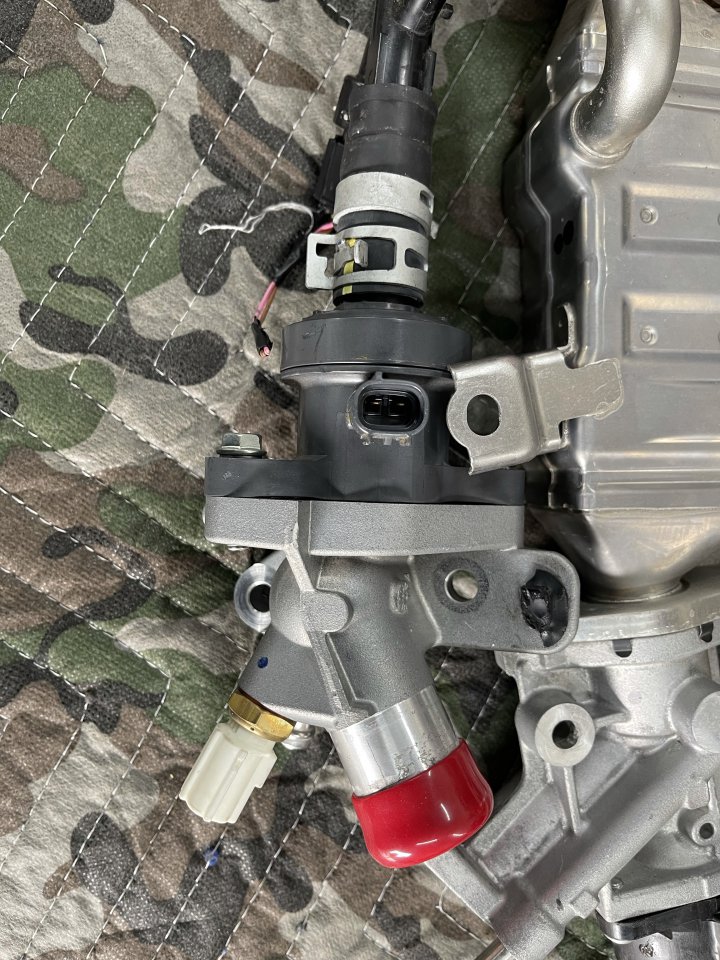

    Ok, so the hose in the foreground right here is attaching, I trust, to the burp nipple on your 16331 fitting (only the fitting you have includes the gray electric doohickey)? I can't see it, so that's where it's going, right?

    And the tee in the left foreground goes to the throttle body, because the Gen 4 cylinder head doesn't have a nipple for it?

    And this foreground hose still has its original Y fitting clipped to the front of the engine bay, going to the lower reservoir nipple and the far side radiator top nipple?

    And the other throttle body hose I can see going to the side nipple on the descending tube from the EGR cooler, which looks right.

    And I can't see where the main hose on that descending tube is going, but I presume it's going to the bypass nipple on the thermostat housing, right?

  15. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Well, it turns out to be the 16331-37090 version of OUTLET, WATER, and is used in some Prius and Prius PHV models in both Europe and Japan from late 2015 on, and some Corollas generally, but nothing in North America.

    Googling for it, many sellers are calling it a thermostat housing. I'm skeptical of that, as Toyota just calls it OUTLET, WATER, and there's already a thermostat in the thing they call the WATER INLET SUB-ASSY, W/THERMOSTAT.

    So I don't have any explanation of what the electrical gray part does. Anybody with access to a European or Japanese New Car Features manual for an appropriate year should be able to find out. @Elektroingenieur, maybe?

  16. johnnychimpo

    johnnychimpo Member

    Joined:
    Aug 21, 2007
    414
    89
    0
    Location:
    Monterey
    Vehicle:
    2010 Prius
    Model:
    Three
    Yeah I don't know what it does either but I am tempted to replace it but I don't know if I'll be able to find a part that will fit that being said when I get back tonight I'm going to drain the coolant and recheck all my hoses and make sure that everything is where it should be I'll take better pictures and everybody can see where all the plumbing goes

  17. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Interesting. Where does that pipe around the back of the engine go?

  18. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    14,679
    10,311
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Seeing that the cylinder head is the same part number for Europe and North America, I would guess the North American 16331-37100 version would bolt right on....

    I think I would have wanted to find out what it was, not suspect, before making my new engine's cooling depend on whatever it does or doesn't do. The electrical connector looks to have two terminals, amirite? Did you plug anything into it?

    There already is a temp sensor in that same assembly (the other electrical connection, aimed forward), which the North American version also has. So that makes the gray thing ... puzzling.

    #18 ChapmanF, Aug 28, 2021
    Last edited: Aug 28, 2021
  19. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    591
    1,398
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Thanks for posting the pic. Where do I start


    iPhone ?

  20. RightOnTime

    RightOnTime Senior Member

    Joined:
    Sep 21, 2012
    591
    1,398
    183
    Location:
    Kidnapped in OC, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    So do you have that piece (thermostat) pictured on your motor?
