    Hello all I’m Amar from France, I’m new.
    Got a 2021 Prius + / Prius V ZVW40.

    I'm facing some problems with the Abs electrical circuit (Left rear sensor error from Techstream) more precisely the output of the Skid control ECU which i could not managed to find the location to make a voltage measurement.
    I ve checked the voltage at the Left rear sensor = 0V DC (compare to the
    Right rear sensor = 14V DC).
    Today I ve checked the voltage at the strap connector inside the car
    = 0V DC.

    Has anyone the TOYOTA PRIUS V / PRIUS α / PRIUS + 2012 - 2021 SERVICE MANUAL in order to get the wiring diagram (found some on internet but not the right one)

    Thanks for your help.

    #1 Amar77, May 9, 2025
  2. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    9,477
    5,796
    7
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three

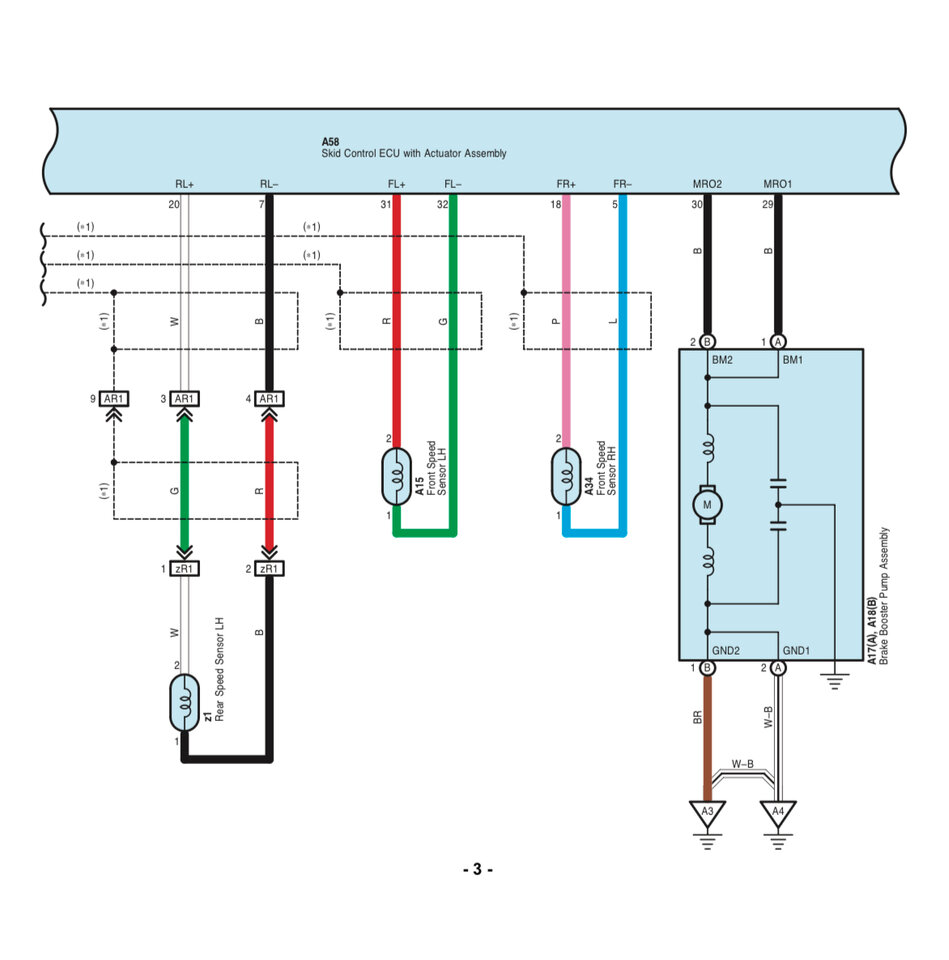

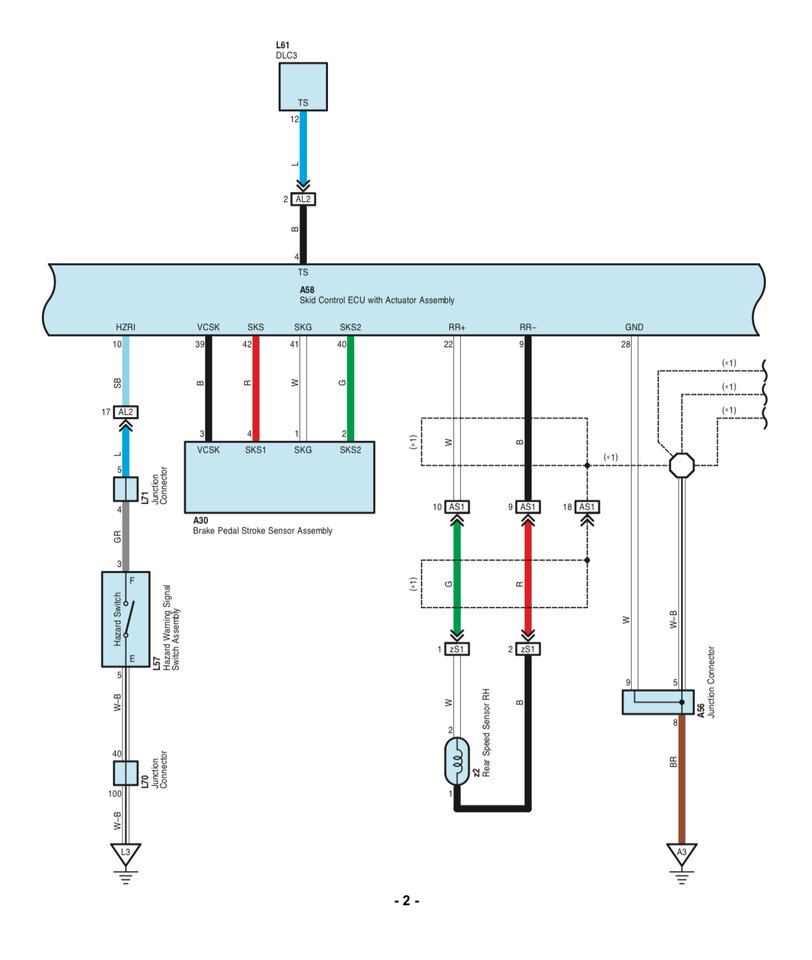

    For the most accurate diagrams you need to access Toyota's TIS online system.

    However the odds are good the speed sensors connect to the skid ecu as shown below. Zero voltage usually means a bad wire, typically in the moving sections of the cable.


    Attached Files:

    #2 rjparker, May 10, 2025
    Air_Boss and MAX2 like this.
  3. Amar77

    Amar77 New Member

    Joined:
    May 9, 2025
    3
    0
    0
    Location:
    France
    Vehicle:
    2021 Prius
    Model:
    V
    Thanks a lot for the diagrams.
    Do you know the location of the Skid Control ECU ? I would like first to make a votage measurement at output before carry on.

    #3 Amar77, May 10, 2025
  4. rjparker

    rjparker Tu Humilde Sirviente

    Joined:
    Jun 6, 2008
    9,477
    5,796
    7
    Location:
    Texas Hill Country
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    It is in the master cylinder/abs/brake booster module. To get to it you have to remove the wiper assembly and sheet metal cowl.

    See this video starting at 0:55 seconds on how to remove the wiper assembly. Disregard the egr cleaning part in your case.
