Help identify this connector

Discussion in 'Gen 2 Prius Technical Discussion' started by vertex, Aug 18, 2013.

  1. vertex

    vertex Active Member

    Joined:
    Mar 27, 2009
    672
    143
    0
    Location:
    new york
    Vehicle:
    2018 Prius Prime
    Model:
    Prime Plus

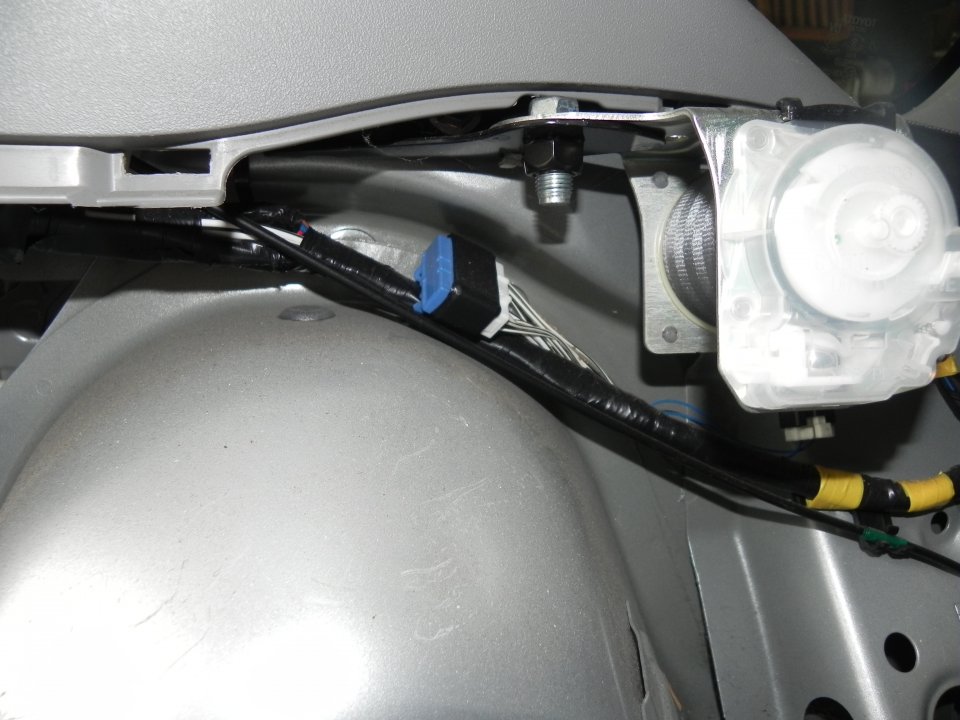

    UPS mods 002.JPG I was installing a cable on the battery pack to run my UPS system during blackouts. I noticed this connector in the driver's side rear wheel well. I was hoping someone could identify it.

  2. PriusInParadise

    Joined:
    May 24, 2012
    180
    91
    0
    Location:
    Hawaii
    Vehicle:
    2011 Prius
    Model:
    Two
    It is junction connector J30. It's a splice pack that provides ground from Ground BL to the inside and outside luggage compartment oscillators (when equipped with Smart Entry), door control receiver, luggage compartment courtesy switch, luggage compartment door lock motor, left front buckle switch, and the battery ECU, on USA models.
    As you can see, all the wires are White with a Black stripe, often used by Toyota for ground. Under the blue cap are bussed terminals, which in this case, tie all the individual circuits together.

  3. vertex

    vertex Active Member

    Joined:
    Mar 27, 2009
    672
    143
    0
    Location:
    new york
    Vehicle:
    2018 Prius Prime
    Model:
    Prime Plus
    Interesting, thanks for the help.
