Help! Need help with windshield wiper malfunction!

Discussion in 'Gen 3 Prius Care, Maintenance & Troubleshooting' started by robomoto, Jan 8, 2019.

  1. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    Hey all, DIY guy here. I'm stuck in finding a solution for this annoying problem I have with my wipers.

    When it rains, my 2010 Prius base's front windshield wipers stall intermittently in the low (variable frequency) and medium speed settings. The wipers may work for a short period of time and will stall in either the horizontal or vertical position. This started right after I removed and reinstalled the wiper motor assembly to do a spark plug replacement. The only speed that works consistently is the fastest speed setting (level 3). In the event of a stall, I can get the wipers unstuck by turning the speed to the fastest setting. But if I reduce the speed to the earlier malfunctioning speeds and it is still raining, the wipers may or may not work. If it works, it does so shakily like it lost some power and will eventually stall again. The length of time it takes to stall again at this point varies from a couple of seconds to a few minutes. I have tried disconnecting and tightening the electrical spring connections in the wiper motor’s electrical connectors to see if a tighter fit will fix the problem. This seems to have worked for a few rainy days and the problem reappeared.

    It's the weirdest thing - the wipers only stall when there's a lot of rain. If there's only slight rain, it may work normally or with a jerky reduced power motion. It always works perfectly when dry (once I've got them unstuck). I don't think the wiper motor is bad because it works well when it's not pouring. I'm thinking of using electrical contact cleaner and dielectric grease next. Any ideas?

  2. tankyuong

    tankyuong Senior Member

    Joined:
    Nov 9, 2012
    1,403
    610
    0
    Location:
    Central MO
    Vehicle:
    2012 Prius c
    Model:
    II
    Sounds like the connector is not sealed properly

    robomoto likes this.
  3. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    15,112
    7,754
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2010 Prius
    Model:
    V
    My opinion is the wiper motor is probably worn, maybe you can get a cheap replacement from a wreck?

  4. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    Thumbs up for your input. I'm gonna try insulating the connector from the rain with some saran wrap and duct tape and see if that works. I want to test and report the results of this solution but I gotta wait till I get my car back from the body shop

  5. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,312
    876
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    Uh, maybe try some shrink-wrap tubing made for wiring? Disconnect the connector, slide the tubing over one end, reconnect the connector, slide tubing to center it over the connector, use hair dryer or heat gun to shrink the tube, then seal the very ends with silicone rubber caulk or equivalent. I do not have much confidence in getting the duct tape to be truky water-tight.

    JC91006 likes this.
  6. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    4,455
    4,399
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    robomoto likes this.
  7. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    Great idea. I thought it was a sealed unit but now I'm gonna have to get in there to see what's up.

  8. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base

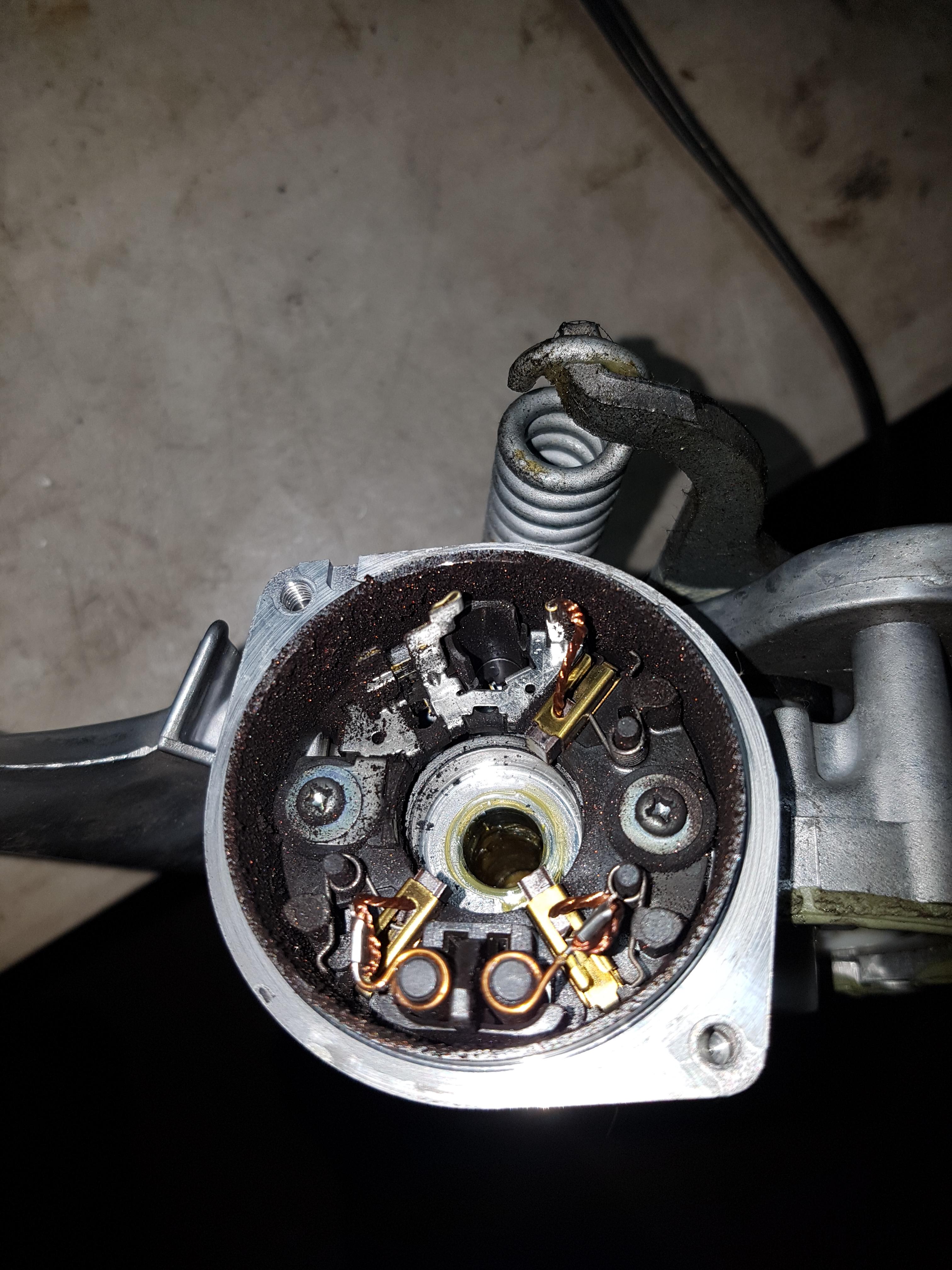

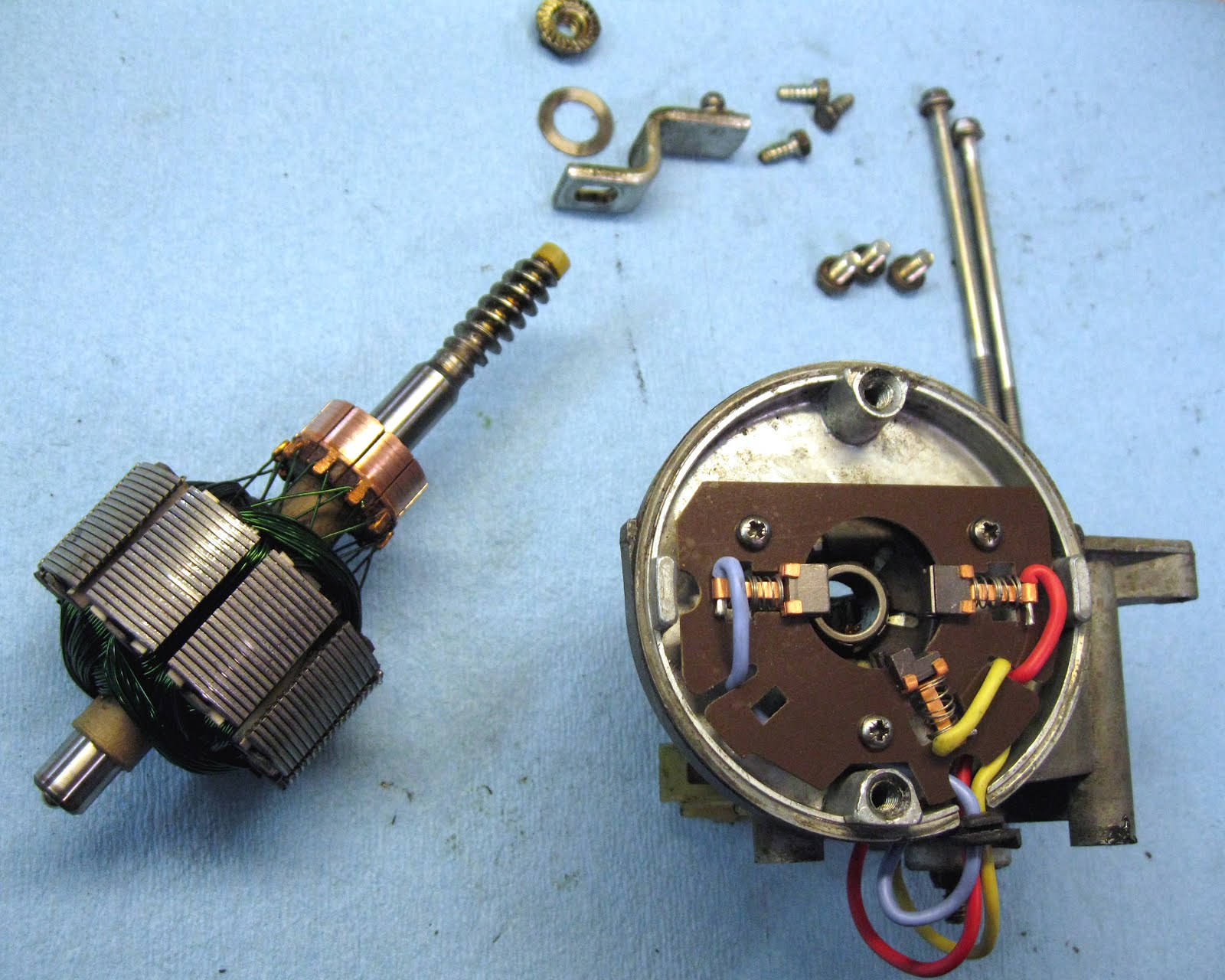

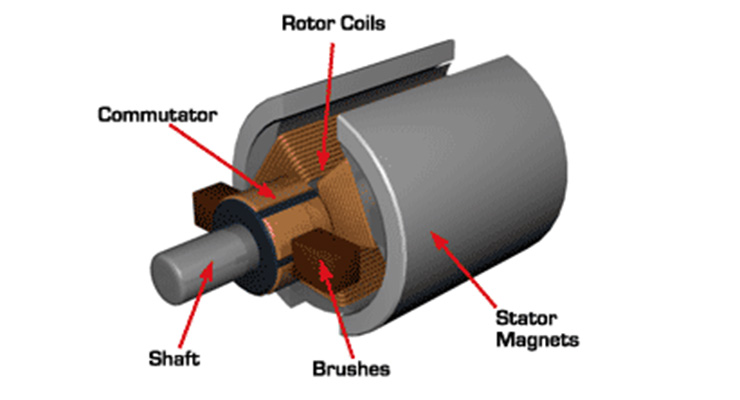

    Update: so I opened up the wiper motor gearbox and found that 2 of the 3 carbon brushes were really worn down. I guess those are used for speeds 1 and 2 which are used more often, and when energized, they probably wear faster if I'm not mistaken. There's still some life left on the brushes so hopefully a cleaning will fix the problem. There's a whole bunch of carbon crud buildup inside the casing from all the carbon brush grinding on the commutator. As you can see I took a pic of the brush assembly on mine, but I also inserted some general brushed motor pics for anyone having the same issues to understand how this all works because I was too lazy to take pics of those parts from my own motor.

    [​IMG]
    [​IMG]
    [​IMG]

    So I just cleaned up all the carbon crud and reinstalled everything and it seems to work fine again, but it hasn't been rain and snow tested yet. The problem seems to occur more frequently in cold, wet and snowy conditions so I'll try to post another update on that if I can. I'll get a new motor but for now I'll just keep using this one while waiting for a new motor to ship.

    I sucks that Toyota doesn't make a replacement brush assembly though, as the motor will continue to last forever like most Toyota if they did. Getting a new motor seems like such a waste of a strong rotor coil pack that works. I say this because the brush assembly was easily removable after releasing 2 Phillips screws in the pic smh

    #8 robomoto, Feb 5, 2019
    Last edited: Feb 5, 2019
    thesaint and Mendel Leisk like this.
  9. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    15,184
    10,572
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    Ordinary hardware stores will often have a box of assorted-size carbon brushes, back in the same aisle where they have the boxes of miscellaneous fasteners and switches and lamp parts.

    Independent auto electric shops may have an even wider selection.

    I had a motor once where enough carbon dust had packed into the gaps between the commutator segments to create a dead short straight across from one brush to the other. Blew fuses until I cleaned the gaps out.

  10. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    Thanks for the ideas! I thought about replacing the brushes individually but it seems that the wires and soldering points are too small for my skill level. Maybe some shops may sell the brush assemblies.

  11. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    Update: Snow, rain, and cold tested. Just a simple cleaning solved the problem. Should last at least another couple of years

  12. thesaint

    thesaint Junior Member

    Joined:
    Nov 1, 2013
    8
    0
    0
    Location:
    North Attleboro, Massachusetts
    Vehicle:
    2002 Prius
    Model:
    I

  13. thesaint

    thesaint Junior Member

    Joined:
    Nov 1, 2013
    8
    0
    0
    Location:
    North Attleboro, Massachusetts
    Vehicle:
    2002 Prius
    Model:
    I
    Awesome work robomoto!!

  14. thesaint

    thesaint Junior Member

    Joined:
    Nov 1, 2013
    8
    0
    0
    Location:
    North Attleboro, Massachusetts
    Vehicle:
    2002 Prius
    Model:
    I
    robotmoto excellent research! thanks for the help! so i will disassemble the wiper motor and clean it with what? if that doesn't work I will go to the hardware store and buy 2 new brushes for intermittent and low speed wiper setting.

  15. Mendel Leisk

    Mendel Leisk Sand Pounder

    Joined:
    Oct 17, 2010
    45,990
    32,846
    80
    Location:
    Greater Vancouver, British Columbia, Canada
    Vehicle:
    2010 Prius
    Model:
    Touring
    I’m thinking electrical contact cleaner, but maybe someone with more electrical smarts will weigh in.

  16. ChapmanF

    ChapmanF Senior Member

    Joined:
    Mar 30, 2008
    15,184
    10,572
    0
    Location:
    Indiana, USA
    Vehicle:
    2010 Prius
    Model:
    IV
    For the curious, the wiper motor is just two speeds. There are three brushes because the current also needs a return path.

    The intermittent wipe is the same motor speed as low, only it stops after one wipe each time.

    Mendel Leisk and JohnPrius3005 like this.
  17. robomoto

    robomoto Member

    Joined:
    Jul 18, 2018
    76
    47
    0
    Location:
    Surrey, BC, Canada
    Vehicle:
    2010 Prius
    Model:
    Base
    I'm revisiting this thread I started long ago.

    I need a new wiper motor for my gen 3 and I want to get one from a wreck.

    The gen 3 wiper motor numbers start with 85110 but have different ending numbers. This parts catalog shows gen 3 wiper motors with different ending numbers for different years:
    85110-57100
    85110-57110
    85110-57190
    85110-57200

    The following is what is advertised as a gen 3 wiper motor on Ebay. Its part number is shown as 85110-47240.
    [​IMG]

    The following is what is advertised as a 2016-17 Prius Prime wiper motor on Ebay. Its part number is shown as 85110-47290 and looks identical in shape to the previous part.
    [​IMG]

    The first pic also says "12V 5Q" and the second says "12V 2T". What do these numbers 5Q and 2T mean? Does anyone know what other Toyota/Lexus cars that have wiper motors that will fit on a gen 3?
