... help?

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by asjoseph, Oct 22, 2013.

  1. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    Dear PriusChat.com,

    ... cheers, greeting and salutations, fellow Prius nerds! Humblemost apologies for the stupid question, here. The hybrid battery-pack on my '04 Pruis just quit, this morning. Pretty cool: Toyota's replacing it free, under warranty. But, they tossed me the keys, on a plug-in Prius loaner; no documentation. And, I haven't yet been properly checked-out on recharging procedure, on the plug-in variant.

    I found the recharging gear, in back. I've got it plugged in, correctly (e.g., 110 outlet, to the workbench in my garage). But, I don't know whether it's charging. Shouldn't I be seeing a progress indicator, popping up on the dash, or the HUD, that it's charging?

    If you please, apologies thousandfold for having to ask a question that's probably been asked, several times over. Could anybody out there point me to a quick and dirty on-line guide, to a plug-in recharging procedure, so I can get this rental recharged, without burning down my house?

    If I burn down the house one more time, my wife's really going to let me have it.


    Much Appreciated,
    -- Samuel, '04


    //////////////////////////////////////////

  2. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    219
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    There's a charging indicator under the door that you opened to plug the vehicle in. It's a small light to the left of the charging port. It's lit when charging, off when not.

    asjoseph likes this.
  3. plchung

    plchung Junior Member

    Joined:
    Apr 22, 2011
    72
    12
    0
    Location:
    Orange County, CA
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Advanced
    here is the small light when the car is charging. enjoy your PiP.

  4. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ...
    ... is there a progress indicator I can call up?

  5. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    219
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    I have it on the Entune app on my phone. If you put the car in "Ready", I think it will show on the dash.

    asjoseph likes this.
  6. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... very good! I'll go outside and give it a try! Is there an indicator, anywhere, which states a "fully charged" disposition?

  7. jfschultz

    jfschultz Active Member

    Joined:
    Mar 15, 2004
    635
    114
    0
    Location:
    Germantown, TN
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Base
    I don't know about "Ready" except that it will produce an error message if you are still plugged in. Go to auxiliary (foot off the brake push power twice) and the display will show the remaining charge time.

    asjoseph likes this.
  8. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... okay! I'll try this, instead!

  9. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    219
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    Sorry, the error just says unplug before trying to start the engine or something to the effect. As shown above, just put it in accessory mode and it displays the time to finish.

  10. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... Eureka! Just turned up Toyota's charging procedure, under the floormat, next to a spent candy wrapper. The salesmen must have stuffed it under the passenger side floor mat, with the wrapper from his Payday bar.

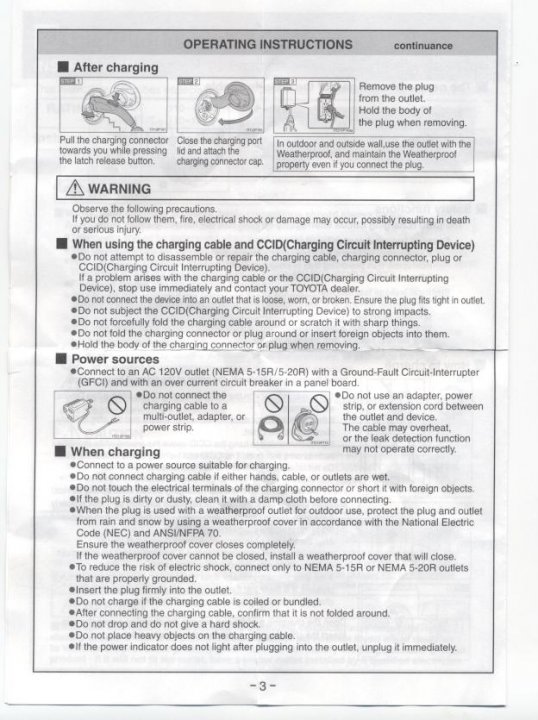

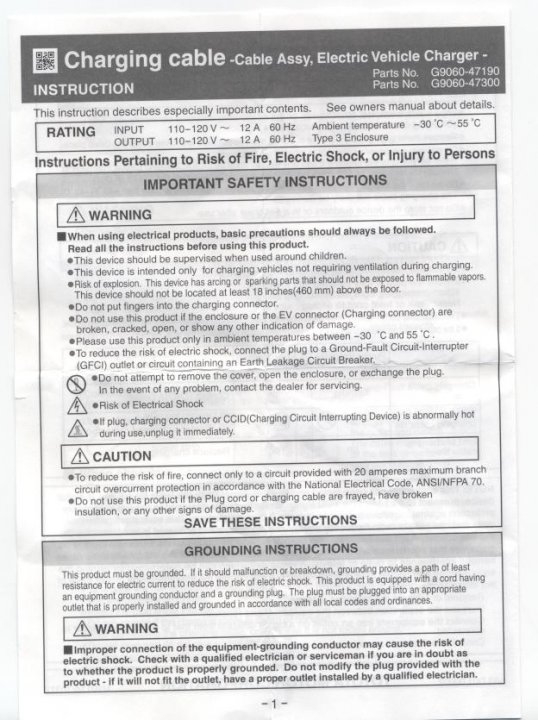

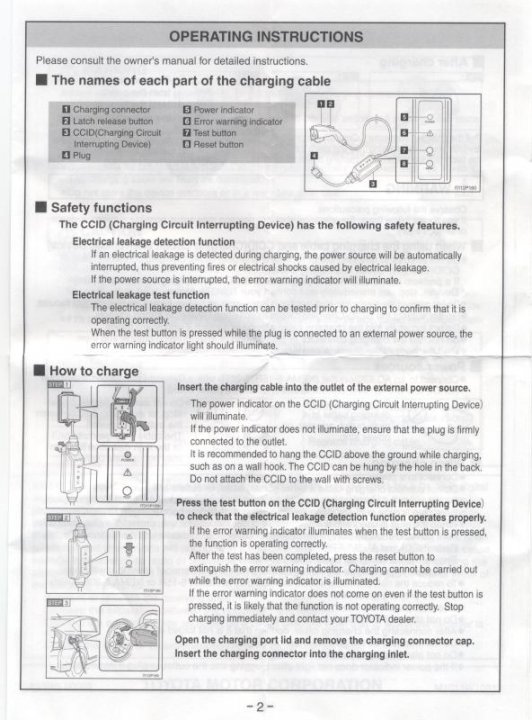

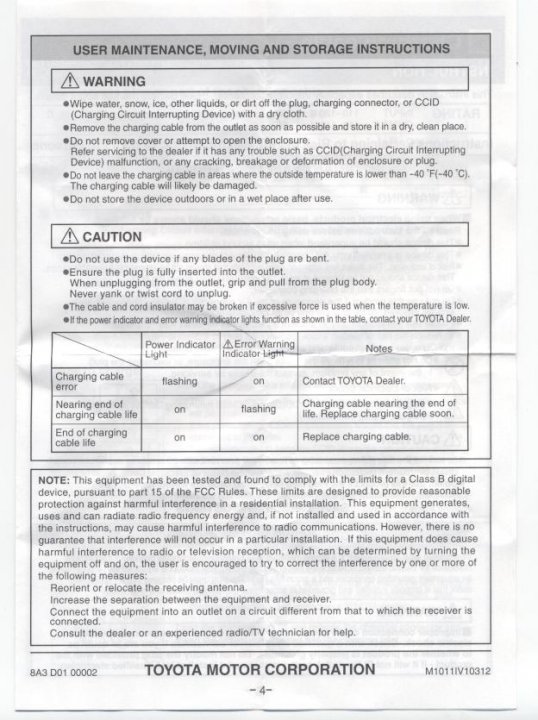

    This ought to do it. Charging procedure, Prius Plug-in:

    charging_proc_1.jpg charging_proc_2.jpg charging_proc_3.jpg charging_proc_4.jpg charging_proc_1.jpg charging_proc_2.jpg charging_proc_3.jpg charging_proc_4.jpg

  11. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    219
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    The dealer will expect you to trade your 2004 in on a plug-in :LOL:

    asjoseph likes this.
  12. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... yup. Think I'll keep what I've got; wait for the next-Gen. I hear it's going to get, 61 MPG?

  13. chesleyn

    chesleyn Active Member

    Joined:
    Mar 27, 2012
    596
    158
    0
    Location:
    Los Angeles
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I'm getting 100 mpg on my '12 PiP

  14. markabele

    markabele owner of PiP, then Leaf, then Model 3

    Joined:
    Mar 27, 2012
    5,084
    1,782
    1
    Location:
    Nebraska
    Vehicle:
    2018 Tesla Model 3
    Model:
    N/A
    Would be extremely surprised if it's above 55 MPG (EPA)

  15. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    108,777
    49,418
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    how many miles on your 04?

  16. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... I'm not sure what I did. I have no idea what I might have done wrong. No rhyme or reason, during recharging, the thing just up and died. The Toyota dealership had to send a guy over, to restart it. Some reason, while plugged in to the electrical outlet, the charging system inexplicably discharged. Brand spanking new Plug-in Prius, dead-dead-dead. As a doornail.

    Moment the Toyota tech got a charger on it, it inexplicably restarted. But, as counter-intuitive as it may seem, all the charging levels were higher than they were, before the system failure.

    Samuel, '04

  17. jdk2

    jdk2 Active Member

    Joined:
    Mar 6, 2010
    751
    219
    0
    Location:
    Raleigh, NC
    Vehicle:
    2013 Prius Plug-in
    Model:
    Plug-in Advanced
    Sounds like a glitch but who knows. It is a rental/loaner afterall.

  18. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... just rolled over, to 130 thousand. And, poof, my battery pack failed.

    It's being replaced, under warranty. Free. Dealership gave me a plug in Prius loaner, until repair is affected, on mine. Replacing the hybrid battery pack analogous to a kidney transplant, from what I'm told, it's going to be a while.


    Best,
    ~ Samuel, '04

  19. asjoseph

    asjoseph Samuel, '04 Ruthiemobile

    Joined:
    May 4, 2008
    91
    28
    117
    Location:
    lancaster, california
    Vehicle:
    2004 Prius
    Model:
    Five
    ... whomever it was driving this loaner Prius plug-in, must have really liked Payday bars. Maybe there was a special at one of the department stores, on Payday bars. There was Payday bar candy-wrappers, all over this Prius.

    The spurious correlation of the day: sudden catastrophic high intensity battery discharge, an inverse function of Payday bar consumption, of Toyota car salesmen?


    Best,
    ~ Samuel, '04

  20. ukr2

    ukr2 Senior Member

    Joined:
    Feb 5, 2007
    1,009
    275
    31
    Location:
    Victor, NY
    Vehicle:
    2021 Prius Prime
    Model:
    XLE
    If the battery doesn't show miles left, just plug it in and wait 2.5 hours for a full charge.
