Is 1 hour of charging=1 KWH?

Discussion in 'Prime Plug-in Charging' started by JerseyPrime, May 8, 2018.

  1. JerseyPrime

    JerseyPrime Junior Member

    Joined:
    May 8, 2018
    2
    0
    0
    Location:
    New Jersey
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Hi all. Just got my 2017 Prime Advantage Saturday. Trying to calculate a daily estimate for full charge based on my utility company's cost per kwh. How many kwh's does a normal full charge typically draw?
    And is it possible to get a summary report of the car's charging history?
    Thanks in advance!

  2. adrianvm

    adrianvm New Member

    Joined:
    May 8, 2018
    18
    4
    0
    Location:
    Northern Virginia
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I haven't confirmed all the numbers with my actual rates and times, but the advertised charging rate is 12 A at 120 V, and a full charge is supposed to be 5.5 hours. That works out to 7.92 kWh.

  3. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Charge rate ~= 1.3kW. Full charge ~= 6.3kWh.

  4. adrianvm

    adrianvm New Member

    Joined:
    May 8, 2018
    18
    4
    0
    Location:
    Northern Virginia
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I took a measurement of the charging power and found it to be 1430 W (which means 11.9 A, very close to the claimed 12A rate). I'm not sure exactly how long a full charge is, but the car is telling me times around 5.5 hours, so a full charge can't be only 6.3 kWh.

  5. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Incorrect.

    Prime full charge | PriusChat

  6. Salamander_King

    Salamander_King Senior Member

    Joined:
    Nov 8, 2015
    10,958
    8,836
    0
    Location:
    New England
    Vehicle:
    Other Hybrid
    Model:
    N/A
    I think 6.3 kWh is for L2. Using L1, zero EV range to full charge measured at wall for me has been average 6.7 kWh.

  7. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I've measured my L1 charge about 6 times, and all were between 6.3 and 6.4kWh. It can be more if you've managed to deplete some of the Hv portion of the battery before you shut off the car.

  8. Salamander_King

    Salamander_King Senior Member

    Joined:
    Nov 8, 2015
    10,958
    8,836
    0
    Location:
    New England
    Vehicle:
    Other Hybrid
    Model:
    N/A
    That probably is the reason for the variability I am seeing. I can never pull my car into my driveway exactly when the EV range hits zero. I don't know how you are managing to do that? I always have some amount of HV drive beyond EV range. Depending on a day that is less than 10 miles, but sometimes more. Measuring at wall for L1 charging, I never had a day kill-a-watt meter showing less than 6.5kWh or more than 6.9kWh for a full charge.

  9. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I'm not - Hv recharges it and my final drive is flat or down so it always ends up at the top of the Hv range.

    Salamander_King likes this.
  10. Oniki

    Oniki Active Member

    Joined:
    Jun 10, 2017
    652
    499
    0
    Location:
    Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    IF the entire 5.5 hours was at 12A your arithmetic would be close to the right answer.
    I've read that the last hour is mostly used for balancing the battery and the charge rate is reduced to keep the battery heat in check.

    Actual measurements on L1 place the total kWh used at ~ 6.6 for a full charge and ~ 6.2 kwh using L2

    OP:
    1 kWh after one hour would be true if the rate was 1 kW
    My L2 EVSE pulls about 3.6 kW, so about 3.6 kWh every hour.

    #10 Oniki, May 20, 2018
    Last edited: May 20, 2018
  11. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    It's more like the last 20 minutes on L2 and 30 minutes on L1.

  12. fuzzy1

    fuzzy1 Senior Member

    Joined:
    Feb 26, 2009
    17,035
    10,010
    90
    Location:
    Western Washington
    Vehicle:
    Other Hybrid
    Model:
    N/A
    Not being a Prime owner, I can't speak specifically to this car. But for batteries in general, charging power doesn't stay constant for the full cycle, but tapers down as the battery fills.

  13. Lee Jay

    Lee Jay Senior Member

    Joined:
    Jun 25, 2009
    5,850
    4,017
    0
    Location:
    Westminster, Colorado
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced

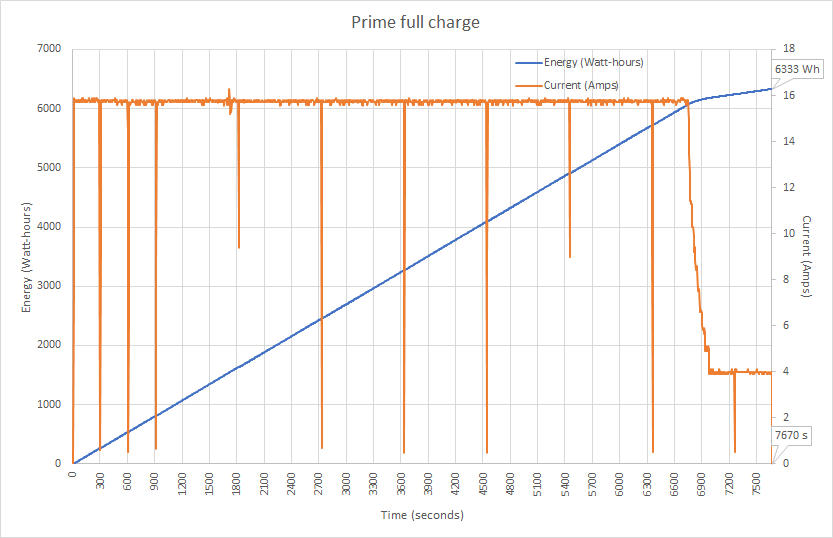

    I guess posting a link to the other thread didn't really work, so here's the image:
