need help on DRL

Discussion in 'Gen 2 Prius Accessories & Modifications' started by coolzai, Jul 16, 2013.

  1. coolzai

    coolzai Junior Member

    Joined:
    Apr 9, 2012
    7
    0
    0
    Location:
    Indiana
    Vehicle:
    2007 Prius
    Model:
    N/A
    Everyone.​

    I just bought Philips daylight 8 kit along with the replacement ACC/KL15 control box. ​
    Can anyone help me with the blue wire connecting? It saids: connect the blue cable to the 12V K15 or ACC accessory pole (+) in the fuse box.​

    I got Prius gen II 2007, I didn't see any ACC on the fuse. Connect the blue wire is just simply insert the blue cable in the right place? or I need go under the fuse box and do some connection? I don't have any harness wiring experience before.​

    Thanks​
    Kai​
    ​
    ​

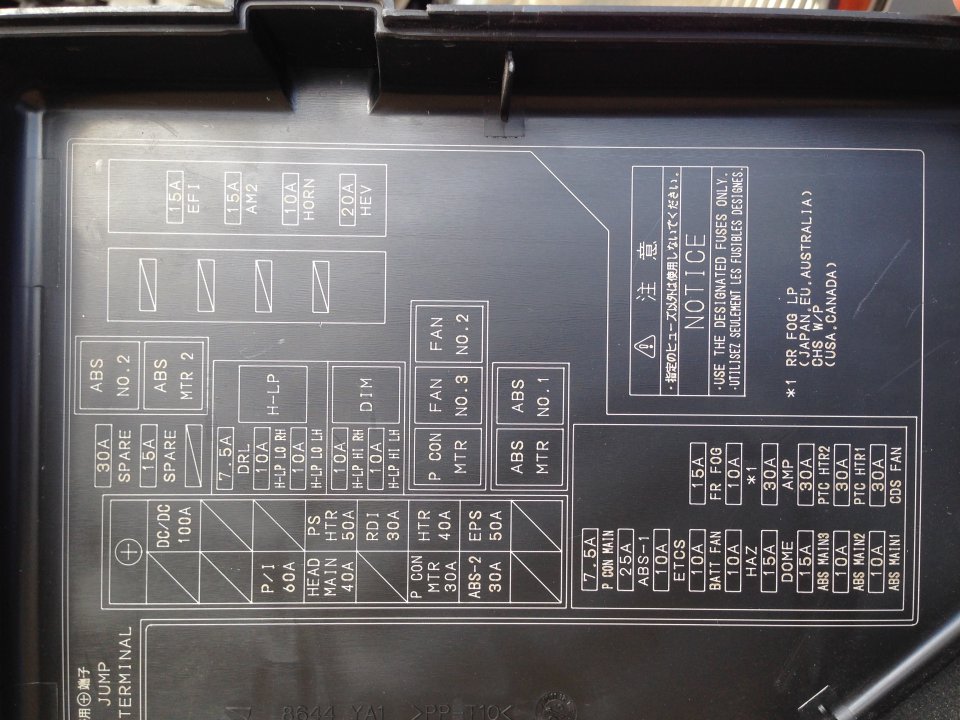

    photo.JPG photo copy.jpg ​


    #1 coolzai, Jul 16, 2013
  2. Daves09prius

    Daves09prius Active Member

    Joined:
    Nov 20, 2010
    680
    161
    0
    Location:
    Gettysburg, PA
    Vehicle:
    2009 Prius
    Model:
    One

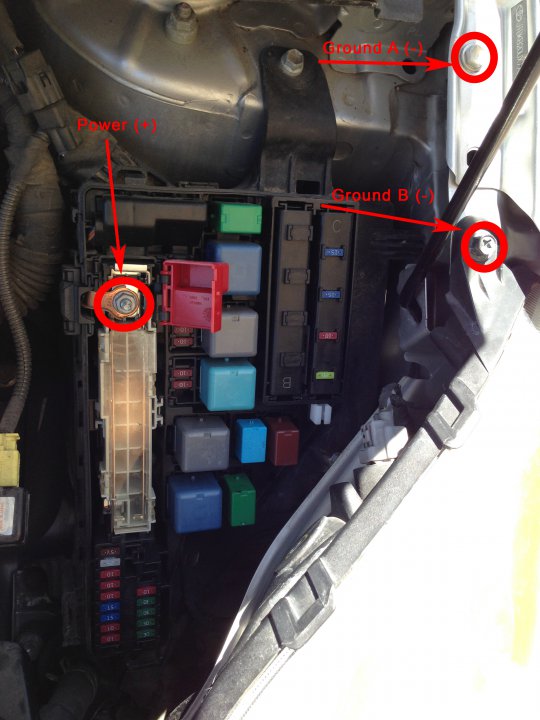

    can you post a link to the philips DRL kit? from what you say the positive ACC in the fuse box that the instructions talk about sounds like the 12v +jump terminal the one you have circled in the picture (power+).
    unless your asking something else?

    #2 Daves09prius, Jul 16, 2013
  3. coolzai

    coolzai Junior Member

    Joined:
    Apr 9, 2012
    7
    0
    0
    Location:
    Indiana
    Vehicle:
    2007 Prius
    Model:
    N/A

    I think I figured out how to do that. Add a fuse and attach the wire together with the fuse then insert in the fuse box.
    The DRL is Philips daylight 8

    #3 coolzai, Jul 17, 2013
