P3000 and P3009, loud hum during regen breaking, low mpg...

Discussion in 'Generation 1 Prius Discussion' started by Kate Harvest, Sep 15, 2014.

  1. Kate Harvest

    Kate Harvest Member

    Joined:
    Sep 14, 2014
    105
    54
    7
    Location:
    Vancouver, WA
    Vehicle:
    2007 Prius
    Model:
    N/A
    First time poster.

    Bought a used 2002 Prius in December of last year. When I got it home the hybrid system warning light and the check engine light came on, but after reading through priuschat for a few hours I thought to take a look at the engine air filter, which turned out to be utterly filthy. Replaced it and the car ran fantastically for the next 8 months, which was plenty of time for me to fall utterly in love with how quiet it is and how smooth a ride it is.

    The carfax report for the car showed that its battery was replaced shortly before I bought it and that its transmission fluid was changed approximately 20k miles before that, so I thought (apparently mistakenly) that I didn't have to worry too much about either.

    During these 8 months the car saw my regular mechanic for oil changes twice, had a bad CV axle replaced and I was told the serpentine belt was glazing and may need to be replaced with the next oil change, but neither I nor my regular mechanic noticed any other issues.

    In late July of this year (2014) I was in a small accident. Another driver veered into my lane and sideswiped me on the front passenger side, leaving a very large dent. Aside from the dent, the car still ran exactly the same -- no new noises, no new warning lights, so I told the insurance company I didn't want to use my comprehensive coverage to get the dent repaired, I wanted to wait until I was officially found not at fault.

    That turned out to take about three weeks. No weird symptoms or behavior whatsoever during those three weeks -- the car continued to operate perfectly. In mid August I was found not at fault so I took her into the body shop. The body shop kept her for 8 days.

    When I picked her up from the body shop, I immediately noticed the engine seemed to be struggling more and that there was a loud hum audible during regenerative breaking. After watching the Consumption screen for a bit I also realized it was getting about 10mpg less than it was when I brought her in to them -- down from around 40-42mpg to 30-32mpg. About two hours later the hybrid system warning light came on. The check engine light is NOT ON, the code scanner O'Reilly Auto Parts had was not able to read any codes, the MFD is showing only the car with the exclamation mark in red... the PS and battery icons are not in red.

    The loud hum does NOT go away when I switch into neutral and does not seem particularly different when I switch into B.

    Having spent plenty of time on priuschat at this point, I started out by removing the air intake box from the car, soaking the MAF sensor in 99% isopropyl alcohol and cleaning the throttle body with throttle body cleaner. This did make the hybrid system warning light go away for a few days, but the loud hum and the lower mileage were still there, so a few days later I took it back into the body shop and asked them to check over their work and see if it's possible they damaged something.

    They kept her for two hours and said they couldn't find anything that could possibly be their fault and told me to take her into a "Toyota certified mechanic."

    I took her in to a local mechanic whose web page has a whole section boasting how good they are working with hybrids. They charged me $120 for a diagnostic which as far as I could tell basically consisted of hooking up their Toyota code scanner and reading out the codes, which turned out to be P3009 and P3000. When I asked them for the subcodes they told me they're going to be on my receipt, but my receipt only showed the P3009 and P3000 codes.

    According to them, Toyota's flow chart said the first thing to try in combatting these codes was a transmission flush, which they wanted $195 for and which I let them go ahead with. When I came back in they told me they couldn't figure out how to do a flush on this particular car, so they did two "drains and fills," and they assured me that the fluid was very burned and it definitely needed it. But it also didn't actually resolve any of the issues.

    They now want me to pay $367 to remove the HV battery at which point and either $262 to clean whatever corrosion they find off of it or $2400 to replace it with a new HV battery. They didn't make it clear precisely what they're going to do in order to decide which of those two options is the correct one.

    After they quoted me those rather scary amounts, I did this test on my own:
    2001 Prius, Code P3009 on a used battery | PriusChat

    Since I don't have a code scanner, I just pulled the terminal off the 12v battery for 30 seconds to reset the codes. And I gave it a full 2 minutes in "on but not ready" mode then a full 2 minutes in neutral before going into drive. I did this 3-4 times and every single time, the warning light came back on within 20-30 seconds of switching into drive.

    So here are my questions -

    (1) How safe is it to assume that the mechanic I took it to is mistaken and that it's actually the transaxle leaking high voltage and not the battery?

    (2) The impact in the accident I was in was on the passenger side. Is it at all likely that this could have caused the short in the transaxle, or even made an existing intermittent short much worse? I'd absolutely love it if I could get this repaired at the expense of the other guy's insurance.

    (3) The repair work the body shop did obviously focused on the passenger side as well, but their final receipt does show that they removed and replaced my front bumper and fender and the "left side marker lamp," which I'm fairly sure refers to the little orange lamp at the side of the bumper. Is it possible they could have nicked a high voltage line going to the transaxle while doing this, or dislodged some corrosion while doing this, or anything of the sort? I find it extremely odd that the car ran just fine when I took her in but malfunctioned immediately after coming back from them and would absolutely love it if I could end up getting it repaired under their warranty.

    (4) At this point, what would be the most sensible thing to do? Follow my mechanic's recommendations and let them play with the HV battery, insist that they replace the transaxle instead or sell the car for scrap and buy something else?

    (5) How safe is the car to drive in this state? I've seen numerous posts on here that say if P3009 is the main issue the car could be driven indefinitely without repair, but I've also seen 1-2 posts mentioning risk of fire and several mentions of the fact that Gen 2 Priuses would refuse to start up if they detect this condition. Should I be avoiding using it on hot days or higher speeds? Should I stay off main roads?

    I found this thread: Regenerative braking noise, This is not the normal squeak,whine,or hum | PriusChat which describes some symptoms similar to mine in a gen 2 Prius that apparently experienced a similar accident. Apparently in his case it turned out to be an engine mount that got bent out of shape in the repair after the accident... And I found this thread: 2001 prius code p3001 | Page 2 | PriusChat about a gen 1 with similar symptoms where there turned out to be a loose metal bolt floating around inside the inverter casing even though the "simple HV leak detection test" pointed towards the transaxle.

    All in all I'm kinda left with the impression that it's completely possible I'll end up paying $3000 for a new HV battery and $4000 for a new transaxle and the problem could still end up being something else... And considering I only paid about $3000 for the car, I'm kinda largely feeling like I should give up.

    Any advice?

    Thank you!

    #1 Kate Harvest, Sep 15, 2014
    Last edited: Sep 15, 2014
  2. bwilson4web

    bwilson4web BMW i3 and Model 3

    Joined:
    Nov 25, 2005
    27,067
    15,372
    0
    Location:
    Huntsville AL
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus

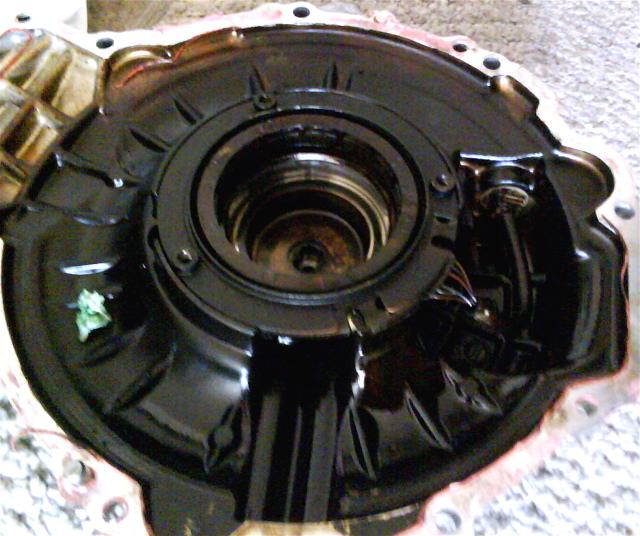

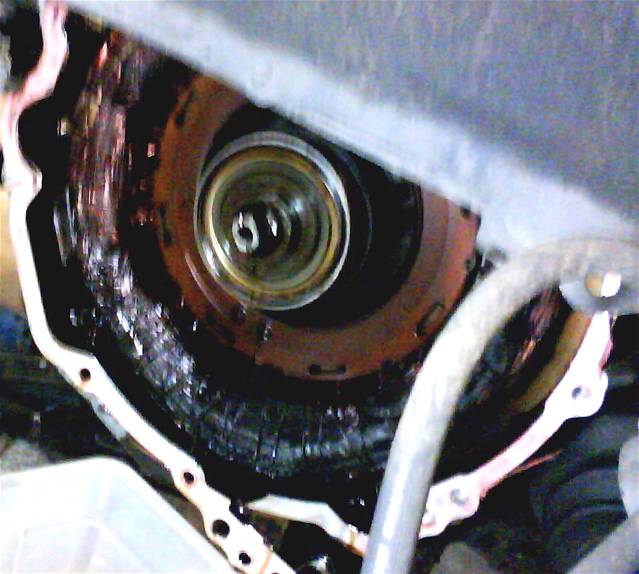

    The hum will be speed proportional but there are enough symptoms to call the transmission MG2 stator burnt. There is one last, definitive test, monitoring ICE, MG1 and MG2 temperature. From a cold start, within a block MG2 temperature will be much greater than MG1 and ICE temperature. I have seen MG2 temperature in excess of 100C (i.e., boiling water.)
