photos taken of the bottom of my Prius

Discussion in 'Gen 3 Prius Main Forum' started by lutece7, Sep 6, 2009.

  1. lutece7

    lutece7 New Member

    Joined:
    Aug 23, 2009
    62
    128
    0
    Location:
    Irving, Texas
    Vehicle:
    2010 Prius
    Model:
    II
    I have a friend with a lift and I had him lift my prius so that I could take a look at the bottom. It sure looks different than any vehicle I have ever seen (I have been driving a 1985 Land Cruiser for 24 years).

    It looks rather aerodynamic under there. some easily damaged plastic. very "neat" and "pretty". Glad I did it while it still looks new!

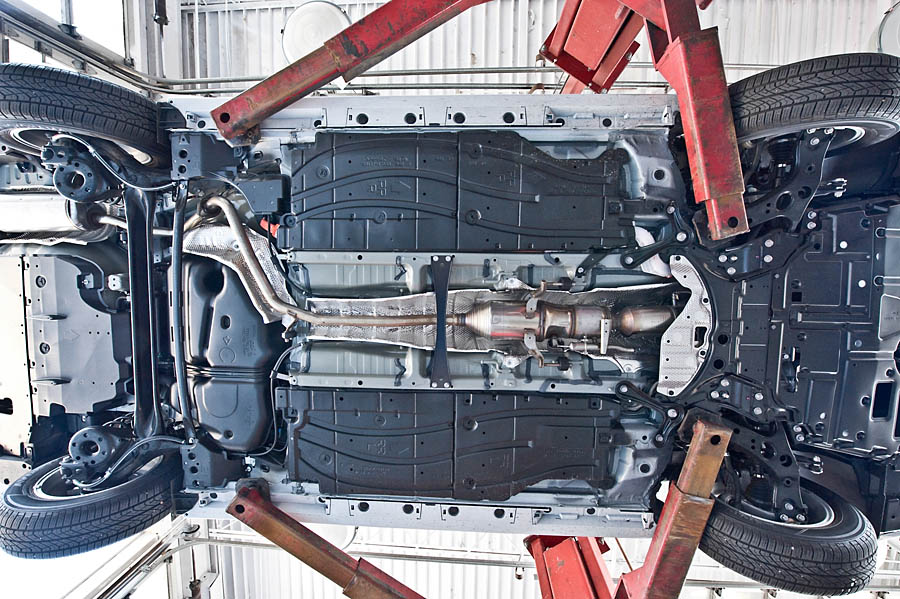

    here are some photos I took

    [​IMG]

    [​IMG]

    [​IMG]

    kevin.c, dMf, goodtimes and 100 others like this.
  2. Maineiac

    Maineiac Monkey Wrencher

    Joined:
    Jun 6, 2009
    71
    9
    0
    Location:
    lobsterland
    Vehicle:
    2010 Prius
    Model:
    IV
    Very nice! The middle one, in particular, brings to mind a turtle on its' back. I had begun to think that all the creative snaps had been staked out. Wrong.

  3. radioprius1

    radioprius1 Climate Conspirisist

    Joined:
    Aug 13, 2009
    1,355
    154
    0
    Location:
    Iceland
    Vehicle:
    2010 Prius
    Model:
    II
    Neat! First picture threw me off, I thought you had it on its side, LOL

    1 person likes this.
  4. DeanFL

    DeanFL 2010 owner - 1st Prius

    Joined:
    Apr 13, 2009
    1,015
    352
    0
    Location:
    Leesburg Florida USA
    Vehicle:
    2010 Prius
    Model:
    V
    Nice....
    Thanks for thinking of us and sharing. Looks as if Toyota did as nice of a job under as it did over. Like the turtle comparison...so right.

  5. Mark57

    Mark57 Senior Member

    Joined:
    Aug 14, 2009
    2,692
    2,321
    0
    Location:
    covid hell
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    Much appreciated. I was also initially shocked as the first pic streamed in until it was completely loaded. I was thinking roll over accident but then was relieved.:p

    It's obvious that great design care was taken underneath with aerodynamics in mind.

    I'm keeping a copy of these for future reference.

  6. The Electric Me

    The Electric Me Go Speed Go!

    Joined:
    May 22, 2009
    9,034
    5,715
    0
    Location:
    Undisclosed Location
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    Good god! That's a lot of underplating. Does this bother anybody? For me this is one of the big reasons I say I'm not a D.I.Y.er when it comes to oil changes on the new Prius. But it also makes me nervous that I'm going to have to trust a technician to take the time and carefully remove the plating, and carefully replace the plating everytime plating needs to be removed. Seems nightmarish.

    I know Toyota is proud of the designation of lowest CD of a production automobile but given that it is only microfractions higher than the second generation Prius, and only microfractions higher than The Insight, I have to question if all that underplating is worth it.

    It looks like the bottom of a toy car. I also don't like the idea that my Prius could be leaking a fluid from the top down, onto the plating and I'd concievably never know.

    Maybe it's the inevitable evolution of Hybrids and EV's to have so much underplating, but I'd be curious as to as far as CD and gas mileage, what the tangible benefits actually translate into being.

    Seems like the future of automobiles is becoming Open the Hood see a big slab of plastic, look underneath see several slabs of metal and plastic.

    Coast Cruiser likes this.
  7. PriusRos

    PriusRos A Fairly Senior Member - 2016 Prius Owner

    Joined:
    Jun 22, 2006
    1,940
    190
    0
    Location:
    Rockville, MD
    Vehicle:
    2016 Prius
    Model:
    Four
    Upside-down turtle is what I immediately thought of too!

    Great pictures - it does look like some type of animal.

  8. jay_man2

    jay_man2 jay_man_also

    Joined:
    Jun 11, 2009
    1,246
    143
    0
    Location:
    Manassas, VA
    Vehicle:
    Other Hybrid
    Model:
    N/A
    The only other time I'd seen the underside (except when looking under my own vehicle) was one of the factory videos posted in another thread.

    These pictures confirm to me that I'll not be driving up a friend's long dirt driveway with a seriously high hump in the middle of it, but stay on the street and hike over to his house. :p

    1 person likes this.
  9. Rokeby

    Rokeby Member

    Joined:
    Jan 21, 2008
    3,033
    705
    75
    Location:
    Ballamer, Merlin
    Vehicle:
    2008 Prius
    lutece7,

    Way cool. Many thanks. :cheer2:

    Asking on behalf of the many Gen II drivers; would it be possible to find
    a cooperative Gen II owner and have it lifted and photographed?

    Just asking. For those photos I'll nominate you for President...
    of the former Republic of Texas. :D

    1 person likes this.
  10. s.Oliver

    s.Oliver New Member

    Joined:
    Jul 5, 2008
    11
    0
    0
    Location:
    http://www.kronberg.de/
    Vehicle:
    2010 Prius
    Model:
    N/A
    Wow nice pictures.
    Thanks for sharing.

  11. lutece7

    lutece7 New Member

    Joined:
    Aug 23, 2009
    62
    128
    0
    Location:
    Irving, Texas
    Vehicle:
    2010 Prius
    Model:
    II
    sorry, I don't have time to find an 09 Prius, arrange with my friend, take the photos, then do the post processing, OR be President of the former Republic of Texas. Glad you liked them, though.

  12. Boo

    Boo Boola Boola Member

    Joined:
    Feb 13, 2007
    5,051
    472
    97
    Location:
    Flushing, NY
    Vehicle:
    2007 Prius
    Model:
    N/A
    Great photos. Thanks.

    LOL. So true. I put one on a lift and took this photo:

    [imglink]http://priuschat.com/forums/attachment.php?attachmentid=18292&d=1252254150[/imglink]


    Attached Files:

    • 039.JPG
      File size:
      79.8 KB
      Views:
      4,797
    7 people like this.
  13. octavia

    octavia Active Member

    Joined:
    Aug 20, 2009
    968
    136
    10
    Location:
    Beautiful Oregon
    Vehicle:
    2010 Prius
    Model:
    III
    LOL! Exactly what I was going to do, but you beat me to it. With two boys in the house, I recognize the bottom of a hot wheel when I see one!

  14. Tideland Prius

    Tideland Prius Moderator of the North
    Staff Member

    Joined:
    Oct 2, 2004
    40,724
    12,288
    41
    Location:
    Canada
    Vehicle:
    2018 Prius Prime
    Model:
    Technology
    Thanks for the pics! The first pic got me fooled too. I thought it was on a rotating lift that allowed it to be sideways!

  15. hobbit

    hobbit Senior Member

    Joined:
    Mar 23, 2005
    4,089
    457
    0
    Location:
    Bahstahn
    Vehicle:
    2004 Prius
    Model:
    N/A
    Interesting distortion out at the wheels. What sort of camera/lens?
    .
    Oil changes and the like are easily done through an openable
    hatch door in the front underbelly panel -- nothing to *remove*
    except a few clips. See the block heater page where FireEngineer
    is reaching right up into the engine area -- the oil drain plug
    and filter are right next to where his arm is.
    .
    _H*

  16. lutece7

    lutece7 New Member

    Joined:
    Aug 23, 2009
    62
    128
    0
    Location:
    Irving, Texas
    Vehicle:
    2010 Prius
    Model:
    II
    I used a 14mm lens on a full frame Nikon D700 DSLR.

  17. Old Bald Guy

    Old Bald Guy Old Bald Guy

    Joined:
    Aug 10, 2008
    89
    18
    2
    Location:
    Ft. Worth, TX
    Vehicle:
    2010 Prius
    Model:
    V
    If you go to this site John's Stuff - Toyota Prius and more you can learn more about the Prius than just about anywhere you could go. On the site is a fully illustrated 'how to" on changing the oil in the 2010.

    You DON"T have to remove the entire cover. The engine cover has three (3) fasteners only.

    Also, the undercovering is not just for airflow. It also is a great sound silencer. My 2010 is SO muct quiter than my 2008 was. My 2010 is maybe about the quietest car I have driven in over 40 years.

    1 person likes this.
  18. SlowTurd

    SlowTurd I LIKE PRIUS'S

    Joined:
    Aug 22, 2009
    1,156
    333
    0
    Location:
    nj
    Vehicle:
    2010 Prius
    Model:
    III
    you need a good 4 wheel alignment.



    interesting curves in those bottom center panels

  19. bwilson4web

    bwilson4web i3 and Prime

    Joined:
    Nov 25, 2005
    23,288
    13,114
    0
    Location:
    Huntsville AL with 2014 BMW i3-REx
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Plus
    Thank you for the photos but one thing has me scratching my head. Notice the orange power cables pass under exhaust pipe just before the rear axle, stability bar and the curious shape of the heat shield that appears to take a much tighter bend. Somehow, I keep thinking the heat shield should follow the exhaust pipe route and protect the high voltage cables from radiant heat. I will ask the Toyota shop take a close look at that area when I take it in for service.

    Bob Wilson

  20. adamace1

    adamace1 Senior Member

    Joined:
    Jun 22, 2009
    1,403
    186
    0
    Location:
    Charlotte, NC
    Vehicle:
    2010 Prius
    Model:
    II
    it looks like the heat sheild is only there to protect the gas tank.
