reverse signal wire

Discussion in 'Gen 3 Prius Audio and Electronics' started by Fussion101, Feb 18, 2011.

  1. Fussion101

    Fussion101 Junior Member

    Joined:
    Jul 1, 2009
    72
    4
    0
    Location:
    NYC
    Vehicle:
    2010 Prius
    Model:
    II
    Does anyone know if there's a reverse signal somewhere in the dash as well as a 12v accessory wire. Location and color would be great...

    I'm trying to install a gentex rear view mirror backup camera. The harness is up front so I would rather get a signal here than route the wire all the way back to the reverse lights.

  2. spiderman

    spiderman wretched

    Joined:
    Jul 5, 2009
    7,525
    1,522
    0
    Location:
    Alaska
    Vehicle:
    2010 Prius
    Model:
    II
    I asked when I put in my reverse cam but I got no response. Ended up running a line from the back. Can't imagine why there wouldn't be on in the dash somewhere.

  3. spiff72

    spiff72 Member

    Joined:
    Jan 25, 2011
    184
    37
    0
    Location:
    West Michigan
    Vehicle:
    2010 Prius
    Model:
    IV
    Sorry I can't help with the reverse wire, but you should be able to get 12V accessory power from either a wire on the radio harness, or from one of the 12V power plugs (either under the bridge, or in the center console). The center console is very easy to remove and access. Remove the "carpet" in the bottom, and remove the bolts, and you also have to pry out the plastic trim piece in the front to remove another bolt that attaches it to the back of the bridge. It then pulls straight back to remove.

  4. LovingLife

    LovingLife Junior Member

    Joined:
    Jan 27, 2009
    75
    22
    0
    Location:
    Denver, CO
    Vehicle:
    2010 Prius
    Model:
    III
    Robert Holt likes this.
  5. Fussion101

    Fussion101 Junior Member

    Joined:
    Jul 1, 2009
    72
    4
    0
    Location:
    NYC
    Vehicle:
    2010 Prius
    Model:
    II
    thanks for the help guys. Does the 2010 prius have a wedge mount or camlock mount?

    WEDGE MOUNT vs

  6. pEEf

    pEEf Engineer - EV nut

    Joined:
    Sep 23, 2010
    720
    565
    3
    Location:
    Berkeley, CA
    Vehicle:
    2008 Prius
    Model:
    N/A
    There is a release tab and it just snaps off.

  7. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
    here is a reverse signal cabling
    [​IMG]

  8. summit123

    summit123 Junior Member

    Joined:
    Oct 26, 2010
    96
    12
    0
    Location:
    MA
    Vehicle:
    2010 Prius
    Model:
    II
    On my other car I didn't want to do too much wiring work so I just added a generic switch which I mounted to the center console. I tapped into the 12v light outlet so I could manually switch on the back up camera/monitor. It was a fairly straightforward mod without having to dig around for the right wire.

  9. V8Cobrakid

    V8Cobrakid Green Handyman

    Joined:
    Jun 6, 2004
    3,790
    150
    0
    Location:
    Park View, Los Angeles, CA. U.S.A
    Vehicle:
    2004 Prius
    Model:
    N/A
    any wire you hope to find in a prius.... you'll have to dig. you might as well go for the right one. panels are easy enough to pop off in this car. given enough time you can take the entire interior apart and put it back together (3 hours or so)...

  10. rrolff

    rrolff Prius Surgeon

    Joined:
    Aug 19, 2009
    1,610
    243
    0
    Location:
    So Cal
    Vehicle:
    2010 Prius
    Model:
    III
  11. PaJa

    PaJa Senior member

    Joined:
    Sep 3, 2009
    678
    113
    92
    Location:
    Czech republic
    Vehicle:
    2017 Prius
    Model:
    N/A
    You can find the location of reverse signal wire at My Ottonavi experience... | PriusChat link. Dylan made a good compilation from his Ottonavi install. I tapped the mentioned thick red wire during my install 1.5 year ago.

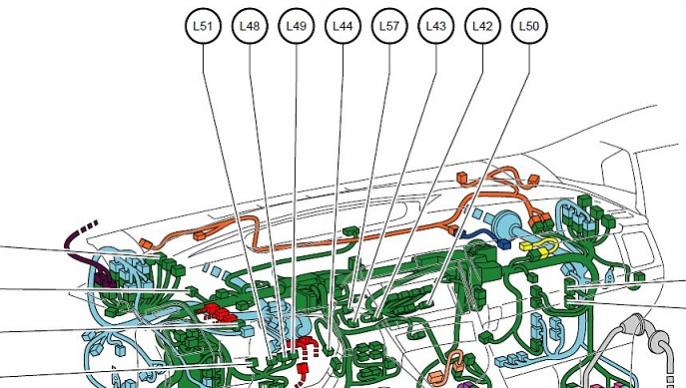

    If you have a wiring diagram - try lo locate L50 white 20 pins connector connected to Radio assembly (non-nav). SPD signal wire should have a violet color at pin 3. The SPD signal generates 4 pulses per wheel revolution. Unfortunatelly, I don't have a personal experience with SPD signal.
    Are you looking for navigation in the tunnel, covered areas?

    [​IMG]

  12. richfife

    richfife New Member

    Joined:
    Apr 4, 2018
    1
    1
    0
    Location:
    Richmond, CA
    Vehicle:
    2010 Prius
    Model:
    I
    Bump! Arise 6.5 year old thread.

    All of the photos associated with this seem to be gone. Does any have access to photographs of where to attach a wire around the dash that goes 12v when the car is in reverse.

    GTprii likes this.
  13. taxibuddy

    taxibuddy Junior Member

    Joined:
    Jan 31, 2018
    76
    54
    0
    Location:
    Atlanta
    Vehicle:
    2014 Prius v wagon
    Model:
    Two
    This isn't what you asked for but maybe it will help. The connections that cut off on the bottom are grounds.
    Screen Shot 2018-04-05 at 8.46.48 PM.png Screen Shot 2018-04-05 at 8.37.31 PM.png Screen Shot 2018-04-05 at 8.48.55 PM.png

  14. youdiejoe

    youdiejoe Member

    Joined:
    Nov 2, 2012
    31
    47
    0
    Location:
    Los Angeles
    Vehicle:
    2010 Prius
    Model:
    Three
    Doing an install on my "new to me" 2010 Prius III, here is a clear diagram of the kick panel showing the location of the reverse wire (thanks to Crutchfield for sending it!)


    Attached Files:

    GTprii and Hammond_Egger like this.
  15. youdiejoe

    youdiejoe Member

    Joined:
    Nov 2, 2012
    31
    47
    0
    Location:
    Los Angeles
    Vehicle:
    2010 Prius
    Model:
    Three
    To follow up, if any one is looking at this old thread like me...

    I ended up not having to use the location in the kick panel, if you have a 2010 Prius (most likely 2010-2015) with JBL and Navigation, the reverse wire is available, much closer, on a 5 Pin connector in the factory harness, it's a pink wire on 5th pin. There are only 4 wires going into this connector.

    Thanks again to the tech at Crutchfield for looking into this and finding the answer, they have added this info to their database for future users.

  16. kc5dlo

    kc5dlo Active Member

    Joined:
    Jun 16, 2015
    228
    150
    0
    Location:
    DFW TX
    Vehicle:
    2014 Prius
    Model:
    Three
    When i did mine I used the included cable for the reverse camera that had a power wire included. Power was gained by simply splicing into one of the reverse lights. Much simpler than running all the way to the front and also takes care of the switching.
