Rough Install Guide - Backup Camera/Monitors/HU/USB/Amp/Steering Wheel Control and Bike Rack

Discussion in 'Prius c Audio and Electronics' started by actiondonkey, May 25, 2012.

  1. actiondonkey

    actiondonkey Member

    Joined:
    Mar 9, 2012
    91
    30
    0
    Location:
    Florida
    Vehicle:
    2012 Prius c
    Model:
    II
    I’ll start by saying I’m definitely not a car audio expert. Others on this board (SquallLHeart) are much more qualified to write installation guides that are founded in technical expertise. I’m posting this to help others who will inevitably choose to install some of these aftermarket upgrades. No warranty is expressed or implied, follow this guide at your own risk.

    We won’t waste time rehashing how to remove the door panels, that guide is here: prius C speaker size | PriusChat


    Harness: TA02BCB
    http://www.sonicelectronix.com/item_34199_Scosche-TA02BCB.html?SearchClickout%5Bquery_id%5D=9925175&SearchClickout%5BIgnore%5D=1

    Antenna adapter: LSAAB
    http://www.sonicelectronix.com/item_34174_Scosche-LSAAB.html?SearchClickout%5Bquery_id%5D=9925184&SearchClickout%5BIgnore%5D=1

    Steering wheel adapter: Axxess ASWC Universal Steering Wheel Control Adapter
    http://www.sonicelectronix.com/item_22808_Axxess-ASWC.html?SearchClickout%5Bquery_id%5D=9925190&SearchClickout%5BIgnore%5D=1

    Head Unit: JVC KW-AVX840
    http://www.sonicelectronix.com/item_33387_JVC-KW-AVX840.html?SearchClickout%5Bquery_id%5D=9925199&SearchClickout%5BIgnore%5D=1

    Speakers: JBL GTO638
    http://www.sonicelectronix.com/item_17735_JBL-GTO638.html?SearchClickout%5Bquery_id%5D=9925243&SearchClickout%5BIgnore%5D=1

    Amplifier: JBL GTO5355
    http://www.sonicelectronix.com/item_12245_JBL-GTO5355.html
    Rear seat monitors: Pyle 7''
    http://www.newegg.com/Product/Product.aspx?Item=9SIA0SM0858151

    Backup Camera: Crimestopper SV-5200
    http://www.sonicelectronix.com/item_31110_Crimestopper-SV-5200.IR-Black.html

    Hitch: Torklift 2''
    http://shop.tlcentral.com/store/pc/viewPrd.asp?idcategory=157&idproduct=1064


    1. BACKUP CAMERA INSTALLATION

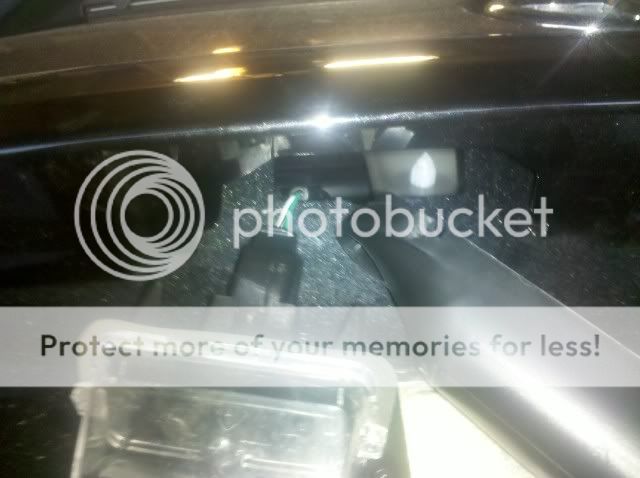

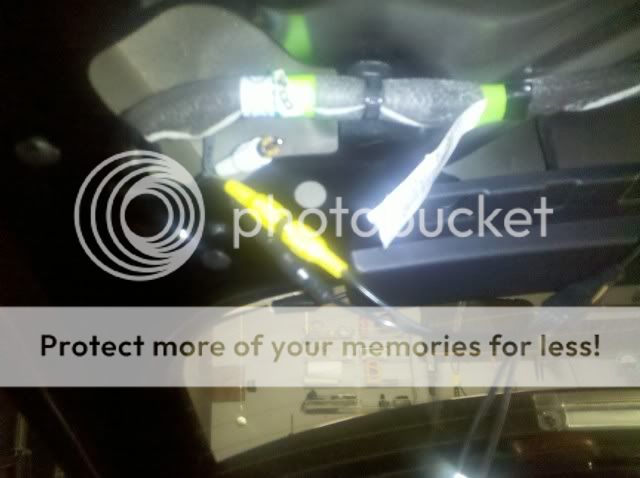

    I found the best way to run the video/power wires for the backup camera was through the tag illumination light bay. Start by removing the clips that hold the ‘carpet’ in place along the inside hatch. You can now access the light fixture. Two clips on either side hold this light in place; you can squeeze the clips together with your fingers and push out; the light fixture will push outward rather easily. Run your wires through this hole, then replace the light fixture. Unless your camera wires are especially wide, the light fixture will fit right back into place without a problem.
    [​IMG]

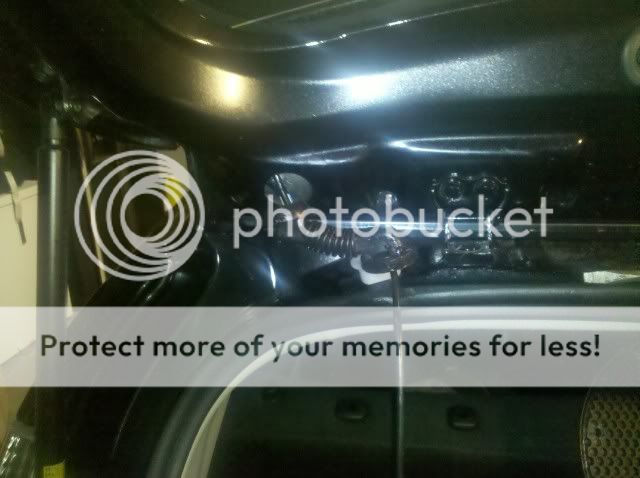

    Here’s the hard part. I ran the cables up the inner left side of the hatch door, through the rubber insulator that leads from the hatch to the rear of the vehicle, and routed the cables through the car from there.
    [​IMG]
    [​IMG]
    Getting anything through the side of that hatch to that rubber insulator was extremely difficult. There are all sorts of things in that door blocking your way and there’s no way to guide the wires with your hand. After much trial and error I got a wire clothes hanger and ran it through the left side hatch so one side came out where the rubber insulation and other wires came out, the other side of the clothes hanger was still at the insertion point where we’re going to start running the wires. I made a very small hook with the clothes hanger at the end of the insertion point side and zip-tied the RCA/power wires to the clothes hanger. This allowed me to pull the wires through using the other side of the hanger (rubber side) and the hook kept the zip-tied rca cables from sliding off. Even so, this took at least ten attempts to get the wires through. Once you’re to the insulator pictured above, it’s all easy from there. I connected the pos/neg for my camera to the amplifier pos/neg because I’m lazy like that and it works. The one thing I have yet to accomplish is the automatic camera/reverse gear triggering. I tested EVERY wire in that harness and concluded there is no signal behind the radio to initiate the reverse camera. Your only option that I’ve seen is to run a wire to your backup lights. EDIT: It seems on the 1&2 models there is not a wire behind the stereo for a backup sensor. Best bet is to wire the backup sensor to your white backup bulb in your taillights. Just strip a bit of your wire and wrap it around the contact of the bulb then push it back into the socket. I know, it sounds bad but it's worked for 2 years now without incident.
    [​IMG]


    2. Rear seat monitors

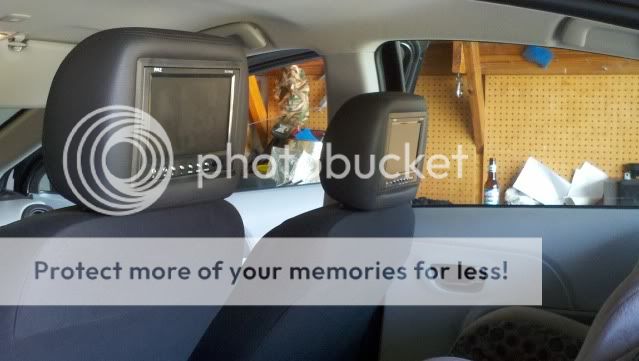

    This was fairly easy; would have been easier had the cable that came with my monitors been longer. In short, these are aftermarket headrests that already have a screen in them. The color matches well and the headrests are comfortable (I’m one of the 1% that actually uses them on long drives). The audio/video/powercables run through one of the poles that goes into the seat. You have to fish it a bit, but the cable can make it past all the junk in the top of the seat and fall down into the lumbar area. You still cannot access the cable without reaching into the back of the seat, and accessing that area will require us to negotiate this rod in the bottom left/right of the chair. The end of the rod has a hook shape that keeps it from sliding past clips.
    [​IMG]
    I found the most effective way to remove this rod is to just straighten in and then slide out the rod (not completely) from the other side. Be forewarned – these rods are made of an Adamantium/Vibranium alloy and are unnecessarily difficult to bend. However, once you slide out the bar, you can pull up the seat fabric and access the cables for your monitors. From there just plug and play. I ran the power cables to my DC power inverter that’s under the passenger seat. because I’m lazy like that and it works.
    [​IMG]

    3. Install Head Unit
    I used the afore-mentioned harnesses, all color coded, no splicing necessary. It was almost too easy. Almost. See ASWC.

    4. USB port preservation
    I liked where the OEM port is located but the stock USB wire cannot be used without significant technical knowhow and soldering. I opted to just run a whole new wire. This was fairly easy. Reach behind the radio compartment, around a metal brace and then forward. You’ll be able to feel the usb/aux input assy. There’s a clip at the top of this box – push that down while you push out, the whole box will push forward into the cab of the vehicle. Cut the wires. Do whatever to waller out the OEM usb/aux components but be careful to leave the top and bottom clips unscathed. As long as you have these two clips it’ll still mount back into the OEM slot. I ran a new USB from my radio to the port, trimmed down the housing around my new usb cable so it would fit snugly into the OEM port and superglued it in there. Works like a charm. I don’t use Aux so I drilled out that hole enough to fit a 3.5mm plug through for the Bluetooth microphone. See ‘Other Considerations’.
    [​IMG]

    5. Amplifier install
    Bolted to the metal braces of the rear seat. Ran power to the battery. Ground to the same place the battery grounds at. See ‘other considerations’ for issues with power supply.

    6. Speaker Install

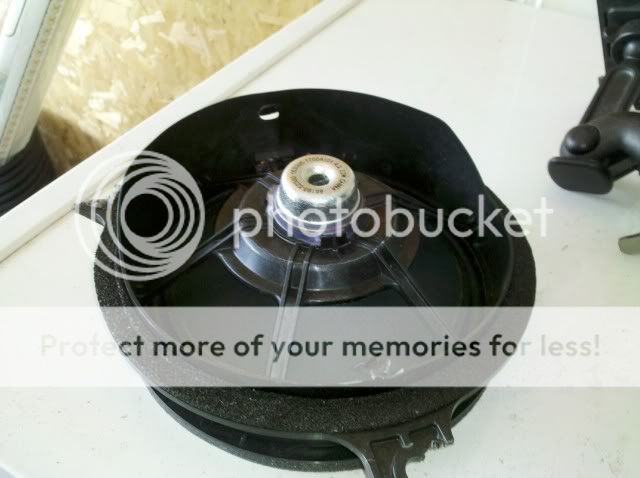

    Once the HU and rear monitors were working I began replacing the speakers. I’ll admit, the stock speakrs did not sound THAT bad once the HU was replaced. Honestly I was shocked at the sound quality increase from just replacing the HU. That said, unless you’re an audiophile like me, you might not need to replace the factory speakers. Now that I say that, take a look at them… I’ve never seen a speaker so pathetic looking in my life.
    [​IMG]

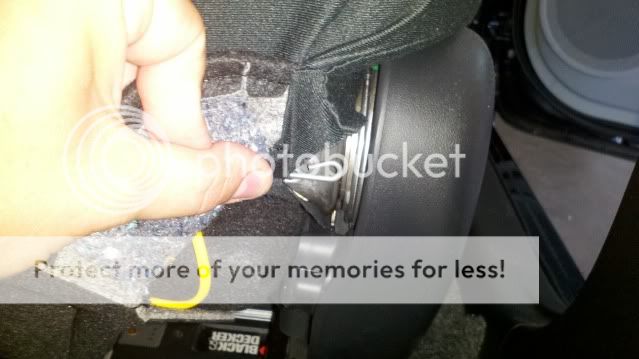

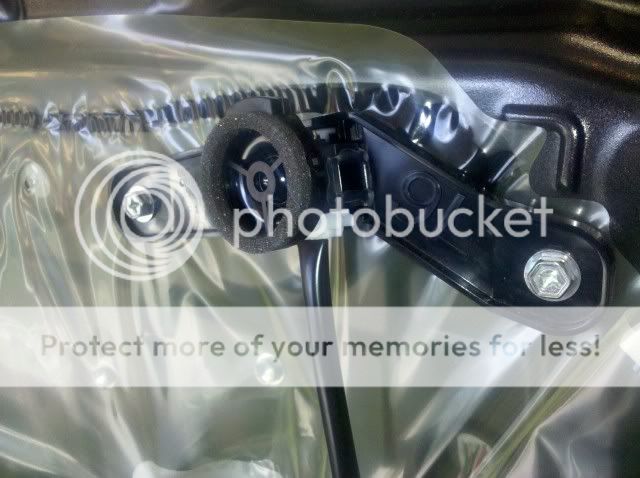

    Regardless I stand by my prior commentary. Also a picture of the tweeter is attached since that has been of question.
    [​IMG]
    I used 3-way speakers so a separate tweet wasn’t necessary. I just left it unplugged and forgot about it. Overall the speaker install was fairly easy and other guides have already outlined how to do this. I did have to drill my own holes and used ‘the speaker bay’ to insulate/protect the speakers. No big news here, pretty basic stuff.

    7. ASWC Steering Wheel Control

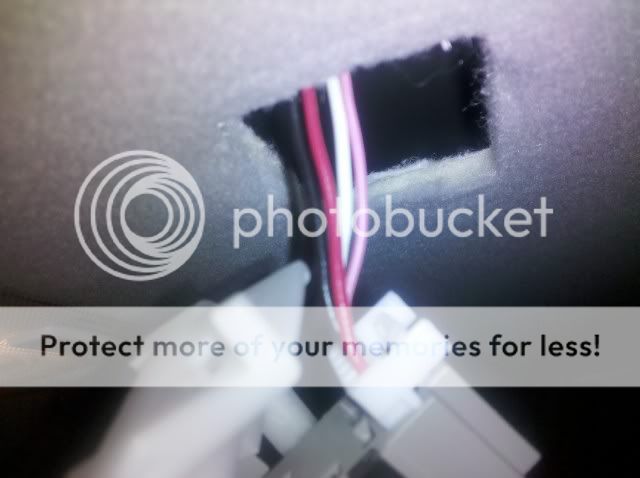

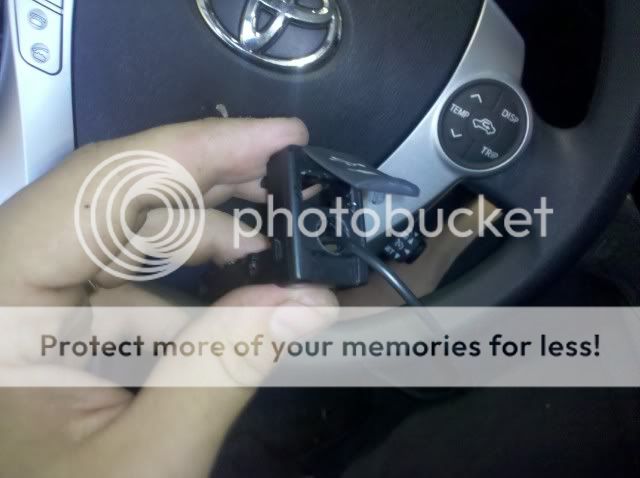

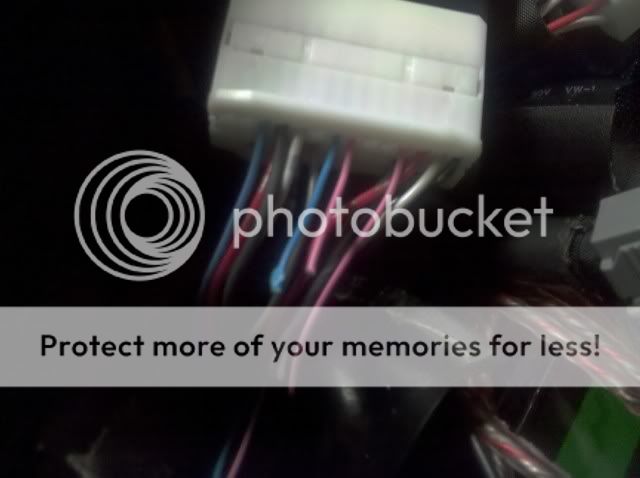

    This part sucked. The directions I was given are crap. Save yourself the headache and just connect the wires like in the picture. Middle bottom of the ‘unused’ factory harness have a baby blue and pink wire next to each other. Connect the pink to the green/black wire of the ASWC, baby blue to the green/orange wire of the ASWC.
    [​IMG]
    Of course, you’ll need to connect the Hot and Ground wires to the appropriate places; if you’ve made it this far you know what to do there. Specific to my HU because it’s JVC, I had to connect the brown 3.5mm-connected wire to the blue/orange SWC HU wire. PM me if you need help with this because it was a real PITA. However, track and volume up/down both work, modes change correctly, phone does not work correctly. Interestingly the ‘answer’ button scrolls forward through audio folders on the usb or tracks on a dvd. I like this feature and would prefer it over a steering wheel answer button. As for the ASWC, it self-programmed and required the splicing of four wires total, including hot and ground. Not bad. As a note, do not get the ‘plug and play’ metra turbowire 70-8114 adapter for this that supposedly keeps you from having to splice anything; it doesn’t work for the C.

    8. 2’’ Luggage/Bike Hitch

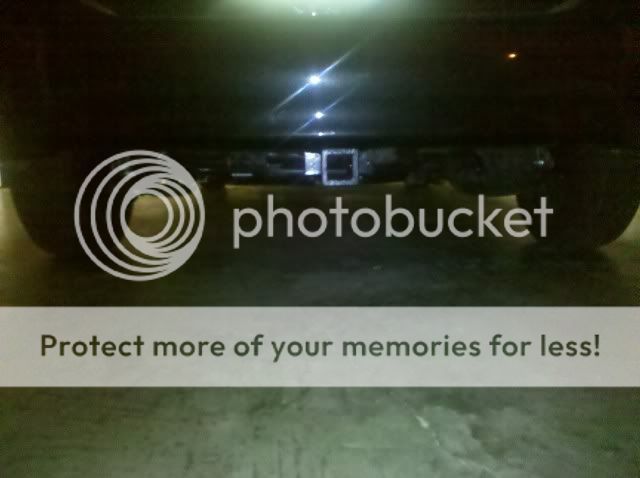

    Installed in about 30 min, not too difficult at all if you follow the directions exactly. I do have a copy of the instructions and can send them PDF if anyone is REALLY interested.
    [​IMG]

    9. Other considerations
    A- Plan ahead and run a backup gear wire to the front. This will save you time from an additional tear down and reassembly.
    B- I have seen no noticeable decrease in MPGs with this AV system.
    C- I need to run a capacitor and anyone else who installs a mid/high level system and uses EV frequently will probably need the same. A few times my amplifier actually turned off and would not come back on until I ran on gas for a few minutes. It is not a heat or ground issue, but the amplifier is using all the juice in the 12v car battery and frequent or prolonged EV sessions don’t give the 12v enough time to recharge. This is concerning and will have to be addressed.
    D- It may be possible to retain the stock Bluetooth microphone which I would really like. Look at these two pictures
    These are the wires that’s in the microphone in the roof

    [​IMG]

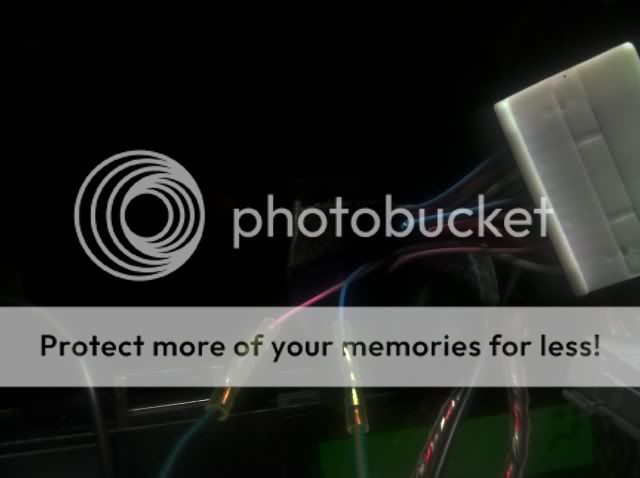

    Now see the below picture, right side of the harness.
    [​IMG]


    Could these four wires be the ones that connect to the OEM microphone? If yes, how would these four wires be soldered on to a 3.5mm input to go into the back of an aftermarket HU? For reference, I cut and stripped an old crappy Bluetooth microphone and it only had one wire and insulation, not four wires.
    E- I absolutely hated to do it, but ground loop isolators were necessary to squelch the substantial electrical feedback coming through the speakers.
    [​IMG]

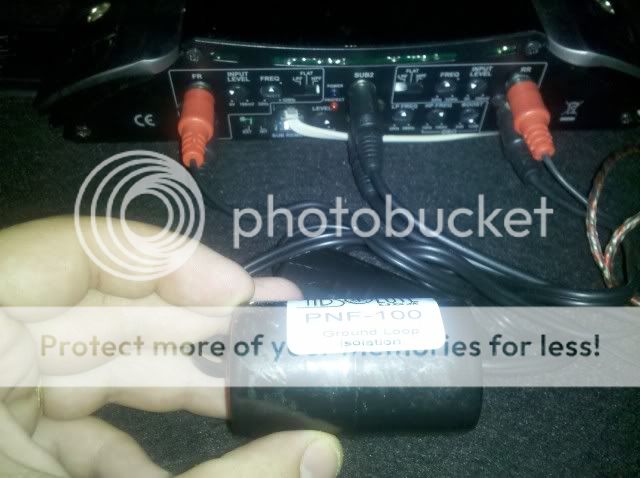

    I checked ground and ran the audio cables down the middle of the car away from power, made no difference. Ground loop isolators fixed the problem instantly but I can tell a difference in the audio quality. It sounds more flat and muffled now. My wife can’t tell a difference but I can. However, I guess it’s worth it to get rid of that feedback
    That’s about it. Hope this helped a few people that decide to do the install themselves.

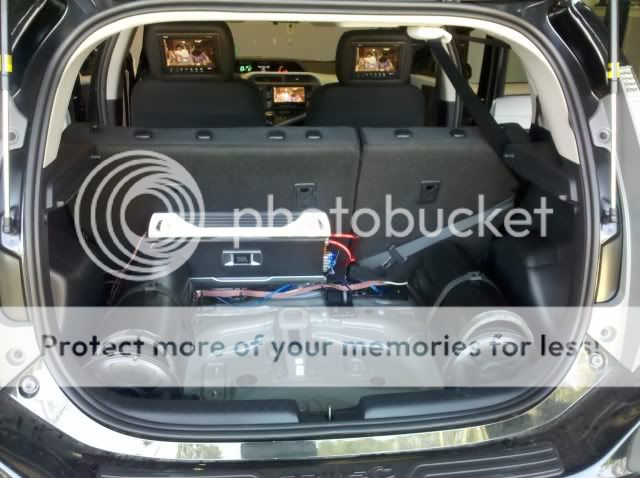

    [​IMG]

    #1 actiondonkey, May 25, 2012
    Last edited: Jun 5, 2014
  2. LasVegasPriusC

    LasVegasPriusC New Member

    Joined:
    May 23, 2012
    5
    0
    0
    Location:
    Las Vegas
    Vehicle:
    2012 Prius c
    Model:
    Three
    That's an awesome job you did there! Is it possible to install a back up camera on the stock C3 stereo/nav unit? Also I had an amp and sub installed on my C and the MPG dropped 10-15 mpg but while I was driving around yesterday listening to talk radio instead of bumping my system I noticed a slight improvement in MPG

  3. actiondonkey

    actiondonkey Member

    Joined:
    Mar 9, 2012
    91
    30
    0
    Location:
    Florida
    Vehicle:
    2012 Prius c
    Model:
    II
    That's a huge drop in MPG! What kind of amp/sub did you get installed? I haven't seen any noticeable drop in economy with my 660w amp, speakers and 2x 8'' bazooka tubes.

    As for the backup camera on the c3 stereo, I don't know for sure but it's doubtful they made a video input source for the back. Does your c3 have a button in the interface to select a backup or a/v input source?

  4. LasVegasPriusC

    LasVegasPriusC New Member

    Joined:
    May 23, 2012
    5
    0
    0
    Location:
    Las Vegas
    Vehicle:
    2012 Prius c
    Model:
    Three
    it's just a 400 watt amp I wonder if it could be the way they installed it? I'm really not doing anything else different driving wise and no I don't see an a/v input source I had an 06 prius and I miss the home link and back up cam options and the HID's haha and the the tiny shifter!

  5. Wharfe

    Wharfe Junior Member

    Joined:
    Apr 20, 2012
    64
    13
    0
    Location:
    Canada
    Vehicle:
    2012 Prius c
    Model:
    N/A
    Awesome work! Looks great. Thanks for sharing the pics and details.

  6. cuppacino

    cuppacino New Member

    Joined:
    May 28, 2012
    1
    0
    0
    Location:
    malaysia
    Vehicle:
    2012 Prius c
    Model:
    N/A
    Thanks for sharing! Would really like to see the dashboard removal to reach the HU though. Saw that some where.. but couldn't locate it again :(

    Anyone knows whether the nav unit has RCA outputs ?

  7. formula

    formula Member

    Joined:
    Mar 7, 2012
    320
    32
    0
    Location:
    CA
    Vehicle:
    2012 Prius c
    Model:
    Three
    is the dash monitor the Navi one? or aftermarket?

  8. Wharfe

    Wharfe Junior Member

    Joined:
    Apr 20, 2012
    64
    13
    0
    Location:
    Canada
    Vehicle:
    2012 Prius c
    Model:
    N/A
    I'm curious about the Bluetooth mic now, too. Switching to a new headunit without built in mic, so I'll have to mount the new one or preferably use the factory mic if possible. I wonder if the black/red are for power, and why it would need power.

  9. Lockdown Security

    Lockdown Security Junior Member

    Joined:
    Jun 2, 2012
    10
    3
    0
    Vehicle:
    2012 Prius c
    Model:
    N/A
    The stock bluetooth mic can possibly be retained, the reason there are 4 wires instead of 2 is because the mic has a powered pre- amp circuit built into it, extra 2 wires are power and ground more than likely for the pre-amp, the other 2 are the shield and signal wires. Will be working on this over the next few days and will post the schematic when i get it figured out.

  10. side0ut

    side0ut New Member

    Joined:
    Mar 31, 2013
    6
    0
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    Just wanted to say thank you to OP, Actiondonkey for this posting. Without you, I would have never figured out how to install the Metra ASWC. Got mine working first time thanks to your lessons learned on which wires to connect. It took me a couple of times to get the timing and button sequence correct to remap my steering wheel but now everything is great. I ended up setting the volume up/down, mode to default and then configured my up (next) and down (previous) buttons for presets up/down. Then set the hang up and answer buttons for my phone. Everything works awesome now and I am really happy. Thanks again. Rich

  11. JOnnay

    JOnnay Junior Member

    Joined:
    Oct 11, 2013
    6
    0
    0
    Location:
    Saint Helena, California
    Vehicle:
    2004 Prius
    Model:
    II
    Quick question regarding the 28 pin interface - mine is the same as yours with the 2 wires in the 21 and 22 slot - I see diagrams that always show THREE wires. How did you wire it up to be able to use the steering controls?

    I made the mistake of buying the PAC-Audio SWI-RC only to find out that their wiring writeups don't match my 2013 (3/13) Prius C

    Great write up here btw :)
