scangauge, need help with xgauge

Discussion in 'Gen 3 Prius Accessories and Modifications' started by ramattos, Mar 7, 2015.

  1. ramattos

    ramattos Junior Member

    Joined:
    Jun 25, 2012
    57
    2
    0
    Location:
    Bethlehem PA
    Vehicle:
    2010 Prius
    Model:
    III
    just got it today but the document that i got doesnt show a specific code to input for the engine temp. do you just use the one for alt coolant temp? if not what is the correct one. also what other gauges are practical for keeping on all the time.

    #1 ramattos, Mar 7, 2015
  2. Xterra72

    Xterra72 Senior Member

    Joined:
    Oct 20, 2013
    1,392
    1,653
    0
    Vehicle:
    2013 Prius
    Model:
    Persona

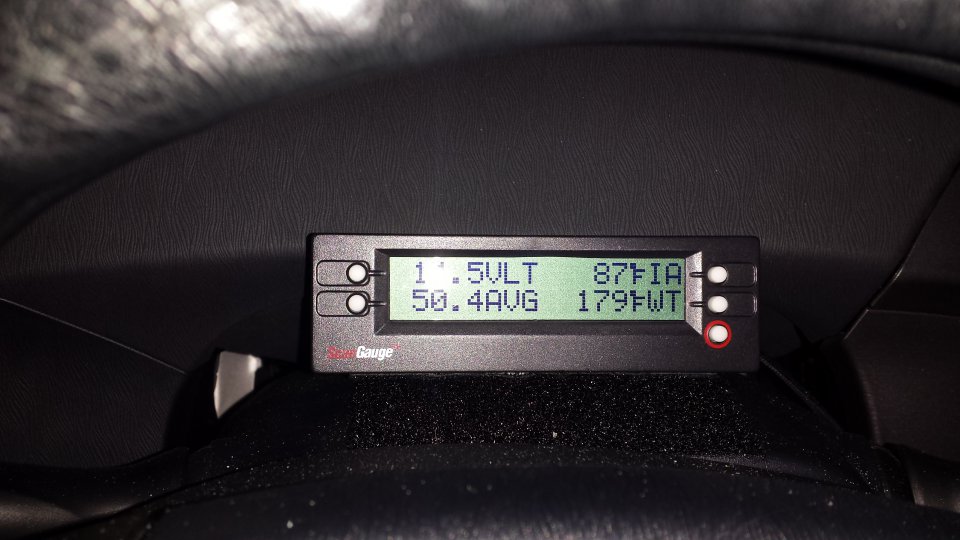

    These are what I have on at all times

    #2 Xterra72, Mar 7, 2015
  3. Tony D

    Tony D Active Member

    Joined:
    Aug 31, 2013
    468
    132
    0
    Location:
    Dublin, Ireland
    Vehicle:
    2008 Prius
    Model:
    N/A
    And they are

    Battery Voltage
    MPG
    Engine temp
    And .....

    #3 Tony D, Mar 7, 2015
  4. Xterra72

    Xterra72 Senior Member

    Joined:
    Oct 20, 2013
    1,392
    1,653
    0
    Vehicle:
    2013 Prius
    Model:
    Persona
    Intake air temperature. Temperature of the air going into the engine.(y)

    #4 Xterra72, Mar 7, 2015
    Tony D likes this.
  5. Robert Holt

    Robert Holt Senior Member

    Joined:
    Aug 3, 2013
    1,313
    888
    0
    Vehicle:
    2012 Prius
    Model:
    Three
    You should have a small manual that explains how to program in the Xcodes. I am monitoring engine water temperature, which was a "default" code available right out of the box--FWT stands for degrees Fahrenheit water temperature. I also have monitored GPH which is gallons of gasoline per hour fuel consumption. My other two fields had to have the Xcodes laboriously programmed in digit by digit and they have the acronyms BT2, which is the number two temperature probe on the High Voltage battery which usually runs highest, and BFM which is an indicator of the Battery Fan Motor, from level 0(off) to 6(max). I use the last two fields to detect heat stress on the HV battery--the combination of higher temps and higher fan speeds tells me to minimize load on that battery and increase cooling by using AC in the cabin, etcetera.
    Good luck with yours!

    #5 Robert Holt, Mar 7, 2015
  6. cproaudio

    cproaudio Speedlock Overrider

    Joined:
    Jul 7, 2010
    2,401
    759
    0
    Location:
    CA
    Vehicle:
    2010 Prius
    Model:
    V
    Goto the scangauge website and look for Prius xgauge

    #6 cproaudio, Mar 7, 2015
