strange element in prius engine

Discussion in 'Gen 3 Prius Technical Discussion' started by motoleon, Mar 7, 2011.

  1. motoleon

    motoleon Junior Member

    Joined:
    May 26, 2010
    48
    16
    0
    Location:
    spain
    Vehicle:
    2010 Prius
    Model:
    N/A
    strange element in prius engine: magnet fuel economizer?

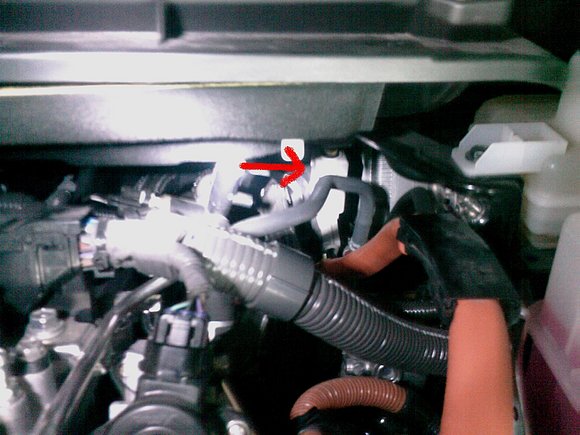

    In engine compartiment I discover that:


    [​IMG]

    [​IMG]

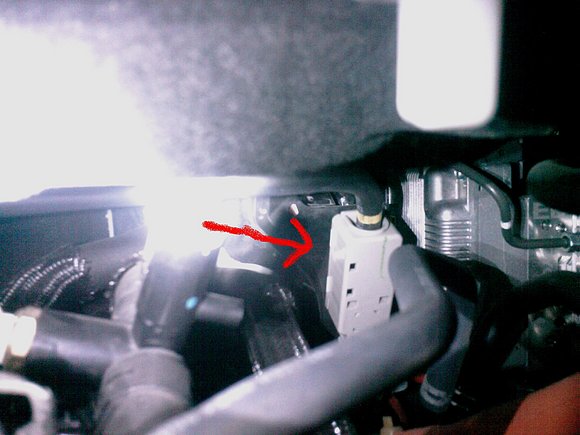

    It is a plastic box with clips, round the rubber tube of fuel that is directly to fuel ramp and inyectors. There is no wire, so no sensor, no actuator.

    May be a magnet, fuel economizer? I can`t beleave it if so...

    Bye/Salu2.

    #1 motoleon, Mar 7, 2011
  2. Flaninacupboard

    Flaninacupboard Senior Member

    Joined:
    Apr 25, 2010
    1,297
    213
    0
    Location:
    Midlands - UK
    Vehicle:
    2010 Prius
    Model:
    N/A
    Hahaha maybe the fuel magnets really DO work and that's how Prius is so economical?!?!

    #2 Flaninacupboard, Mar 7, 2011
    1 person likes this.
  3. RRxing

    RRxing Senior Member

    Joined:
    Jul 7, 2009
    2,519
    1,790
    0
    Location:
    NEPA
    Vehicle:
    Other Hybrid
    Model:
    Limited
    Per the repair manual, it is the No. 1 Fuel Pipe Clamp.

    #3 RRxing, Mar 7, 2011
  4. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    108,745
    49,408
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    we don't have those in the states.

    #4 bisco, Mar 7, 2011
  5. motoleon

    motoleon Junior Member

    Joined:
    May 26, 2010
    48
    16
    0
    Location:
    spain
    Vehicle:
    2010 Prius
    Model:
    N/A
    "Fuel pipe clamp"? It is very, very big to be. It contains some thing else inside...
    In the states you don't have this?...In Spain we have in Prius 3G and Auris HSD...

    Bye. Salu2.

    #5 motoleon, Mar 8, 2011
  6. Pri4Us

    Pri4Us Junior Member

    Joined:
    Oct 23, 2009
    82
    21
    0
    Location:
    Tierra Buena, CA
    Vehicle:
    2010 Prius
    Model:
    III
    I have no idea what its function is, but I think the white plastic unit you've depicted is possibly below the '#1 Fuel Pipe Clamp'.

    In California we certainly do have this unidentified device. It is a bit hard to spot under the cowling on the driver side, however.

    #6 Pri4Us, Mar 8, 2011
  7. Joe166

    Joe166 New Member

    Joined:
    Dec 19, 2009
    720
    96
    0
    Location:
    South Florida
    Vehicle:
    Other Hybrid
    Model:
    V
    I think that is the semi hidden monitor that is in all cars nowadays to report to Big Government exactly what we do, where we go and so they can mail us the citations for our anti govt behavior. I heard about this on late night radio. Very scary! Might be related to the contrails in the sky, which are really a gas to render us more compliant.

    Good catch! We need to be vigilant at all times.

    #7 Joe166, Mar 8, 2011
  8. GSW

    GSW PRIUS POWER

    Joined:
    Jul 7, 2009
    537
    74
    0
    Location:
    Jacksonville
    Vehicle:
    2010 Prius
    Model:
    II
    OK Joe, back to your room and I'm confiscating you bottle of "little friends".

    #8 GSW, Mar 8, 2011
  9. motoleon

    motoleon Junior Member

    Joined:
    May 26, 2010
    48
    16
    0
    Location:
    spain
    Vehicle:
    2010 Prius
    Model:
    N/A
    +1 :)

    #9 motoleon, Mar 8, 2011
  10. RRxing

    RRxing Senior Member

    Joined:
    Jul 7, 2009
    2,519
    1,790
    0
    Location:
    NEPA
    Vehicle:
    Other Hybrid
    Model:
    Limited
    #10 RRxing, Mar 8, 2011
  11. LulzChicken

    LulzChicken Prius Enthusiast

    Joined:
    Jul 19, 2009
    791
    135
    0
    Location:
    Alabama
    Vehicle:
    2010 Prius
    Model:
    II
    #11 LulzChicken, Mar 8, 2011
