The feasability of a motor on the rear axle?

Discussion in 'Gen 3 Prius Main Forum' started by Slider2732, Dec 31, 2018.

  1. Slider2732

    Slider2732 Member

    Joined:
    Nov 30, 2018
    64
    66
    1
    Location:
    Arkansas
    Vehicle:
    2014 Prius
    Model:
    Three
    Our cars have a reputation on the roads....
    The computer systems within them seem to be difficult to re-program (engine switching on after a few seconds in the driveway, inability to knock 2-3% off the MPG readout etc). So, a Prius GTe with upgraded hardware/firmware is no easy task.
    Many would argue it doesn't need anything else for power and, i'm in that crowd. A good reliable comfortable economical A to B, with some EV characteristics.

    -But-
    It occurred to me, that fitting a forklift motor on the rear axle of a Prius could be whole lot of fun.
    :whistle:
    1/4 mile drag racing surprise, if done correctly.

    As far as I can see under my own and from viewing pics, the rear axle is a bar type. Fairly simple and unencumbered by anything else of the drivetrain.
    Fitting a motor in the middle, with dual output splines to a replacement tube type is one idea.
    Having it connected via a gear to the axle which also has a gear, is another. We wouldn't want the rear to be sliding around.
    Power could be from the main battery, though the computer would have a hissy fit. Preference would be from a dedicated set of li-ions in the trunk. Nothing huge, just for short period assistance and to supply minimum power for magnet drag purposes. A switch in the cabin could use that drag on steep hills and/or as it's own regen for the pack.
    A basic control circuit would monitor RPM's, delivering power smoothly...unless burnouts were desired. A Prius burnout would see a million views in a week on Youtube!
    And, the new 2019 has AWD-e , this would be a cost efficient performance upgrade to somewhat emulate. Useful in snow, as another trick.
    A bonus would be the possibility of a towing rating increase, or in fact an ability to tow.
    Extra bonus would be removal of the lead/acid battery, using a 12V step down off the new pack.

    As these cars get older, the idea may gain more, erm, traction.
    I've seen a thread on here recently (can't find it) with a guy wishing to extend the EV range with more batts, a Plug-In type scenario for regular Hybrids. Perhaps research could be incorporated, such that 2 separate independent packs aren't needed.
    Is it a misguided naive idea, or could such a thing be a practical conversion with potential?


    Attached Files:

  2. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,747
    48,962
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    if they did it on the coming awd with irs, should be much easier on the solid axle

    #2 bisco, Dec 31, 2018
    Last edited: Dec 31, 2018
    Slider2732 likes this.
  3. Johnny Cakes

    Johnny Cakes Senior Member

    Joined:
    Dec 30, 2016
    998
    756
    2
    Location:
    Virginia, USA
    Vehicle:
    2015 Prius
    Model:
    Five
    I don't know you at all, but I like you -- a lot!

    If only you could charge per YouTube view.....

    bisco likes this.
  4. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    Toyota thought it was so feasible they are adding a rear motor as an AWD option to the 2019 Prius coming early next year.

    Raytheeagle likes this.
  5. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    11,251
    15,476
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    I would argue toyota knows it’s feasible as it has been used on the RAV4 and highlander hybrid platforms;).

    Just the leveraging that occurs across models(y).

  6. BZzap!

    BZzap! Senior Member

    Joined:
    Jun 13, 2012
    1,607
    877
    0
    Vehicle:
    2012 Prius
    Model:
    Two
    E039D3DB-2CB2-460A-A316-B2F9CF925887.png The easiest way would be to fit brushless motors to each of the rear hubs, which is probably what Toyota has already done with the new 4 wheel Prius. I’m just guessing though. See the picture: LG washing machine motor

    bisco likes this.
  7. Slider2732

    Slider2732 Member

    Joined:
    Nov 30, 2018
    64
    66
    1
    Location:
    Arkansas
    Vehicle:
    2014 Prius
    Model:
    Three
    We have an old washing machine and I have a screwdriver.
    It's New Year's Eve and I have beer.

    What could go wrong? :D

  8. hill

    hill High Fiber Member

    Joined:
    Jun 23, 2005
    19,670
    8,069
    54
    Location:
    Montana & Nashville, TN
    Vehicle:
    2018 Chevy Volt
    Model:
    Premium
    Great, Synergy drive inverter 3phase ~400v forklift motor typically 40V DC. perfect combination

    .

  9. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,747
    48,962
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    i have used a screwdriver to remove a bottle cap in a pinch, best to wear protective goggles;)

    Raytheeagle likes this.
  10. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    11,251
    15,476
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    Not the edge of a table:p.

    Anything is possible but bestbto be prepared (y).

    bisco likes this.
  11. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    1) the cheapest way will be to buy a 2019 Prius with AWDe
    2) if money is no object and all you want is 1/4 mile acceleration, drop a second battery in the hatch, buy a light LSD, and use the fork lift motor. Use a switch to start it, and let it time out in 17 seconds, you will go 1/4 mile somewhere before it times out. <G>

    Cadillac XLR 2004-2006 REAR DIFFERENTIAL AXLE LIMITED SLIP 2.93 with 2 AXLE | eBay

  12. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,747
    48,962
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    you think jumbo? i think an old running prius would be cheapest

    RMB and Raytheeagle like this.
  13. Raytheeagle

    Raytheeagle Senior Member

    Joined:
    Jul 1, 2016
    11,251
    15,476
    0
    Location:
    Bay Area, California
    Vehicle:
    2019 Prius Prime
    Model:
    Prime Plus
    I was waiting for your reply :ROFLMAO::ROFLMAO::ROFLMAO::ROFLMAO:.

    Now my kids are curious (y).

    RMB and bisco like this.
  14. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    6,825
    6,473
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    I think Jimbo called it best. You really could have a lot of fun with a track/strip car built out of fork truck parts. Pretty hopeless off the strip though.

    Toyota used a motor packaged with a differential driving two axle shafts for their new rear drive module in the AWD car. Fortunately they are experienced enough to know that hub motors would make it ride like a moving dolly.

  15. hill

    hill High Fiber Member

    Joined:
    Jun 23, 2005
    19,670
    8,069
    54
    Location:
    Montana & Nashville, TN
    Vehicle:
    2018 Chevy Volt
    Model:
    Premium
    Quit screwin' around - you wana fast prius?

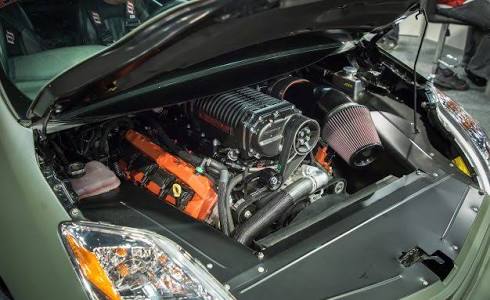

    Drop a hemi V8 in it

    [​IMG]

    .

    JStrenk, padroo, dubit and 2 others like this.
  16. Slider2732

    Slider2732 Member

    Joined:
    Nov 30, 2018
    64
    66
    1
    Location:
    Arkansas
    Vehicle:
    2014 Prius
    Model:
    Three
    :D a Hemi would be the ticket. Police ticket as well, which am guessing is also a rarity.

    "you will go 1/4 mile somewhere before it times out"
    No kidding Jimbo haha, into a hedge probably.

    Well, thinking about those hub motors. Do we just wait for a few AWD-e cars to crash and then fit those?
    I'd bet the bits themselves won't be cheap from Toyota, best to go to the scrapyard and tell them you need a wheel for a newer Prius and they can leave the wires and stuff on the back of it, not to inconvenience them. $40 later, full hub motor with a decent wheel on it.
    Hook it up to a 'Turbo' switch and small battery pack to complete.

    JStrenk likes this.
  17. Prodigyplace

    Prodigyplace Senior Member

    Joined:
    Nov 1, 2016
    11,696
    11,317
    0
    Location:
    Central Virginia
    Vehicle:
    2017 Prius
    Model:
    Two
    I think they have been used in Lexus so there may already be junkers.

  18. dubit

    dubit Senior Member

    Joined:
    Dec 3, 2016
    850
    538
    23
    Location:
    Indiana
    Vehicle:
    2016 Prius c
    Model:
    Two
    ugh - apologies wrong thread

  19. Leadfoot J. McCoalroller

    Leadfoot J. McCoalroller Senior Member

    Joined:
    May 12, 2018
    6,825
    6,473
    1
    Location:
    Pennsylvania
    Vehicle:
    2018 Prius c
    Model:
    Two
    How late did you want to be at the finish line? Go big and go home!

    Slider2732 likes this.
  20. Slider2732

    Slider2732 Member

    Joined:
    Nov 30, 2018
    64
    66
    1
    Location:
    Arkansas
    Vehicle:
    2014 Prius
    Model:
    Three
    Small as in li-ion pack small, compared to Ni-MH large.
    I mean, there's going to have to be room left in the trunk for the celebration beers ;)

    Do we know the horsepower of either type, a common forklift or hub motor?
    I've seen some conversions but never know if the hp is correct. Am running into lots of forum posts, but they're on other forums.
    130hp seems about right at approx 40V. 1000A is scary current :confused:

    This is the sort of slim line forklift motor that may fit under the car......am thinking the cheap and cheerful lunatic idea for this one:
    USED RAYMOND PRESTOLITE YALE ELECTRIC DRIVE FORKLIFT MOTOR 106744 (19G) | eBay
    But then again, coils, shocks etc may need to lift the whole suspension.

    No I haven't thought this through :D
