The Plug In Plug

Discussion in 'Gen 1 Prius Plug-in 2012-2015' started by Jerry L, Jan 9, 2013.

  1. Jerry L

    Jerry L New Member

    Joined:
    Jan 9, 2013
    1
    0
    0
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I just got a new plug in and I love it. My question is this . . . Why supply the car with a charger cord that is so expensive and prone to weather damage and theft? All the electronics that are in the cord ie the fancy plug, the transformer could be integrated into the car. All that Toyota need supply would be a heavy duty extension cord.

    #1 Jerry L, Jan 9, 2013
  2. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three

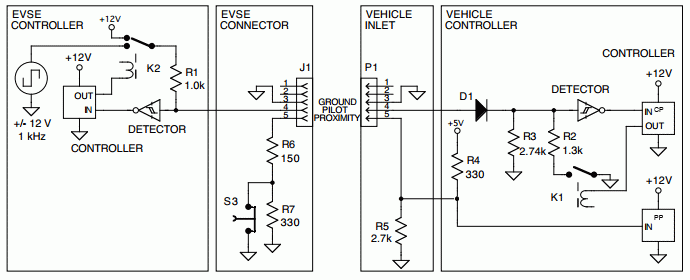

    If the plug was a standard 110 volt NEMA 5-15 plug, you might plug in live house current in rain and snow, that would pose an electrocution risk. Perhaps worse, you might drive off during charging leaving a live plug that would pose an electrocution risk. The SAE J1772 plug Toyota is required to actually use is unpowered until after it is plugged in. Some of the electronics needed to be sure it is safe to power up is in the cord. It detects drive off and powers down the cord, so that when unattached, it is always unpowered.

    SAE J1772 - Wikipedia, the free encyclopedia

    [​IMG]

    #2 JimboPalmer, Jan 9, 2013
    rogerv likes this.
  3. Paradox

    Paradox Prius Enthusiast / Moderator
    Staff Member

    Joined:
    Sep 22, 2005
    29,110
    8,589
    201
    Location:
    USA
    Vehicle:
    2014 Prius v wagon
    Model:
    Five
    Moved to the Prius plug in forum from the Prius v forum.

    #3 Paradox, Jan 9, 2013
  4. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,862
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    Another reason may be that every country has it's own plug, so Toyota would have to built two dozen versions of the car.

    [​IMG]

    #4 JimboPalmer, Jan 9, 2013
    JamesBurke likes this.
  5. JamesBurke

    JamesBurke Senior Member

    Joined:
    May 19, 2009
    1,222
    493
    27
    Location:
    Morgantown, WV
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A
    And this is just for level 1 charging. Higher voltage and or current ie level 2 would be another set of plugs again.

    Aw look how cute Denmark is. Vietnam/Canbodia would be stranded extension cord wire twisted together wrapped with scotch tape cause they don't have wire nuts.

    #5 JamesBurke, Jan 9, 2013
  6. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    108,749
    49,409
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    welcome to prius chat, and congrats on your new pip, all the best!

    #6 bisco, Jan 9, 2013
