Transaxle Plug Identification - which plug is witch?

Discussion in 'Gen 2 Prius Main Forum' started by KiwiAl, Feb 2, 2014.

  1. KiwiAl

    KiwiAl Junior Member

    Joined:
    Feb 1, 2014
    146
    19
    0
    Location:
    New Zealand
    Vehicle:
    2008 Prius
    Model:
    N/A
    Hi Guys,

    This is more for others than for me, because I struggled to find on PC which are the ATF Level/Fill and Drain plugs and which are the Transaxle Coolant plug(s), and it would be nice to have them confirmed for all.

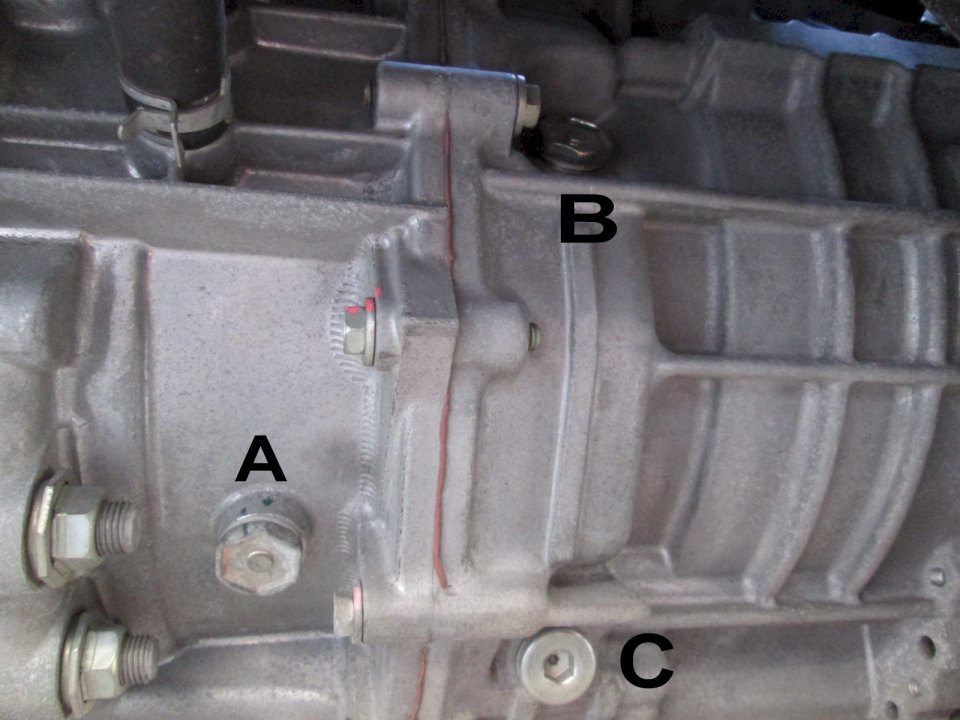

    Referring to the photo below, taken from the front underside of the Transaxle, with the ICE on the left:


    Please correct me if this is incorrect:
    Plug:
    A - Transaxle & Inverter Coolant Drain
    B - Transaxle ATF Level, optional Fill
    C - Transaxle ATF Drain

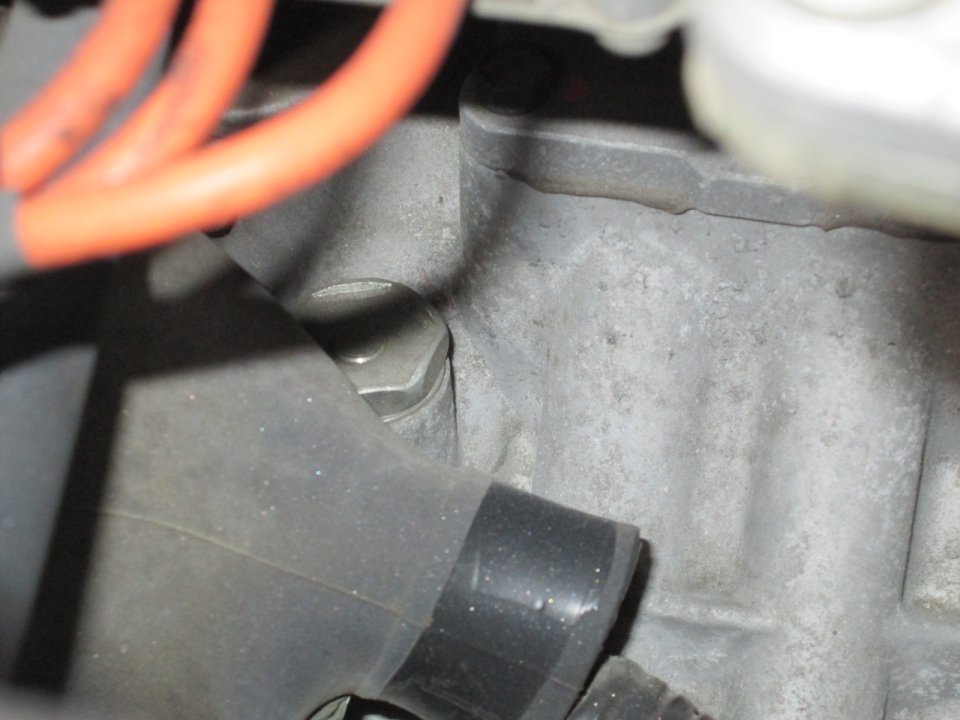

    Also, spotted another plug on my 2008 Transaxle. Can anyone confirm, this is the intended ATF Fill Hole, pictured below? It's just below the Inverter, the orange wires are the power to the A/C Compressor and the large Power Plug cover is for MG1 - nearest the ICE on the LHS of the photo.


    #1 KiwiAl, Feb 2, 2014
  2. JimboPalmer

    JimboPalmer Tsar of all the Rushers

    Joined:
    Apr 14, 2009
    12,470
    6,869
    2
    Location:
    Greenwood MS USA
    Vehicle:
    2012 Prius v wagon
    Model:
    Three
    You have it correct.

    #2 JimboPalmer, Feb 2, 2014
  3. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,200
    6,479
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    I would call that the factory "fill" hole. It is not intended that this would be used for normal maintenance since the inverter has to be removed for access.

    #3 Patrick Wong, Feb 2, 2014
