Wiring Diagram for Factory Nav Radio - looking for wires that feed(Energy Consumption and Trip info)

Discussion in 'Prius c Audio and Electronics' started by wmo168, Apr 16, 2013.

  1. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    Hello,

    I just got a Factory Nav Radio from a member, thanks him so much.

    I plug everything in and the HD Radio, Radio, GPS (After market antenna) works. But I wonder which wires I am missing perhaps on Plug 7 or else where that I need to connect manually to get information update on TRIP and ENERGY CONSUMPTION display in the radio, right now they are all not updating. If it is just a few wire, I don't mind adding it and tapping into a harness under the dash.

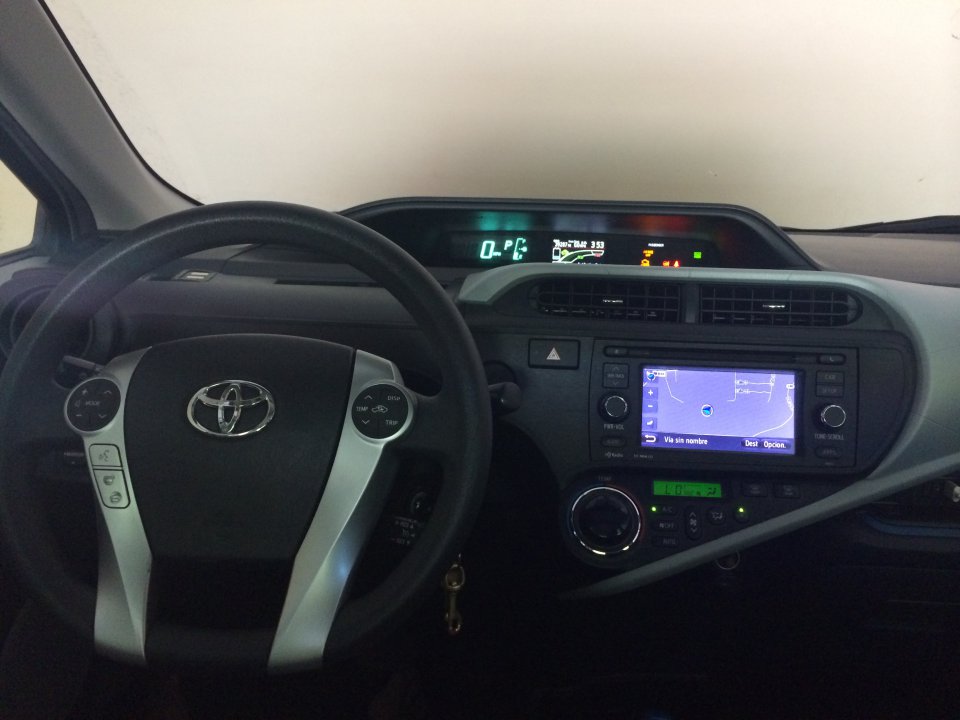

    [​IMG]

    Kasra Oskuie likes this.
  2. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    Hey that's my photo, je,je just kidding.
    How much you invest in the navi with everything else??? Just Curious.
    Do you have an PC1 or PC2?

    Do you have the cable tha goes from Plug # 11 to Plug # 3 & #6 (Y cable).

    Also do you install backup camera??? (Plug # 1)

  3. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    I have a PC2 and I do have Plug #11 to Plug 3 and #6 Y Cable.

    I have 13 wire in Harness 7...

    I haven't buy the backup camera yet so I don't have the single wire going into Plug 1.


    Things working are GPS, Entune, HD Radio, Radio, USB/Aux, steering wheel control, Bluetooth etc.

    Only problems

    1) CAR Trip and Energy Status may need wire.

    I check the Technical site and on Harness 7 it said G78-9 (CANH) Color BE "CAN Communication Signal" and G78-10 (CANL) Color W "CAN Communication Signal" are only difference and looks like it is feeding in the information. I also look at the Speedometer Cluster diagram harness and it has 2 Wire label G1-31 CANH and G1-32 (CANL)that as well, it looks like if I tap into and connect these two it should work. Anyone please confirm if this is what it means.

    NAV RADIO

    G78-1 (IG) - G76-7 (GND1)
    LG - BR
    Power source (IG)
    Ignition switch off
    Below 1 V
    Ignition switch ON (IG)
    11 to 14 V
    G78-4 (MACC) - G76-7 (GND1)
    R - BR
    Microphone power supply
    Ignition switch off
    Below 1 V
    Ignition switch ACC
    4 to 6 V
    G78-5 (MIN+) - G76-7 (GND1)
    B - BR
    Microphone voice signal
    See "Microphone & Voice Recognition Check" in Operation Check [​IMG]
    -
    G78-6 (SNS2) - G76-7 (GND1)
    GR - BR
    Microphone connection detection signal
    Always
    Below 1 V
    G78-9 (CANH)
    BE
    CAN communication signal
    -
    -
    G78-10 (CANL)
    W
    CAN communication signal
    -
    -
    G78-11 (AGND) - Body ground
    Shield - Body ground
    Shield ground
    Always
    Below 1 V
    G78-17 (SPD) - G76-7 (GND1)
    SB - BR
    Vehicle speed signal
    See "Vehicle Signal Check Mode" in Operation Check [​IMG]
    -
    G78-18 (SGND) - G76-7 (GND1)
    Shield - BR
    Shield ground
    Always
    Below 1 V
    G78-19 (MIN-) - G76-7 (GND1)
    W - BR
    Microphone voice signal
    See "Microphone & Voice Recognition Check" in Operation Check [​IMG]
    -
    G78-21 (SW1) - Body ground
    L - Body ground
    Steering pad switch signal
    No switch pushed
    2.97 to 3.56 V
    Seek+ switch pushed
    0.27 to 0.35 V
    Seek- switch pushed
    0.86 to 1.03 V
    Volume+ switch pushed
    1.51 to 1.79 V
    Volume- switch pushed
    2.22 to 2.66 V
    G78-22 (SW2) - Body ground
    P - Body ground
    Steering pad switch signal
    No switch pushed
    2.97 to 3.56 V
    MODE switch pushed
    0.27 to 0.35 V
    On hook switch pushed
    0.86 to 1.03 V
    Off hook switch pushed
    1.51 to 1.79 V
    Voice switch pushed
    2.22 to 2.66 V
    G78-25 (ADPG) - G76-7 (GND1)
    P - BR
    External device connection detection signal
    External device connected
    Below 1 V
    External device not connected
    2.1 to 3 V
    G78-26 (VAR+) - G78-27 (VA-)
    R - W
    Sound signal (Right)
    External device playing (When stereo jack used)
    A waveform synchronized with sounds is output
    G78-27 (VA-) - G76-7 (GND1)
    W - BR
    Ground
    Always
    Below 1 V
    G78-28 (VAL+) - G78-27 (VA-)
    B - W
    Sound signal (Left)
    External device playing (When stereo jack used)
    A waveform synchronized with sounds is output

    Cluster Harness

    G1-1 (B) - Body ground
    L - Body ground
    Battery
    Always
    11 to 14 V
    G1-2 (L) - Body ground
    V - Body ground
    Fuel signal
    Power switch on (IG), fuel level not low
    4 V or less
    Power switch on (IG), fuel level low
    4 to 14 V
    G1-3 (PAON) - Body ground
    GR - Body ground
    Front passenger airbag on indicator light signal
    Power switch on (IG), front passenger airbag indicator light off
    11 to 14 V
    Power switch on (IG), front passenger airbag indicator light on
    Below 1 V
    G1-4 (P-AB) - Body ground
    W - Body ground
    Front passenger airbag off indicator light signal
    Power switch on (IG), front passenger airbag off indicator light off
    11 to 14 V
    Power switch on (IG), front passenger airbag off indicator light on
    Below 1 V
    G1-6 (EP) - Body Ground
    W-B - Body ground
    Ground
    Always
    Below 1 Ω
    G1-7 (RV) - Body ground
    V - Body ground
    Dimmer signal
    Power switch on (IG), light control switch off
    Below 1 V
    Power switch on (IG), light control switch not off
    11 to 14 V
    G1-8 (RL) - Body ground
    W - Body ground
    Dimmer signal
    Power switch on (IG), light control switch off
    Below 1 V
    Power switch on (IG), light control switch not off
    11 to 14 V
    G1-13 (LP) - Body ground
    LG - Body ground
    Security indicator light signal
    Power switch on (IG), security indicator light off
    Below 1 V
    Power switch on (IG), security indicator light blinks
    3.5 to 9.5 V ←→ 11 to 14 V
    G1-15 (TWS3) - G1-36 (E2)
    R - GR
    Water temperature sensor signal
    Power switch on (IG), water temperature 20°C (68°F)
    About 2.45 kΩ
    Power switch on (IG), water temperature 80°C (176°F)
    About 0.32 kΩ
    G1-16 (TC) - G1-19 (SW3)
    B - W
    Tail cancel switch signal
    Power switch on (IG), tail cancel switch off (light control rheostat turns fully upwards)
    1 to 6 V
    Power switch on (IG), tail cancel switch off (light control rheostat turns fully upwards)
    Below 1 V
    G1-17 (SW2) - G1-19 (SW3)
    L - W
    Light control rheostat signal
    Power switch on (IG), tail cancel switch off (light control rheostat turns fully upwards)
    1 to 6 V (gradually change)
    G1-18 (SW1) - Body ground
    P - Body ground
    Light control rheostat signal
    Power switch on (IG)
    4 to 6 V
    G1-20 (ET) - Body Ground
    BR - Body ground
    Ground
    Always
    Below 1 Ω
    G1-21 (IG+) - Body ground
    B - Body ground
    Power switch signal
    Power switch off
    Below 1 V
    Power switch on (IG)
    11 to 14 V
    G1-22 (S) - Body ground
    GR - Body ground
    Oil pressure signal
    Power switch on (IG), oil pressure warning light off
    4 to 6 V
    Power switch on (IG), oil pressure warning light on
    Below 1 V
    G1-24 (EFI) - Body ground
    B - Body ground
    MIL (Check engine warning light) signal
    Power switch on (IG), MIL off
    11 to 14 V
    Power switch on (IG), MIL on
    Below 1 V
    G1-28 (ODO)*1 - Body ground
    LG - Body ground
    Steering pad switch signal
    Power switch on (IG), ODO switch not pressed
    10 kΩ or higher
    Power switch on (IG), ODO switch pressed
    Below 1 Ω
    G1-29 (ILL+) - Body ground
    R - Body ground
    Illumination signal
    Light control switch off
    Below 1 V
    Light control switch on TAIL or HEAD position
    11 to 14 V
    G1-30 (MSFM)*2 - Body ground
    W - Body ground
    Steering pad switch assembly signal
    Power switch on
    Pulse generation
    G1-31 (CANH) - Body ground
    G - Body ground
    CAN communication line
    -
    -
    G1-32 (CANL) - Body ground
    W - Body ground
    CAN communication line
    -
    -
    G1-34 (STRG)*1 - Body ground
    BE - Body ground
    Steering pad switch signal
    Power switch on (IG), DISP switch not pressed
    10 kΩ or higher
    Power switch on (IG), DISP switch pressed
    Below 1 Ω
    G1-39 (+S) - Body ground
    SB - Body ground
    Speed signal for other system (Output)
    Power switch on (IG), wheel being rotated
    Pulse generation (See waveform 1)
    G1-40 (SI) - Body ground
    V - Body ground
    Speed signal for other system (Input)
    Power switch on (IG), wheel being rotated
    Pulse generation (See waveform 1)


    Attached Files:

  4. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    thanks for this, now I'm clear that the voice command button can be used on a PC2 for future Aftermarket Head Units, and the mic wires id for the mic Mod.

    PriusC_Commuter likes this.
  5. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    Looks like they are prewire to the radio and harness since it uses different voltage for the wire. I believe we just need to find and add the voice command switch in the steering column.

  6. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    Installed the PC3/4 steering wheel pads on my PC2 and the only thing that doesn't work are the trip and display buttons, for the Voice Command button not sure since I don't have a HU yet.

    BTW the wiring from the PC3/4 has more wire compared to PC2.

  7. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    You change the right control pad too? I thought only left side need to be change

  8. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    Must changed it since both pad wiring connectors are diferent between PC3/4 and PC2, and you connot unplug and connect back to the other plugs.

    I need to verify if open the pad and replace only the VC button works, but since I see more wires and some goes from left to right pad, I don't think so.

    The left PC3/4 use 6 wiring connector and the PC2 only use 4.

  9. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    I read the diagram and is the same. The switch u bought from prius c?

  10. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    YES, came from a PC4.

    That's what I lost since the wiring should work with all models, but apparently not.

  11. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two

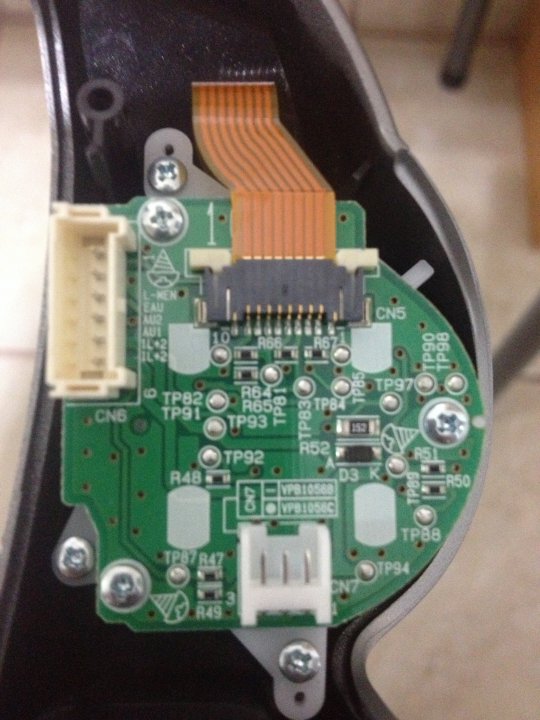

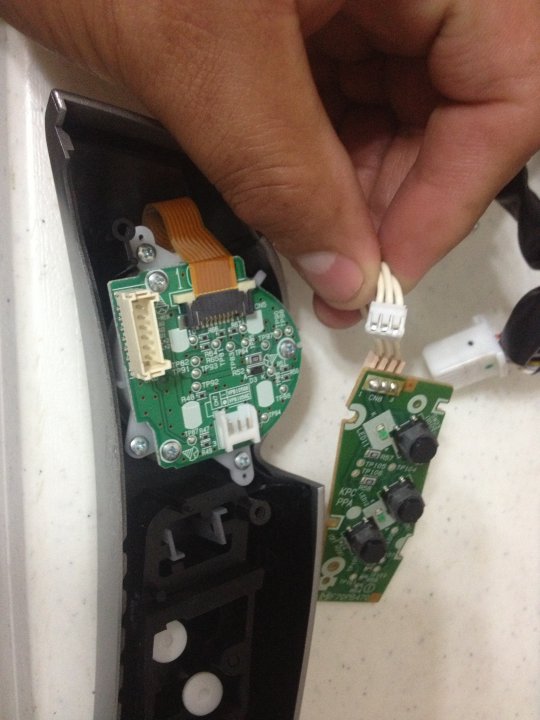

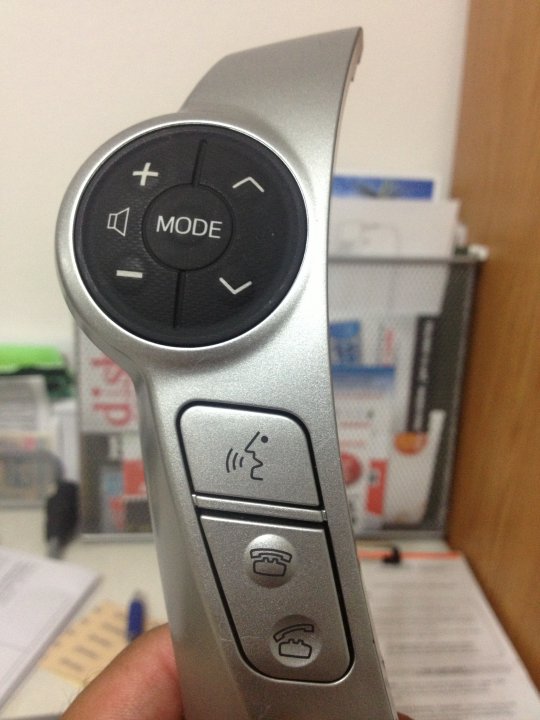

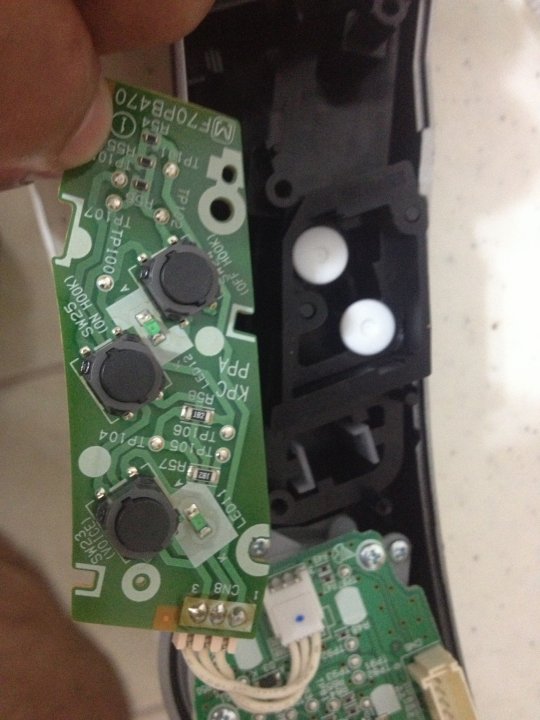

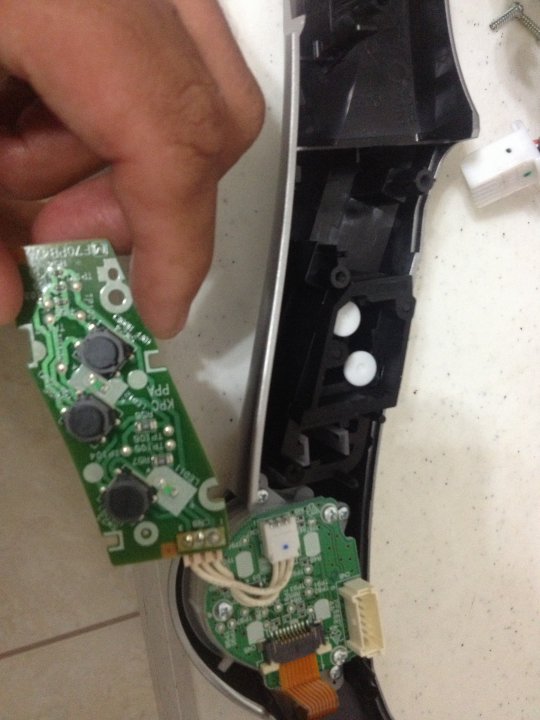

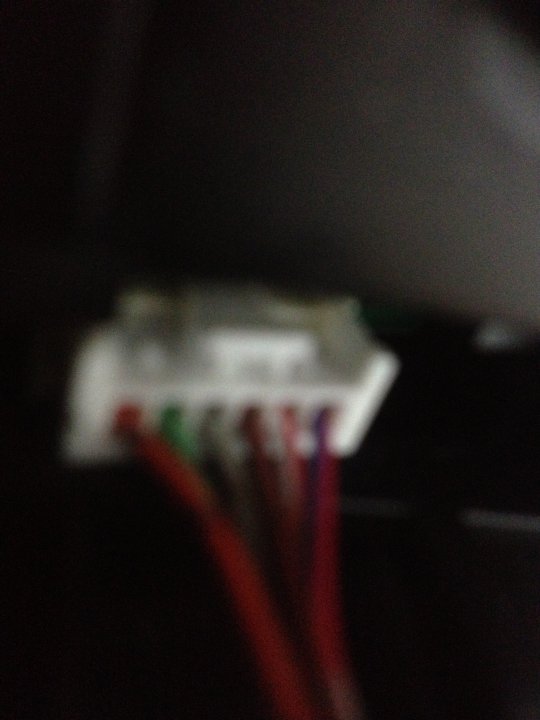

    Open the Steering wheel pad where the voice command is to see how it look inside:

    IMG_4137.JPG IMG_4138.JPG IMG_4139.JPG IMG_4140.JPG IMG_4141.JPG IMG_4142.JPG IMG_4148.JPG IMG_4151.JPG

    Now If the PC1/2 has the same 3 pin connector for VC & BT then is up to replace everything on the pad and that's it.

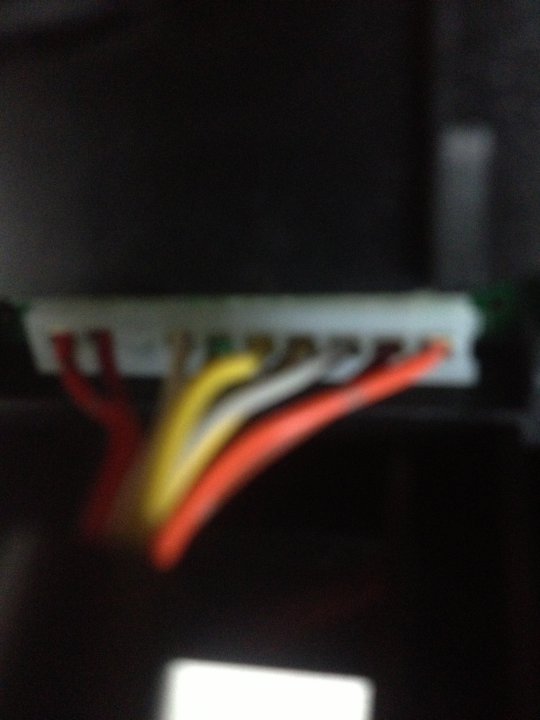

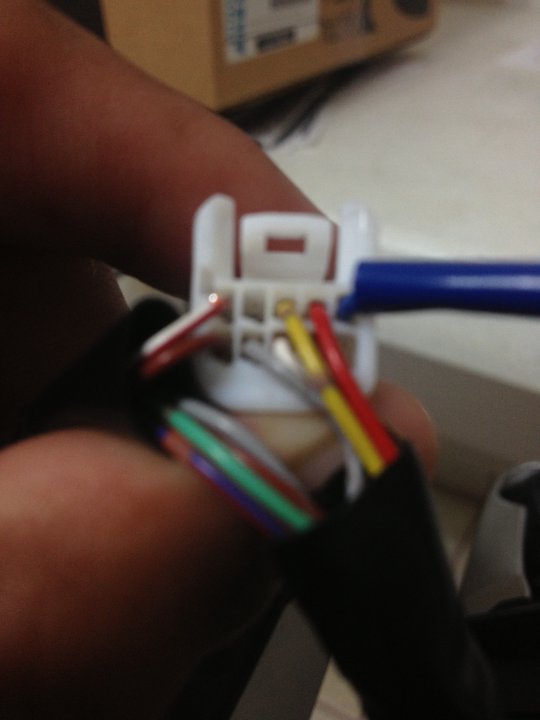

    Then there is s 6 pin connector from the left side comparing to what I see of 4 pin connector in the PC2.

    Here is a head unit wiring diagram posted before with all connectors, in page 2 the left and right pads goes to Z3(D) connector (12 pin) and recall pins #8, #9, #10 & #11, but I confused because the wiring visually in the photo is a 10 pin connector. So I presume that the wiring diagram is not for Prius C.

    Finally reading the info above provide it by VMO168 doesn't mention Connector 78G pin 23 (SWG) and Pin 24 (SW3) showed in the Wiring attached

    Can anyone confirm this????


    Attached Files:

    Mike4kz likes this.
  12. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    I will try to look it up tomorrow.

  13. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two

    Do you verify it???

  14. petnieto

    petnieto Junior Member

    Joined:
    Apr 17, 2012
    1
    0
    0
    Location:
    Florida
    Vehicle:
    2003 Prius
    Model:
    I

  15. rossgeek333

    rossgeek333 Junior Member

    Joined:
    Mar 18, 2015
    10
    2
    0
    Location:
    Albuquerque
    Vehicle:
    2012 Prius c
    Model:
    Two
    I recently got a OEM nav unit to upgrade my Prius C 2 to the OEM c3 level, but am now concerned that i have to buy additional wiring to make this work? I know I read that most everything will work minus the Car functions and GPS wire (unless I get a cheap GPS one and make it fit which i will) , but I don't know if I have this Y cable (or is that in all Prius C models with the 6 speakers) that I keep reading about for this unit?

    If anyone can shed some further light on the Issue of making the Car button functions (energy/trip) work? I am confused by the wiring lingo....

  16. wmo168

    wmo168 Member

    Joined:
    Apr 9, 2013
    239
    49
    0
    Location:
    South Florida
    Vehicle:
    2012 Prius c
    Model:
    Two
    I am the one who is the first one who make this work.

    Not sure where you get the Y cable story from? You do not need a Y cable or anything to make GPS or CAR function work. The Prius C 2 has 6 speakers and C3 and C4 has 6 speaker so there should not be any issue.

    Read this post again and it will show you how to do it, assuming you never work or seen a car cable harness before, that will be a learning curve. The second question is Do you know how to cut wires? I am glad to walk you thru. You know how to take off dash trim and screw?

  17. rossgeek333

    rossgeek333 Junior Member

    Joined:
    Mar 18, 2015
    10
    2
    0
    Location:
    Albuquerque
    Vehicle:
    2012 Prius c
    Model:
    Two
    Thanks for the reply and good to know about the Y cable (didnt know that was for the speakers ....but yes I have 6 speakers too so good!)

    As far as cutting wires and such no..... I mean I have a general idea, but do I have to go buy wiring somewhere to splice it to go to the nav unit or? I read your post on the codes and wiring colors etc, but was confused, but im sure I can learn.

    To answer your last question yes, I do know how to get access to my car's trim and take the panels off yes.

    Thank you for the help and assistance appreciate it!!!

  18. PriusC_Commuter

    PriusC_Commuter Active Member

    Joined:
    Mar 21, 2013
    914
    307
    0
    Location:
    Los Angeles/ Orange County, CA
    Vehicle:
    2014 Prius Plug-in
    Model:
    Plug-in Base
    I wish I didn't read this thread, I'm really tempted to pick up a C3 Nav head unit for my C2. So everything is plug and play, except GPS and XM and steering wheel voice button? Do the rest of the steering wheel buttons work (such as volume and call answer/hang up)? Does the USB port and microphone for bluetooth calls work plug and play?

  19. ROLOPR

    ROLOPR Member

    Joined:
    May 22, 2012
    441
    95
    0
    Location:
    Puerto Rico
    Vehicle:
    2012 Prius c
    Model:
    Two
    Yes everything works if Installing a Navi radio. even if you find the Voice command pad, also works. I did mine already.

    RobAustin and PriusC_Commuter like this.
  20. rossgeek333

    rossgeek333 Junior Member

    Joined:
    Mar 18, 2015
    10
    2
    0
    Location:
    Albuquerque
    Vehicle:
    2012 Prius c
    Model:
    Two
    thats what ive read too...plug and play ill post a picture of my upgrade when i get it installed next week, maybe ill have the Car wiring issue figured out too...
