First Morning with a Blocked Grill

Discussion in 'Gen 2 Prius Accessories & Modifications' started by TonyPSchaefer, Dec 19, 2006.

  1. TonyPSchaefer

    TonyPSchaefer Your Friendly Moderator
    Staff Member

    Joined:
    May 11, 2004
    14,816
    2,495
    66
    Location:
    Far-North Chicagoland
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I posted this in the Modifications forum. It's a simple modification, but a modification nonetheless. I know that some people do this on a regular basis but this is the first time I did it and I'm so impressed I want to dedicate a thread to it.

    At the most recent Chicago Meetup, FireEngineer gave me some pipe insulation (I still owe him $2.00). He uses it to block his grill. Last year, he blocked only the two slits right under the hood but this year I noticed that he also blocked the very lowest slits under the front bumper.

    Now F.E. or anyone else, correct me if I'm wrong, but if I remember correctly, he told me that multiple people have independently verified via the scan gauge that for temperatures lower than 40ºF there is no risk of overheating the engine with the grill completely blocked off - top and bottom.

    Last night, I blocked off the grill with his insulation. I did both upper slits but - because I'm always a little overly cautious - I left a couple slits open on the bottom. The bottom has five slits I think.

    This morning, I scraped thick frost off my windows. It was 25ºF and I do not have a block heater. When I left the house, my MFD tank average showed 49.3MPG with 77 miles on the tank. The first five-minute segment sucked as usual but it was all roses from there. When I arrived to work, 20 miles and 45 minutes later, the tank average was 51.1MPG. That's a bump of almost 2 full MPG at 25ºF! Now I know that with less than one hundred miles on the tank, the tank average is still prone to jumping around a bit. But if the rest of the mornings and evenings are anything like this, I'm going to be a lot happier this winter than I was the last two. Oh yeah, I even ran the heater today for the first time, I was so happy.

    Needless to say, the insulation is staying on through the remainder of the winter except on those fluke days when the temps get above 40ºF.

    Who else blocked their grills and what additional advice can you share?

    1 person likes this.
  2. efusco

    efusco Moderator Emeritus
    Staff Member

    Joined:
    Nov 26, 2003
    19,891
    1,191
    9
    Location:
    Nixa, MO
    Vehicle:
    2004 Prius
    Model:
    N/A
    Tony,
    I've had both upper and lower grills blocked for over a month now. I leave it on with temps up to the low 60s. I did, briefly, remove the lower blocker when we had a few days of temps into the 70s.

    With CAN-View I've not yet seen ICE temps over 195 degrees even when outside temps were in the upper 60s. The highest temp I've seen on MG2 Inverter is 120 degrees, but that was very brief and when going in reverse...under normal driving it hasn't risen over about 112 degrees.

    Keep in mind, also, that I have packed fiberglass insulation around the ICE under the hood for additional heat retention.

    My last two tanks have approached 60mpg in DECEMBER....I've never seen mpgs like this before...granting this has been an unseasonably warm December, but we did have a week of temps never getting over the low 20s.

    I would concur that blocking both when outside temps are 40 or less is 100% safe...I'd even say up to 50 degrees is save under all driving conditions. Without the ability to monitor temps I would not risk blocking both at temps over 50, esp. in high stress driving (high speed interstate, mountain climbs, etc.), but even then blocking only the upper would be safe probably up to 70 degrees.

    1 person likes this.
  3. FireEngineer

    FireEngineer Active Member

    Joined:
    Oct 6, 2004
    1,247
    124
    0
    Location:
    SW-Side of Chicago, IL
    Vehicle:
    2010 Prius
    Model:
    IV
    Actually I had both upper and lower grills blocked off last year. If you hadn't been so worried about me tearing your back seat apart to show Parrot Lady you would have noticed.

    And listen to the good Doctor. Block off everything and don't worry until May. And get yourself a block heater so the grill block has some real heat to protect in the first five minutes. Besides I need one more install to make it an even dozen block heater install's. ;)

    Wayne

    1 person likes this.
  4. efusco

    efusco Moderator Emeritus
    Staff Member

    Joined:
    Nov 26, 2003
    19,891
    1,191
    9
    Location:
    Nixa, MO
    Vehicle:
    2004 Prius
    Model:
    N/A
    I strongly second the block heater suggestion.

    1 person likes this.
  5. JimboK

    JimboK One owner, low mileage

    Joined:
    May 1, 2006
    2,817
    186
    49
    Location:
    Chesterfield, VA
    Vehicle:
    2005 Prius
    I am using the same technique with good results. I first put the insulation in all slits in both the top and bottom grills in early November. I took a trip shortly afterward with ambient air temperatures in the 60s (IIRC) on the first leg of the trip. My ScanGauge showed coolant temps frequently creeping up above 200F on the highway, so I temporarily removed the piece in the bottom slit of the bottom grill. Coolant temps have since stayed at or below the mid-190s in all driving conditions. After winter temperatures are here to stay (we had record highs yesterday), I'll put the piece back in the lower grill.

    I haven't done a precise before and after MPG comparison, but my per-trip results are similar to Tony's: After the predictably low first 5-minute segment, I routinely see segments above 50. My current tank average is around 52. (It actually was at 57 eight days ago. I've been on a business trip since then that requires 2 or 3 short drives per day of a 1/2 mile or less with cold starts.)

    1 person likes this.
  6. TheForce

    TheForce Stop War! Lets Rave! Make Love!

    Joined:
    May 30, 2005
    3,461
    537
    0
    Location:
    Wheelersburg, Ohio
    Vehicle:
    2006 Prius
    Model:
    N/A
    Can anyone post some pics of your installation? Just wondering what it looks like and how everything is attached.

    2 people like this.
  7. TonyPSchaefer

    TonyPSchaefer Your Friendly Moderator
    Staff Member

    Joined:
    May 11, 2004
    14,816
    2,495
    66
    Location:
    Far-North Chicagoland
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    The bag is at home or I'd look it up specifically.

    It looks like this:
    [​IMG]

    Wayne showed me to cut it into halves creating two Cs out of each length of insulation. Oddly, the length he gave me was the perfect length for the Prius grill.

    As for "attaching," there is none. I love the term "compression fitting" because it makes the process of "shoving it in" sound scientific. Basically, by folding the halves in half length-ways, you can "compression fit" each strip into the slits. The Cs become Vs and you shove it in with the points of the Vs pointing to the front. There are vertical bars that cause the insulation to not go in as far in some places giving a wavy look. If I'm up to it, I might make little notches in the insulation to remedy that. Key word: "if".

    Someone will probably get pictures posted before I make it home to snap one for you.

    By the way, on some colors, it's obvious that there's something shoved in your grill. On the Tideland and probably black you don't notice until you really look at it.

    1 person likes this.
  8. c4

    c4 Active Member

    Joined:
    Mar 29, 2005
    607
    51
    0
    I've got a Classic Prius which doesn't have the plastic top cover at the front of the hood, so I usually do two levels of blocking.. Instead of shoving pipe insulation in the grill, which I feel really looks bad, I insert a sheet of that foil-lined bubble-wrap insulation right in front of the radiator, but behind the small hybrid radiator. This blocks 90%+ of the air flow through the main radiator, but leaves the hybrid radiator exposed and at full cooling efficiency. This arrangement is good up to about +10C or so and down to about -5C.. For colder weather, I also insert an additional couple of sheets of coroplast (with cutouts to make it around the supports, etc) that further block air flow through the front.

    I also have a hood liner made up of the same foil-lined bubble-wrap insulation to reduce engine heat loss through the hood. With this liner, you can drive the car for several hours and hood doesn't even feel warm afterwards.

    With the full arrangement (hood liner, radiator insulation and coroplast shields), the car will overheat at any temperature above 0C (I've had the heat turned up full blast and windows open to keep the engine temperature down on warm days when I was too lazy to remove the blockers), but is great down to -30C.. I get full stealth and engine stop, and very good cabin heat. The engine itself runs better as it keeps warm, but additionally, the intake air temperature is now at least 4-10 degrees warmer than ambient, so fuel economy and power are also much better, and there's no obvious signs of blocks of foam, etc from the front of the car..

    1 person likes this.
  9. john1701a

    john1701a Prius Guru

    Joined:
    Jan 6, 2004
    12,747
    5,243
    57
    Location:
    Minnesota
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I've been waiting for the real cold, when high's don't exceed freezing for a month. With 3 years of data now, I'm very well prepared to quantify the kind of improvement comes from blocking and I too see it as safe.

    A few weeks ago, when the temperature was at 12 F, I played with pipe insulation to see how well it (the 3/4" size) would attach. That worked like a charm. Though the smaller (1/2" size) probably provides a better overall fit.

    Since it is now warm again (30's) all is off for more collection of control data. In the meantime, I'm hoping to stumble across a more cosmetically appealing solution... something the masses will easily adopt, so easy installation in the cold is a must.

    As for above when this is beneficial, I'm not recommending that another bother unless they routinely deal with sub 25 F tempertures. MPG and the heater have been quite good when it's warmer than that. There doesn't appear to be any real gain unless it's Minnesota cold.

    1 person likes this.
  10. FireEngineer

    FireEngineer Active Member

    Joined:
    Oct 6, 2004
    1,247
    124
    0
    Location:
    SW-Side of Chicago, IL
    Vehicle:
    2010 Prius
    Model:
    IV
    Tony, why do assume that the length I chose was random but correct. I spent many a minute in Menards that October day debating which package of pipe insulation was on sale for $.99 before making my choice of the "Prius-centric laser cut winter thermal management devices".

    Wayne

  11. KS_prius

    KS_prius New Member

    Joined:
    Aug 8, 2005
    34
    0
    0
    <div class='quotetop'>QUOTE(theforce @ Dec 19 2006, 03:00 PM) [snapback]364208[/snapback]</div>
    I second the request for pics (whether they be cosmetically satisfying or aesthetically appealing)

    Thanks!

  12. efusco

    efusco Moderator Emeritus
    Staff Member

    Joined:
    Nov 26, 2003
    19,891
    1,191
    9
    Location:
    Nixa, MO
    Vehicle:
    2004 Prius
    Model:
    N/A
    <div class='quotetop'>QUOTE(KS_prius @ Dec 19 2006, 12:54 PM) [snapback]364234[/snapback]</div>
    Ok, 3rd try, not sure why I can't get the post to show up....

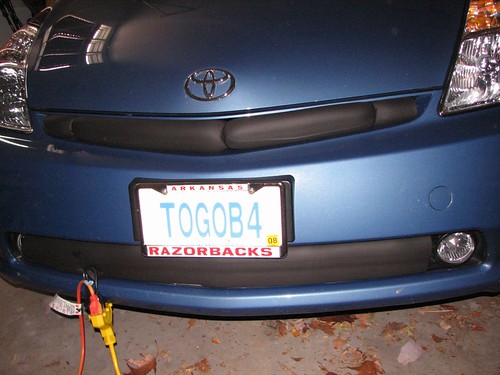

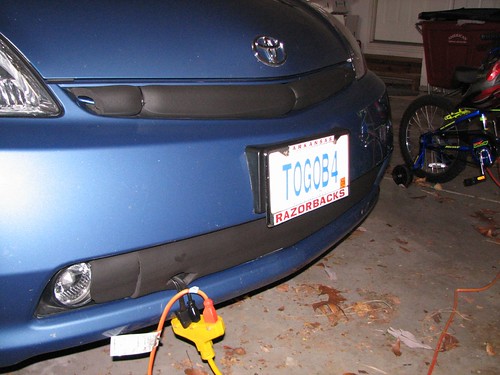

    Note that my install is a bit different than what Tony described. I did not cut/split the insulation, just cut the pieces to length. The top is wrapped around the center 'guard' of the upper grill and secured with zip ties that probably aren't really necessary. The bottom part I wedged one edge in the top slit and the other edge in the bottom slit and it stays there nicely with friction alone. Note, also, that I cut a little slit for the EBH cord to exit.
    [​IMG][​IMG]


    <div class='quotetop'>QUOTE(john1701a @ Dec 19 2006, 12:50 PM) [snapback]364231[/snapback]</div>
    I strongly disagree with that I can see clear benefit with temps even in the 40s and low 50s. ICE temp is much more stable, ICE on % stays lower, and both 5 minute bar and per mile MPG are clearly higher even at those more moderate temps.

    I reiterate my above temp. limits for blocking upper alone/both grills esp. if you do not have instrumentation to monitor the temps, but the benefits are clear. When the EBH is added I can be up to 150 degrees ICE temp within 1/4-1/2 mile and maintain it my entire commute. Prior to grill blocking, even with EBH, I would have to go 2+ miles, in the city, before getting the ICE temp to stay over 150, and even then a long glide or long stop at a light could drop it down to the 130s within a few minutes sometimes forcing the ICE to run even while stopped with a good battery SOC.

  13. TonyPSchaefer

    TonyPSchaefer Your Friendly Moderator
    Staff Member

    Joined:
    May 11, 2004
    14,816
    2,495
    66
    Location:
    Far-North Chicagoland
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    I"m going to have to take some photos at home.

    Evans installation looks nothing like mine and wayne's.

  14. chimohio

    chimohio New Member

    Joined:
    Sep 17, 2006
    460
    0
    0
    <div class='quotetop'>QUOTE(TonyPSchaefer @ Dec 19 2006, 05:53 PM) [snapback]364338[/snapback]</div>
    Thanks - I couldn't figure it out either based on what you said about using the pipe insulation.

  15. Charles Suitt

    Charles Suitt Senior Member

    Joined:
    Oct 8, 2004
    1,637
    16
    0
    Location:
    Dallas TX
    Vehicle:
    2012 Prius
    Model:
    Four
    :eek: I'm a bit puzzled. Is the Prius ICE coolant thermostat inadequate to maintain an appropriate operating temperature regardless of the OAT? In Dallas TX, its possible we will have some short periods of 30º and some years down to ~10º, but generally our winter temps are relatively mild.

    These solutions make me think of an 18-wheeler cab with a Confederate flag draped over its grill. :lol:

  16. efusco

    efusco Moderator Emeritus
    Staff Member

    Joined:
    Nov 26, 2003
    19,891
    1,191
    9
    Location:
    Nixa, MO
    Vehicle:
    2004 Prius
    Model:
    N/A
    <div class='quotetop'>QUOTE(Charles Suitt @ Dec 19 2006, 05:16 PM) [snapback]364347[/snapback]</div>
    While the thermostat stops the flow of coolant it does nothing to stop the flow of air through the engine compartment. That air flow alone, on a small aluminum engine like in the Prius is more than enough to make temperture regulation, in cold weather, less than stable. The purpose of the grill blockers is not so much to stop the air flow from cooling the engine coolant itself, but rather to stop the air from cooling the ICE directly as it flows through.

  17. jayman

    jayman Senior Member

    Joined:
    Oct 21, 2004
    13,439
    639
    0
    Location:
    Winnipeg Manitoba
    Vehicle:
    2004 Prius
    <div class='quotetop'>QUOTE(Charles Suitt @ Dec 19 2006, 06:16 PM) [snapback]364347[/snapback]</div>
    I used to have a 2000 GMC Sierra, which had the aluminum head 5.3 V8. Driving around Winnipeg in temps of -25 C or colder, it never warmed up either. So I got a winter front from Canadian Tire and cured that problem.

    At one time winter fronts were common on cars/trucks here. Heaters work so well now, folks don't use them as much. I also suspect they really don't care if the motor warms up properly.

    An all-aluminum motor, and a diesel motor too, really benefits from a winter front. My first winter without the front, at -40 C I just about froze my pointy bits off driving around the city. Got terrible fuel economy too.

    With the winter front, even at -36 C I had plenty of heat, and the ICE would - briefly - shut off at red lights.

    I would love to post a picture of the front of my Prius, but I only have 1.28 K of Global Space. If a nice moderator could fix that, I will happily post a picture once I return from my business trip this Saturday.

    Or maybe first week in January when I get back from vacation.

  18. TonyPSchaefer

    TonyPSchaefer Your Friendly Moderator
    Staff Member

    Joined:
    May 11, 2004
    14,816
    2,495
    66
    Location:
    Far-North Chicagoland
    Vehicle:
    2017 Prius Prime
    Model:
    Prime Advanced
    This picture shows the bag the insulation came in, the insulation cut in half length-ways, and the stuffing pulled slightly out to show how I fold it in half and "compression fit" it.
    [attachmentid=5948]


    <div align="left"> </div> This one shows what it looks like when they are installed. You will notice that at this point I have installed only thre of the five potential blocks in the lower section. Counting from the top slit of the bottom section, I have installed 2, 3, and 5.
    [attachmentid=5949]

    I then shoved one into #4.

    They are shiny because I used a flash. I was looking at it from from work while he was parked in the parking lot and honestly I had to know what I was looking for to see it. As I said above, it's more noticeable on Wayne's red and would probably blend right in on a black.


    Attached Files:

    1 person likes this.
  19. member

    member New Member

    Joined:
    Oct 8, 2006
    197
    1
    0
    I need a reality check please.

    The thermostat in the engine is supposed to close when the coolant is too cold (and open when too warm) such that the radiator cannot deliver "cold" coolant to the engine. What is the purpose of blocking air to the engine/radiator? Is the engine itself efficient enough at losing heat?

    1 person likes this.
  20. efusco

    efusco Moderator Emeritus
    Staff Member

    Joined:
    Nov 26, 2003
    19,891
    1,191
    9
    Location:
    Nixa, MO
    Vehicle:
    2004 Prius
    Model:
    N/A
    <div class='quotetop'>QUOTE(Display Name @ Dec 19 2006, 09:40 PM) [snapback]364423[/snapback]</div>
    asked and answered about 4 posts back.
