Is anyone installing front springs soon? Need pic of strut mount

Discussion in 'Gen 3 Prius Accessories and Modifications' started by The Critic, Mar 12, 2013.

  1. The Critic

    The Critic Resident Critic

    Joined:
    Oct 28, 2005
    3,193
    2,319
    0
    Location:
    CA
    Vehicle:
    2011 Prius
    Model:
    Three
    [​IMG]Hey guys,

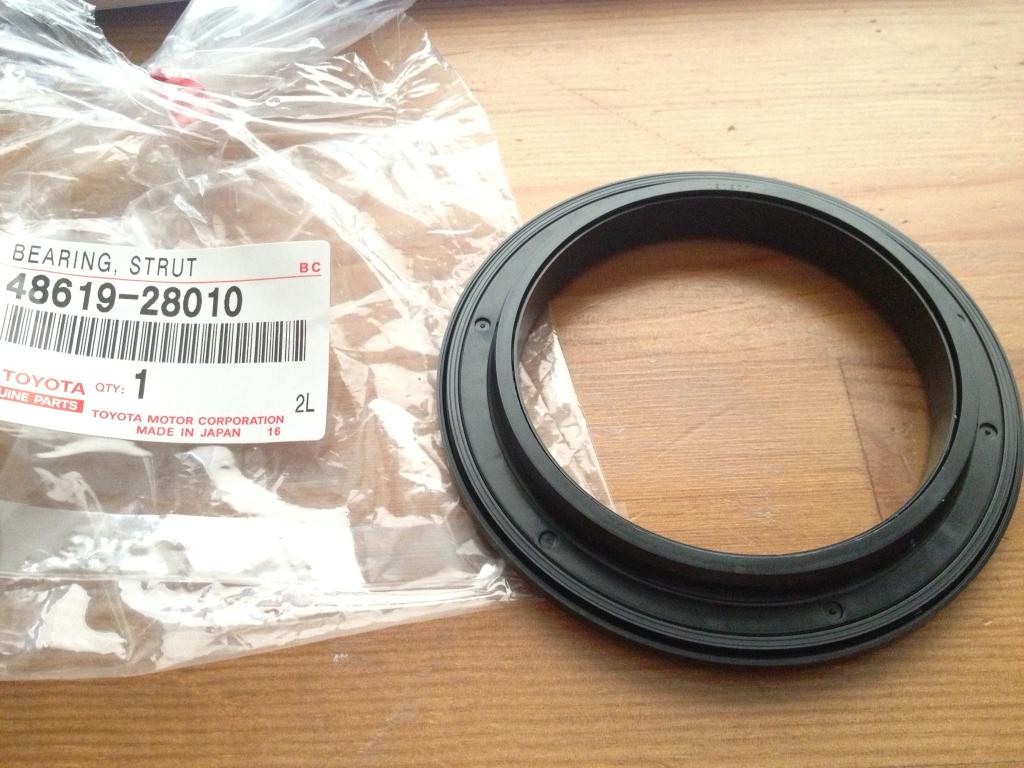

    I ordered a new strut bearing for my front strut mounts and am confused as to how the strut bearing works.

    If anyone is installing new front springs soon, can you please snap a few shots of your front strut mounts so that I can figure out how the bearing assembly works?

    I was expecting to see some small bearings packed inside grease, but this is a solid plastic assembly with no moving parts. The shop manual states that the mount itself is installed OVER the bearing...so if you can take some pictures on how the mount turns, that'd be great.

    Thanks.

    #1 The Critic, Mar 12, 2013
