Is Battery Vent Cover Installed Correctly?

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Aaron, Jul 30, 2013.

  1. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    260
    15
    0
    Location:
    Monroe, Ohio
    Vehicle:
    2008 Prius

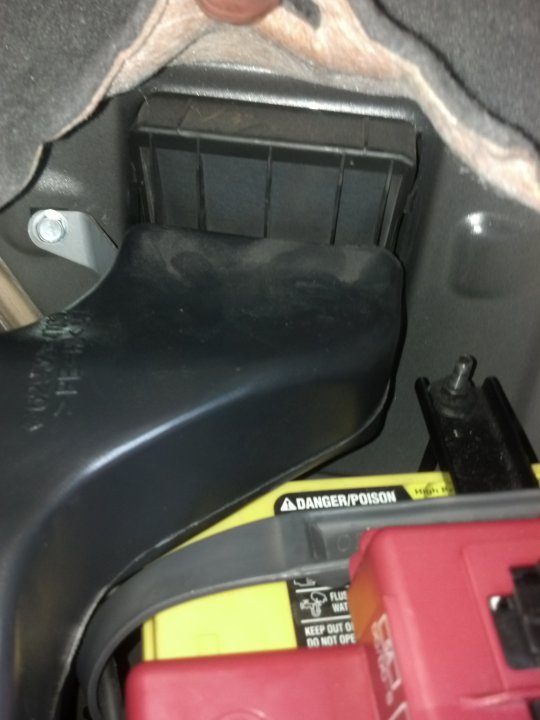

    Snapped this photo after installing the battery and I wasn't sure if the battery vent cover (I think that's what it's called) was in the correct position. It doesn't seem to have a place where it snaps in. The solid black piece that snakes over the top of the battery (Yellow Top) just rests up against the part with the vertical black slits (Hot Air Outlet). Honestly, I don't see how it could be in any other position other than what's pictured because everything is so tightly fitted...but I wanted to be sure. Vent1.jpg

    #1 Aaron, Jul 30, 2013
  2. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    My memory is vague but from an old photo took a few years ago it looks very similar to yours:

    [​IMG]

    #2 2009Prius, Jul 30, 2013
    Sezy and Aaron like this.
  3. MPGnutcase

    MPGnutcase Active Member

    Joined:
    May 1, 2013
    579
    114
    0
    Location:
    Chicago
    Vehicle:
    2012 Prius
    Model:
    Four
    is that a filter on the intake I see?

    #3 MPGnutcase, Jul 30, 2013
  4. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    260
    15
    0
    Location:
    Monroe, Ohio
    Vehicle:
    2008 Prius

    Yup. I got it on correctly. This picture confirms it. Thanks!

    #4 Aaron, Jul 30, 2013
  5. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    260
    15
    0
    Location:
    Monroe, Ohio
    Vehicle:
    2008 Prius

    Not a filter. More like a VERY lightweight "flap".

    #5 Aaron, Jul 30, 2013
  6. MPGnutcase

    MPGnutcase Active Member

    Joined:
    May 1, 2013
    579
    114
    0
    Location:
    Chicago
    Vehicle:
    2012 Prius
    Model:
    Four

    and what would that be for? intake or exhaust?

    #6 MPGnutcase, Jul 30, 2013
  7. Aaron

    Aaron Member

    Joined:
    Mar 10, 2008
    260
    15
    0
    Location:
    Monroe, Ohio
    Vehicle:
    2008 Prius
    I'm pretty sure it's to exhaust excess heat or gases.

    DROID RAZR ? 2

    #7 Aaron, Jul 30, 2013
