Picture of 2010 Prius Transaxle (Compared with others)

Discussion in 'Gen III 2010+ Prius Main Forum' started by usbseawolf2000, Mar 2, 2009.

Social Buttons

  1. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base

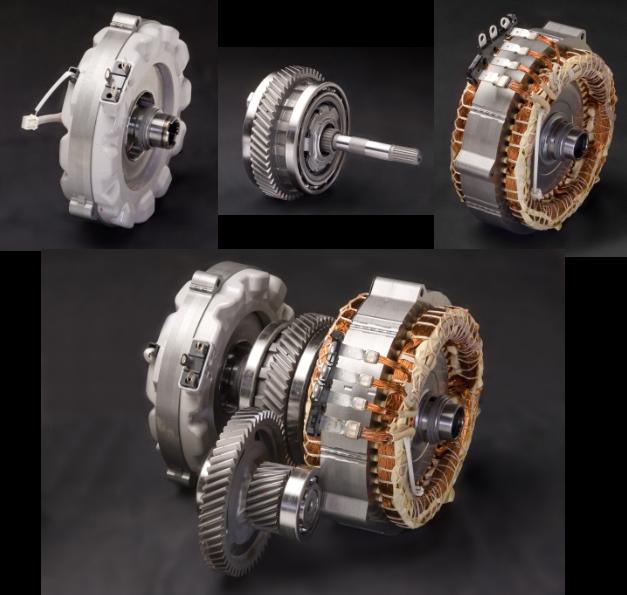

    Here is the 2010 Prius hybrid transaxle. You are looking at motor/generator #1 (MG1), Power Split Device (PSD), motor/generator #2 (MG2), and finally the reduction gear. Simple!

    [​IMG]

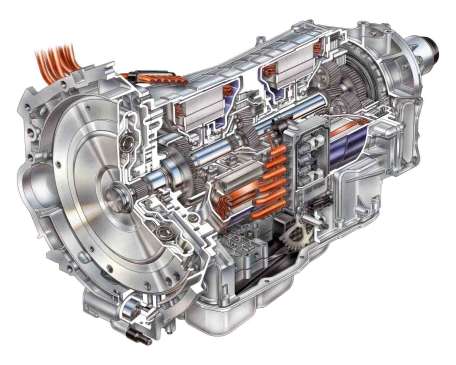

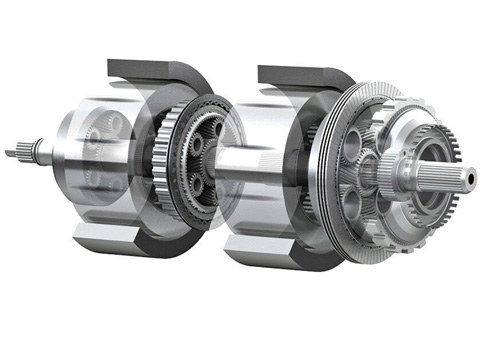

    Up next is the GM's 2-Mode hybrid transaxle. The first picture is just the motors and planetary gearsets. The second picture if the entire transaxle.

    [​IMG]
    [​IMG]

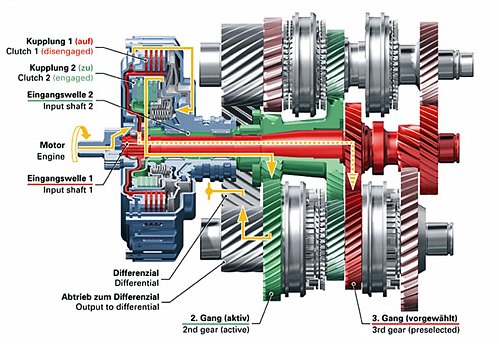

    Below is the bare-bone Dual Clutch Transmission:

    [​IMG]

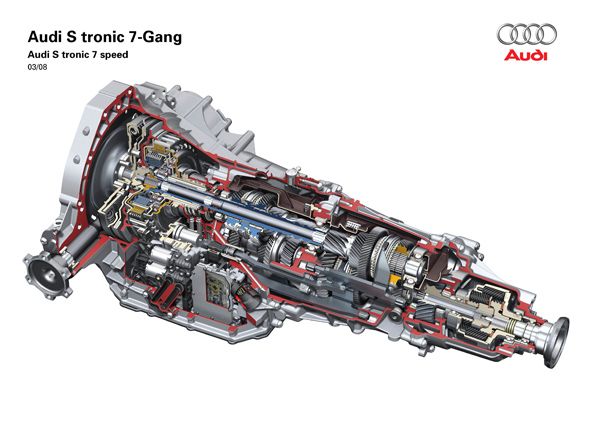

    Audi 7-speed Dual Clutch transmission:

    [​IMG]

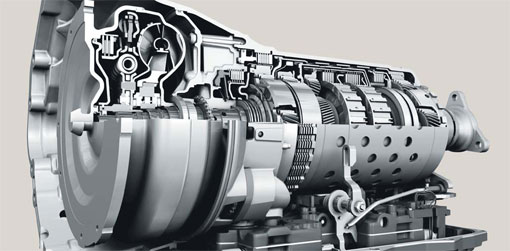

    Now, going into "traditional" 8-speed transmission:

    [​IMG]

    Attached Files:

    4 people like this.
  2. brick

    brick Active Member

    Joined:
    Dec 10, 2006
    Messages:
    1,079
    Likes Received:
    61
    Location:
    Upstate NY
    Your Vehicle Year:
    Other Non-Hybrid
    Model:
    N/A
    Nice. It really is an ingenious little device.
  3. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I posted the comparison because of the myth about Toyota hybrid being more complex. These pictures show the opposite.
  4. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    Messages:
    13,103
    Likes Received:
    3,115
    Location:
    Green Valley, AZ
    Your Vehicle Year:
    2007 Prius
    Model:
    N/A


    Well, mechanically HSD is relatively simple - but electronically it is amazingly complex.
  5. donee

    donee New Member

    Joined:
    Aug 15, 2005
    Messages:
    2,959
    Likes Received:
    187
    Location:
    Chicagoland
    Your Vehicle Year:
    2010 Prius
    Model:
    III
    Hi Patrick,

    Electronically, its not complex at all. The only special electronics is the embeded heat sensor in each transitor die. 4 quandrant drives are as old as the hills. I have 4 in my kitchen that I bought off Ebay, but I am probably a true geek. The controllers are just computers that are tied together with networks. Allot of homes have networked computers.

    The thermal engineering is somewhat complex, but the resulting product is simple.

    The true complexity in the Prius is system multifunctionalism and the control software that makes it all work.
  6. ronhowell

    ronhowell Active Member

    Joined:
    Oct 4, 2007
    Messages:
    679
    Likes Received:
    30
    Location:
    Cypress, CA.
    Your Vehicle Year:
    2008 Prius


    I totally agree and thank you for these comparisons ... they really do illustrate the relative mechanical complexity of the systems.

    The compactness of the Prius Motor/Generator setup also illustrates the tremendous savings that automotive technology can potentially achieve if only we can develop more efficient sources of electrical power storage. Creating pure rotational motion in any driving device using a rotating magnetic field is far more efficient than that cranking monster sucking, squeezing, banging and blowing called the Internal Combustion Engine. While it is true it has undergone over 100 years of continuous refinement to a pretty high level, it is still an air breathing monster .... breathing OUR air! It would never have achieved the supremacy it has without that cheap, portable, highly abundant energy source we call gasoline. But we're starting to run out of the latter.

    So it is time to move ahead, ultimately to that holy grail of motive power, all electric propulsion. Here's hoping for some future breakthoughs toward that goal.
  7. hampdenwireless

    hampdenwireless Active Member

    Joined:
    Aug 21, 2005
    Messages:
    1,105
    Likes Received:
    82
    Location:
    Baltimore MD
    Your Vehicle Year:
    Other Non-Hybrid


    I am sorry but the GM dual mode and the Audi look frighteningly complex. I cannot imagine them ever being 'rebuilt' and therefore are going to be amazingly expensive to replace.
  8. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    I think Bill Gates put the Prius as a software car. The complexity is in the software powered by simple hardware. It becomes more evident as the 2010 Prius has 4 different driving modes with the press of a button.
  9. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    Ya, imagine the number of moving parts for those other transmission. HSD has less than 10 moving parts (including two electric motors).
  10. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    Messages:
    13,103
    Likes Received:
    3,115
    Location:
    Green Valley, AZ
    Your Vehicle Year:
    2007 Prius
    Model:
    N/A
    Perhaps I should have said that Prius is incredibly complex when you consider the number of systems that must communicate and remain closely linked for the car to function properly. This means highly dense electronics hardware as well as complex firmware embedded within.

    See the following post for a current example of the mess that can happen when this communication is disrupted due to accident damage.
    http://priuschat.com/forums/prius-technical-discussion/59036-flashing-blinking-gas-gauge.html
  11. patsparks

    patsparks An Aussie perspective

    Joined:
    Jul 12, 2007
    Messages:
    10,665
    Likes Received:
    538
    Location:
    Adelaide South Australia
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A

    Attached Files:

  12. ronhowell

    ronhowell Active Member

    Joined:
    Oct 4, 2007
    Messages:
    679
    Likes Received:
    30
    Location:
    Cypress, CA.
    Your Vehicle Year:
    2008 Prius


    Why does that thumbnail open in white on a black background? It is almost impossible to decipher, other than it appears complicated. Which makes your point.
  13. walter592

    walter592 Junior Member

    Joined:
    Dec 6, 2006
    Messages:
    35
    Likes Received:
    1



    Well it doesn't cost 10K to replace a normal tranny, so either Toyota is hosing everyone whose fails or it is more complex than you think...
  14. patsparks

    patsparks An Aussie perspective

    Joined:
    Jul 12, 2007
    Messages:
    10,665
    Likes Received:
    538
    Location:
    Adelaide South Australia
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A


    Who charges $10,000 to replace the transmission in a Prius?
    It's just 2 electric motors and half the number of planetary gear sets a 3 speed transmission has in it.

    I have no idea why the thumbnail opens in negative, odd.
  15. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    Messages:
    13,103
    Likes Received:
    3,115
    Location:
    Green Valley, AZ
    Your Vehicle Year:
    2007 Prius
    Model:
    N/A
    MSRP of the transaxle is $3,460.
    Champion ToyotaWorld

    Considering dealer labor to remove and replace the engine/transaxle, you're probably talking around $6K for the complete job.

    One big difference between Toyota hybrids and a run-of-the-mill vehicle is that you can find any number of independents who profess to be able to service the latter, thus increasing service competition and lowering prices. This is not generally true for Toyota (or any other make for that matter) hybrid vehicles.
  16. andTO86

    andTO86 Junior Member

    Joined:
    Nov 6, 2009
    Messages:
    7
    Likes Received:
    2
    Location:
    Alburtis
    Your Vehicle Year:
    Other Non-Hybrid
    Model:
    N/A



    Hopefully Bill Gates won't be putting any software into the Prius..

    "Toyota Prius has encountered an error and will be shut down...."
  17. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Hahaha, they will need to write and test "automotive grade" software.
  18. PriusLewis

    PriusLewis Management Scientist

    Joined:
    Feb 25, 2009
    Messages:
    1,002
    Likes Received:
    79
    Location:
    Denver Metro
    Your Vehicle Year:
    Other Non-Hybrid
    Model:
    N/A
    Seawolf, in looking at the great pics you provided of the Prius transaxle a second time I have a question: where does the output of the ICE input into the transaxle? Is it through the center of one of the motor/generators?

    Thanks for the pictures!
  19. bwilson4web

    bwilson4web 03 and 10 Prius

    Joined:
    Nov 25, 2005
    Messages:
    12,040
    Likes Received:
    3,480
    Location:
    Huntsville AL with 2003 Prius
    Your Vehicle Year:
    2010 Prius
    Model:
    III


    The engine torque passes through the hollow shaft of MG1 and the sun gear (the one in the center) and engages splines on the spider gear carrier (holds the shafts for the gears in the middle.) Spider gears are also called planetary gears because they rotate around the center sun gear and inside of the outer ring gear.

    Now when MG1 does not apply any torque, a running engine can cause the planetary gears to race around the inside of the ring gear and spin the sun gear without any torque going out the ring gear. It is a type of "neutral" with the engine running.

    One way to cause torque from the planetary gears to the ring gear is to make MG1 work as a generator. MG1 is connected to the sun gear so when it generates power, its torque is on the inner side of the planetary gears. This lets the engine torque at the planetary gear shafts force the outer side of the planetary gears to spin the ring gear and on to the wheels. But there is this left over power from the MG1 generator.

    The MG1 electrical power races around to MG2 and turns it as a motor to recombine with the ICE power and move the car forward. That is why the planetary gear is called the Power Split Device.

    Now many hybrid skeptics claim the power generation of MG1 and subsequent use by MG2, this power conversion is inefficient. But they typically use imprecise "very inefficient" instead of calculating the MG1-MG2 energy transfer efficiency:
    92% generator efficiency
    92% motor efficiency
    ~= .92 * .92 = 85% efficiency transfer
    100% - 85% ~= 15% energy loss
    This would be terrible inefficiency except it only applies to the power that is split out, ~28%, of the power. So this means the actual loss is closer to:
    15% * 28% ~= 4% energy loss
    2% is typical gear energy loss
    There are more subtle aspects such as energy recirculate mode and that the engine shaft continues to turn the transaxle oil pump. But understanding the primary mode is enough.

    Bob Wilson
    3 people like this.
  20. usbseawolf2000

    usbseawolf2000 HSD PhD

    Joined:
    Sep 22, 2004
    Messages:
    12,919
    Likes Received:
    2,330
    Location:
    Fort Lee, NJ
    Your Vehicle Year:
    2012 Prius Plug-in
    Model:
    Plug-in Base


    Well, Bob answered it already but I thought this picture would help.

    [​IMG]

    P.S: It is from the Iconic Prius so MG2 does not have the SRU built-in. The connection of ICE, MG1 and MG2 are the same.
