Replace Brake Accumulator Pump?

Discussion in 'Gen II Prius Main Forum' started by Marvinh, Mar 21, 2009.

  1. Marvinh

    Marvinh Marvin

    Joined:
    Jul 2, 2007
    185
    4
    NY - Long Island
    Your Vehicle Year:
    2007 Prius
    I have a ratchety / pump noise when I start from a cold start and sometime when I switch from 'Park' to 'Drive'. But NOT when I just pump the brake pedal.

    The dealer diagnosed it correctly as the brake accumulator pump. There is a technical service bulletin that says to try bleeding the brakes first. And if this doesn't work, replace the accumulator pump. The TSB also says there is no impact on brake performance. Well, the bleed didn't help so now the dealer says to replace the accumulator pump.

    However, its a big job. It involves taking the inverter off and other connectors to get at the pump. About a 4 hour job. Has anyone had this done (under warranty by the way)?

    I am concerned about doing an involved job just to correct a noise that the TSB says does not affect brake performance. But I am concerned that the pump may fail in later years.

    Can I have your thoughts on this? Thanks! Marvinh

  2. galaxee

    galaxee mostly benevolent

    Joined:
    Mar 14, 2005
    9,810
    374
    MD
    Your Vehicle Year:
    2005 Prius
    Model:
    N/A
  3. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    13,957
    3,382
    Green Valley, AZ
    Your Vehicle Year:
    2015 Prius
    Model:
    Two
    Hi Marvin,

    Since you can get this work done under warranty, it makes sense to do so. That pump replacement would be quite expensive if unwarranted.

    I suppose you are concerned that the tech might screw up the job? I think that the likelihood of that happening is relatively low, and you'll immediately know if there's a problem.

    You'll have to weigh that possibility vs. the possibility that the brake pump might fail after the warranty expires. Good luck with your decision.

  4. Marvinh

    Marvinh Marvin

    Joined:
    Jul 2, 2007
    185
    4
    NY - Long Island
    Your Vehicle Year:
    2007 Prius
    Yes, I am concerned that this is a major job and there could be a srewup.

    The Technical Service Bulletin I saw said this does NOT affect brake performance, so I'm wondering if anyone else has heard this noise. It is NOT the same noise as the coolant pump transferring coolant back to the engine on startup.

    I'm thinking that if its just a normal hydraulic pump noise its best to leave it alone.

    What do you guys think? Marvinh

  5. richard schumacher

    richard schumacher shortbus driver

    Joined:
    Mar 27, 2004
    7,652
    881
    United States
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    Have it done under warranty. Then the dealer has to make it right, regardless, and no cost to you. I suspect that if you don't have it done it'll bother you forever, and this is not a job for an amateur.

  6. judymcfarland

    judymcfarland Queen of Moral Indignation

    Joined:
    Nov 27, 2006
    578
    2
    Glendale, WI
    Your Vehicle Year:
    2007 Prius
    I'm guessing this is the "toot" or "seal bark" noise that I occasionally hear when I have my foot on the brake but the car is not moving. I haven't been able to convince the dealer that I have this noise, but it is on the record that I have reported it.

  7. Marvinh

    Marvinh Marvin

    Joined:
    Jul 2, 2007
    185
    4
    NY - Long Island
    Your Vehicle Year:
    2007 Prius
    Judy - the seal bark noise is the brake actuator pump. That's different from the brake accumulator pump. Marvinh

  8. geeky teacher

    geeky teacher New Member

    Joined:
    Jan 18, 2007
    393
    7
    West Suburban Chicago
    Your Vehicle Year:
    2007 Prius
    For what it's worth, I had the brake actuator assembly replaced under warranty. I did not want to drive a one year old car that sounded like loud squeaky mattress springs scraping metal on metal when the brakes were fully depressed. It's been a year since without problems.

  9. danl

    danl New Member

    Joined:
    Jan 26, 2009
    231
    6
    Boston, MA
    Your Vehicle Year:
    2009 Prius
    Hi I hear this noise too in the same situations. Is it a problem?

  10. richard schumacher

    richard schumacher shortbus driver

    Joined:
    Mar 27, 2004
    7,652
    881
    United States
    Your Vehicle Year:
    2004 Prius
    Model:
    N/A
    If it's continuous and unchanging for its duration, and is not different in warm weather, then probably not a problem.

  11. Marvinh

    Marvinh Marvin

    Joined:
    Jul 2, 2007
    185
    4
    NY - Long Island
    Your Vehicle Year:
    2007 Prius
    That is a little different than what I and Danl are hearing. The brake actuator pump will make a noise every time the brake pedal is pressed. The brake accumulator will make a noise when it needs to build up brake pressure in the system.

    Marvinh

  12. galaxee

    galaxee mostly benevolent

    Joined:
    Mar 14, 2005
    9,810
    374
    MD
    Your Vehicle Year:
    2005 Prius
    Model:
    N/A
    the actuator and accumulator are not separate. the only pump in the actuator is the accumulator pump. the actuator itself only makes noise when it runs the accumulator pump.

  13. danl

    danl New Member

    Joined:
    Jan 26, 2009
    231
    6
    Boston, MA
    Your Vehicle Year:
    2009 Prius
    How often do you hear this noise? How often SHOULD you hear this noise? On my drive to and from work, I'd hear it between 5-15 min intervals. Possibly more if I brake more often. Is that normal? Is it actually a hydraulic pump storing brake fluid? I though it was some electrical system of a bunch of capacitors.

  14. Mike Dimmick

    Mike Dimmick Active Member

    Joined:
    Aug 8, 2008
    965
    233
    Reading, UK
    Your Vehicle Year:
    Other Hybrid
    Model:
    N/A
    I don't recall hearing it when I haven't used the brakes, but my commute is only 30 minutes (at best) and 15 of that is in residential streets where braking is more common.

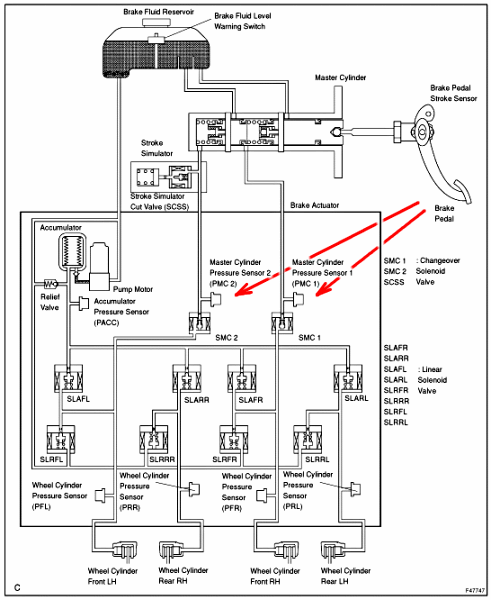

    Yes, it is a hydraulic pump. See this brake system schematic:

    [​IMG]

    This is the hydraulic system - double lines indicate brake pipes. In normal use SMC 1 and SMC 2 are closed, preventing flow from the master cylinder to the front pistons. Pressing the pedal increases the pressure sensed by PMC 1 and PMC 2. The fluid flows into the Stroke Simulator, which provides the pedal feel.

    PMC 1 and PMC 2 feed electrically into the Skid Control ECU, which decides how much braking is required. It asks the Hybrid Vehicle ECU (HV ECU) how much braking force it can provide with regen, and uses the friction brakes to make up the difference, and also any special braking to keep the vehicle stable. The pressure in the actual brake lines comes from the accumulator - basically a reservoir of high-pressure fluid. The pump runs whenever the accumulator pressure (measured by PACC) is lower than a programmed value.

    To apply the brake to a given wheel, the appropriate SLA solenoid is opened, which increases the pressure in that brake pipe - it's closed again when the appropriate pressure is reached (measured by PFL, PRR, PFR, PRL). To release the brake, the SLR solenoid is opened, which returns the fluid to the reservoir. By opening and closing these valves, it can modulate the braking force.

    It's my belief that any car labelled with 'Electronic Brakeforce Distribution' has such a 'dual-circuit' braking system. The only wrinkle in the Prius is the interaction with the HV ECU for regen.

    The box of capacitors, next to the 12V lead-acid aux battery in the rear, is a back-up power supply to allow some assist braking, should the 12V supply fail utterly and the Skid Control ECU no longer be able to perform its task. The fail-safe mode - where all valves close except SMC 1, SMC 2, which open - has no assist and can only brake the front wheels.

  15. JayGoldstein

    JayGoldstein Member

    Joined:
    Aug 3, 2006
    120
    2
    Winnipeg, Manitoba, Canada
    Your Vehicle Year:
    Other Hybrid
    Model:
    N/A
    I reported to my dealer that my Prius very intermittently makes the noise described in the Toyota USA brake actuator TSB (BTW, the Canadian TSB is #2725). Although the noise didn't occur when the technician checked the car, the service manager authorized replacing the actuator assembly under warranty.

    Interestingly, the technician said that it would be a waste of time first to bleed the brake system to see if that got rid of the noise. Replacing the actuator assembly was the was the way to proceed.

    I'll be bringing the car in soon to have the work done.

  16. JayGoldstein

    JayGoldstein Member

    Joined:
    Aug 3, 2006
    120
    2
    Winnipeg, Manitoba, Canada
    Your Vehicle Year:
    Other Hybrid
    Model:
    N/A
    I had the work done yesterday under warranty. I dropped off the car at 8:45 a.m. and it was ready to go at 5:30 p.m. When I got the car back, I noticed that both trip odometers and the odometer on the fuel consumption screen of the MFD were reset to 0, and all my radio presets had been lost. No big deal.

    With the new actuator, putting the car in Ready mode is pleasantly quiet. I had complained about a "squawk" that occurred intermittently when releasing the brake after putting the car in Ready mode. I now realize that I had gotten used to hearing the softer noises that the defective actuator had been making for some time.

    I'm a happy camper.

  17. melkisadek

    melkisadek Junior Member

    Joined:
    Feb 25, 2006
    14
    0
    Saint Louis, MO
    Your Vehicle Year:
    2007 Prius
    Model:
    II
    I'm glad you found a dealer applied solution under warranty and got quick and effective service.
    This discussion has been quite helpful since I've been trying to assess a problem that I'm almost certain now is connected with the brake system in my 2007 Prius (c 110,000 mi). I bought this car last November and I'm clearly out of warranty. If I go to the carport right this minute, get in the car, and press on the brake
    pedal, I'll hear a rhythmic light knocking sound. If I let up on the pedal near the top of its stroke I can get
    the noise to stop. The vehicle is not turned ON so the above discussion leads me to believe the sound is
    connected with my brake accumulator pump. If I'm reading these comments properly, I'm inclined to believe that: 1) replacing the brake fluid - which has never been done won't change much, 2) I'm not currently at risk with the brake system, and 3) there'll be a high out-of-pocket expense involved for what may turn out to be audio cosmetic result.

    I'll be grateful for any wisdom you folks can impart on this matter. It seems I've got an aging
    accumulator with noises similar to my creaking knees joints - bothersome perhaps, but no dangerous.
    If however, this will lead to early warning signs of a hazard I'd like to be aware of it.

    Oh, and is it possible to get an assessment of my situation from a Toyota dealership (in the St. Louis area)
    that doesn't cost me over $100? I'd prefer not to spend money needlessly.

    Mel

  18. nh7o

    nh7o Off grid since 1980

    Joined:
    Dec 10, 2011
    1,672
    287
    Hawaii
    Your Vehicle Year:
    2009 Prius
    Model:
    II
    I would say that the dealer will not likely have any real input on the brake pump noises. Most services centers will only respond to error conditions as registered by the brake ECU, so if you have no lights on, there is no problem. There are some savvy exceptions out there, but mostly they are independent technicians. The $100 charge is just to plug in the scanner and check for DTC's. You can do the same with the mini VCI and a laptop for $30. You could look around for competent mechanics in your area that would be willing to install a used brake pump. There are instructions on this site. A used pump is not hard to find on line.
