Replaced Bad Battery Module now won't start

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by Patrick Jordan, Mar 1, 2014.

  1. Patrick Jordan

    Patrick Jordan New Member

    Joined:
    Mar 1, 2014
    1
    0
    0
    Vehicle:
    2007 Prius
    Model:
    II

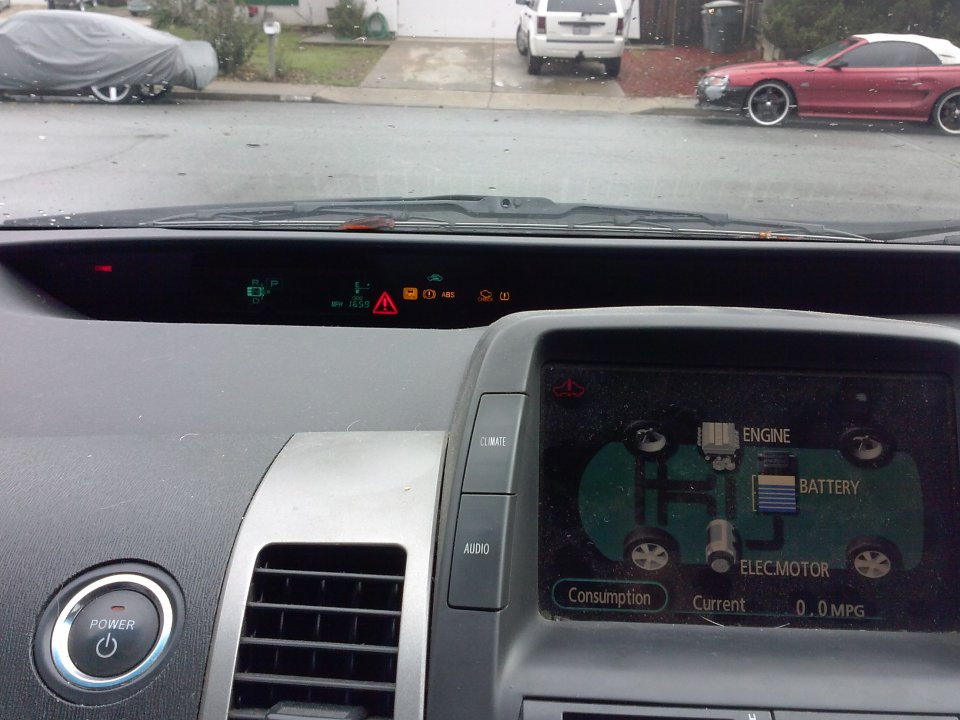

    Hi All initially got the error code P0A80 which indicated a problem with the traction battery which was confirmed by the Toyota dealer. Pulled the battery and found the bad module and replaced it with one from Battery Boy on Ebay. Put it all back together cleared the codes and now it will not switch into drive just stays in Neutral. I included a pic of the dash readout. Any help would be appreciated.


    Attached Files:

    #1 Patrick Jordan, Mar 1, 2014
  2. jdenenberg

    jdenenberg EE Professor

    Joined:
    Nov 21, 2005
    3,837
    1,828
    1
    Location:
    Trumbull, CT
    Vehicle:
    2020 Prius
    Model:
    LE AWD-e
    This is usually caused by not sliding the safety plug into position after inserting it. Many have overlooked this as it is not obvious.

    JeffD

    #2 jdenenberg, Mar 1, 2014
  3. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,796
    48,995
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    did you balance the cell's, or just chuck a new one in there?

    #3 bisco, Mar 1, 2014
  4. uart

    uart Senior Member

    Joined:
    Sep 7, 2009
    4,215
    1,200
    0
    Location:
    Australia
    Vehicle:
    2005 Prius
    +1

    This is a very common mistake.

    #4 uart, Mar 2, 2014
  5. greasemonkey007

    greasemonkey007 Active Member

    Joined:
    Sep 20, 2013
    286
    104
    0
    Location:
    South Central Arkansas
    Vehicle:
    2006 Prius
    Model:
    N/A
    When you insert the safety plug and fold the handle up, you have to push the handle straight down to lock it. This makes an electrical connection, could be the problem.

    #5 greasemonkey007, Mar 3, 2014
  6. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    107,796
    48,995
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    did you make the correct safety plug connection? it's not as obvious as it may look.

    #6 bisco, Mar 3, 2014
  7. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,470
    8,383
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II

    My mechanic couldn't figure out why my car wouldn't start after a transaxle swap, and this simple push on the lever to lock was the key to starting the car.

    This would also trigger DTC P0A0D

    #7 JC91006, Mar 4, 2014
  8. ericbecky

    ericbecky Hybrid Battery Hero

    Joined:
    Mar 12, 2004
    4,365
    3,209
    1
    Location:
    Madison, Wisconsin
    Vehicle:
    2005 Prius
    Model:
    Two
    Sound like you have a scanner. Are other codes present?
    If so, list them here and we can help.

    #8 ericbecky, Mar 4, 2014
