100 A DC/DC Fuse blade replacement

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by attesz86, Jun 24, 2013.

  1. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II
    Hi all,
    did somebody replace the 100 A DC/DC fuse in Unit A in the Fuse Box of a Prius2?
    Yes, I placed the 12V battery polarity reversed, and I see clearly from above that it's blown. Now, it seems to be easily removed upwards, but it's sticked and I don't want to force it. I've read horrible stories about the prices of this replacement as it is too difficult to do at home. Did anybody manage to replace it, or is it absolutely unavoidable to take it to the toyota service?
    Thanx,
    Attila

    #1 attesz86, Jun 24, 2013
  2. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,198
    6,463
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Another PC member had posted about how to remove and replace the fusible link assembly. I believe it is necessary to first remove the main relay/fuse box assembly in order to unbolt the fusible link from the bottom.

    #2 Patrick Wong, Jun 24, 2013
  3. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II

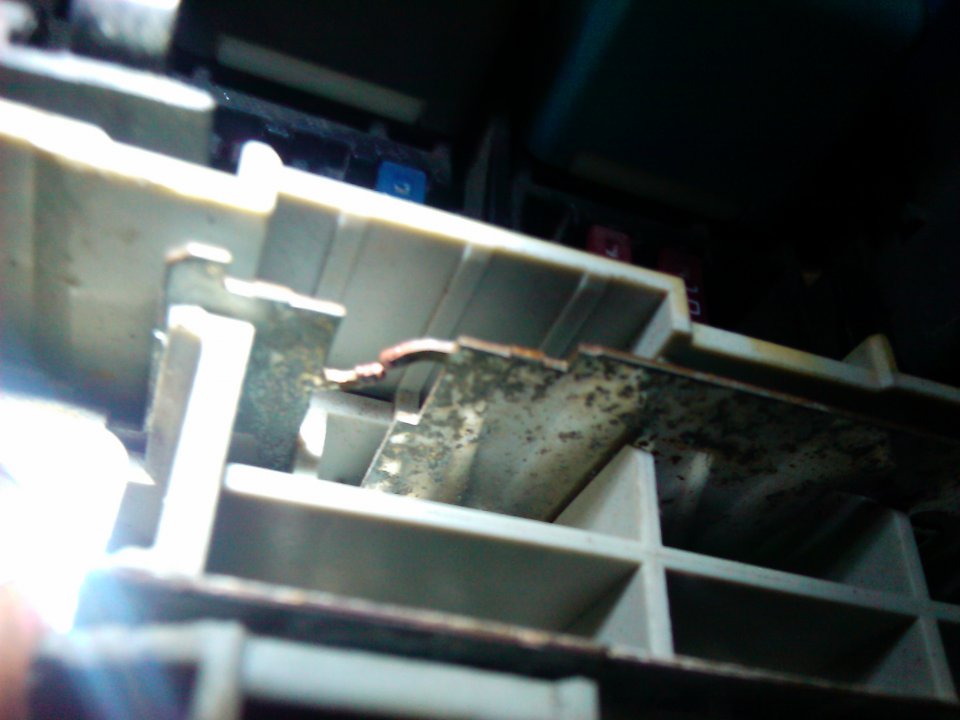

    Thanks. So no way to remove this plate from above:

    #3 attesz86, Jun 24, 2013
  4. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,198
    6,463
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    When you consider how much current is handled by the fusible link, it is not likely that spring-loaded contacts would be adequate to handle the current flow. Hence the need to remove and unbolt the fusible link...

    #4 Patrick Wong, Jun 24, 2013
    attesz86 likes this.
  5. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II
    Well. Here it is nicely described, how to remove the fusible link without removing the whole fuse box.

    #5 attesz86, Jun 25, 2013
  6. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II

    #6 attesz86, Jun 25, 2013
  7. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II

    #7 attesz86, Jun 25, 2013
  8. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II
    I can't share the link due to new user restrictions. Sorry, I will try later!

    #8 attesz86, Jun 25, 2013
  9. 2009Prius

    2009Prius A Wimpy DIYer

    Joined:
    Mar 25, 2009
    2,705
    510
    63
    Location:
    USA
    Vehicle:
    2009 Prius
    Welcome to PriusChat! Try breaking up the link into separate words, for example

    priuschat dot com

    #9 2009Prius, Jun 25, 2013
    attesz86 likes this.
  10. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,198
    6,463
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Please provide some photos that show how you have removed the fusible link, thanks.

    #10 Patrick Wong, Jun 25, 2013
  11. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II
    Here you find the pictures. I just bought this part this morning, I will replace it this afternoon (EU time) I will let you know the success :)
    05 Prius Fusible Link Photos by 3prongpower | Photobucket

    #11 attesz86, Jun 26, 2013
  12. Patrick Wong

    Patrick Wong DIY Enthusiast

    Joined:
    Mar 8, 2008
    18,198
    6,463
    0
    Location:
    Green Valley, AZ
    Vehicle:
    2015 Prius
    Model:
    Two
    Thanks for providing the link, it appears from those photos that there are at least four or five places where wires are bolted to the fusible link assembly. It also appears that the relay/fuse box has to be removed from the fender, to detach the bottom cover.

    If you determine an easier way to replace the fusible link assembly, please provide photos illustrating your approach.

    #12 Patrick Wong, Jun 26, 2013
  13. attesz86

    attesz86 New Member

    Joined:
    Jun 24, 2013
    8
    0
    0
    Location:
    Munich, Germany
    Vehicle:
    2007 Prius
    Model:
    II
    probably it was a mistake from my side, I understood from an other thread that the whole fuse box fender should be removed to unbolt this box, as it is bolted to the bottom side of the fender. Sorry, on fuse box I meant the whole fuse fender!

    Anyway, fingers crossed: this afternoon it will turn out, if I blew the DC/DC or not.

    #13 attesz86, Jun 26, 2013
