12V Passthrough Connections - Dashboard

Discussion in 'Prius c Accessories and Modifications' started by scrull, Jun 21, 2014.

  1. scrull

    scrull Junior Member

    Joined:
    May 21, 2014
    36
    24
    0
    Location:
    Charlotte, North Carolina
    Vehicle:
    2012 Prius c
    Model:
    One

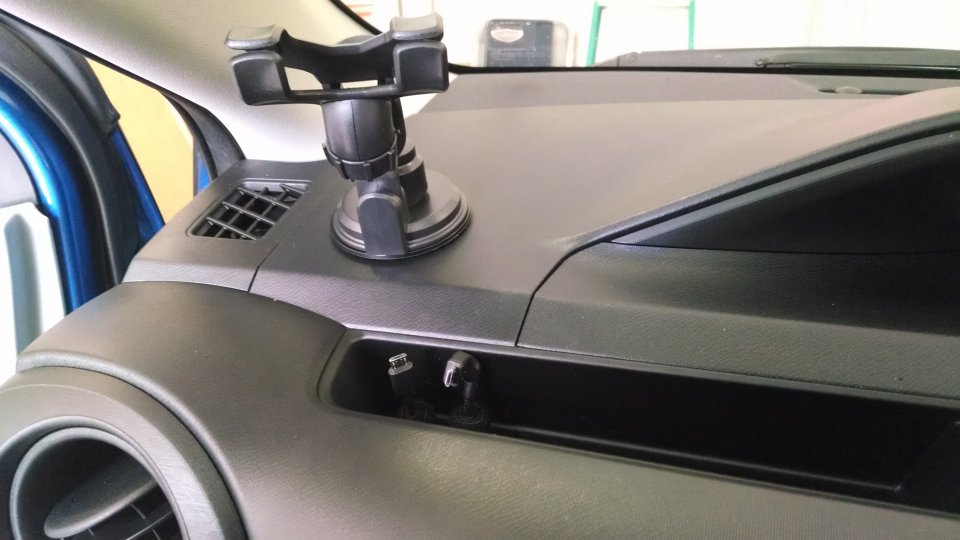

    So, I had some free time today and got sick of staring at my TomTom and Phone charger wires so I decided to make some custom passthroughs into the dash for cables and retract them when I wasn't using them. Here is the result.

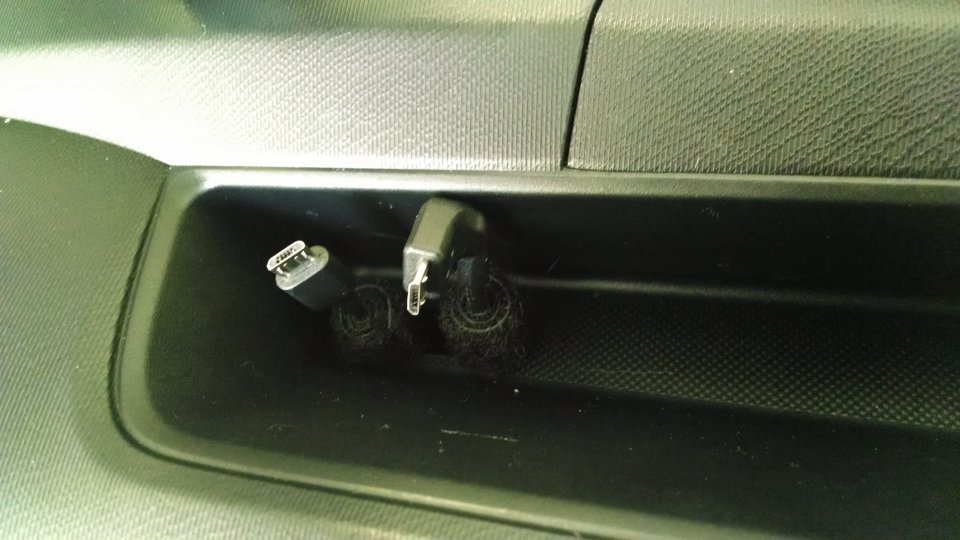

    The cables you see there are a micro-USB and the TomTom traffic receiver USB cable. I added velcro to the ends to prevent the cables from falling back through but allowing them to almost be hidden when not in use.

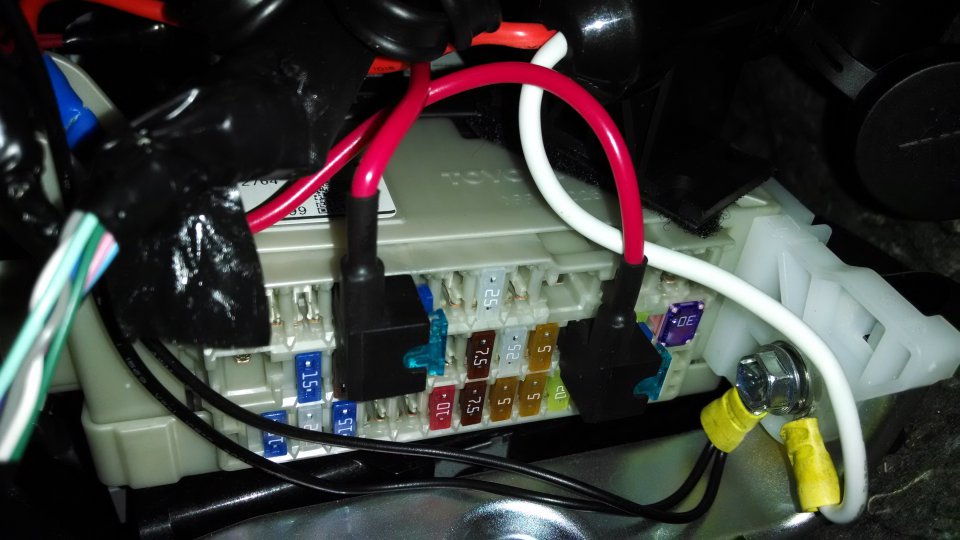

    I basically added a 12V outlet by the OBDII port under the steering wheel column and added an add-a-fuse to the cigarette outlet fuse (15AMP) to power it. Works great!


    Attached Files:

    #1 scrull, Jun 21, 2014
    Last edited: Jun 21, 2014
    robertmaria, Bob-blehead, Captain Lucian Chiroptera and 2 others like this.
  2. legoadan

    legoadan Member

    Joined:
    Mar 27, 2014
    149
    58
    0
    Location:
    Northern California
    Vehicle:
    2014 Prius c
    Model:
    Two
    That's pretty cool. Do the cable have some length you can pull? Is the opening for the cables clean?

    #2 legoadan, Jul 1, 2014
  3. scrull

    scrull Junior Member

    Joined:
    May 21, 2014
    36
    24
    0
    Location:
    Charlotte, North Carolina
    Vehicle:
    2012 Prius c
    Model:
    One
    Absolutely. In fact, i'll be adding cable recoilers inside soon. I used a dremel to make a rectangle opening, sanded the cut, then added a rubber grommet to finish the cut. I'd say I probably have about 1ft of cable pull still. It's all zip-tied in a conduit going from the steering wheel fusebox,

    #3 scrull, Jul 1, 2014
    w2kpugsly likes this.
  4. Captain Lucian Chiroptera

    Captain Lucian Chiroptera Junior Member

    Joined:
    Aug 6, 2014
    40
    10
    0
    Location:
    Oregon
    Vehicle:
    2014 Prius c
    Model:
    Four
    this is what I was just thinking about on my drive back to work on my lunch hour...
    I'm planning on doing something similar, except perhaps in a different location, if I hit any snags, may I PM you for any words of wisdom?

    #4 Captain Lucian Chiroptera, Aug 7, 2014
  5. scrull

    scrull Junior Member

    Joined:
    May 21, 2014
    36
    24
    0
    Location:
    Charlotte, North Carolina
    Vehicle:
    2012 Prius c
    Model:
    One
    Sure thing. If you go the route of drilling, just make sure you have a rubber grommet that you can use to dress it up when its done.

    #5 scrull, Aug 18, 2014
  6. Captain Lucian Chiroptera

    Captain Lucian Chiroptera Junior Member

    Joined:
    Aug 6, 2014
    40
    10
    0
    Location:
    Oregon
    Vehicle:
    2014 Prius c
    Model:
    Four
    a Grommet? :eek:
    can I use a Wallace instead? :LOL:

    [​IMG]
    :ROFLMAO:

    #6 Captain Lucian Chiroptera, Aug 19, 2014
    scrull and ztanos like this.
  7. GregP507

    GregP507 Senior Member

    Joined:
    Apr 5, 2014
    3,002
    478
    0
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    I went through the main rubber grommet in the firewall. I taped a sharp knife to a stick and made a slit in the rubber. I taped the wire to a wooden dowel, with a Bic pen cap over the end to give it a bullet shape. I sprayed the rubber with WD-40, and I forced through. I reached under the dash, found it and pulled it off the stick..

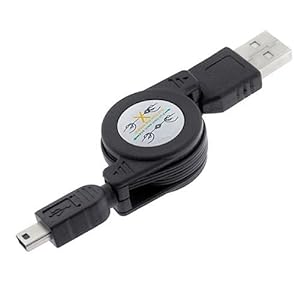

    The cable recoilers which are common in patch-cords nowadays are easily modified so that they don't lock. Take the label off and the screw out carefully, and pry it apart, careful not to uncoil the spring. Remove the small plastic piece that engages the cogs and put it back together.
    [​IMG]

    #7 GregP507, Aug 19, 2014
    Captain Lucian Chiroptera likes this.
  8. Captain Lucian Chiroptera

    Captain Lucian Chiroptera Junior Member

    Joined:
    Aug 6, 2014
    40
    10
    0
    Location:
    Oregon
    Vehicle:
    2014 Prius c
    Model:
    Four
    I look forward to having the time to do this, don't know when, but it's on my list... :cool:

    #8 Captain Lucian Chiroptera, Aug 19, 2014
  9. hlunde

    hlunde Member

    Joined:
    Dec 22, 2009
    419
    74
    1
    Location:
    NJ
    Vehicle:
    2010 Prius
    Model:
    III
    OK, but USB standard is 5 volts and it seems that you connected your devices to a 12.6-14 volt bus?

    #9 hlunde, Aug 19, 2014
  10. scrull

    scrull Junior Member

    Joined:
    May 21, 2014
    36
    24
    0
    Location:
    Charlotte, North Carolina
    Vehicle:
    2012 Prius c
    Model:
    One
    Yes, the connection goes like this:

    12V fuse --> Cig Lighter Socket --> 5v USB Car Adapter @ 1 Amp

    #10 scrull, Sep 5, 2014
  11. B2FiNiTY

    B2FiNiTY Active Member

    Joined:
    Dec 17, 2012
    979
    226
    0
    Vehicle:
    2012 Prius c
    Model:
    Two
    Might as well get a 2.4A usb car charger

    #11 B2FiNiTY, Sep 17, 2014
