'14 Prius Stereo Wire Colors

Discussion in 'Gen 3 Prius Audio and Electronics' started by kenniekenken, Feb 21, 2015.

  1. kenniekenken

    kenniekenken Member

    Joined:
    Feb 7, 2015
    105
    58
    0
    Location:
    Alberta
    Vehicle:
    2014 Prius
    Model:
    N/A
    Hi everyone! Was wondering if someone can lead on the stereo wire colors for a '14 Base Prius so I can tap my Scosche Line Out Converter for a Sub/Amp addition. Thanks in advance!

    kc5dlo likes this.
  2. sfprankster

    sfprankster Active Member

    Joined:
    Sep 25, 2014
    407
    441
    10
    Location:
    Santa Cruz Mountains, CA
    Vehicle:
    2014 Prius
    Model:
    Three

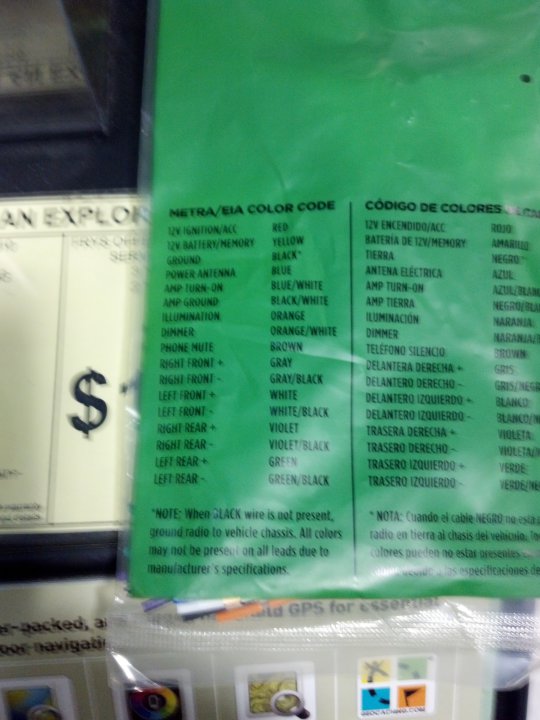

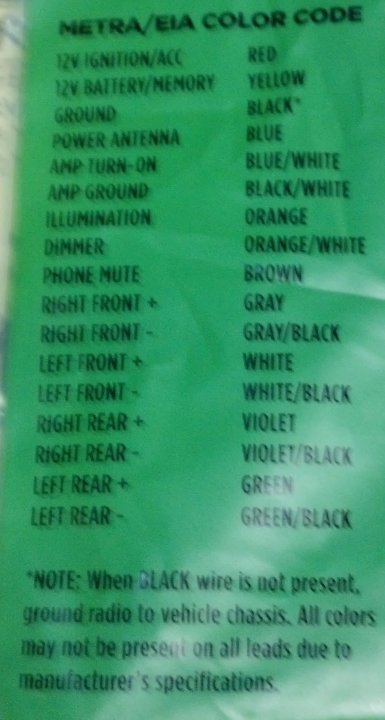

    From the back of a Metra 70-1761 Radio Wiring Harness Toyota 87-up Power 4 Speaker. Not the best focus, but hopefully enough to see the wire colors.
    IMG_20141228_182857_339.jpg Toyota Audio Wire Colors.jpg

  3. kenniekenken

    kenniekenken Member

    Joined:
    Feb 7, 2015
    105
    58
    0
    Location:
    Alberta
    Vehicle:
    2014 Prius
    Model:
    N/A
    Thank you for the info. What I need though are the colors coming from the HU itself if I'm making sense? I've seen a couple sites but there are differences in the colors so am looking something more accurate.

  4. aponteluis

    aponteluis Junior Member

    Joined:
    May 23, 2007
    20
    9
    0
    Location:
    United States
    Vehicle:
    2014 Prius
    Model:
    Two
    Attached are the radio head unit wire color / connector pinout for the 2014 non-JBL Prius. I installed a subwoofer this weekend and can validate they are correct.


    Attached Files:

    kc5dlo and frodoz737 like this.
  5. kenniekenken

    kenniekenken Member

    Joined:
    Feb 7, 2015
    105
    58
    0
    Location:
    Alberta
    Vehicle:
    2014 Prius
    Model:
    N/A
    That's awesome! Thanks apontelius!

  6. aponteluis

    aponteluis Junior Member

    Joined:
    May 23, 2007
    20
    9
    0
    Location:
    United States
    Vehicle:
    2014 Prius
    Model:
    Two

    Here is an additional one with more info.


    Attached Files:

    kc5dlo and frodoz737 like this.
  7. frodoz737

    frodoz737 Top Wrench

    Joined:
    Aug 26, 2010
    4,137
    2,021
    33
    Location:
    Texas
    Vehicle:
    2015 Prius
    Model:
    Four

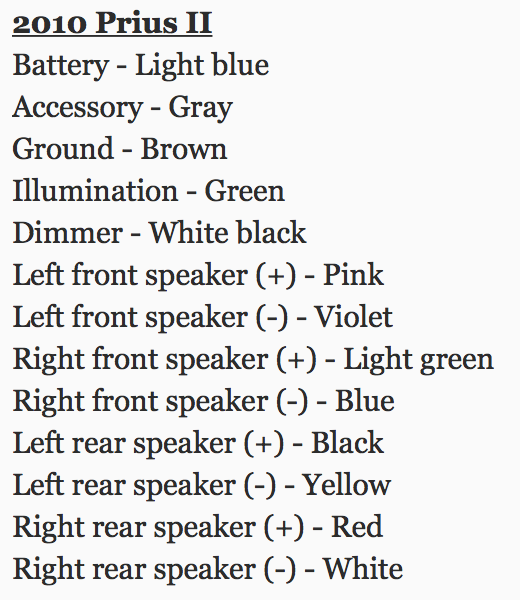

    Interesting it's the same as the 2010 base.

  8. kenniekenken

    kenniekenken Member

    Joined:
    Feb 7, 2015
    105
    58
    0
    Location:
    Alberta
    Vehicle:
    2014 Prius
    Model:
    N/A
    sorry, misspelled... thanks again aponteluis! can't wait for the weather to get better...

    kc5dlo and aponteluis like this.
  9. Koaokamoo

    Koaokamoo New Member

    Joined:
    Jul 17, 2015
    2
    2
    0
    Location:
    Maui
    Vehicle:
    2014 Prius
    Model:
    Two
    What did you use to turn the amp on and off? I mean which wire on the Prius did you use to control the power on off for the amp?
