16x 3.65V chargers for Enginer system

Discussion in 'Prius PHEV Plug-In Modifications' started by hkgngplugin, Apr 13, 2014.

  1. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    guys, I’m crazy enough to build this 16 3.65V charger! No more balancing! No more over charging! No mre hard-landing on 3.8V due to poor BMS design! All chargers use CC/CV for charging!


    [​IMG]

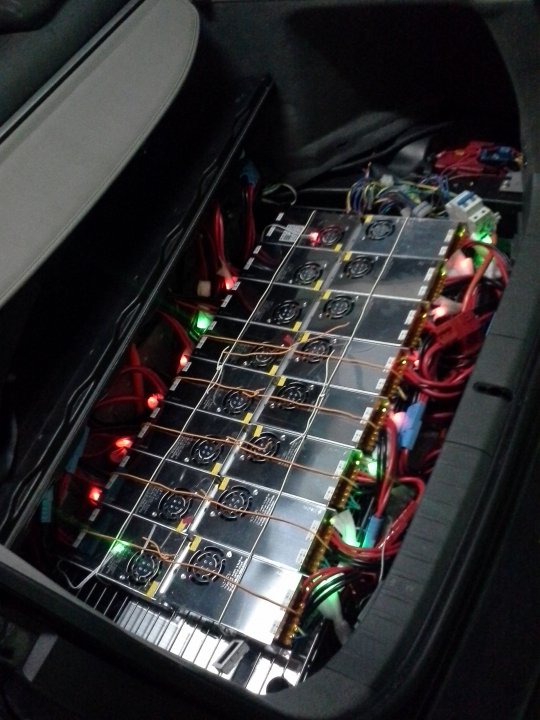

    Pic 1) This is how it seats in the back trunk! Red light means “charging”, while green light means “completed”


    [​IMG]

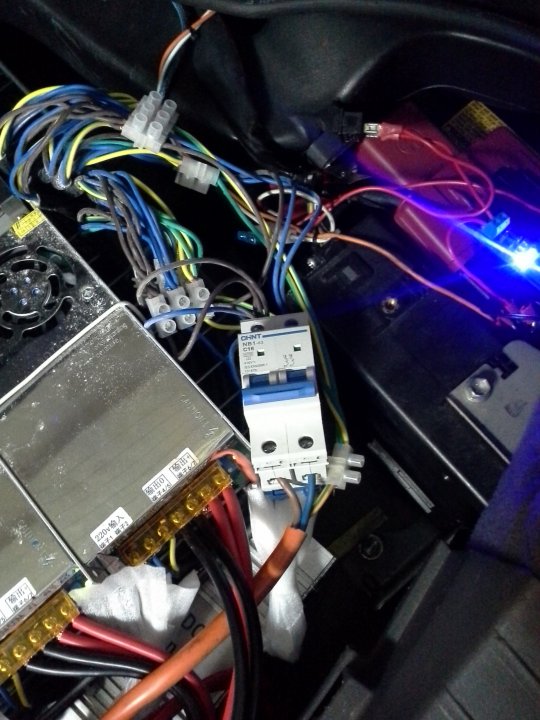

    Pic 2) A circuit breaker to make sure the chargers are not “too greedy” @16A



    [​IMG]

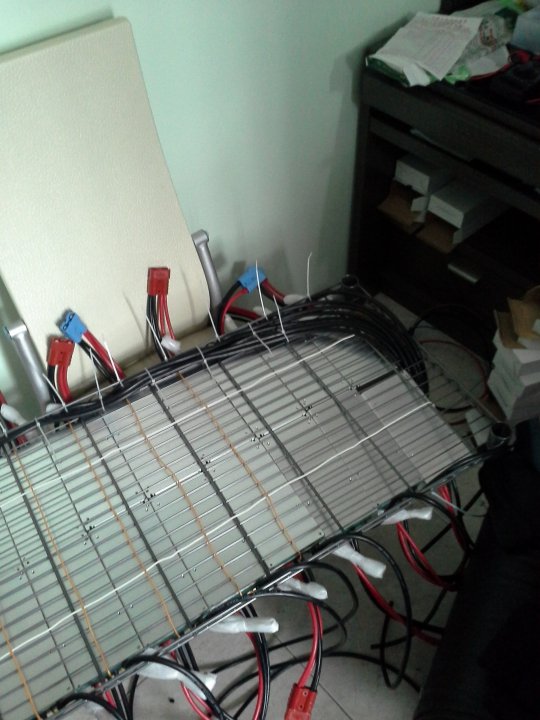

    Pic 3) A wire mesh lets all the chargers seat on it. In this pic, I flipped over the whole thing so you are looking at the bottom side of the charger. Every charger is wired to an Anderson Plug for easier remove of the whole thing for later maintenance.


    [​IMG]

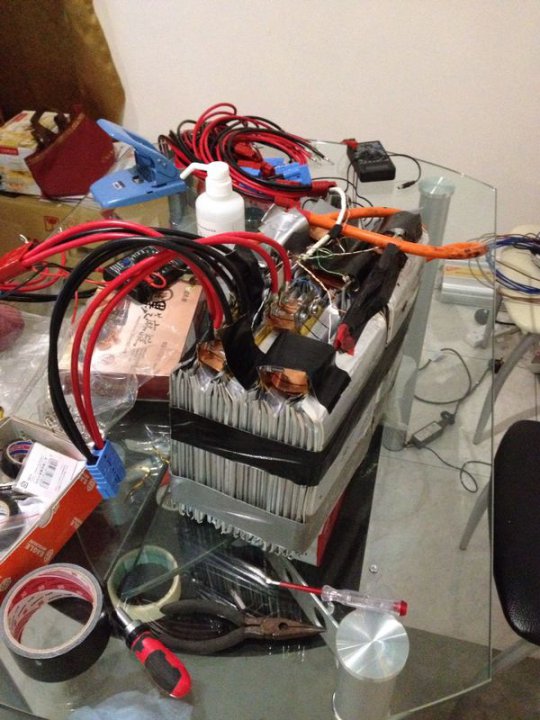

    Pic 4) I have lost my RFE pack already. I rebuilt my 5kwh pack myself long time ago with A123 cells. Every single cell is connected to additional wires to their positive and negative terminals. The two terminals are connected to an Anderson Plug. The plug will then goes to that connected to a charger.

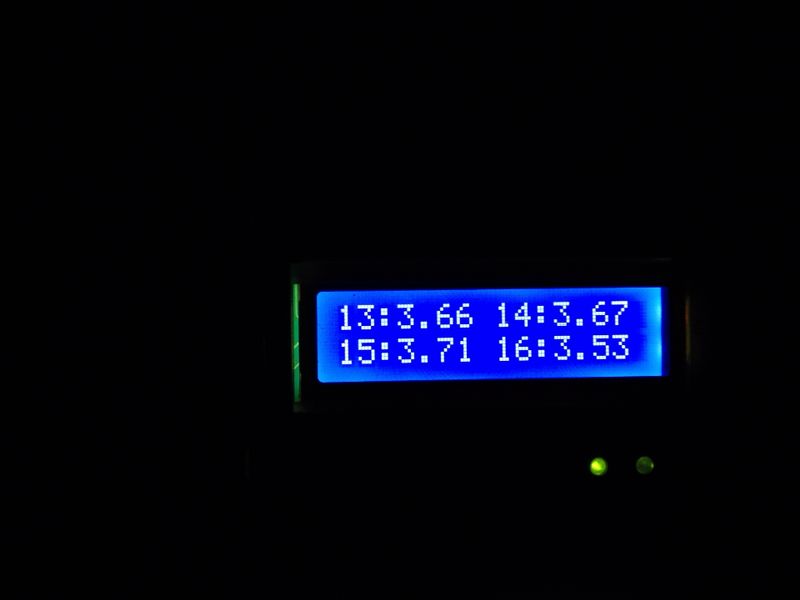

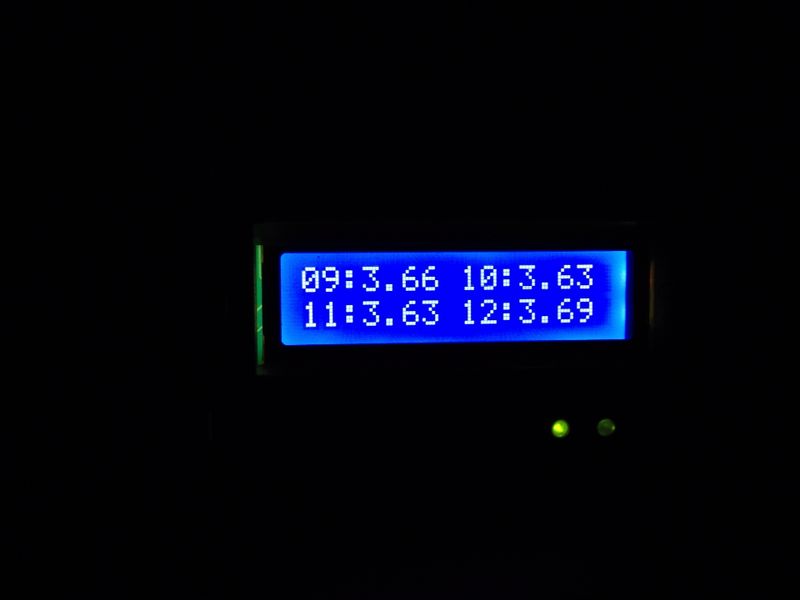

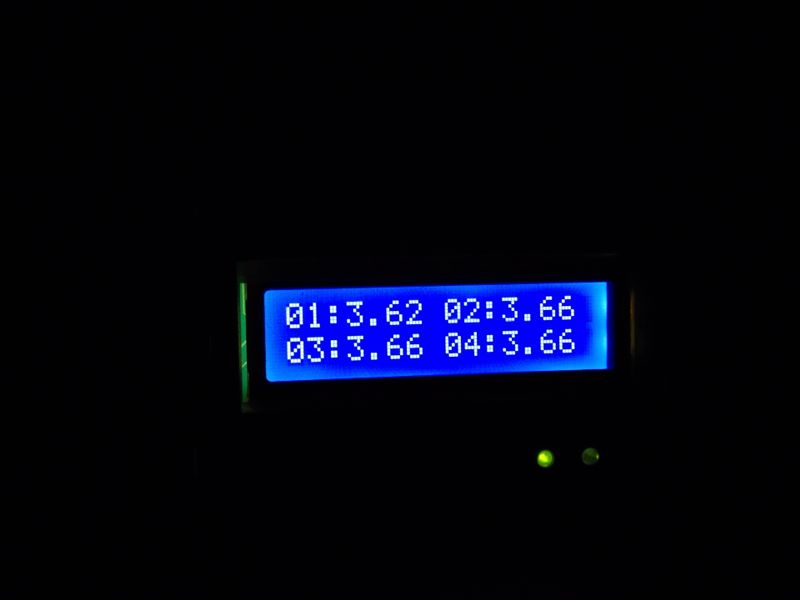

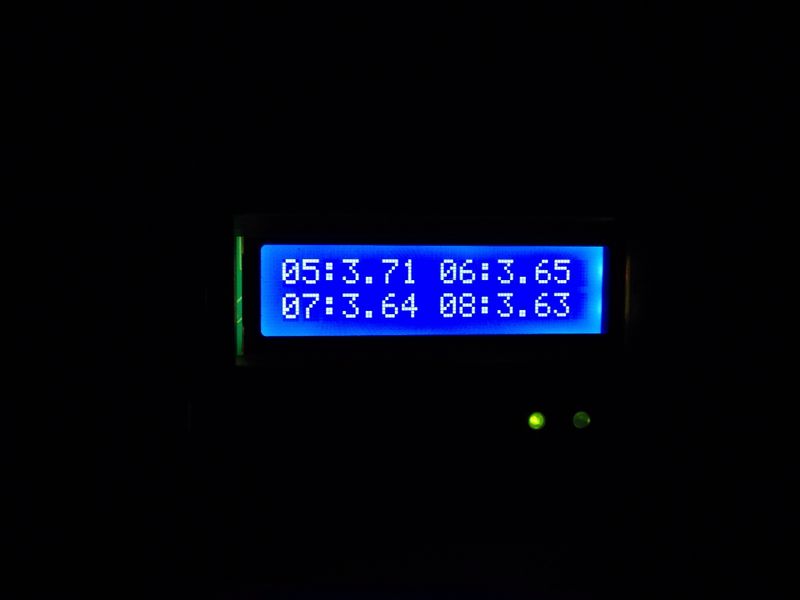

    And every morning, I get below results,
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

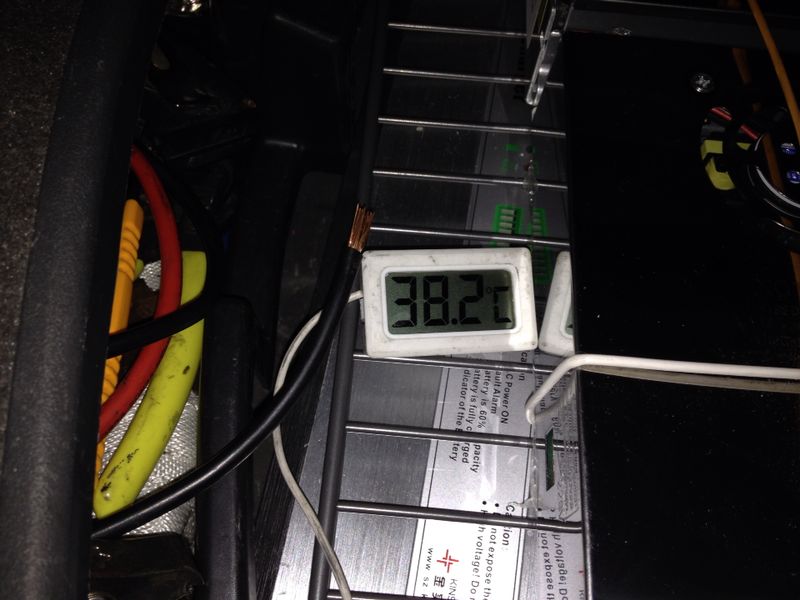

    And this baby is real hot!
    [​IMG]


    Attached Files:

  2. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    406
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Well done. The BMS16D draws uneven currents from each of the 16 cells leading to imbalance. It should work long term. How much did it all cost?

  3. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    I don't know why I can't insert pictures into my message.:( Anyway, Lopez, the money I spent on this charger is about USD$650. Also, I have spent weeks to build it. "Balancing" is not the only problem for Enginer's BMS. I found it also has a very hard time to accurately detect the ture values of the voltages of the cells.

    dave77 likes this.
  4. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    These chargers have some down sides.
    1) Really hot. If you look at my pics, it can get the cabinet as hot as 40 degree C.
    2) Very power inefficent. It takes up 8kwh to fully charge my 5kwh pack. About 60% conversion efficency.
    3) Heavy. Over all added weight is about 3kg.

  5. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    406
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A

  6. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    Lopez, I know it’s a crazy price. But money can’t buy time! I had enough of the time I need to baby sitting the pack during balancing! You know what, it balance itself every morning!

    dave77 likes this.
  7. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    99,168
    44,926
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    brilliant!(y)

  8. lopezjm2001

    lopezjm2001 Senior Member

    Joined:
    Apr 14, 2009
    1,146
    406
    5
    Location:
    Sydney Australia
    Vehicle:
    Other Electric Vehicle
    Model:
    N/A
    Just looking at the photos it appears you had to rewire all the RFE battery packs along with a whole lot of work. Can you explain what work you did and why?

    NortTexSalv04Prius likes this.
  9. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    Yes, Lopez, it was really a lot of work. Thanks for your comment, and I have edited the whole post! Enjoy the pictures!

    dave77 and NortTexSalv04Prius like this.
  10. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    113
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
    N/A
    Where did you get the chargers? I am still wading and seeking my way thru the charging process too. I have purchases a cell logger that fits the pack. Also got a RC charger with that fits the BMS /jst connector.

  11. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    113
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
    N/A
    I am not good with abbreviatons ....Question does CC mean constant current and CV charge voltage.

    lopezjm2001 likes this.
  12. NortTexSalv04Prius

    NortTexSalv04Prius Active Member

    Joined:
    Nov 14, 2009
    915
    113
    0
    Location:
    Texas
    Vehicle:
    2004 Prius
    Model:
    N/A
    One of your cells look to be at 3.71 voltage. This is my understanding and have witness others go a stray here. The enginer charger definite overcharges the cells . IMHO any charging over 3.4-3.5 voltage level does not result any additional discharge capacity......
    The enginer charger uses a top balance bms config and has the following issues. OVERCHARGING CELLS and does not really balance anything

  13. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    Nort, CC/CV means constant current/ constant voltage. It is a strategy of charging cells. What it does in this strategy is the charger starts in a stage that gives constant current first, in my case 30A, in the begining of charging. When the cells reach 3.65V, CC stage ends and CV stage starts with constant voltage at 3.65V. The charger keeps charging until the current become very small (some where in mA). This is what I would call “soft landing on 3.65V. ” What Enginer BMS does is to over charge cells to 3.8v, and they believe stopping here the cells would slow go back to 3.65V resting voltage. But they were wrong! This hard-landing, or crash-landing, method badly damage cells, specially those weak cells! I have 3-4 cells were damaged this way!

    NortTexSalv04Prius and dave77 like this.
  14. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    Nort, yes, one of my chargers needed to be fine adjusted. It is a little bit over charged cell 15. And if you look closely, cell 5 also has 3.7V. But this cell is in a situation I mentioned before, a situation that Enginer BMS has hard time to correctly detect the voltage. I have checked with a mutimeter on cell 5, it has 3.65V.

    NortTexSalv04Prius likes this.
  15. hkgngplugin

    hkgngplugin Junior Member

    Joined:
    Nov 7, 2013
    46
    13
    0
    Location:
    Hong Kong
    Vehicle:
    2008 Prius
    Model:
    II
    I got the chargers from China.

    dave77 likes this.
