2006 Prius clock spring (spiral cable) repair

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by mswtoyota, Dec 19, 2014.

  1. mswtoyota

    mswtoyota Member

    Joined:
    Sep 25, 2012
    42
    74
    3
    Location:
    Amarillo, Tx
    Vehicle:
    2006 Prius
    Model:
    N/A
    So both defrost buttons, the recirculate, and the info button on the right hand side of the steering wheel have never worked since I bought the car used a few years ago. After taking the steering wheel apart, I see that buttons are just providing different resistance values back to the car. After searching this awesome site (I do know how to search!), I found I wasn't alone:
    Suddenly, some buttons on steering wheel mounted controls aren't working! Any ideas? | PriusChat
    Exact same buttons. Hmmm. I decided to try and fix it myself. Unfortunately, I didn't take any pictures of removing the clock spring, but you can see some here:
    Can I avoid replacing my failing clockspring (spiral cable)? | PriusChat
    Yes, you must remove the airbag and the steering wheel to get to it. No, I did not disconnect any batteries, and I might have waited about 30 seconds before I had the airbag off. I do use a wrist strap to ground to the car though, but all the airbag connectors are self shorting anyway.
    Sorry that some of the pictures are horrible.

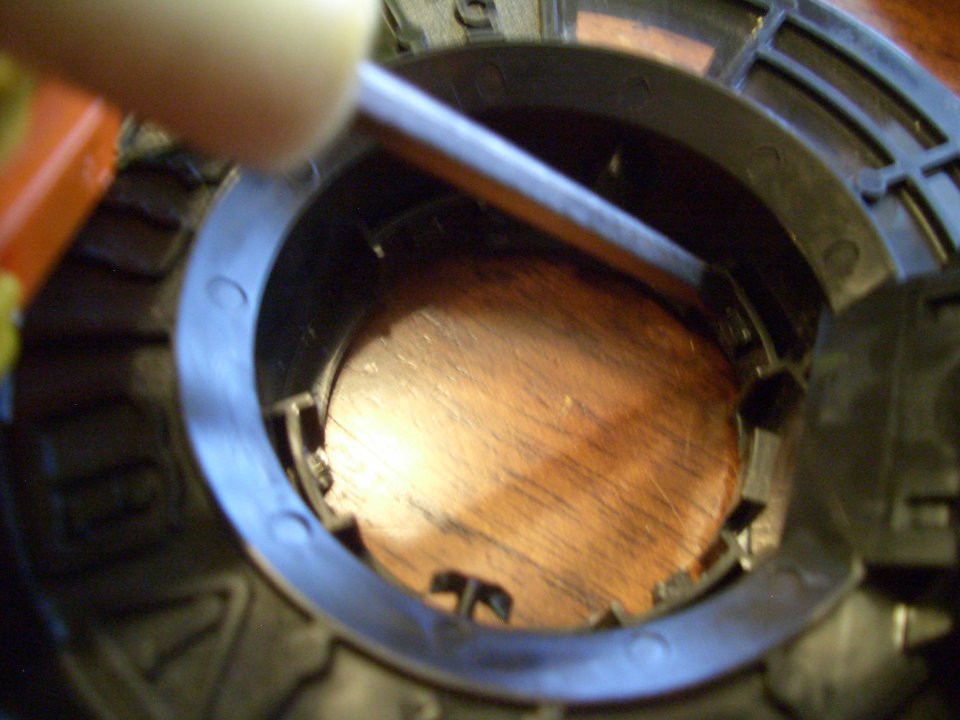

    To get the clock spring apart, you first have to release 4 plastic tabs in the center of it.
    Then the center part comes out.

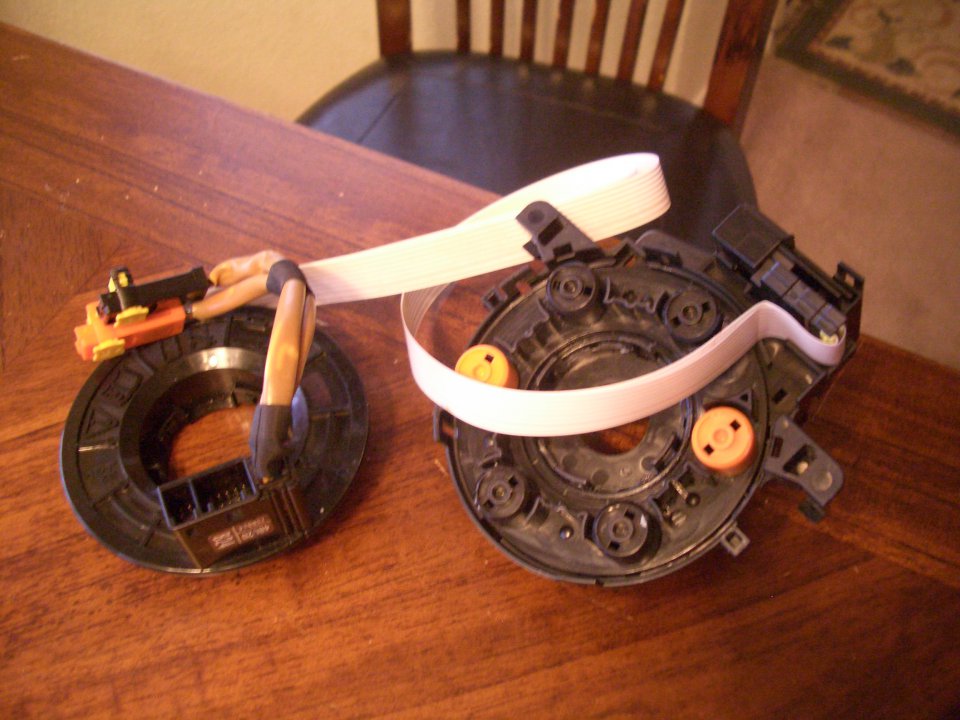

    After removing the outer ring (held with more plastic clips), the cables are free.

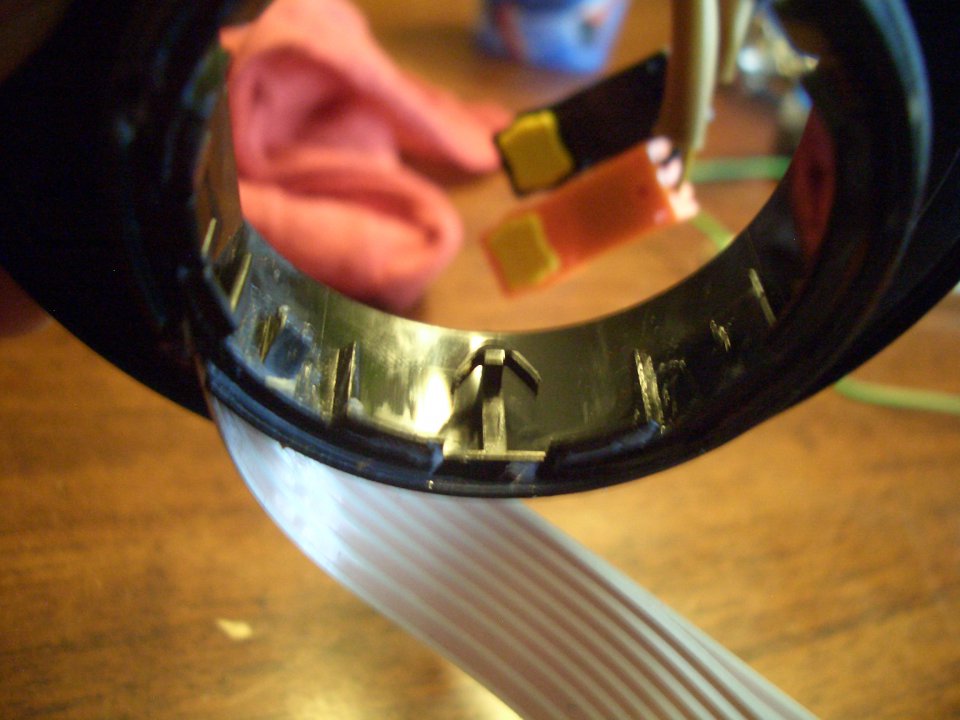

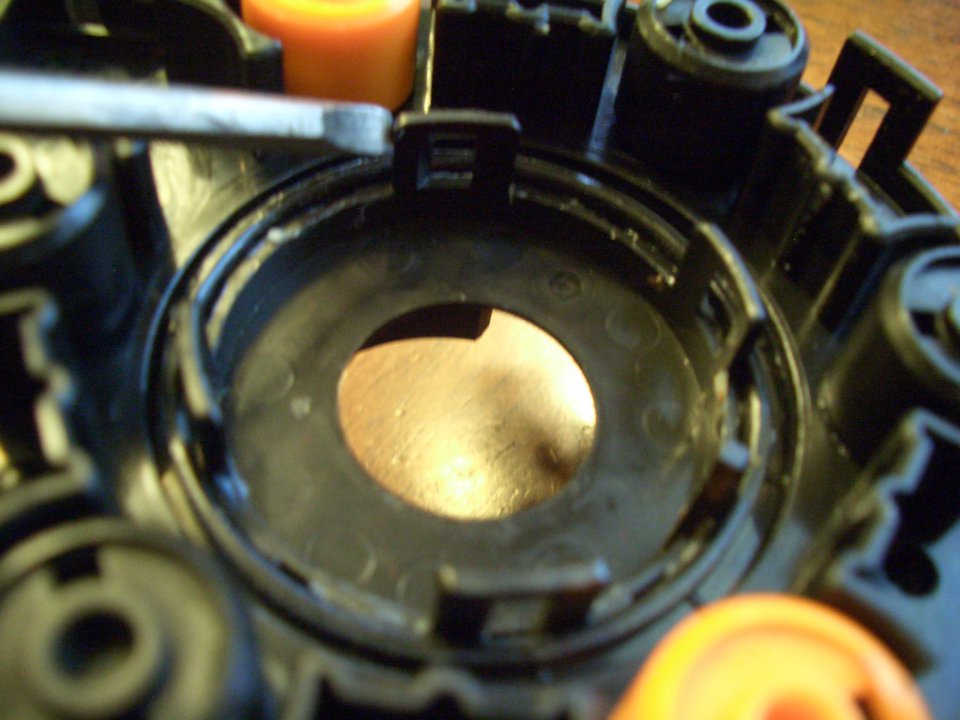

    Here is a close up of the plastic tabs that need to be released to get it apart:
    CIMG2985.JPG And here is the bad spot in the cable:

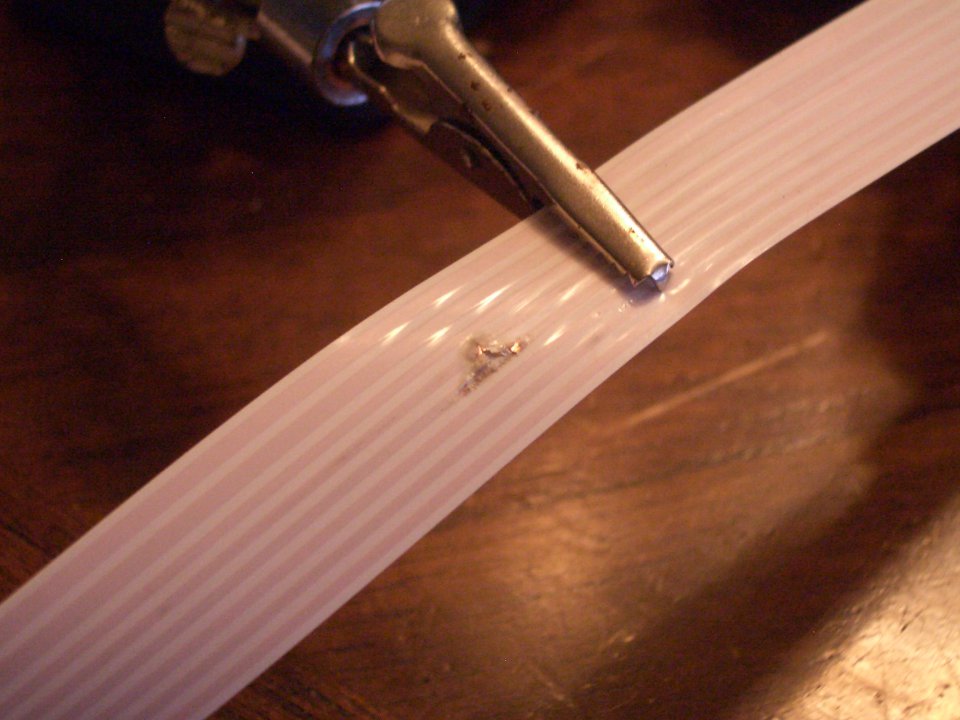

    As you can see (above), the 4th and 5th wires from the bottom do not have continuity. This is only 1 of the 2 ribbon cables in the clock spring. I think the 2 larger traces at the top of the cable are for one of the squib circuits for the airbag. The second ribbon cable (with no damage, thankfully) looks identical, so I assume the larger traces on it are for the secondary squib circuit on the airbag as well.

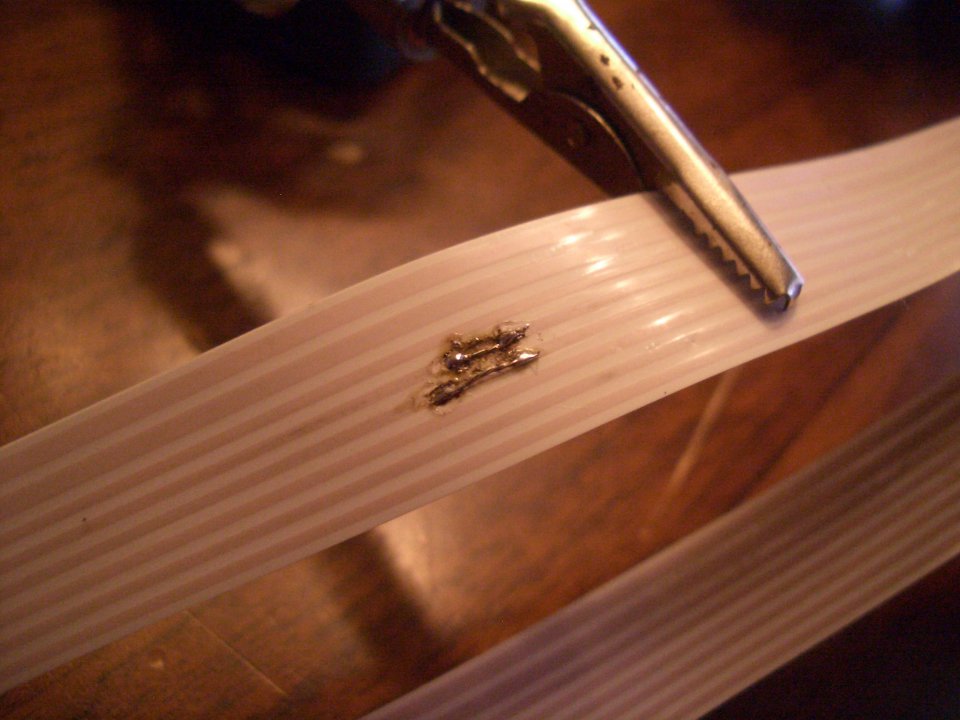

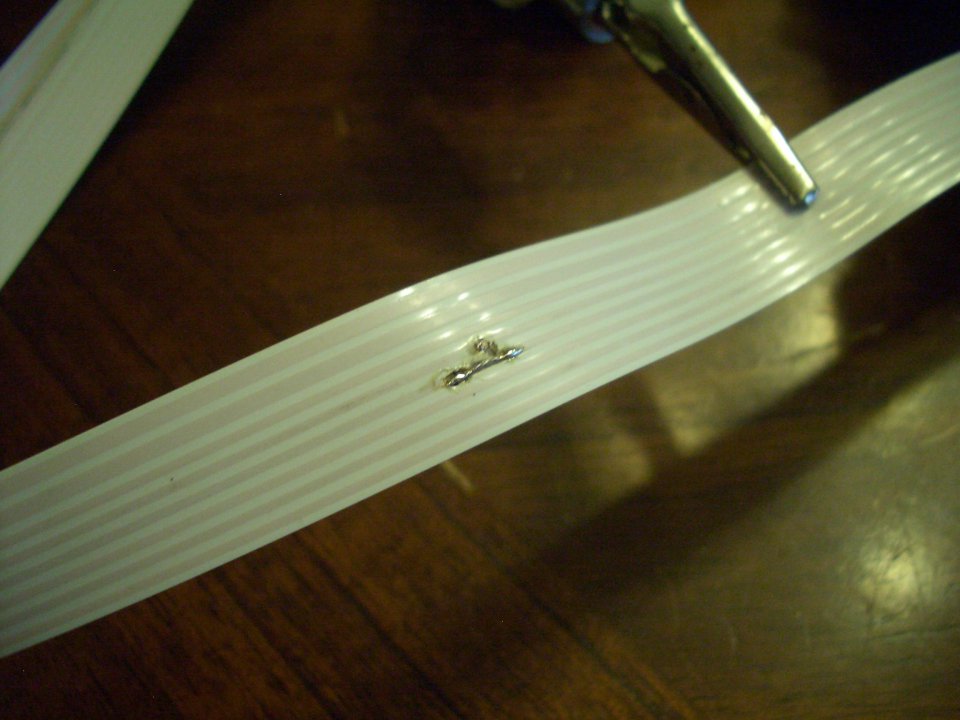

    To repair, I had to scrape off the insulation until I found good copper to solder to (I've already done the lower one in the shot above) and carefully solder new wire to bridge the gap in the original traces.
    I took some wire I had (I'm guessing about 22 gauge?) and peeled off 3 of the strands. I twisted them together, tinned it, and used it to bridge both gaps in the ribbon cable.

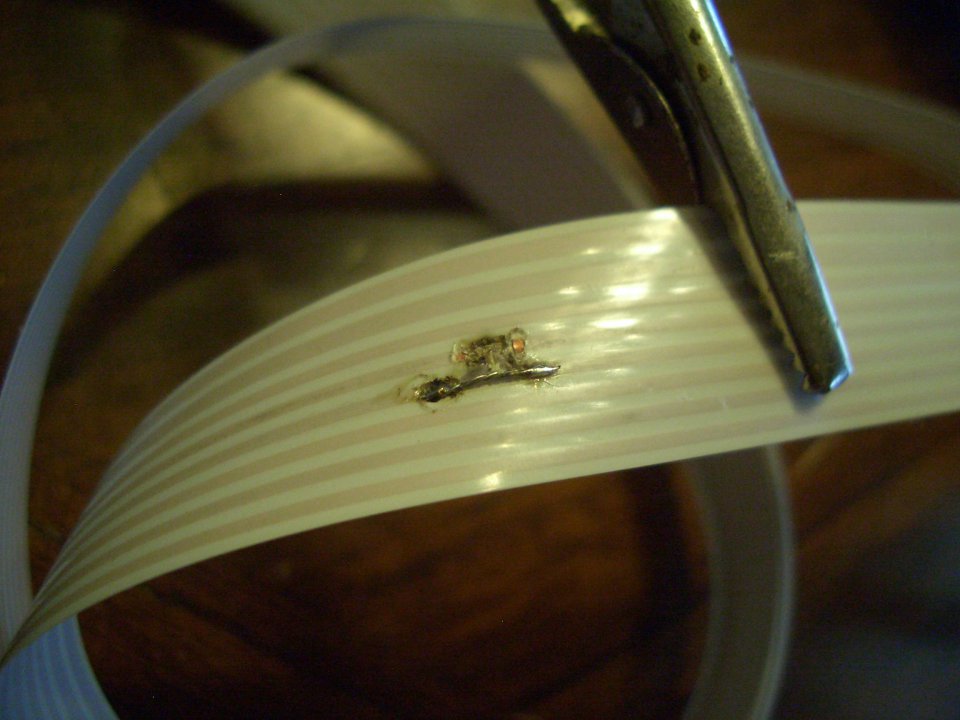

    Now, you can't see in the picture, but I burned a hole right through the ribbon cable trying to tin the copper so I could attach the wires. This stuff is paper thin! I was a production solderer for 8 years soldering SMT components on a daily basis, but this was one of the most challenging jobs I've ever done. I used a Weller WTCPT production station with a PTS8 tip. If you don't know what any of that is, please do not attempt this repair!
    Finally got them both connected. Continuity was checked with my Fluke. Good to go.

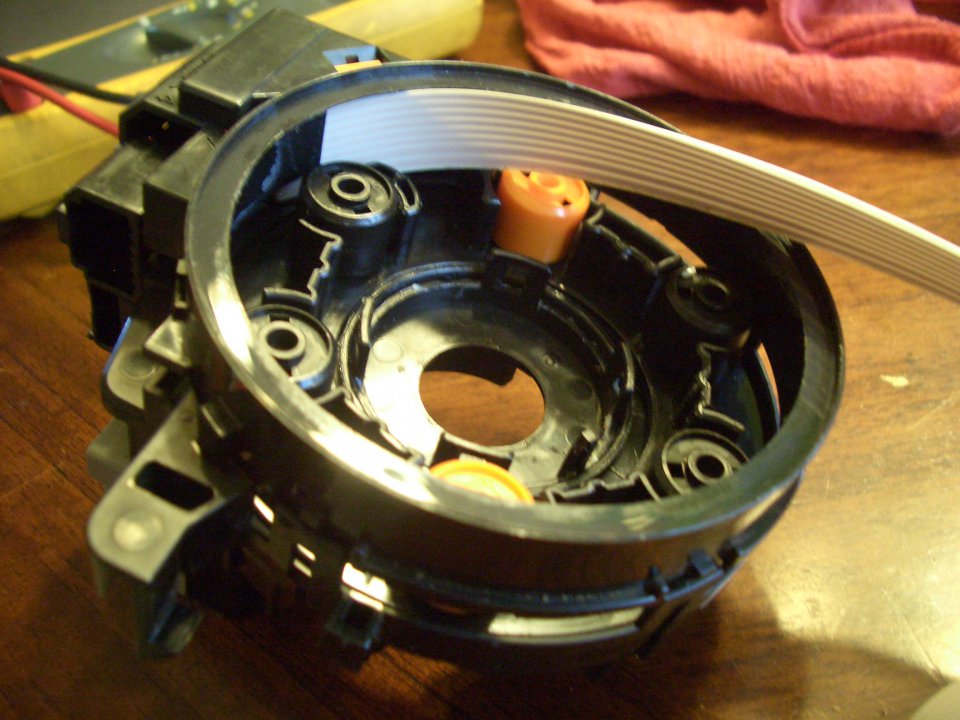

    Now to reassemble: CIMG2987.JPG Be sure to run the ribbon cable back through the slot in the plastic ring, then snap it back on.

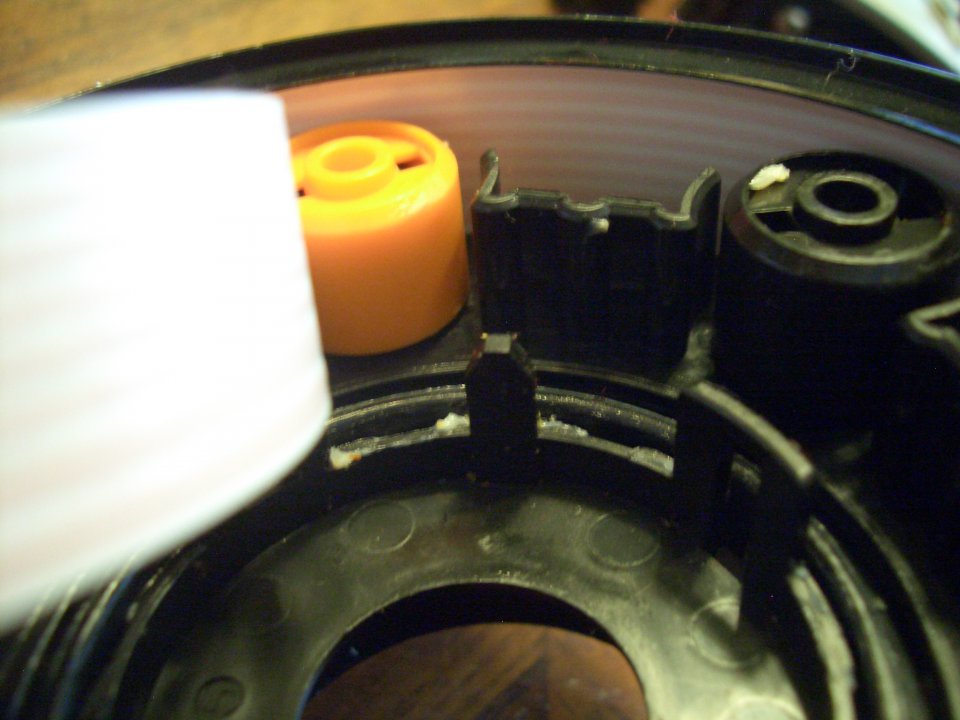

    CIMG2991.JPG I slowly wound the cable back into the housing. See that spike of plastic sticking up? That indexes to the inner hub here:
    Ensure that the inner hub is going to line up correctly:

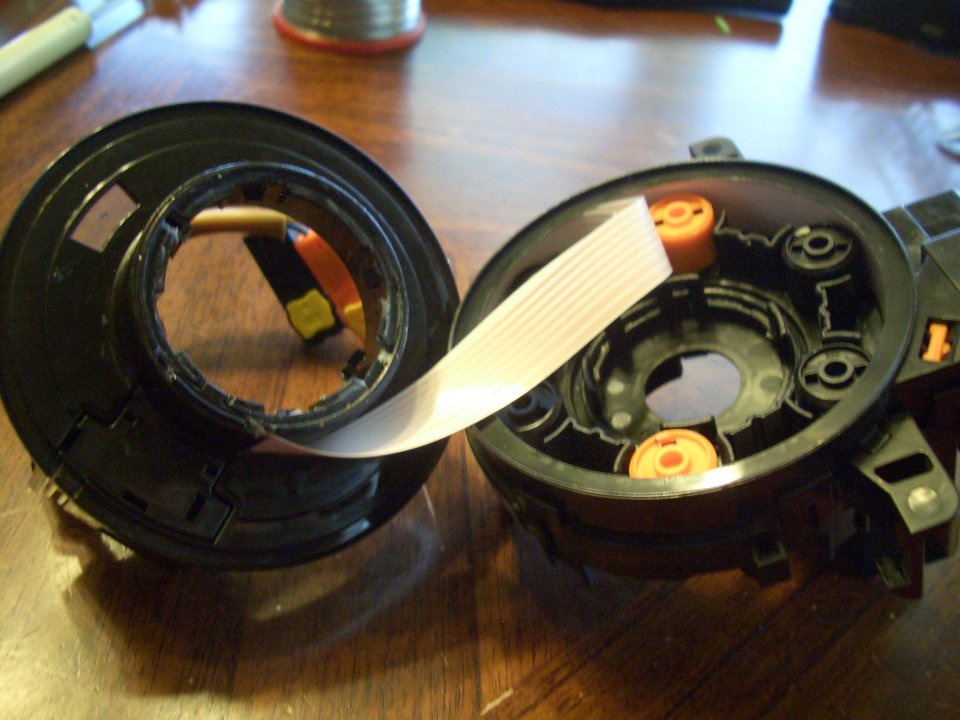

    CIMG2988.JPG Snap it back together. Slowly spin it and see that nothing is binding, and check continuity again.

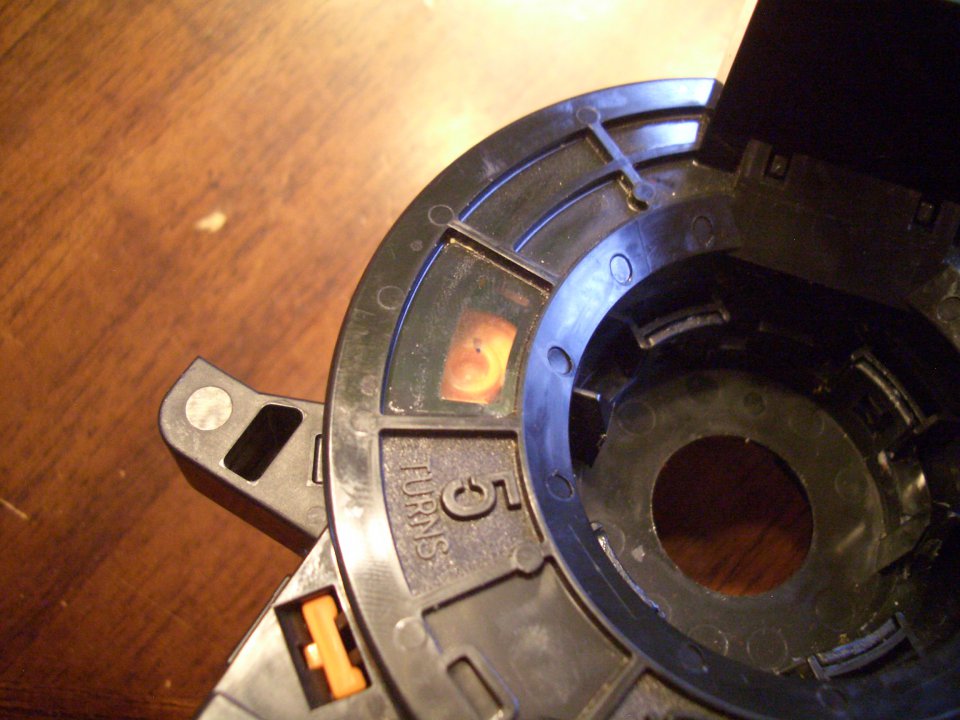

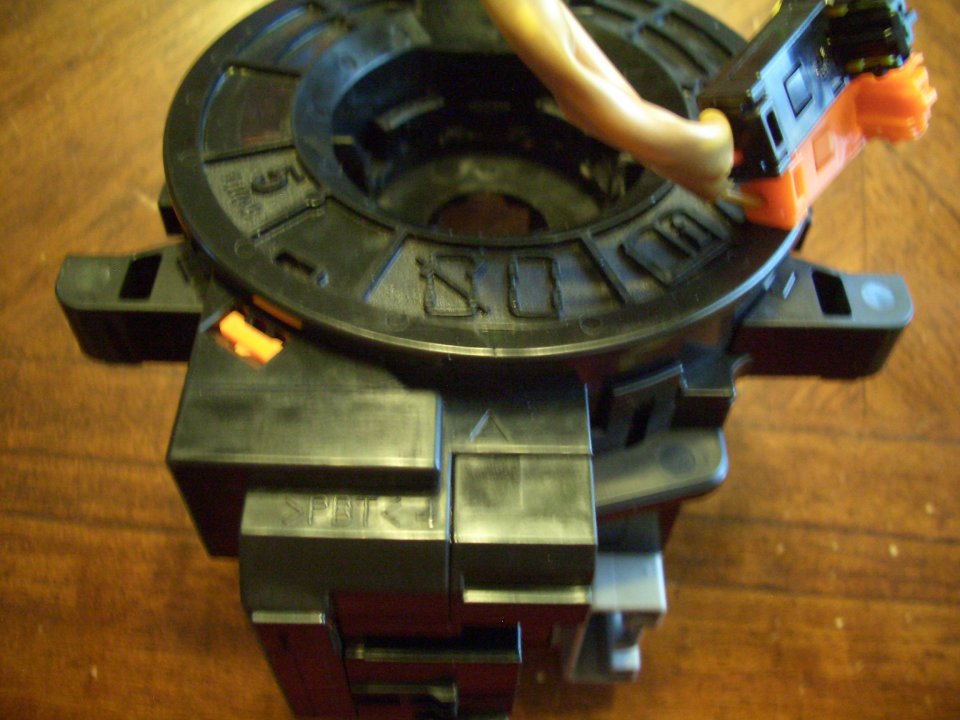

    CIMG2993.JPG Slowly turn the inner hub until you can see the orange disc in the window, and the arrows below line up:
    Now it is centered and ready to install on the car, assuming you pulled the steering wheel with the tires pointed directly ahead.

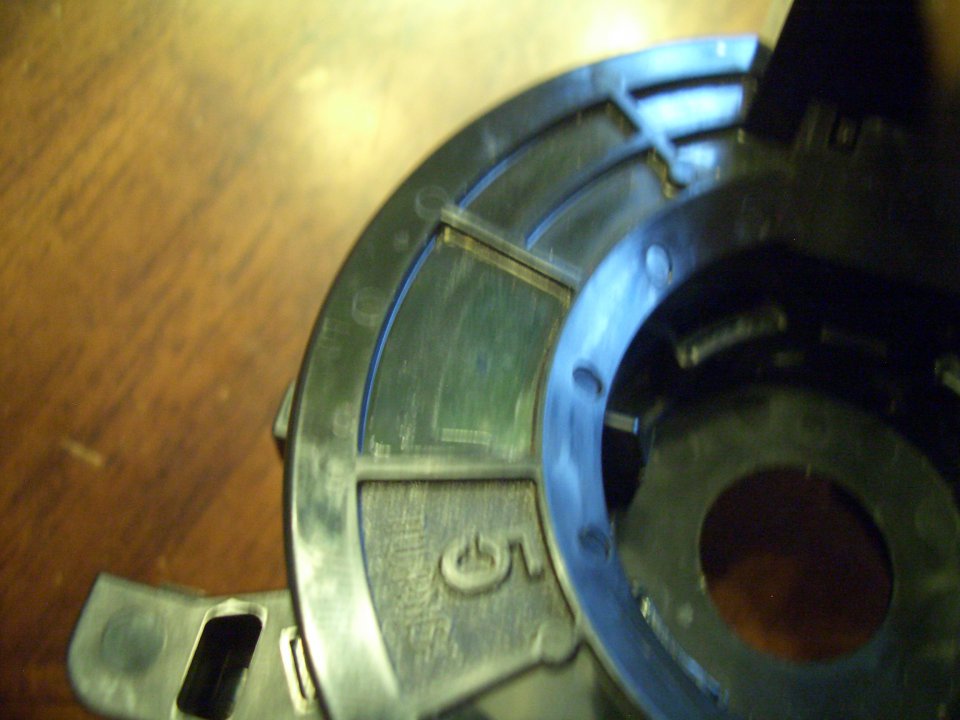

    CIMG2994.JPG No orange disc means it is not centered. Carefully spin the inner hub ring until it appears.

    So for about an hours worth of time, I saved $213.68 plus shipping (cheapest dealership I could find was Olathe Toyota in Kansas City). I'm just happy I can use the defrost without having to push buttons on the MFD when it is cold outside.
    If my repair eventually fails, I'll post back.
