2008 A/c Blower Motor Not working

Discussion in 'Gen 2 Prius Main Forum' started by richard203, Oct 21, 2021.

  1. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    Hi my blower motor not working put in a new one and still dont work. I tried to switch out a new blower motor module and still dont work. any 1 have any idea?

  2. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    94,756
    42,974
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    maybe the mfd?

  3. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    you talking about the screen display?

    bisco likes this.
  4. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    94,756
    42,974
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
  5. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    i think the screen display is working since when i change to interior air the a/c open up and then when i change bak to outside air the a/c close back up.

  6. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    94,756
    42,974
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    each button stands alone. check to see if you are getting voltage at the board

  7. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    So I think it’s my Amplifier Control Module I tried to test if there’s any voltage on the 3 pin wire that connect to the blower motor module and I’m not getting any voltage. Do I have to take out the dash to get to the ac amplifier?

  8. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    I’ll use a techstream to active the blower motor to see if it active if it active then it’s the screen if it don’t work then it might be the amplifier or the wires

  9. bisco

    bisco cookie crumbler

    Joined:
    May 11, 2005
    94,756
    42,974
    0
    Location:
    boston
    Vehicle:
    2012 Prius Plug-in
    Model:
    Plug-in Base
    Good luck, you’re above my pay grade now

  10. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,097
    449
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    You should have 12-14V on the large black wire and 0V (ground) at the white-black wire with the car in "ignition on" or "ready" modes. If you don't have power then you need to go back to the heater relay and (40A) heater fuse and test there.

    You'll want to have look at a wiring diagram in the service manual.

    Posted via the PriusChat mobile app.

  11. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    how do i check heater fuse is blown (40a) ? and for the heater relay theres two? R3 and R4 is heater relay do i check both?

  12. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,097
    449
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    My diagram only shows one "HTR" relay (in the driver's side junction box).
    The manual says you should pull heater fuse H (40Amps - in the engine room junction box) and check resistance - less than 1 ohm. Me, I prefer to check for power where it's supposed to be (at the battery power terminal for the heater relay).

    You can use a multimeter to measure voltage level, but that won't stress a high current circuit like the heater power feed (you could have a high resistance somewhere in the circuit but not "see" it because there is no load to make voltage drop). A 12V "test light" will draw 1/4 to 1/2 amp and can determine if some power is present-(just use it only on circuits that can handle that current). For something like this heater supply, I might add some jumper wires to a halogen "sealed beam" headlight and connect one wire to the battery circuit terminal and the other jumper to ground (metal on the car body). Depending on how you wire it, some headlight bulbs will draw 5-8 Amps- which is a nice load for this circuit. Screenshot_20211022-231427.jpeg

    Posted via the PriusChat mobile app.

  13. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    How do you pull out the Heater Fuse (40A)? when I look at the cover it shows the 40A is inside the circle box and just copper metal?


  14. dolj

    dolj Senior Member

    Joined:
    May 14, 2012
    5,797
    3,093
    0
    Location:
    Wellington, New Zealand
    Vehicle:
    2007 Prius
    Model:
    N/A
    Inspect the 40 A fuse visually, and if it does not look intact, you will need to remove and replace the whole fusible link as a unit.

  15. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,097
    449
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    The blower diagnostic write up in the manual doesn't mention that the 40amps fuse is part of the fusible link assembly. As mentioned you should first look at it closely. If it appears to be the same as the others next to it then it is probably ok .

    Now to be clear, when you have the car in ready mode and have the blower control switched "on", then you do NOT have 12-14V at the large black wire on the 3 wire connector to the blower control module?

    If that is true and the 40A fuse looks good then you need to test at the HTR relay (R2) at the driver's junction box - and/or the JB connectors to see why there is no power from the relay.

    First I would use a digital meter to determine which terminals are which at the relay and what voltages are present- or not. (Only after I KNOW which terminal is the Battery feed, then I might use a headlight bulb to test that circuit if needed. There are also low current circuits in the connector that trigger the relay coil that could be damaged by a high load like the bulb) Screenshot_20211024-112707.jpeg

    Posted via the PriusChat mobile app.

  16. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----
    where is that fuse box located? the website doesnt show where the location is but other fuse box it shows the location

  17. mr_guy_mann

    mr_guy_mann Senior Member

    Joined:
    Sep 3, 2020
    1,097
    449
    0
    Location:
    NJ-USA
    Vehicle:
    2006 Prius
    Model:
    Four
    Sorry, but I can't read your mind. I don't know which fuse box you are referring to when you say "the other" or "that".

    Near the very top of the Air Conditioning section in the service manual (pages AC-3 and AC-4) is the parts locator that shows where the driver's junction box and engine room junction box is.

    Posted via the PriusChat mobile app.

  18. lexidium

    lexidium Member

    Joined:
    Nov 19, 2015
    158
    65
    0
    Location:
    manchester
    Vehicle:
    2008 Prius
    Model:
    N/A
    Where did you buy the parts?
    Was it from Ebay used?

  19. richard203

    richard203 Member

    Joined:
    Jan 23, 2019
    163
    34
    0
    Location:
    SF
    Vehicle:
    2008 Prius
    Model:
    ----USA----

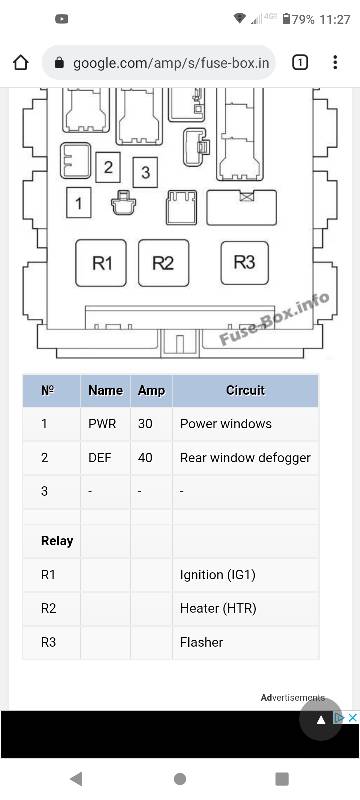

    this fuse box
