2008 Won't start

Discussion in 'Gen 2 Prius Care, Maintenance and Troubleshooting' started by ladydeadpool, Aug 1, 2017.

  1. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    I have a 2008 Prius that isn't starting. I charged the 12v for a few hours on the battery charger, it had good voltage. I took it to NAPA and they tested it and said it was fine. I bought it new in late 2015.

    When I turn it on, everything works (lights, radio, etc,) but the READY light does not come on. Also, several dash lights come on (see photos) and the power button's light is red. The car will only shift into neutral. It is also giving error codes P2118, P0A4C, and P0A4D.

    This vehicle had electrical issues in late 2015, around the time I bought the battery. After a couple weeks in the shop, they found that the "bus bar" in the fuse box was blown.

    Any ideas what could be going on before I take it to the shop? Any ideas are appreciated :)

  2. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    IMG_2921.JPG IMG_2920.JPG

    #2 ladydeadpool, Aug 1, 2017
    Last edited: Aug 1, 2017
  3. Travis Decker

    Travis Decker Active Member

    Joined:
    Jul 15, 2015
    139
    115
    0
    Location:
    Portland OR
    Vehicle:
    2012 Prius
    Model:
    II
    That all points to an issue with the motor of resolver. You need to look at the connection on the outside of the transmission case where the wiring harness connects to the motor position sensor. They have been known to fill up with water or get corroded

  4. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    Did you replace the "buss bar", which is called the fusible link? Did the car start after that?

  5. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    Yes, they replaced it in late 2015 when they found the problem with it and the car has been fine ever since.

  6. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    Did you ever replace the 12v battery in 2015 or prior to 2015?

    What led to the car not starting this time around? Dead Battery? Did someone try to jump start the car?

  7. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    Yes the 12v was replaced in 2015. I tried to start the car like normal yesterday after coming home from being on vacation for a week.

  8. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    I will look at that! Thank you!

  9. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    If you went on vacation for a week, the battery should not have drained that quickly if it's a 2015 battery.

    Do you have any interior lights? Headlights?

  10. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    Yes, all the lights (interior, head/tail, and brakes,) come on. I tried charging just to see because it seems (from what I've read) the 12v can cause a lot of issues! :confused:

    #10 ladydeadpool, Aug 1, 2017
    Last edited: Aug 1, 2017
  11. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    Are there any evidence of rodent damage? wires being chewed on?

  12. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    Not that I have been able to see.

  13. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    I would suggest you check all your fuses but this just seems odd the car was fine and then won't start.

    Did you by chance mess with the Orange interlock switch on the Hybrid battery?

  14. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    After reading another thread, I checked to make sure it was secure, but didn't mess with it.

  15. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    How did you do that? Was it ever removed?

  16. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II
    [​IMG]

    #16 JC91006, Aug 1, 2017
    Last edited: Aug 1, 2017
    Raytheeagle likes this.
  17. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    I just looked at it, but didn't mess with it; I still had the cover off in the hatch from taking the 12v to have it tested.

  18. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    This was all after I was already having the problem with the car.

  19. ladydeadpool

    ladydeadpool New Member

    Joined:
    Aug 1, 2017
    16
    1
    0
    Location:
    USA
    Vehicle:
    2008 Prius
    Model:
    Base
    I'm going to take it in tomorrow and have it checked. I'll post an update when I find something out. Thank you both so much for all the help!

    Raytheeagle likes this.
  20. JC91006

    JC91006 Senior Member

    Joined:
    Nov 10, 2013
    16,464
    8,377
    0
    Location:
    Los Angeles, CA
    Vehicle:
    2008 Prius
    Model:
    II

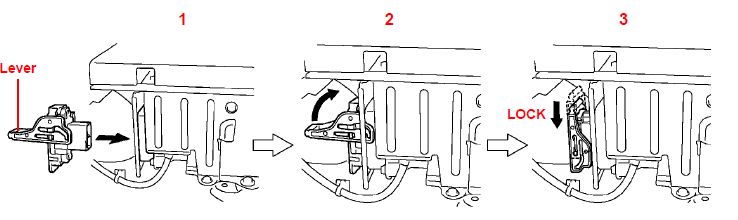

    You may have initially had a drained 12v battery, then you messed with the interlock switch without locking it back in place. After you charged the 12v, the car still won't start because the interlock is not locked into place.

    Check post #16 for the locking procedure.
