2010-2012 Head Gasket failure analysis

Discussion in 'Gen 3 Prius Technical Discussion' started by ToyXW, Apr 9, 2018.

  1. ToyXW

    ToyXW New Member

    Joined:
    Jan 6, 2018
    7
    24
    0
    Location:
    Sacramento
    Vehicle:
    2010 Prius
    Model:
    ----USA----
    Cliff notes: I conclude that Prius headgasket failures are largely the result of a material defect affecting the coating of headgaskets installed on some 2010-2012 Priuses and some 2012 Prius Vs.

    Discussion: There are a couple different types of headgasket failures. In the 1980s and 1990s, what we usually saw was gasket material failing as a result of aluminum heads expanding at a different rate than iron blocks. This created abrasion which accelerated gasket deterioration. At the same time, we had lots of manufacturers and shops switching to extended and long life coolants which could create acidic mixes if the old coolant was not totally flushed. These problems were generally fixed by redesigning headgaskets, using tighter tolerances in the assembly process (smoother surface finishes on the block & head), and sticking with 1 type of quality coolant (e.g. Toyota Red).

    In the hot rodding world, you often blow a head gasket when cylinder pressures run too high. The head literally lifts off the deck and caustic combustion gases start eating away at the gasket. This is addressed by either lowering cylinder pressure -- less power, less heat, or less knock (higher octance, less timing, and/or more fuel) -- or by tightening the head down even more (upgrading head bolts/studs).

    When you look at a failed gasket, a head lift or knock-induced failure generally happens at the thin strip of gasket between cylinders. This is the part of the head that is farthest from the head bolts and most likely to flex. ( Cylinder Head Lift | Technical Bulletins | Fel-Pro Gaskets )

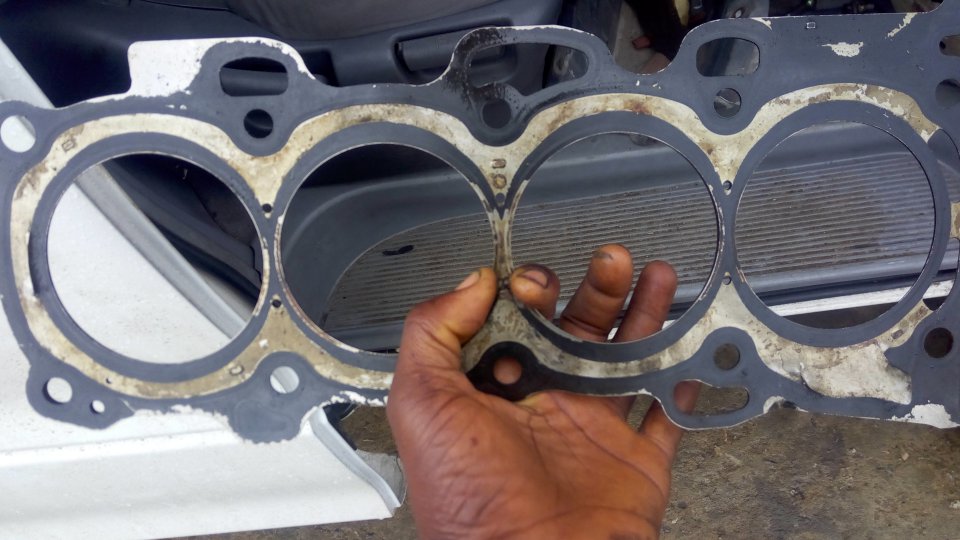

    DXTA posted a picture of this type of failure on a Corolla, right between his fingers:
    [​IMG]

    This can happen on any car if you have it run hot or knock.

    But the failures Leeb18c and I had were different:
    LeeB18c
    [​IMG]

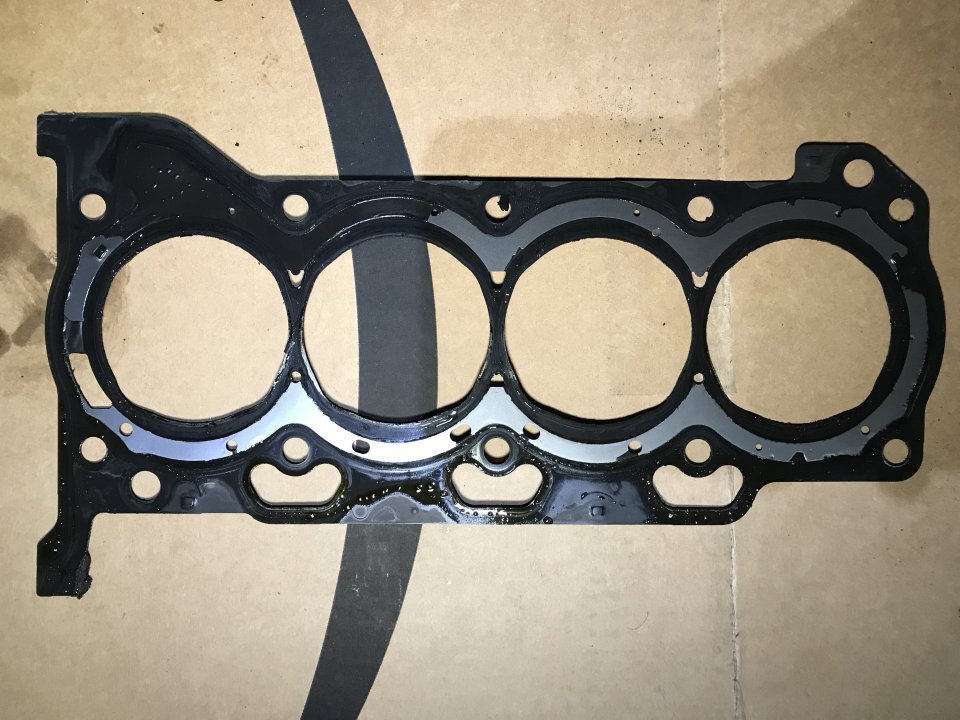

    Mine:

    Notice that the gasket coating on Lee's is totally eaten away where the coolant comes in contact with the gasket -- all around the entire gasket. On mine is is eaten away almost completely on half of cylinder 1, but still intact for most of the gasket. Unlike Lees, mine did eat through the combustion ring into the cylinder which caused white smoke & the (not so) sweet smell of coolant being burned. I did have a start-up knock for about a week which probably pushed my gasket the rest of the way into the grave (I replaced coils, plugs, boots, water pump, thermostat, and cleaned & flow tested my injectors. Everything tested/looked fine, except my EGR cooler was partially blocked).

    Hypothesis: Old coolant, which tends to get acidic, eats away at a less than optimal gasket coating over time and leads to a failure. Knocks or misfires can help speed this up, but aren't the cause.

    As evidence of my hypothesis, take a look at the original Toyota part numbers for head gaskets:

    2010-2012 Prius, 2012 Prius V: 11115-37051
    2012-2015 Prius, Prius V: 11115-37060
    2015+ Prius: 11115-37061

    37060 replaced 37051, and 37061 now replaces both. Sometimes these part number changes just happen without any design changes, but since gasket failures on 2013+ cars are very rare (and no changes were made to cylinder head torque), I believe the coating was improved to be more durable. Additionally, the jump in numbers from 37051 to 37060 to me suggests a design change as opposed to an incremental change like 37060 to 37061.

    If this is true, owners of 2010-2012 cars may be able to mitigate the risk of head gasket failure by changing coolant more often (mine was not changed for 7 years & 120,000 miles - gasket failed at 130,000). And if they replace their head gasket with a new version, they may not have issues again (I have yet to hear of a 2nd blown gasket, and neither have a couple of hybrid shops I polled). For best results, combine with EGR (and manifold/TB) cleaning at regular intervals.


    Additional questions: Does more electrical current flow through the engine block/head of a hybrid vehicle? If so, does current flow accelerate coolant degradation?
