2010 Prius OEM-quality Fog Light Kit Now Available!

Discussion in 'Gen 3 Prius Accessories and Modifications' started by Danny, May 10, 2010.

  1. donroger1

    donroger1 Junior Member

    Joined:
    Jun 25, 2012
    12
    3
    0
    Vehicle:
    Other Non-Hybrid
    Model:
    N/A

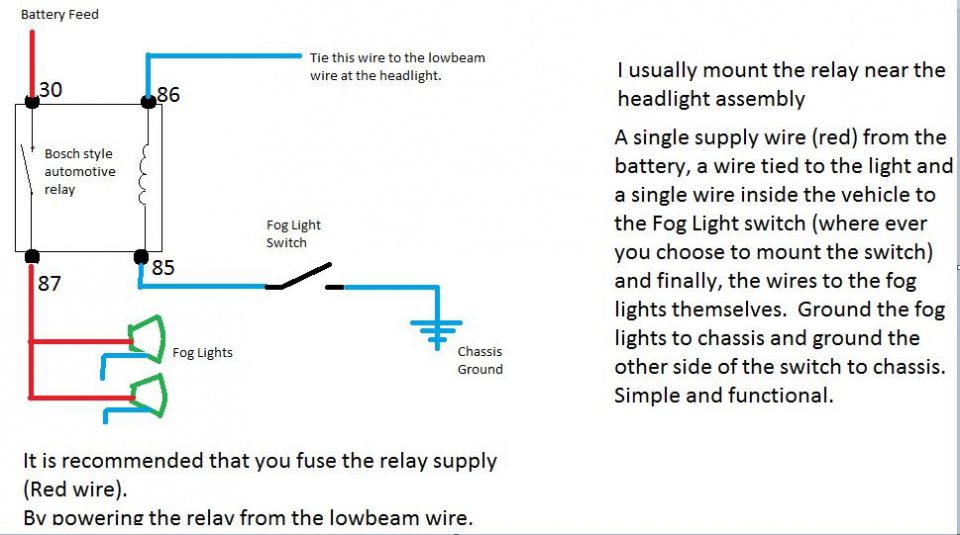

    It wasn't directed at you, Jeff but I have a sample wiring diagram that will do what you need.
    Let's just see if I can attach them to this post.

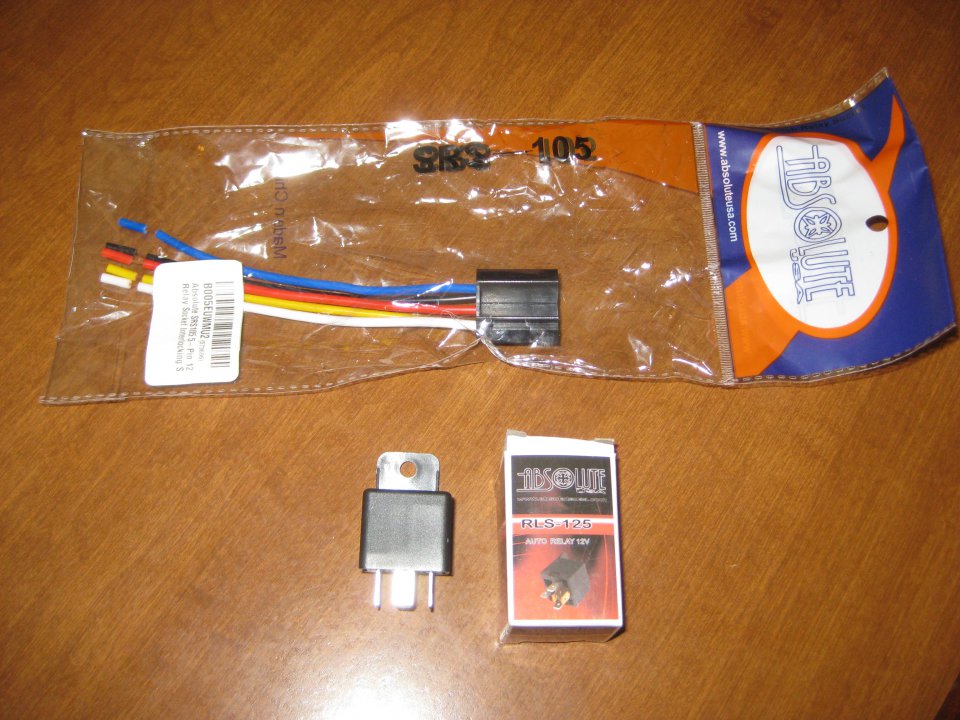

    The relay and relay harness are available on Amazon or most local automotive stores. Sample fog light wiring snip.JPG IMG_5614.JPG Sample fog light wiring snip.JPG

  2. Andrew Wilson

    Andrew Wilson New Member

    Joined:
    Dec 6, 2013
    3
    0
    0
    Location:
    Seattle, WA
    Vehicle:
    2010 Prius
    Model:
    Two

    The fog light switch connecter only had 3 wires coming out of it. One was for ground, one was for power, and one was the output to relay in the engine Compartment. I followed the instructions posted on this thread, as switch was identical. Black is grounded, Red is tied to the light tan wire coming off of ECU, and Grey wire goes through firewall to relay. I didnt see a 4th connection point for the illumination on switch & thought it fed directly off of the Red wire when switch was on. Am I missing something obvious?

    Another oddity is that the foglights can be used all the time, even when car is shut down. Other than remembering to turn them off, this is no big deal, but it doesnt match what instructions on here said for limitations. I checked several times to make sure wire I tapped matched the one in picture. Very odd.

  3. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Andrew, it sounds like you have the wrong wire tapped from the ECU connector. If it is the right brown wire, it should only have power when the parking and lowbeam lights are on.

    ydpplqbd likes this.
  4. WolfpackBill

    WolfpackBill Active Member

    Joined:
    Mar 28, 2014
    333
    487
    6
    Location:
    Lexington, NC
    Vehicle:
    2010 Prius
    Model:
    IV

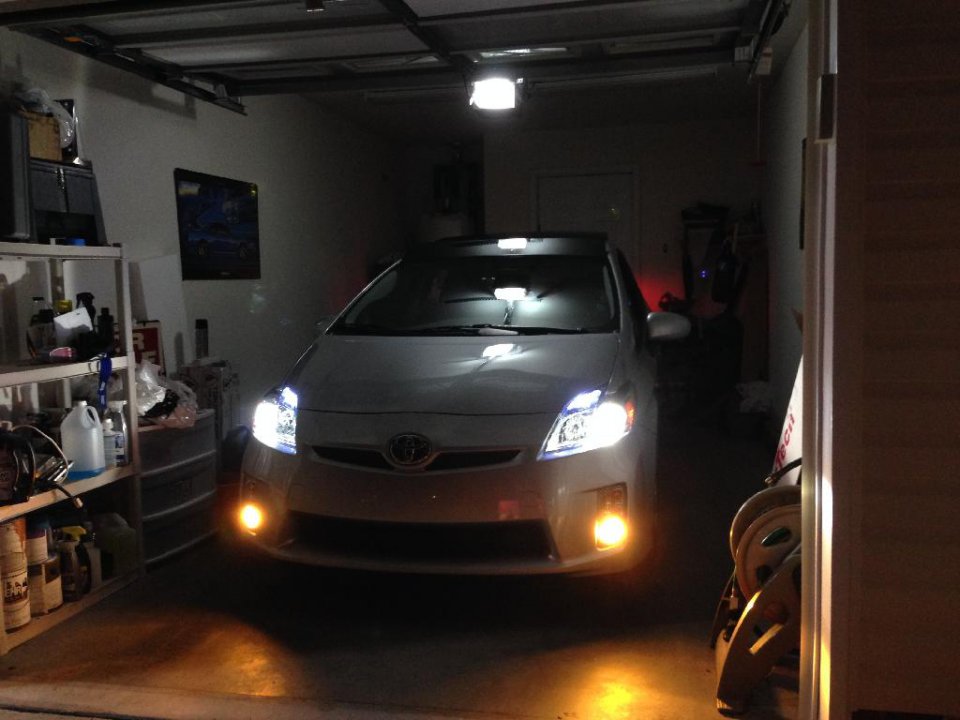

    I've just installed my fog lights on my 2010 IV. Took me 3.5 hours to do. I spent 20 minutes trying to aim the lights and they look really nice!


    Attached Files:

    ydpplqbd, xliderider and sfv41901 like this.
  5. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two
    I was having trouble with the driver side fog light. The passenger side worked fine.
    When I had the bumper off I discovered this:
    [​IMG]

    Hard to see but looks like it melted around the contact:
    [​IMG]

    The matching terminal on the bulb was all black

    Anyone know were I could get another plug like this? I'd like to fix it when I replace my bumper.

  6. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    There is a link in my signature below (highbeam DRLs). There is a link in that thread on where I sourced some connectors and terminals for that project. It will only cost you a few dollars.

    Here's the link: Automotive Car Truck Light Bulb Connectors Sockets Wiring Harnesses Receptacles scroll down to Headlight connectors (contact pins and sockets).

    Definitely check the other connector and terminal for damage as well. Looks like some arcing occurred due to a bad connection. Probably due to being pulled during the accident.

    Edit: NVM, I realize the other side of that connector is the bulb. :p

    SCH-I535

    #546 xliderider, Jul 18, 2014
    Last edited: Jul 18, 2014
  7. JStrenk

    JStrenk Member

    Joined:
    Nov 29, 2011
    197
    97
    0
    Location:
    Ravenna
    Vehicle:
    2016 Prius
    Model:
    Two
    Hey thanks, now I just have to figure out which one! :)
    I know there was a number on it but I didn't get a picture of it.

    It's been dead for about 6 months now, I just hadn't had time to get to it until now.

  8. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    Look on the back of the bulb for the connector type. Probably H11.

    SCH-I535

  9. engerysaver

    engerysaver Real Senior Member

    Joined:
    Nov 26, 2011
    424
    128
    0
    Location:
    Tyler, Texas ; USA
    Vehicle:
    2011 Prius
    Model:
    Two
  10. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    In almost all jurisdictions, blue lights mounted to the front or rear of a vehicle is illegal.

    SCH-I535

  11. engerysaver

    engerysaver Real Senior Member

    Joined:
    Nov 26, 2011
    424
    128
    0
    Location:
    Tyler, Texas ; USA
    Vehicle:
    2011 Prius
    Model:
    Two
    I think flashing is the key word.
    Texas code Sec. 547.305:
    (a) A motor vehicle lamp or illuminating device, other than a headlamp, spotlamp, auxiliary lamp, turn signal lamp, or emergency vehicle or school bus warning lamp, that projects a beam with an intensity brighter than 300 candlepower shall be directed so that no part of the high-intensity portion of the beam strikes the roadway at a distance of more than 75 feet from the vehicle.

    (b) Except as expressly authorized by law, a person may not operate or move equipment or a vehicle, other than a police vehicle, with a lamp or device that displays a red light visible from directly in front of the center of the equipment or vehicle.

    (c) A person may not operate a motor vehicle equipped with a red, white, or blue beacon, flashing, or alternating light unless the equipment is:

    o_OI'm all ways pushing the envelope!!:cautious::giggle:

  12. jssingh

    jssingh Junior Member

    Joined:
    Jan 26, 2011
    1
    0
    0
    Location:
    San Antonio, TX
    Vehicle:
    2010 Prius
    Model:
    IV
    So my 2010 prius has to move to Canada and its law requires that I should have DRLs. Has someone who has installed this lamp kit successful in making these lights into DRL's? Do the instructions included suggest the installer on how to do so?

    As long as I can have them turn on when I turn the ignition and vice versa, I'll be a happy camper!

    Much appreciated! I'll probably be getting these installed by someone else since I am not much familiar with auto wiring.

  13. DaneH5

    DaneH5 Member

    Joined:
    Aug 12, 2014
    464
    60
    0
    Location:
    Pinellas, Florida
    Vehicle:
    2014 Prius
    Model:
    Three
    Where is the headlight limit law written? I had always thought the manufacture wiring figures you won't have high beams on in fog, so fog lights won't work on high and only work on low beam so there is no chance of running high in fog with your fog lights.

  14. ramattos

    ramattos Junior Member

    Joined:
    Jun 25, 2012
    57
    2
    0
    Location:
    Bethlehem PA
    Vehicle:
    2010 Prius
    Model:
    III
    Is this no longer available? Don't see it in the store and the link is broke

  15. mycnam

    mycnam Member

    Joined:
    Jun 11, 2013
    111
    17
    0
    Location:
    Long Island, NY
    Vehicle:
    2010 Prius
    Model:
    III
    I compared the wiring diagrams for both the Southeast Toyota kit (00016-47401) and the Priuschat kit (PIPL-40C).

    The Southeast Toyota kit (port install but non-OEM) has only three wires going into the fog light switch, therefore it will not light up when the parking light is on. The Priuschat kit (also sold on JuicedHybrid and other websites) has four wires going into the fog light switch, therefore it will light up when powered.

    In this sense, the "OEM quality" kit is even better than the dealer's kit.

  16. bobfox

    bobfox new to Prius

    Joined:
    Jul 16, 2009
    23
    2
    0
    Location:
    PA
    Vehicle:
    2010 Prius
    Model:
    IV
    I had the same problem and completed my repair today, on my 2010 Gen 3 with the Prius Chat fog lights I installed a couple of years ago.
    Connectors: Amico H11 Fog Light Lamp Socket Trun Bulb Connectors for Vehicle 5 Pieces; $9.41 at Amazon
    Crimping connectors (18 gauge) from PepBoys (red colored tube about 1" long)
    Versachem 15339 Dielectric Connector Grease - 3 oz; $8.33 at Amazon
    2 Pcs H11 Super Bright 50w White 6000k Projection LED DRL Fog Light Bulb, by SiriusLED; $29.95 at Amazon

    So I now have very bright LED fog lights, with Dielectric Connector Grease to prevent the shorting when the connectors are wet. I put the old and new connectors side-by-side, in the same orientation, so I would know how to connect the wires for the new connector. I cut off the old connector and used two crimping connectors to connect the new connector to the Prius Chat wiring harness. I put a dab of Dielectric Connector Grease in each of the two female portions of the connector. I pushed the LED bulb onto the connector and rotated the bulb into the rear of the fog light housing. I then repeated the same steps for the other fog light.

  17. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
    You replaced halogen H11 bulbs of approximately 1350 lumens each with an LED "bulb" with 700 lumen output. How do you like it? ;)

  18. bobfox

    bobfox new to Prius

    Joined:
    Jul 16, 2009
    23
    2
    0
    Location:
    PA
    Vehicle:
    2010 Prius
    Model:
    IV
    Oh... you got me! In the absence of the lumens information, I was snookered by the "super bright" marketing talk. The good part of my repair is that I have new connectors with dielectric grease, to prevent more burning and destruction of the connectors when they are wet. The potentially bad part of my repair is that I have reduced the amount of illumination coming from the fog lights. The repair was just done, so I haven't driven at night with the fog lights, to know if I like the LED bulbs. I still have the H11 halogen bulbs, so they are available if I don't like the LED bulbs. Thanks for your enlightening (pun intended) lumens information.

  19. xliderider

    xliderider Senior Member

    Joined:
    Apr 19, 2012
    6,614
    2,382
    0
    Location:
    Honolulu, HI
    Vehicle:
    2011 Prius
    Model:
    Three
  20. bobfox

    bobfox new to Prius

    Joined:
    Jul 16, 2009
    23
    2
    0
    Location:
    PA
    Vehicle:
    2010 Prius
    Model:
    IV
    There isn't any information about brightness. Is your information from your experience?

Loading...
